Vitek VTD-MVH2910/L35 User manual

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

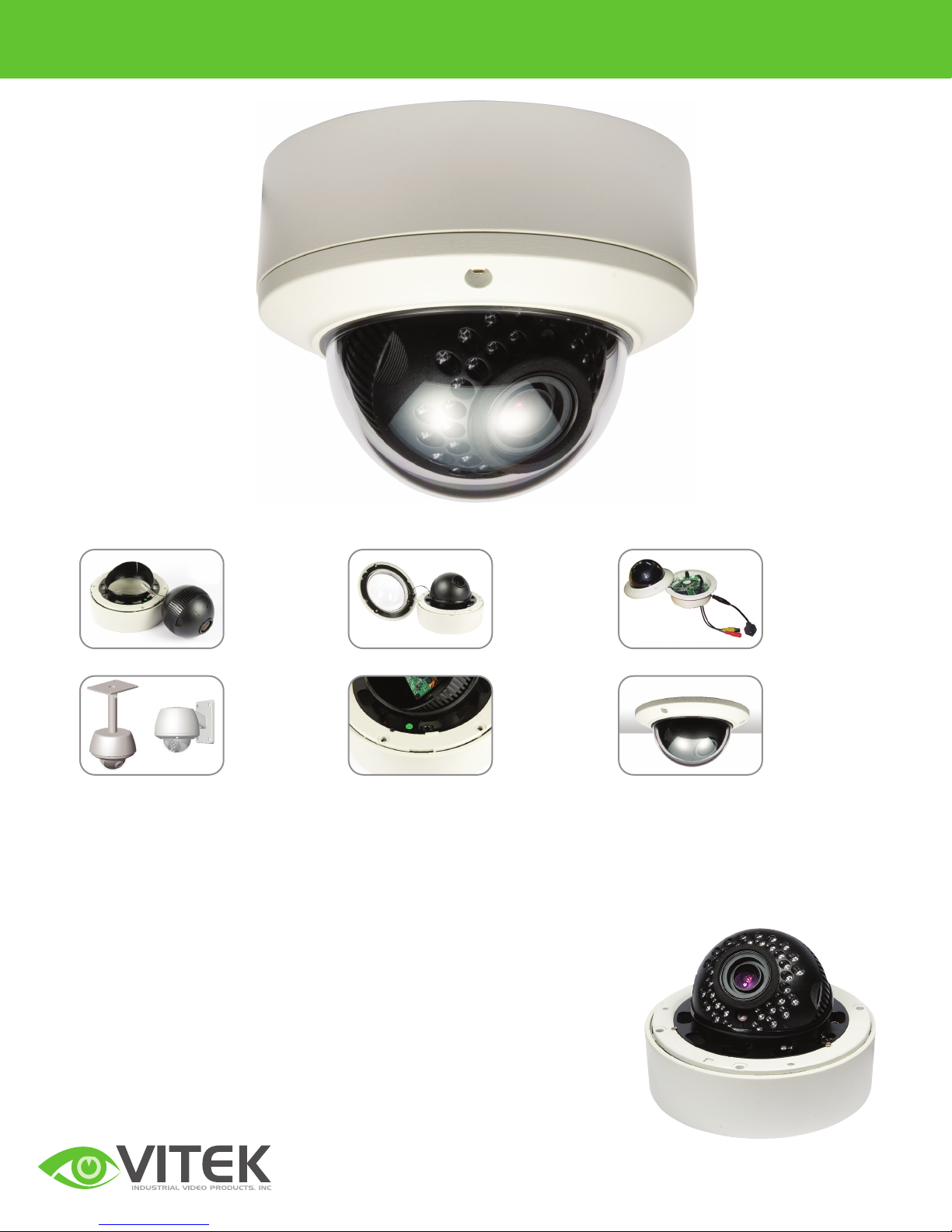

Mighty Dome IR Dome Camera Series with

35 IR LED Illumination

•35 IR LED’s with 90’ Range

•480 and 550 TV Line versions

•Flush or Surface Mount

•UTP interface, IP Integration, and Heater / Blower

Options Available

•Dual Voltage 12VDC & 24VAC

•Infinity Ball Mount for Any Viewing Angle

•Fully Gasketed IP68 Rated Weatherproof Design

•Lens options include: 2.9-10mm & 9-22mm

•Available in off white or black color

FEATURES

VTD-MVH2910/L35 / MVH922/L35

Vandal Proof Color Dome Camera w/2.9-10mm or 9-22mm Varifocal

Lens, 480TVL & 35 IR LED's

VTD-MVX2910/L35 / MVX922/L35

Vandal Proof Color Dome Camera

w/2.9-10mm or 9-22mm Varifocal

Lens, 550TVL & 35 IR LED's

Fully Gasketed

IP68 Rated

Weatherproof

Design

UTP interface, IP

Integration, and

Heater / Blower

Options

Available

Secondary Video

Output Enables

Ease of

Adjustment after

Installation

(Cable not

included)

May be Surface

(Includes

Surface Mount

Casing) or Semi-

Flush Mounted

for Sleek, Low

Profile

Installation.

Friction Fit Ball

Mount Camera

Module Can

Achieve Virtually

Any Viewing

Angle

Optional Wall &

Ceiling Mounts

Available (actual

mounts may vary

from rendering)

Available Configurations Include:

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Mighty Dome IR Dome Camera Series with

35 IR LED Illumination

Detailed Specifications

Image Sensor

Sync System

Scanning system

Lens Options

Horizontal Resolution

Min. Illumination

S/N Ratio

Video Output

Effective Pixels

Electronic Shutter

White Balance

IR LEDs

Weatherproof

Operating Temperature

Operating Humidity

Power Consumption

Power Requirement

Dimensions (H x Dia.)

1/3 Sony New Structure Super HAD CCD

Internal

2:1 Interlace

2.9-10mm or 9-22mm

480 TV Lines 550 TV Lines

Day/Night: 0.02Lux (F1.2@40IRE) / Standard: 0.2Lux (F1.2@40IRE)

More than 50dB AGC OFF at 50IRE

1.0Vp-p composite, 75 Ohms

768(H) x 494(V)

1/60 ~ 1/100,000

2000~8000 K Automatic Tracking

35 LEDs with up to 90' Range

IP68

14ºF ~ 122ºF (-10ºC ~ +50ºC)

Within 85% RH

3 Watts (IR LEDs Off) / 6 Watts (IR LEDs On)

12VDC/24VAC Dual Voltage (1000 mA Minimum)

4.45" x 5.71" (113mm x 145mm)

VTD-MVH2910/L35 / MVH922/L35 VTD-MVX2910/L35 / MVX922/L35
