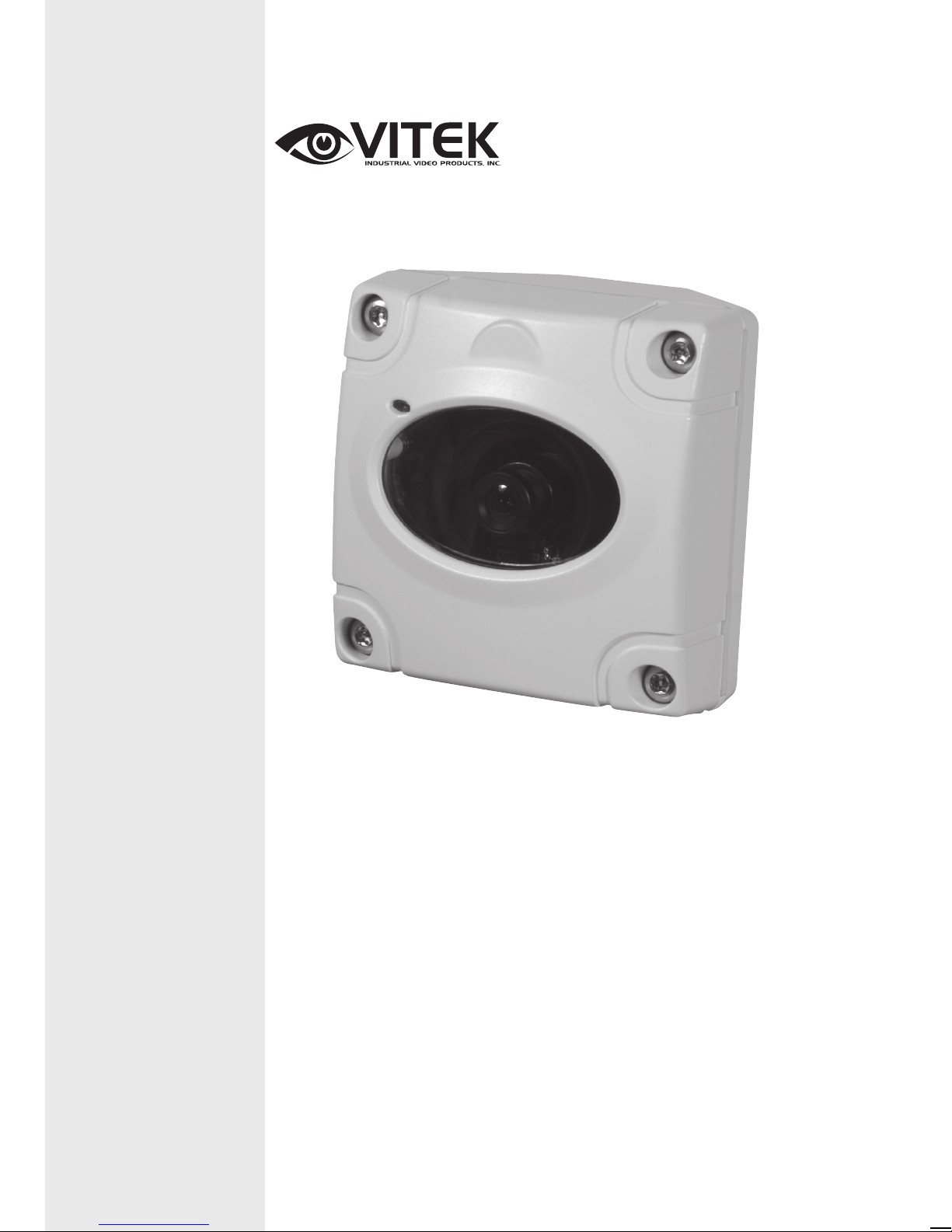

Vitek VTC-EL52H User manual

black

VITEK

•1/3” Color CCD Image Sensor w/550 TV Lines

•Camera Mounted on a 3-Axis Adjustable Bracket to

Achieve the Perfect Viewing Angle

•2.97mm Fixed Iris Lens Included (Optional lenses

available)

•Minimum Illumination of 0.3 Lux

•Aluminum and Polycarbonate Vandal Resistant

Enclosure with IP-66 Weather Resistance

VTC-EL52H

Vandal/Weather Resistant

Corner Mount Camera w/550

TV Lines

Camera adjustment

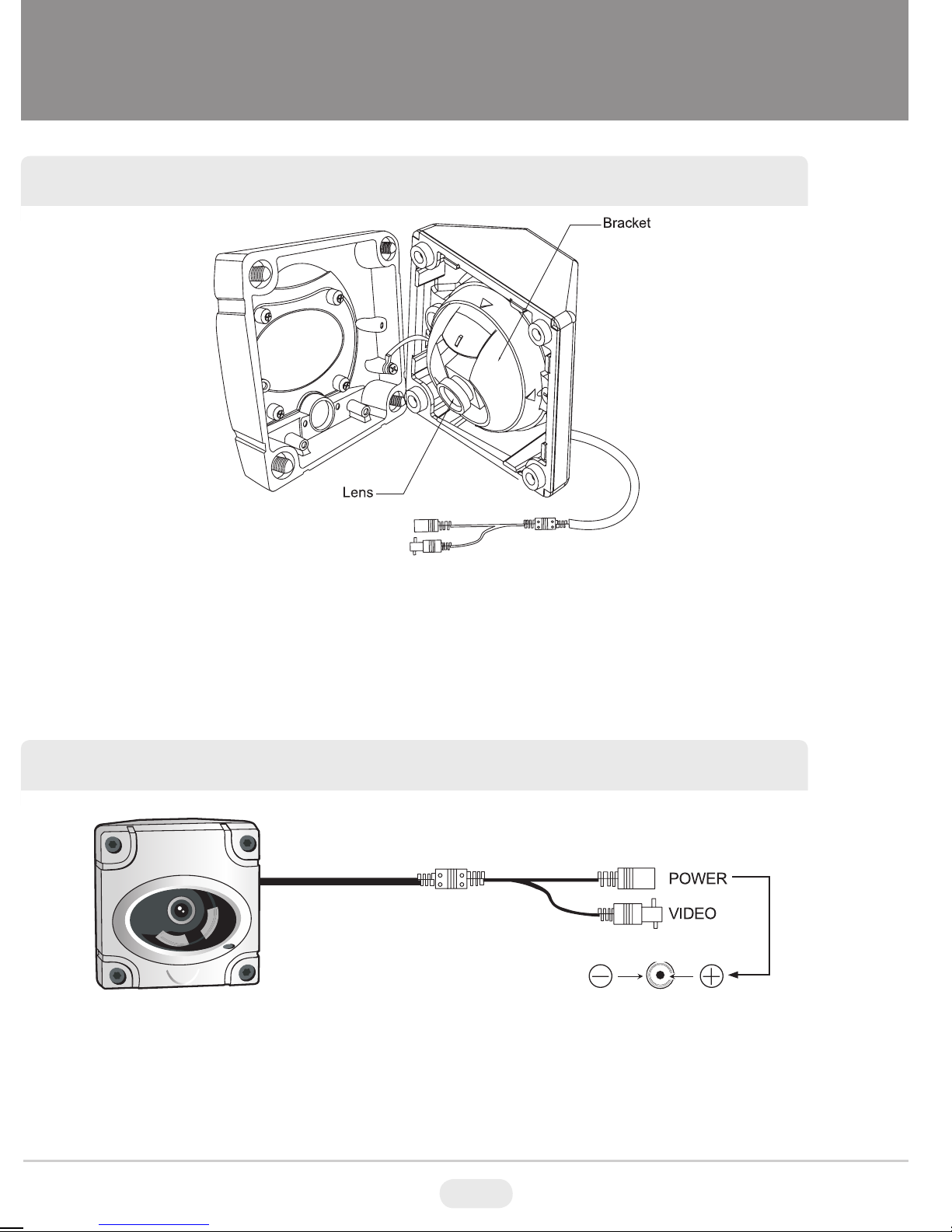

1) Remove the cover and adjust the camera to the desired position with the

adjustment screws

2) Adjust desired focus and scene by tilting and rotating the camera bracket

3) Replace the cover over the base and tighten the 4 safety screws with the included

wrench.

Power ConneCtion

1) A UL Listed 12VDC 300mA power supply is required to operate the camera

2) The camera is equipped with a center positive plug for connecting the power

supply.

black

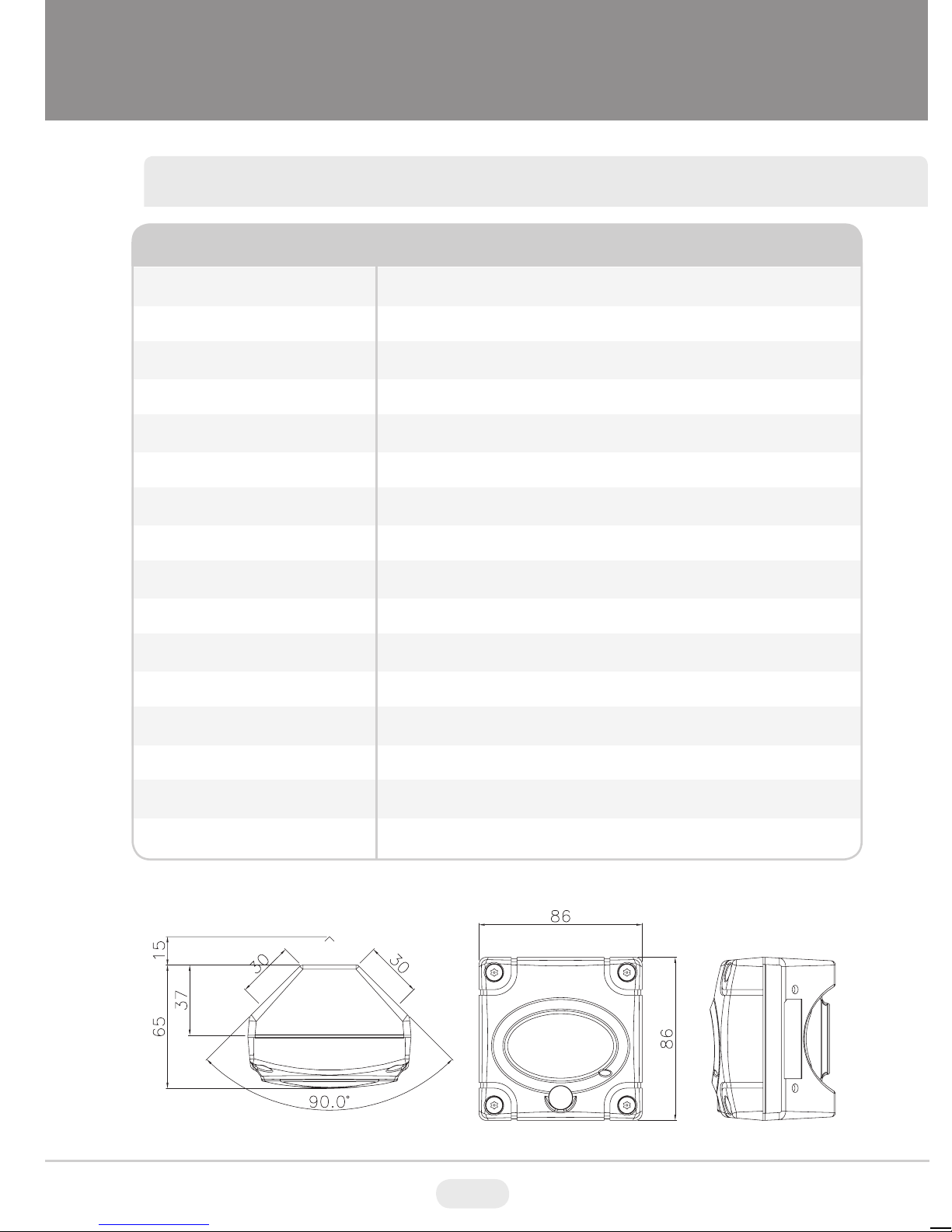

sPeCiFiCations

Image Device

Effective Pixels

Resolution

Scanning System

Min. Illumination

Frequency

S/N Ratio

Lens

Video Output

White Balance

Shutter Speed

IP Rating

Operation Temperature

Power Source

Power Consumption

Weight

1/3” interline transfer CCD

768(H) x 494(V)

More than 550 TV Lines

2:1 Interlace

0.3Lux 40 IRE (F1.2)

Horizontal:15.734 KHz Vertical: 59.94 Hz

50dB (AGC Off)

2.97mm Fixed Iris (Optional lenses available)

1.0Vp-p composite, 75 Ohms

Auto / Fixed / Manual (1,800°K~10,500°K)

1/50~1/100,000

IP-66 Weather Resistance

14°F~122°F (-10°C ~ +50°C) / 30~90% RH

DC12V

Max.160mA

13.4 oz. (380g)

SPECIFICATIONS

Limited LiaBiLitY warrantY

Your new Camera is guaranteed to be free from defects in materials

and workmanship for a period of three years from the date of

purchase.

The product must have been used only for its intended purpose,

and not been subjected to damage by misuse, willful or accidental

damage, caused by excessive voltage or lightning.

The product must not have been tampered with in any way then the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact an Authorized VITEK reseller for all servicing needs.

28492 Constellation Road ValenCia, Ca 91355

WWW.ViteKCCtV.CoM
