VIA Technologies VB6002 Series User manual
November 16, 2006 Version 1.01
Operating Guide
VB6002-Series Mini-ITX Mainboard
VB6002-Series Operating Guide
November 16, 2006 - i - Version 1.01
Table of Contents
Table of Contents.............................................................................................................................................................................i
VIA VB6002-Series Overview........................................................................................................................................................1
VIA VB6002-Series Layout............................................................................................................................................................2
VIA VB6002-Series Specifications.................................................................................................................................................3
VIA VB6002 Processor SKUs........................................................................................................................................................4
VIA VN800 Chipset Overview.......................................................................................................................................................5
VIA VB6002-Series I/O Back Panel Layout.................................................................................................................................6
VIA VB6002-Series Layout Diagram & Mounting Holes............................................................................................................7
VIA VB6002-Series Layout Diagram & Height Distribution......................................................................................................8
Power Consumption .......................................................................................................................................................................9
VIA VB6002 1.5 GHZ..................................................................................................................................................................9
VIA VB6002 2.26 GHZ.............................................................................................................................................................. 10
Power Specifications.....................................................................................................................................................................12
VIA VB6002-Series Microsoft and Linux Driver Support........................................................................................................13
MICROSOFT DRIVER SUPPORT......................................................................................................................................................13
LINUX DRIVER SUPPORT..............................................................................................................................................................13
Contact...........................................................................................................................................................................................14
VB6002-Series Operating Guide
November 16, 2006 - 1 - Version 1.01
VIA VB6002-Series Overview
The VIA VB6002-Series Mini-ITX Mainboard is an ultra compact native x86 platform optimized for today's
demanding embedded and productivity applications. The mainboard is based on the VIA VN800 chipset
featuring an embedded hardware MPEG-2 accelerator and integrated VIA UniChrome™ Pro 2D/3D
graphics for rich digital media performance. With the sizable memory bandwidth of DDR2 533MHz
SDRAM DIMM and the high data transfer speeds of ATA-133 and further enhanced by support of 6-
Channel AC’97 codec for Smart 5.1 surround sound and SPDIF, the VIA VB6002-Series delivers the
increased performance levels required by today’s embedded digital media applications.
The latest in high-bandwidth connectivity is supported with four USB 2.0 ports, as well as a COM port and
has one 10/100 Fast Ethernet port for extended broadband connectivity. The VIA VB6002-Series also
has one PCI slot for expandability options. The VIA VB6002-Series is compatible with a full range of
Mini-ITX chassis as well as FlexATX and MicroATX enclosures and power supplies.
The VIA VB6002-Series is fully compatible with Microsoft® and Linux operating systems and is available
in a variety of configurations, including the Intel® Pentium® M or Celeron® M Socket 479 processors for
x86 processor platforms.
VB6002-Series Operating Guide
November 16, 2006 - 2 - Version 1.01

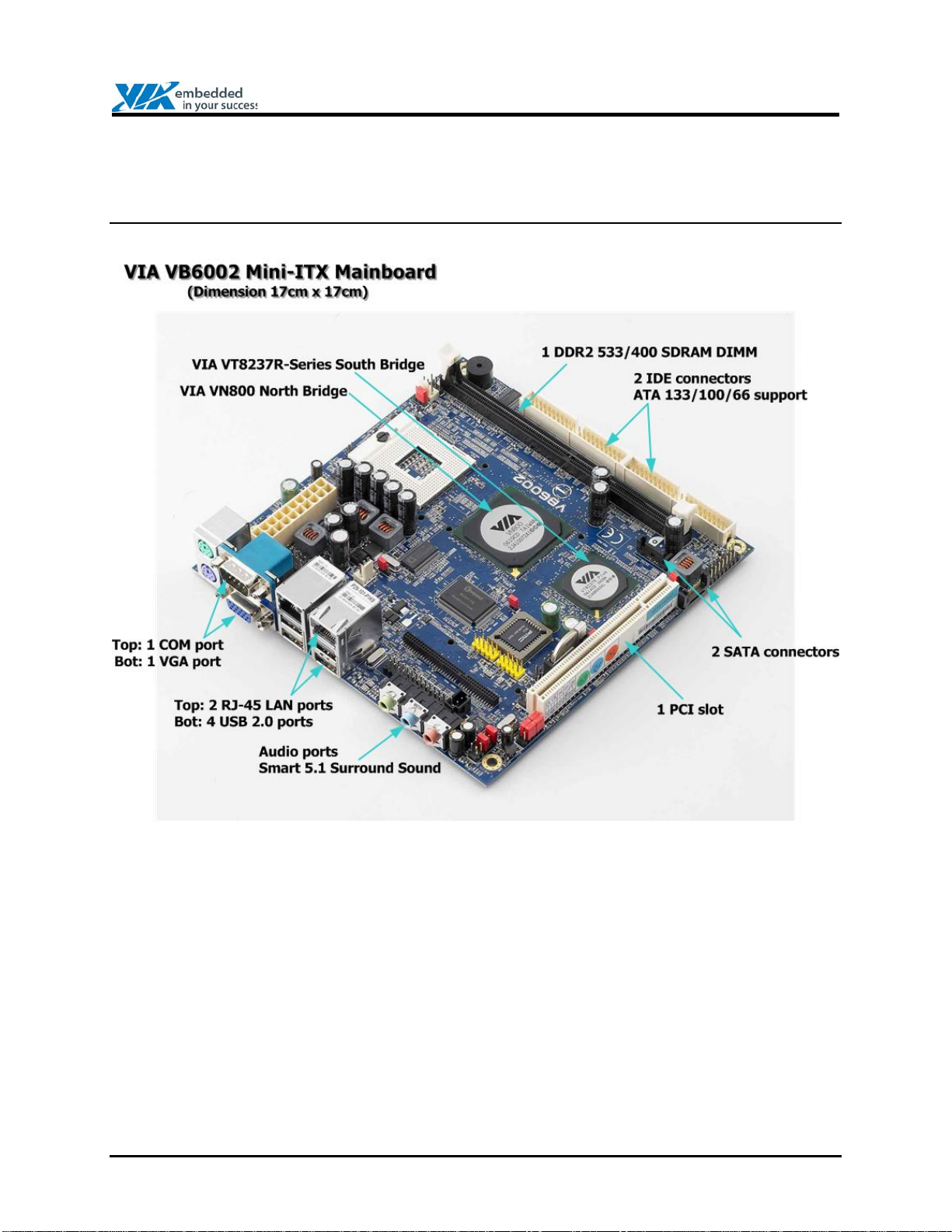

VIA VB6002-Series Layout
VB6002-Series Operating Guide
November 16, 2006 - 3 - Version 1.01
VIA VB6002-Series Specifications
Model Name VB6002
Processor Intel Pentium-M/Celeron-M Socket 479 Processor
Chipset - VIA VN800 North Bridge
- VIA VT8237R-Series South Bridge
System Memory - 1 DDR2 533/400 DIMM slot
- Up to 1GB memory size
VGA - Integrated VIA UniChrome™ Pro AGP graphics with MPEG-2 acceleration
Expansion Slots - 1 PCI
Onboard IDE - 2 UltraDMA 133/100/66 Connectors
Onboard LAN - VIA VT6103L 10/100 Base-TX Ethernet PHY
- VIA VT6107 10/100 Mbps Fast Ethernet (default) or VT6122 Gigabit
Ethernet Controller
Onboard Audio - VIA VT1618 8-channel AC’97 Codec
Onboard I/O
Connectors - 1 ATX Power Connector
- 1 Buzzer
- 1 CIR pin header (switchable for KB/MS)
- 1 Digital I/O pin header
- 2 Fan connectors: CPU/Sys FAN
- 1 Front-panel audio pin header (Mic-in and Line-out)
- 1 Front-Panel pin header
- 1 FS1 pin header for CPU front side bus speed selection
- 1 J2 pin header for VCCA selection
- 1 LPC pin header
- 1 LPT pin header
- 1 LVDS/TTL/DVI module connector (an add-on card is required)
- 1 P4_1 pin header and 1 P4_2 pin header for CPU type selection
- 1 S_LED1 pin header for SATA LED/C4 function selection
- 1 S/PDIF connector: (S/PDIF-out)
- 2 S-ATA Connectors
- 1 Serial port pin header for COM 2 (5V/12V selectable)
- 1 SIR pin header (IRDA 1.0)
- 1 SM Bus pin header
- 2 USB pin headers for 4 additional USB 2.0 ports
Back Panel I/O - 3 Audio jacks: line-out, line-in and mic-in (Horizontal, Smart 5.1
Support)
- 1 PS2 Keyboard port
- 1 PS2 Mouse port
- 2 RJ-45 LAN ports
- 1 Serial port
- 4 USB 2.0 ports
- 1 VGA port
BIOS Award BIOS, LPC 4/8Mbit flash memory
Operating System Windows 2000 / XP, Linux, Win CE, XPe
System Monitoring &
Management - CPU temperature reading, CPU voltage monitoring
- Wake-on-LAN, Keyboard-Power-on, Timer-Power-on, Watch Dog Timer,
FAN control
- System power management, AC power failure recovery
Operating Temperature 0°C ~ 50°C
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor - Mini-ITX (6-layer)
- 17 cm x 17 cm
* The specification is subject to change without prior notice.
VB6002-Series Operating Guide
November 16, 2006 - 4 - Version 1.01
VIA VB6002 Processor SKUs
The VIA VB6002-Series is available in flexible speed grades and utilizes the most efficient Intel Pentium-
M / Celeron-M processor. The verified CPU kinds are listed as follows:
•Intel® Pentium® M Processor with 2-MB L2 Cache and 533-MHz Front Side Bus
–780 (clock speed 2.26GHz)
–760 (clock speed 2.0GHz)
–750 (clock speed 1.86GHz)
–740 (clock speed 1.73GHz)
–730 (clock speed 1.6GHz)
•Intel® Celeron® M Processor with 1-MB L2 Cache and 400-MHz Front Side Bus
–380 (clock speed 1.6GHz)
–370 (clock speed 1.5GHz)
–350 (clock speed 1.3GHz)
VB6002-Series Operating Guide
November 16, 2006 - 5 - Version 1.01

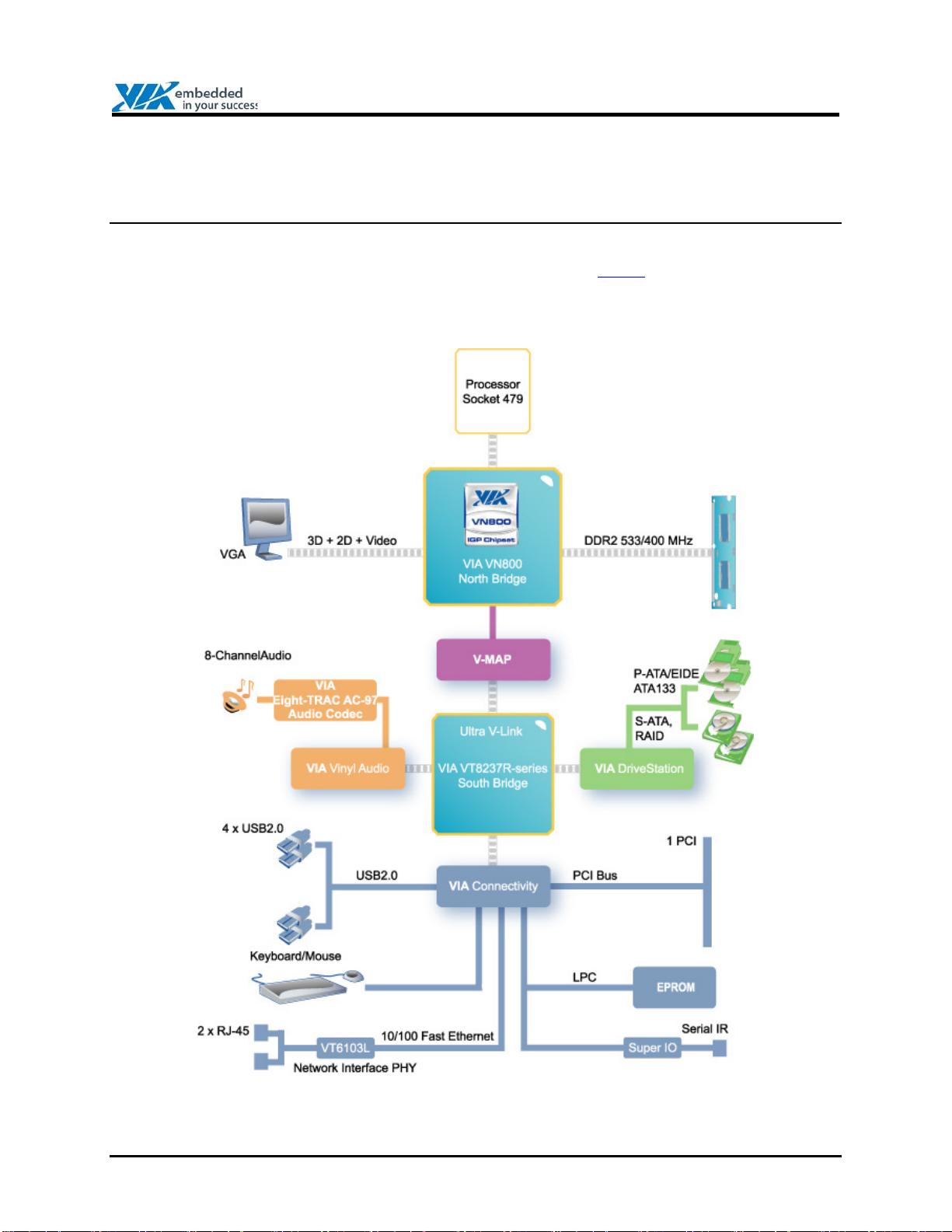

VIA VN800 Chipset Overview
The VIA VN800 Chipset is designed to enable high quality digital video streaming and DVD playback in a
new generation of fanless, small form factor PCs and IA devices. The VN800 features the embedded VIA
UniChrome™ Pro 2D/3D MPEG-2 acceleration, DDR2 533MHz support, motion compensation and duo-
view support to ensure a rich overall entertainment experience. Outstanding connectivity features include
USB 2.0, 10/100 LAN and ATA/133.
VB6002-Series Operating Guide
November 16, 2006 - 6 - Version 1.01

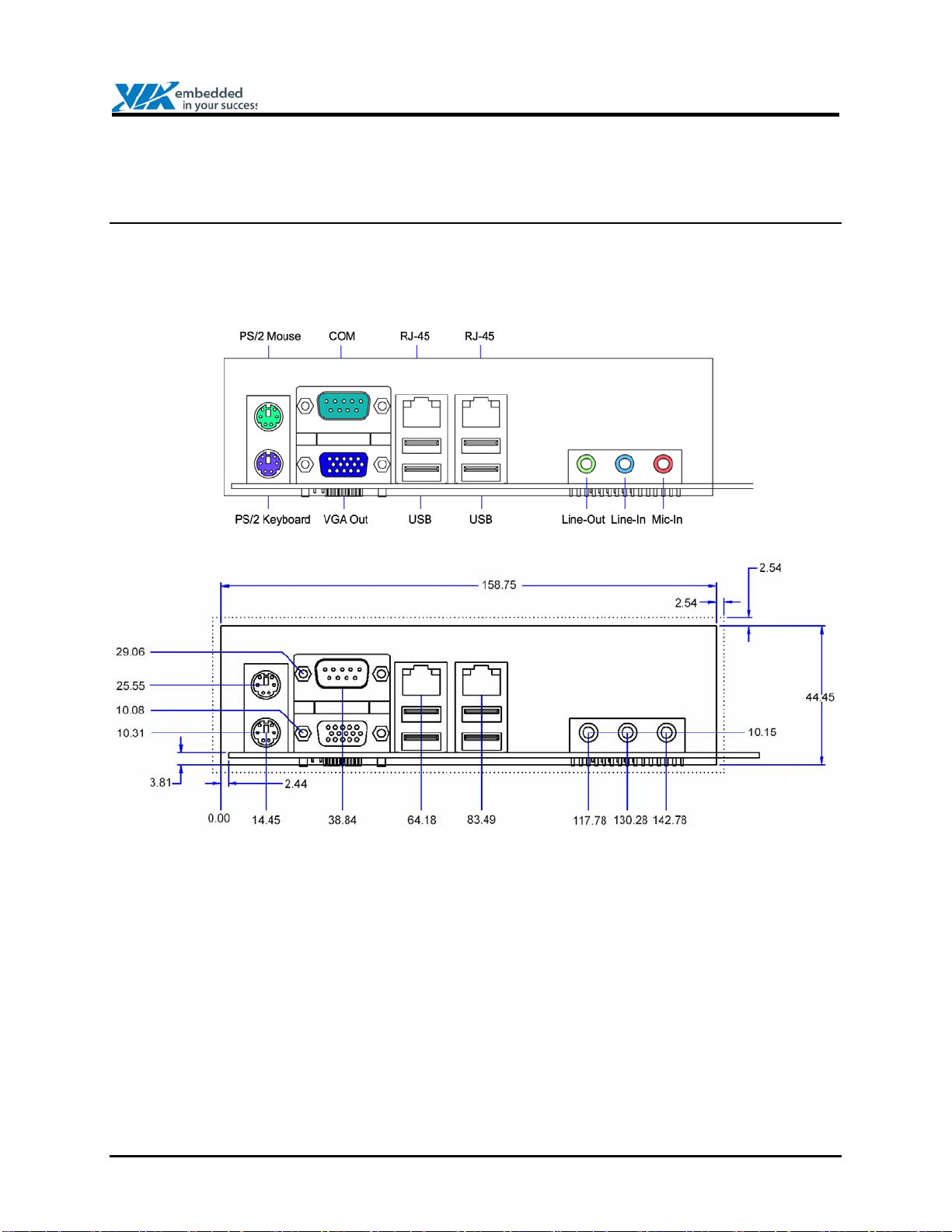

VIA VB6002-Series I/O Back Panel Layout
The VB6002’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86
connectivity options as well as PS2 Mouse port, PS2 Keyboard port, VGA port, COM port, RJ45 LAN
ports, USB 2.0 ports and AC’97 audio jacks.
VB6002-Series Operating Guide
November 16, 2006 - 7 - Version 1.01

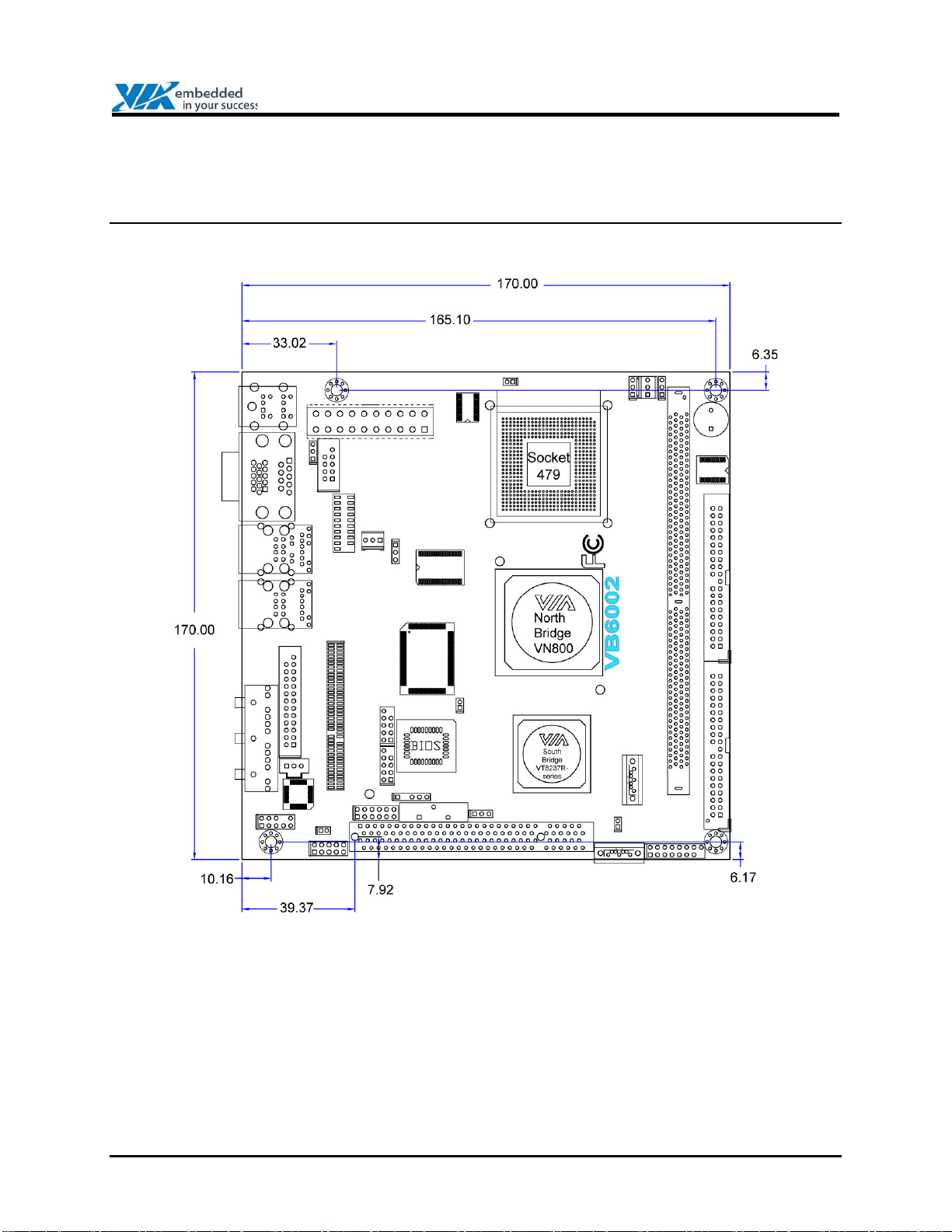

VIA VB6002-Series Layout Diagram & Mounting Holes
VB6002-Series Operating Guide
November 16, 2006 - 8 - Version 1.01

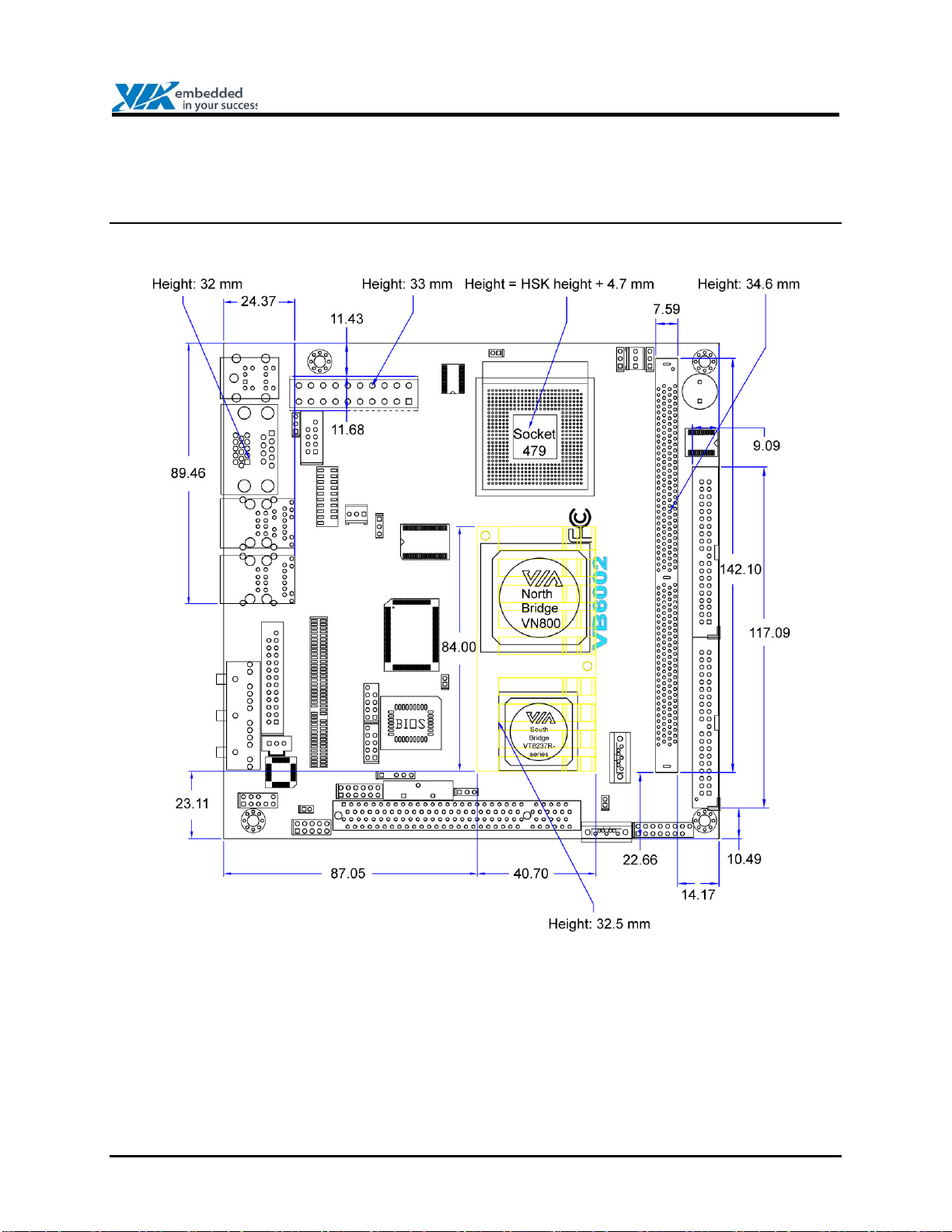

VIA VB6002-Series Layout Diagram & Height Distribution
