VIA VB7007 Overview
The VIA VB7007 Mini-ITX mainboard is a compact native x86 platform for PO and kiosk
applications. The mainboard is based on the VIA CN700 chipset featuring the VIA UniChrome™ Pro
II IGP with 2D/3D graphics and video accelerators for rich digital media performance.
The VIA VB7007 onboard VIA C7 processor is a powerful, secure, and efficient processor with its
included VIA Padlock ecurity Engine, VIA Cool tream™ Architecture, VIA tepAhead™ Technology
uite, and VIA TwinTurbo™ technology.
The VIA VB7007 delivers the performance levels with its included sizeable support of up to 1 GB of
533 MHz DDR2 memory and native support for ATA 3Gb/s storage devices. High-bandwidth
connectivity is supported with the included eight U B 2.0 ports and two Fast Ethernet LAN ports
1
on the back panel. Four additional U B 2.0 ports are available through the onboard pin
connectors.
The VIA VB7007 is fully compatible with Microsoft
®
and Linux operating systems and is available in
a variety of configurations.
1
One of the Fast Ethernet ports can be exchanged for a Gigabit LAN as a manufacturing option.
VB7007 Operating Guide
January 13, 2011 - 2 - Version 1.04
VIA VB7007 Layout (Top and Side Views)
1
SATA Clear CMOS
Front Panel
IDE
CN700 North Bridge
VIA C7 proce or
DDR2 Memory lot
DIO
Buzzer
SMBu
Battery
VT8237S South Bridge
PCI
CPU_Fan
SYS_Fan
SPDIF
Front Audio
KB/MS
ATX Power
USB_2/3
USB_0/1
LVDS Panel
IVDD_SEL
PVDD
Inverter
COM2
J3
COM4
J1
J2
FIR
COM3
VB7007 Operating Guide
January 13, 2011 - 3 - Version 1.04
VIA VB7007 Spe ifi ations
2
Model Name - VB7007-16 - VB7007-10E
Processor - VIA C7
®
-D 1.6 GHz anoBGA2 processor - VIA C7
®
1.0 GHz anoBGA2 processor
Chipset - VIA C 700 orth Bridge
- VIA VT8237S South Bridge
System Memory - 1 x DDR2 533/667
3
DIMM slot
- Up to 1 GB memory size
VGA - VIA UniChrome™ Pro II Integrated Graphics with 2D/3D and MPEG-2 accelerators
Onboard Storage - 1 x UltraDMA 133/100/66/33 connector
- 2 x SATA 3Gb/s connectors
Expansion Slots - 1 x PCI slot
Onboard LAN - 1 x VIA VT6103L 10/100 Mbps Fast Ethernet PHY
- 1 x VIA VT6107 10/100 Mbps Fast Ethernet controller or
1 x VIA VT6122 PCI Gigabit Ethernet Controller
4
Onboard Audio - VIA VT1708B High Definition audio codec
Onboard /O Connectors - 3 x COM pin headers (with 5V/12V select)
- 1 x digital I/O pin header
- 2 x USB pin headers (4 additional ports)
- 1 x SMBus pin header
- 1 x S/PDIF-out connector
- 1 x Dual-channel LVDS panel connector (18/24-bit)
- 1 x LVDS panel power selector (5V/3.3V)
- 1 x LVDS inverter pin header
- 1 x LVDS inverter power selector (5V/12V)
- 1 x FIR pin header
- 2 x fan connectors (CPU and SYS)
- 1 x fan panel connector
- 1 x front panel audio pin header
- 1 x ATX power connector
Back Panel /O - 1 x VGA port
- 1 x COM port
- 1 x parallel port
- 2 x RJ45 LA ports
- 4 x USB 2.0 ports
- 3 x audio jacks: Line-in, Line-out, and MIC-in
- 2 x PS/2 ports: keyboard and mouse
- 4 x USB 2.0 ports
B OS - Award BIOS
- SPI 4/8 Mbit flash memory
Operating System Windows 2000/XP, Linux, Win CE/XPe
System Monitoring &
Management
- Wake-on LA , keyboard, and mouse
- RTC Timer
- System power management, AC Power failure recovery
Operating Temperature 0°C ~ 50°C
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor - Mini-ITX (17 cm x 17 cm)
2
Specifications subject to change without notice.
3
DD 2 667 MHz memory modules can be used, but the effective speed will be 533 MHz.
4
Manufacturing option
VB7007 Operating Guide
January 13, 2011 - 4 - Version 1.04
VIA VB7007 Pro essor SKU
The VIA VB7007 is available in the following speed grade:
•1.6 GHz VIA C7
®
-D NanoBGA2 Processor
•1.0 GHz VIA C7
®
NanoBGA2 Processor
VB7007 Operating Guide
January 13, 2011 - 5 - Version 1.04

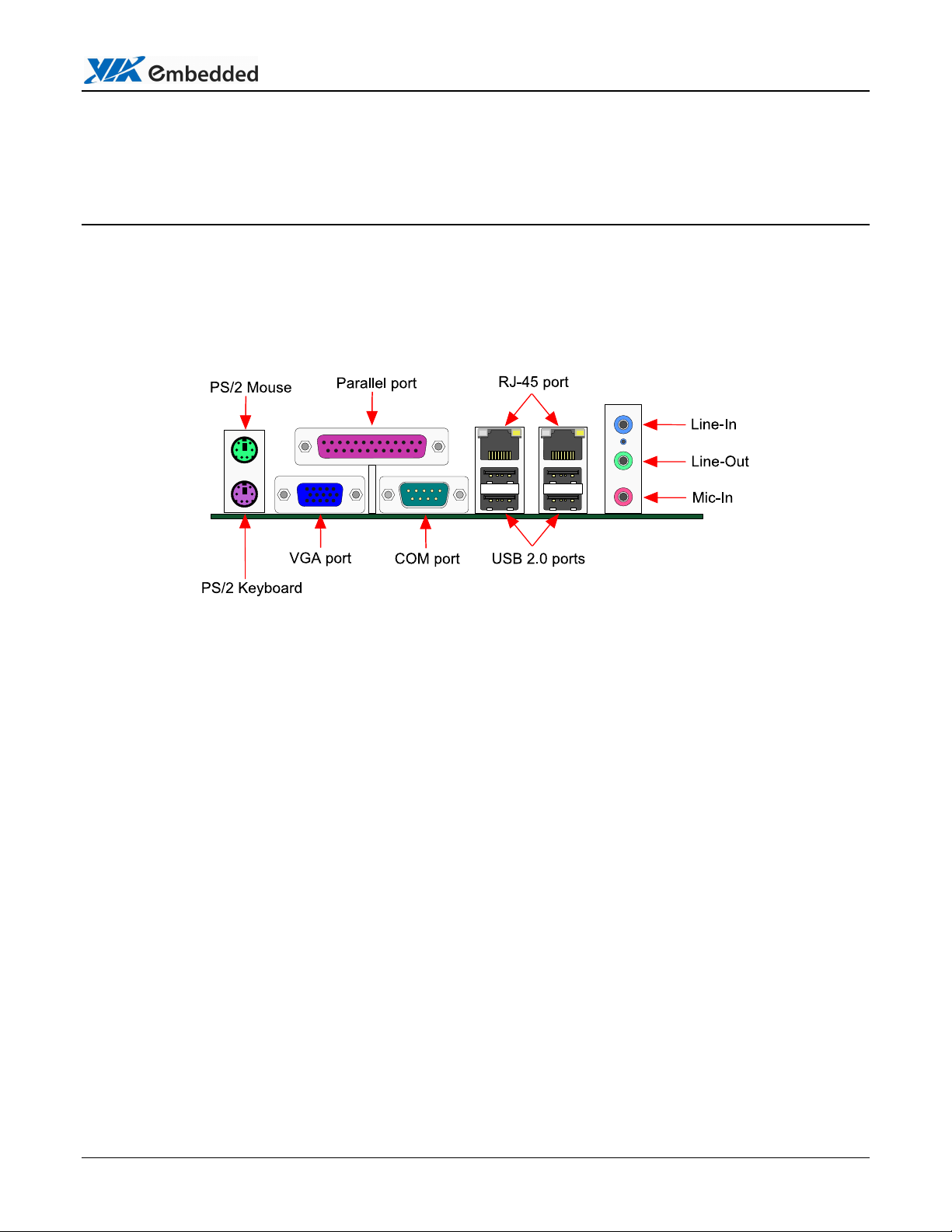

VIA VB7007 I/O Ba k Panel Layout
The VIA VB7007 mainboard comes in the compact dimensions of 17 cm x 17 cm. Its integrated
design supports most of the standard legacy x86 connectivity options through its onboard pin
connectors. Its back panel IO includes one P /2 mouse port, one P /2 keyboard port, one parallel
port, one VGA port, one COM port, four standard U B 2.0 ports, two RJ45 LAN ports, and three
audio jacks (Line-in, Line-out, and MIC-in).
VB7007 Operating Guide
January 13, 2011 - 6 - Version 1.04
VIA VB7007 Dimensions & Mounting Holes
VB7007 Operating Guide
January 13, 2011 - 7 - Version 1.04
VB7007 Operating Guide
January 13, 2011 - 8 - Version 1.04

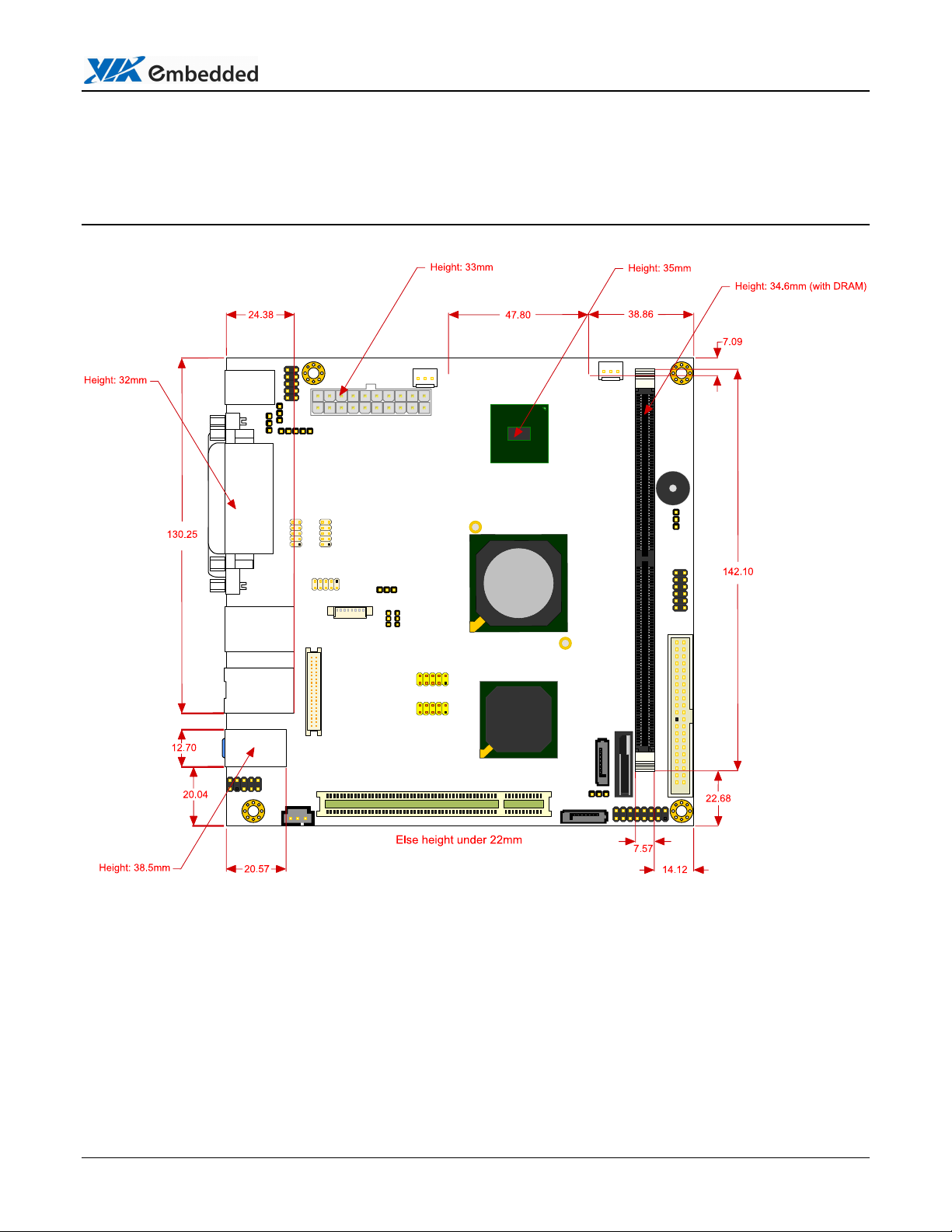

VIA VB7007 Layout & Height Distribution
