Tylo T810H User manual
1PersonInfraredSaunaCottagePage1210121
Rev.2
1 person infrared sauna
T810H
User manual
Note: Room must be installed on flat, level surface.
Precautions Before Use 2
Preassembly Information 2
Electrical Requirements 3
Sauna
A
ssembly 4
Electrical Connection-Under Bench 8
Electrical Connection-Inside Ceiling 13
How to Use Sauna 16
Tips & Troubleshooting 17
Wiring Diagram 18
Control Panel Instructions 19
Lighting Operation 19
A
udio System 19
How to Pair IR2 Control to SaunaLo
g
ic App 21
2021‐01‐21
1PersonInfraredSaunaCottagePage2210121
Rev.2
Precautions before Use: Warning (Room Configuration & Use):
Proper Electrical Grounding is Required
Electrical Receptacles not Allowed in the Room
Do not Apply Water to any Heating Element
Do not Add a Locking or Latching System to the Door
Do not Block Ventilation Openings
Children Must be Supervised at all Times in the Sauna
Electrical Caution – Do not plug the room power cord into an electrical outlet until Room Assembly
is completed!
a. Warning (Human Limitations):
Prolonged Exposure at Elevated Temperatures May Cause Hyperthermia (Body Temperature is Several
Degrees Above 37˚C (98.6F))
Hyperthermia Symptoms include: Dizziness, Lethargy, Drowsiness, and Fainting
Hyperthermia can cause:
Fetal Damage in Pregnant Women
Physical In-Ability to Exit the Room
Loss of Consciousness
Notice - Use of Alcohol or Drugs Increases the Risk of Fatal Hyperthermia
If You Have any Health Problems or Health Conditions, Consult Your Physician Prior to Sauna Us,
Discontinue Use if Nervousness, Tremor, Headache, Feeling of Sickness or Nausea Occurs
b. Warning (Fire Hazards):
Do Not Use the Sauna Room for Drying Cloths, Bathing Suits, Etc.
Do Not Hang Towels or Other Objects on Heater Grills
Never Operate this Sauna Room if it Has a Damaged Cord or Plug
Pre-assembly Information:
a. Two (2) adults are required for the assembly and installation of the room.
b. Assembly Tools: Phillips Screw Driver
c. Boxes are labeled in the order of room assembly
d. Note: Front wall glass assembly is heavy and fragile.
Box #1: Floor, Ceiling, Bench Skirt, Bench, Manual & Door Handle Set
Box #2: Left & Right Walls
Box #3: Front & Back Walls
1PersonInfraredSaunaCottagePage3210121
Rev.2
Electrical Requirements: The IR Sauna Room is designed for a 230 Volt AC / 10 Amp Circuit Breaker!
A230VoltAC(dedicated)circuitisrecommendedtoavoidunnecessarytrippingofthebreaker.
Record your model number and serial number in the event you should need to contact your
dealer or technical support.
Serial Number ______________________________
Model Number ______________________________
Dealer Name________________________________
1PersonInfraredSaunaCottagePage4210121
Rev.2
Sauna Assembly Instructions
_______________________________________________________________________

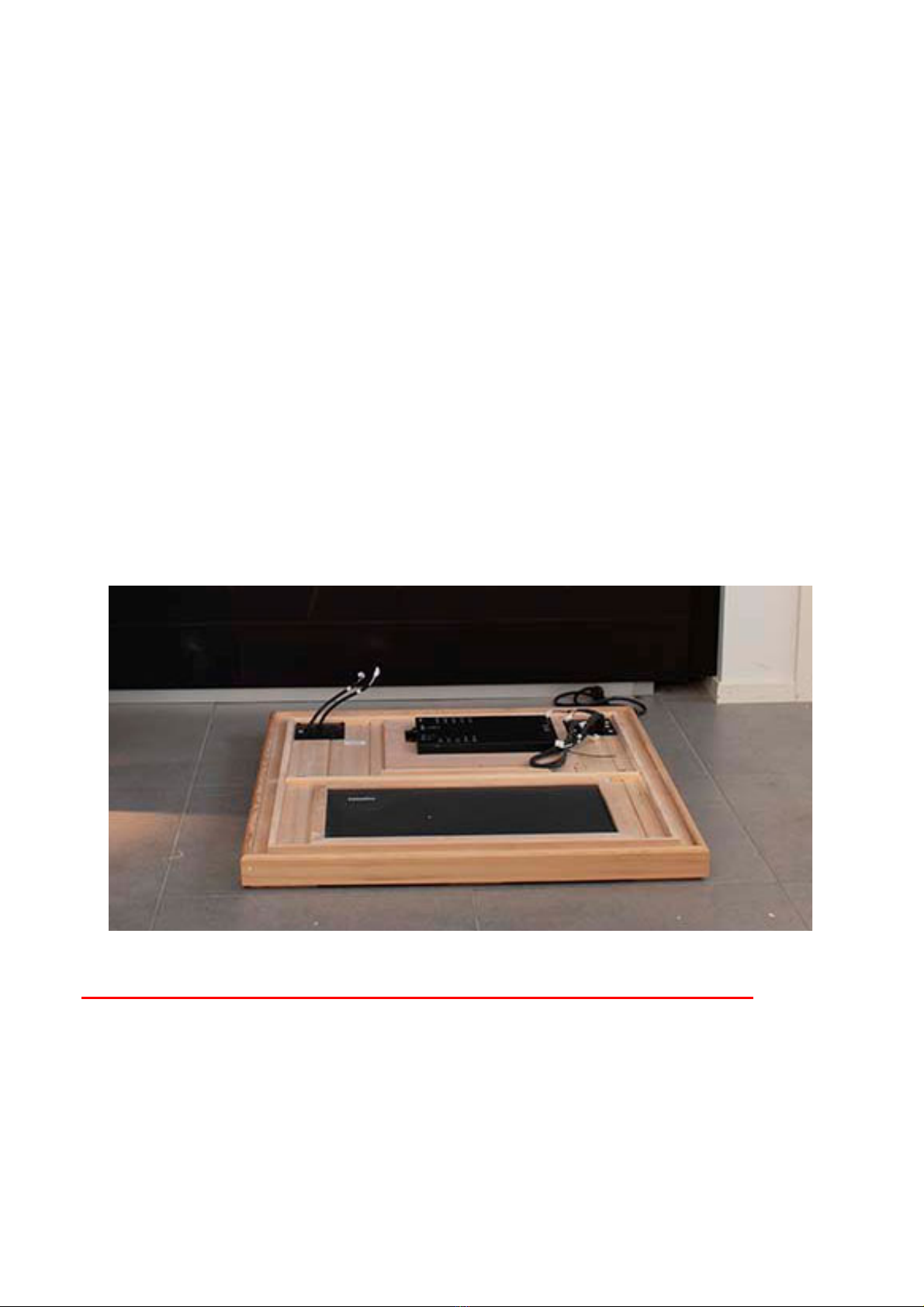

Floor Panel (Box #1):
Locate the Floor Panel on a level surface 8-15 cm (3-6 inches) from wall and no more than 150
cm (5 ft) from 230 Volt AC / 10 amp dedicated receptacle.
Position the Floor panel so that the Ceramic tiles / IR Floor Heaters are to the front of the room
Note: place the Ceiling, Bench Skirt and Bench to the side until the appropriate steps.
Note: place the power cord on the ground to the side of the floor; be sure that all wires and
connectors on the sauna floor are clear of the slots.
Note – Do NOT Plug the Sauna Room 230 VAC Power Cord into the Outlet Yet!
1PersonInfraredSaunaCottagePage5210121
Rev.2
Back Wall (Box #3):
Note: after opening the box 3 -- store Front Wall panel until that step of the assembly process. Be
sure to control the door from opening when moving the Front Wall Panel to prevent breakage.
Place Back Wall panel into the back slot of the Floor Panel.
Back Wall panel must be held in place until the Right Wall panel is added.
1PersonInfraredSaunaCottagePage6210121
Rev.2

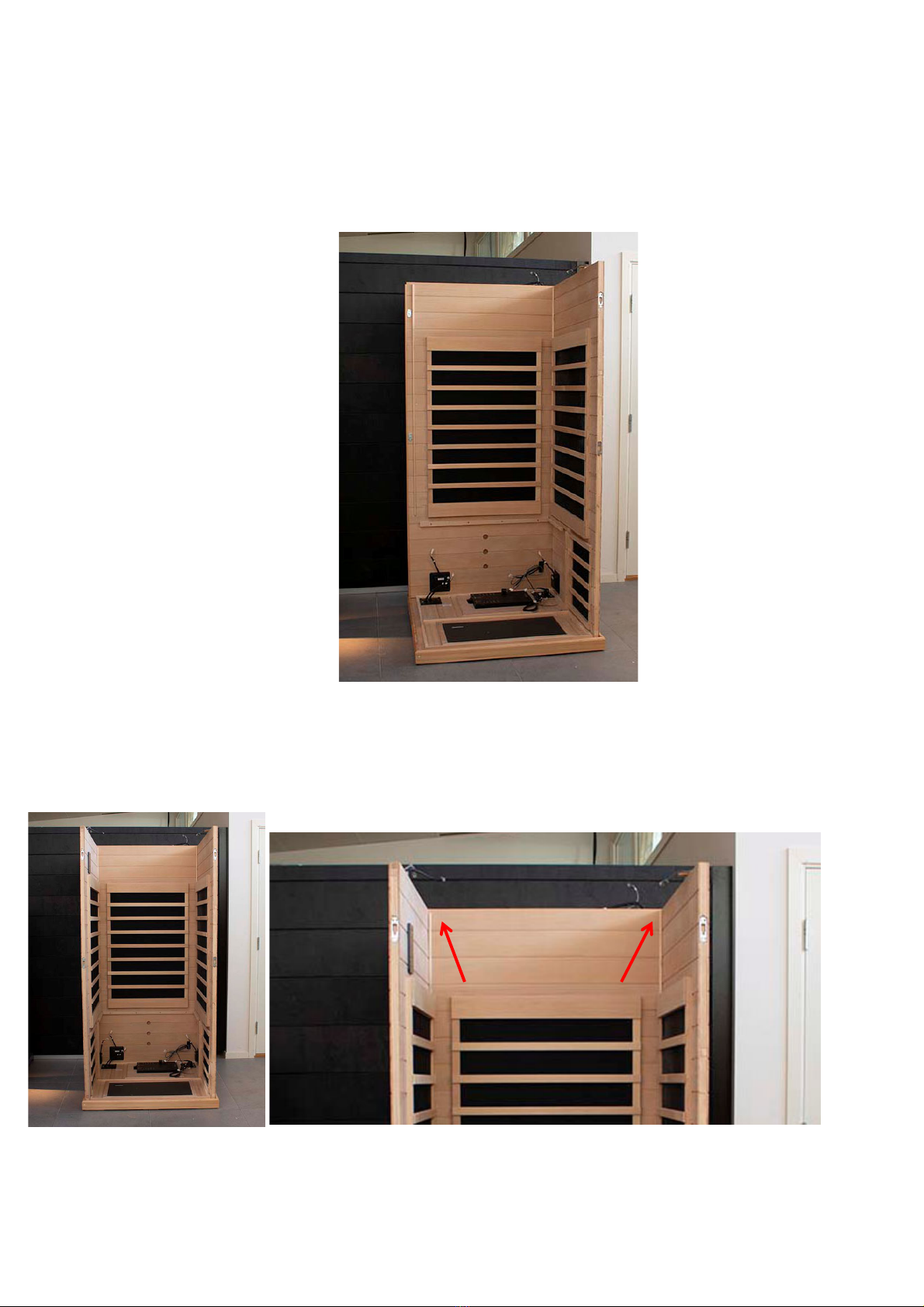

Right Wall (Box #2):
Place Right Wall section into the right slot of the Floor Panel
Attach Back Wall to the Right Wall by lifting up the Right wall sliding into the corner interlock
brackets.
Left Wall (Box #2):
Place Left Wall section into the left slot of the Floor Panel
Attach the Back Wall to the Left Wall by lifting up the left wall sliding into the corner interlock
brackets.
Note: When wall panels are connected in place properly the corners will be flat on top, notice the
illustration above right.
1PersonInfraredSaunaCottagePage7210121
Rev.2

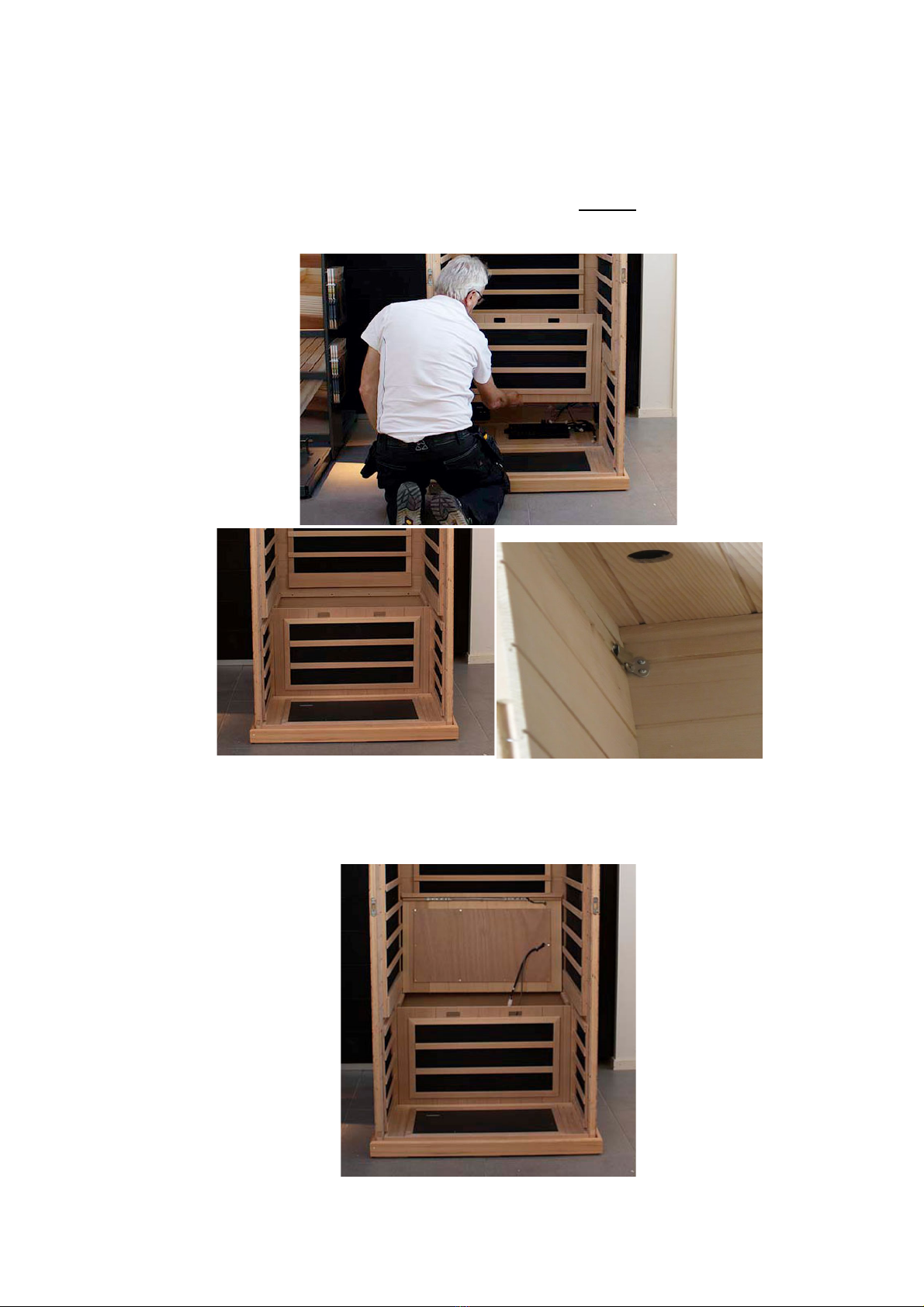

Bench Skirt (Box #1):
Insert the Bench Skirt in between the Right Wall and the Left Wall panels tracks.
Slide Bench Skirt all the way to the floor. Do not pinch any wires under the skirt.
Latch the buckles securing the floor to the Bench Skirt. Do not latch the buckles for the left
and right wall panel at this time.
Bench Top (Box #1):
Slide the Bench seat down against the back wall with Power Junction Box facing you.
Tilt the Bench against the Back Wall so it will remain standing.
1PersonInfraredSaunaCottagePage8210121
Rev.2

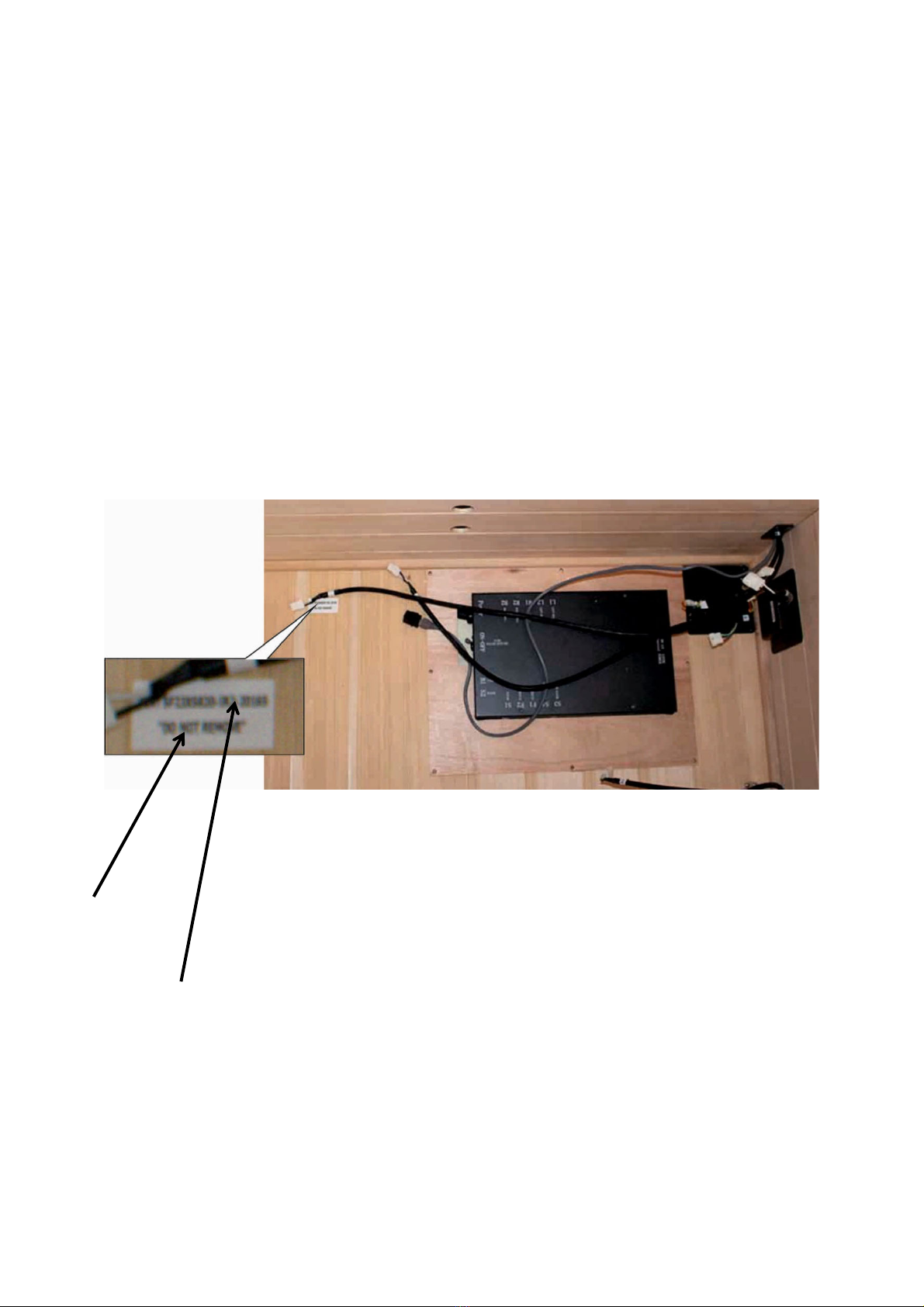

Electrical Connections (under bench - right side):
Connect wire #4 from distribution plate to #4 from Back Wall harness.
Connect wire #5 from the distribution plate to #5 from the Back Wall harness.
Connect wire R1 from the distribution plate to R1 from the Right Wall junction box.
Connect wire S3 from the distribution plate to S3 from the Bench Skirt.
Connect wire #6 from the Back Wall harness to the Bench Top wire #6.
Connect wire S1 from the distribution plate to the Bench Top wire S1.
1PersonInfraredSaunaCottagePage9210121
Rev.2
Electrical Connections (under bench - left side):
Connect wire L1 from the distribution plate to L1 from the Left Wall panel.
Connect wire B1 from the distribution plate to B1 from the Back Wall panel.
View of the finished connections.
Locate the electrical switch on the black Master Control Box and ensure the switch is on.
1PersonInfraredSaunaCottagePage10210121
Rev.2

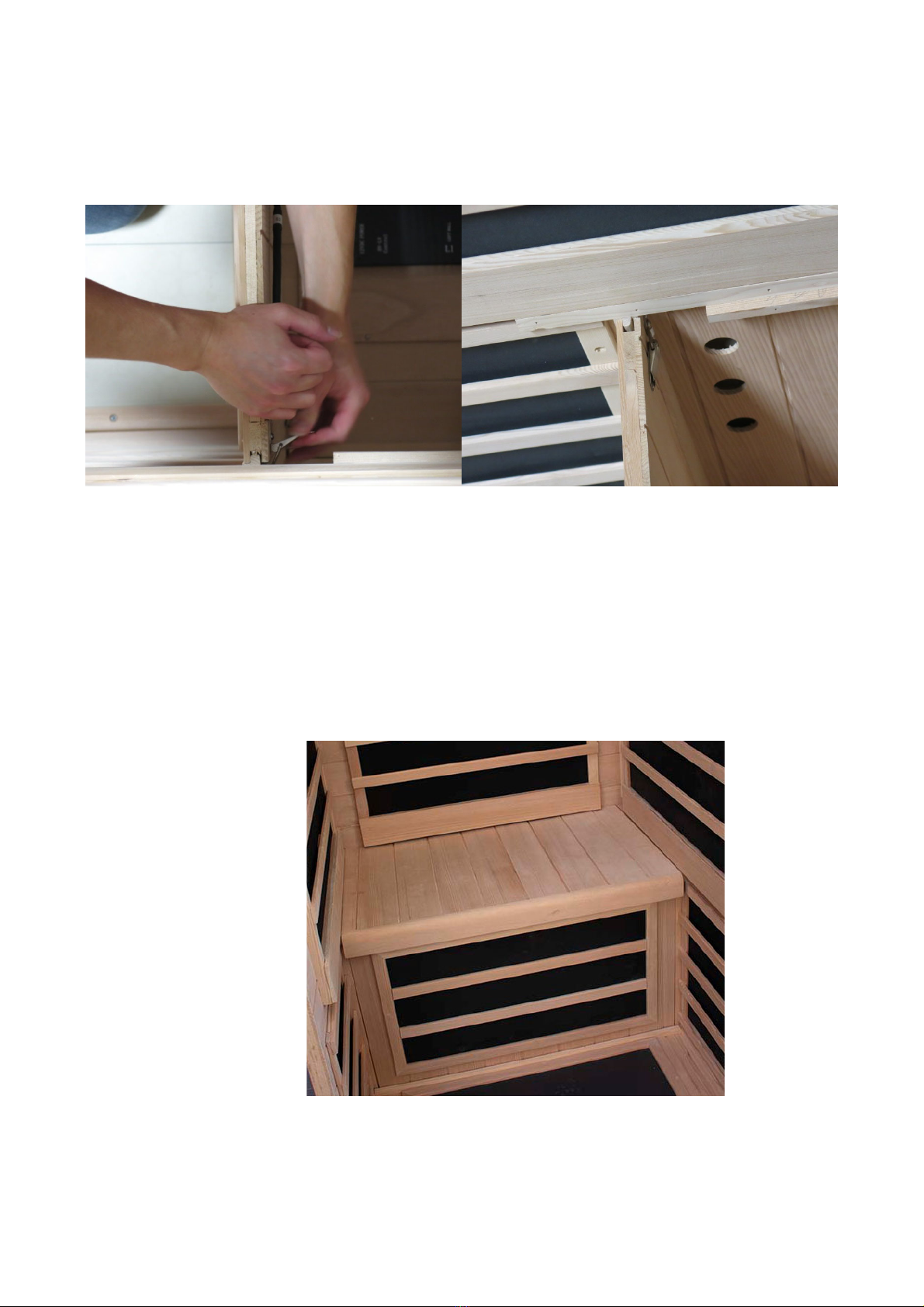

Use the buckles to latch the skirt to the left and right side walls.
Bench top can now be fit into place. Bench must tuck under the back heater guard and then
push all the way to the back wall.
The Bench Top should fit down flush from front to back. It may be necessary to use the
openings on the bench skirt to apply pressure either forward or rearward on the skirt to allow
bench to drop into place.
