TW Audio VERA10 User manual

VERA10 Operating Manual

Introduction

Thank you for choosing a high quality product "MADE IN GERMANY" from TW AUDiO.

VERA10 is a vertical line array speaker system created for events that require high-qual-

ity answers to the following demands: visual subtlety and extremely compact dimen-

sions, innovative output/size/weight ratios as well as quick and easy handling. Its other

top priority, as put to us by many customers, is flexibility. We are very proud of the result:

VERA10 is capable of covering events with an audience of 10 to 10.000 people with only

a single loudspeaker model.

If you lend your product to another party, inform that party of the safety-related operating

procedures and hand over this operating manual. If you require additional copies of this

operating manual, they can be obtained free of charge from TW AUDiO or downloaded

from: www.twaudio.de

Strictly adhere to the instructions contained in this operating manual that are marked as

follows:

Instructions in the operating manual

WARNING

This symbol in combination with the signal word "Warning" identifies a potentially haz-

ardous situation. Failure to comply with this safety instruction can lead to serious injury

or even death.

WARNING

This symbol in combination with the signal word "Warning" identifies a potentially haz-

ardous situation for persons with a pacemaker. Failure to comply with this safety instruc-

tion can lead to serious injury or even death.

CAUTION

This symbol in combination with the signal word "Caution" identifies a potentially hazard-

ous situation. Failure to comply with this safety instruction can lead to light or moderate

injury.

NOTE

This symbol in combination with the signal word "Note" identifies a potentially hazardous

situation. Failure to comply with this safety instruction can lead to product damage.

TIP

This symbol in combination with the signal word "Tip" identifies additional information or

notes that will simplify working with TW AUDiO products on the basis of practical experi-

ence.

VERA10 Operating Manual

Operating manual: OM-VERA10

Version 1.0 en, 11/2016

All information contained in this operating manual was correct to the best of our knowl-

edge at the time of printing.

Quality warranties or assurance of suitability for a certain type of use based on the tech-

nical specifications, dimensions and weights are not granted by TW AUDiO.

TW AUDiO also shall not assume liability for any secondary damage (property damage

and/or personal injury) nor for the failure to comply with this operating manual.

TW AUDiO reserves the right to make changes that take into account the latest engi-

neering advancements.

TW AUDiO is pleased to receive suggestions for improvement and recommendations on

this operating manual. Please send us any feedback you may have to the following e-

mail address.

[email protected]

TW AUDiO GmbH

Osterholzallee 140-2

71636 Ludwigsburg, Germany

Telephone: +49 (0) 71 41 - 48 89 89 0

Telefax: +49 (0) 71 41 - 48 89 89 99

Notes on the products

Read manual

before use!

Before setting up the device, read the operating manual carefully and keep this docu-

ment in a safe place together with the VERA10 loudspeaker.

General information

Operating Manual VERA10

Contents

Safety | Intended use .....................................................................................................1

Overview ........................................................................................................................3

Components ....................................................................................................................... 3

Variants .............................................................................................................................. 4

Operating modes ................................................................................................................5

Technical data ................................................................................................................7

Data sheet .......................................................................................................................... 7

Wiring diagram ................................................................................................................... 7

Setting up the loudspeaker ..........................................................................................9

Setup .................................................................................................................................. 9

Exchanging the horn ........................................................................................................... 9

Connecting cables ............................................................................................................ 10

Operation .......................................................................................................................... 10

Transport and storage ................................................................................................11

CE Conformity Declaration .........................................................................................12

Disposal ........................................................................................................................13

VERA10 Operating Manual

1. Safety | Intended use

Please adhere to the following safety instructions to avoid risks when operating the loud-

speakers.

The VERA10 loudspeaker was developed for professional use in sound systems. The

loudspeaker may only be used by trained and qualified personnel.

Note the operating modes described in this operating manual.

Other uses are not permissible.

TW AUDiO GmbH shall not be held liable for any damage that ensues from unintended

use.

WARNING

Loudspeakers generate an electromagnetic field. Persons with pacemakers are not per-

mitted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields

can cause pacemakers to malfunction.

WARNING

When working with heavy loads over 20 kg [44,09 lbs], use suitable aids (dollies, hoist-

ing slings, etc.). Multiple people may be required depending on the situation.

Ensure that the units are in a stable position and are firmly attached. A falling loud-

speaker can result in serious personal injury and property damage.

When using and assembling TW AUDiO loudspeakers, only use materials specified by

TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the appli-

cable safety regulations.

NOTE

When using the loudspeakers, ensure that they are not exposed to the following ambient

conditions:

• Direct sunlight

• Moisture

• Jolting

•Dust

WARNING

Keep away from the immediate vicinity of loudspeakers that are operated at high sound

pressure levels. These loudspeaker systems are capable of endangering your health.

Sound levels beginning as low as approx. 90 dB SPL can lead to long-term hearing im-

pairment.

NOTE

Avoid:

• Feedback

• Distorted signals (clipping)

• Peaks that result when devices are switched on or hot plugged and unplugged.

These signals can lead to loudspeaker overload..

VERA10 Operating Manual

Note that TW AUDiO does not provide a warranty for damage that can be attributed to

this type of overload and therefore cannot be held liable for any secondary damage.

WARNING

Ensure that the loudspeaker is not exposed to permanent thermal overloads. This may

cause a fire and result in serious personal injury and property damage.

NOTE

A permanent, magnetic field is present in the immediate vicinity of loudspeakers. Ensure

that objects which react sensitively to magnetic fields are not located in the immediate

vicinity of the loudspeaker. In particular, this applies to magnetic data carriers, EC cards

and CRT displays. A distance of approx. one meter is sufficient to avoid damage.

NOTE

Check loudspeakers and accessory parts regularly for visible wear. This is essential to

ensure fault-free operation on a permanent basis. Replace worn parts promptly. Spare

parts can be obtained from TW AUDiO.

VERA10 Operating Manual

2. Overview

Figure 2.1 - Overview

1. Front eyelet

2. 15 mm multiplex enclosure – polyurea finish

3. VERA10 "rear" rigging plate

4. Splay link

5. Locking pin 8 × 30

6. Ergonomic carrying handles (left and right)

7. Locking pin 8 × 20

8. VERA10 "front" rigging plate

9. Phase plug

10. 10" cone drivers

11. Waveguide with two 1" compression drivers

12. Exchangeable horn

13. Standard connection panel with two speakON®connectors

14. Type label

15. Label plate

16. Passive crossover PWV10

2.1 Components

(Integrate graphics)

1092 31

7 12 11

1614 1515

568

VERA10 Active VERA10 Passive

VERA10 Operating Manual

The VERA10 loudspeaker comes in four different variants. These are differentiated by

their horizontal coverage (80° or 120°) and are further subdivided into VERA10A (BI-

AMP model) and VERA10P (PASSIVE model).

2.2.1. Horn – horizontal coverage 80°/120°

The VERA10 loudspeaker can be equipped with either an 80° × 10° horn or a 120° × 10°

horn. The degrees refer to the horizontal and vertical radiation angles. The VERA10

horn variant can be identified by the legend printed on the horn (see figure 2.2).

The horn can be exchanged for the other type at any time. See section 4.2 "Exchanging

the horn".

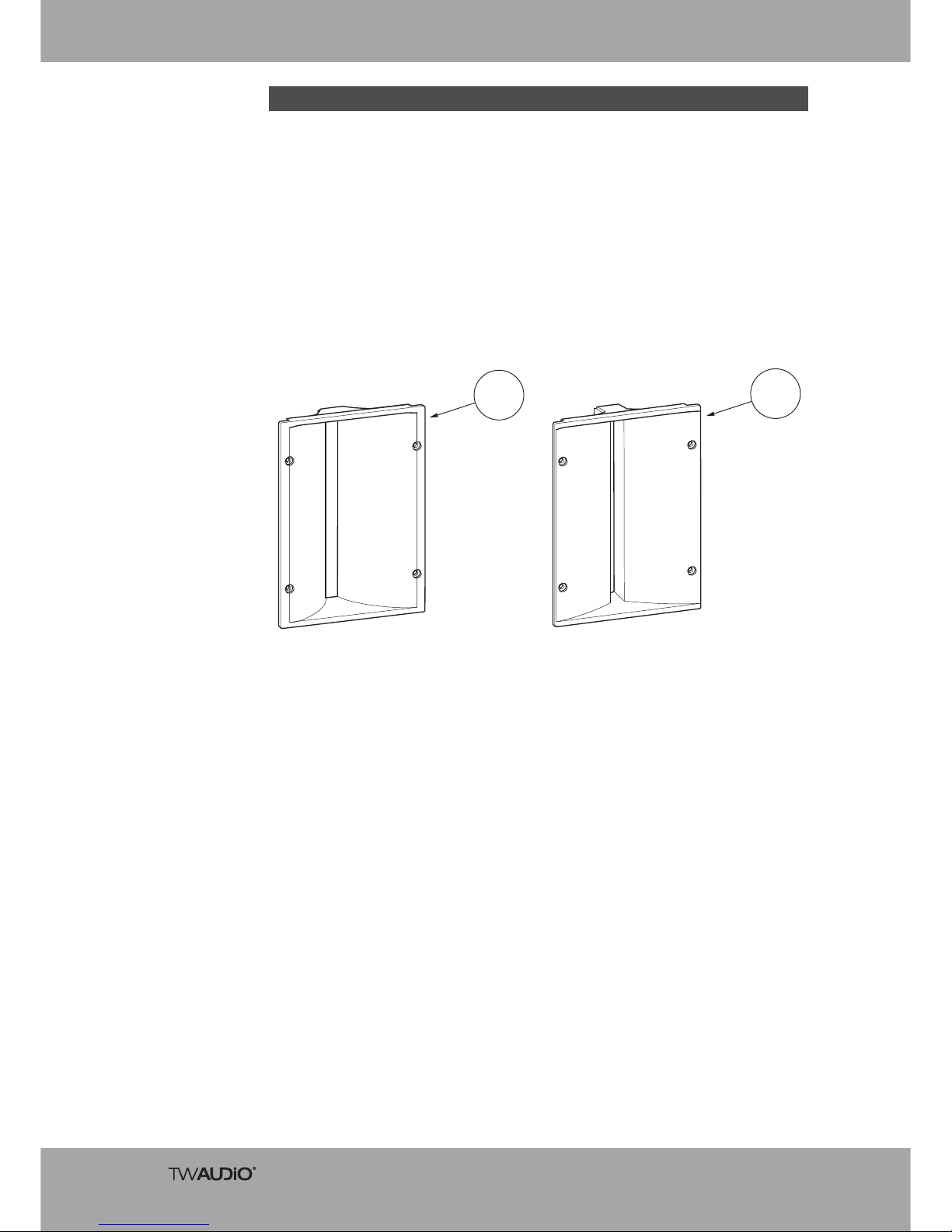

Figure 2.2 - VERA10 horn variants

2.2.2. VERA10A/VERA10P models

The standard model of the VERA10 loudspeaker is the VERA10A, which can only be op-

erated in the "biamped" mode. It is supplied with a standard connection panel and re-

quires two amplifier channels for operation. The compression driver and cone driver are

separated by the DSP of the amplifier.

The VERA10P model can additionally be switched to the "passive" mode. This enables

operation with only one amplifier channel, for which the enclosure contains a passive

crossover. The built-in passive crossover features 2 selector switches described in

section 2.3.

2.2 Variants

80°

120°

80° 120°

VERA10 Operating Manual

The passive version (VERA10P) features two selector switches on the rear

(figure 2.3.1) for switching between two different operating modes and for attenuating

the high frequency range (see figure 2.1, no. 16).

2.3.1. Horizontal selector switch

In the "PASSIVE" mode, the loudspeaker is operated on a passive audio crossover with

a single amplifier channel.

In the "BIAMP" mode, the internal passive crossover bypasses the signal path and the

individual routes of the loudspeaker must be driven separately by two DSP channels.

Figure 2.3.1 - VERA10P operating modes

2.3 Operating modes

PASSIVE MODE

0 dB

-6 dB

-3 dB

PASSIVE

BIAMPED MODE

0 dB

-6 dB

-3 dB

BIAMPED

NOTE

Never change the operating mode while the loudspeaker is connected. In addition to set-

ting the switch, the corresponding preset on the amplifier must be changed.

Operating with an incorrect preset may damage parts of the loudspeaker.

VERA10 Operating Manual

2.3.2. Vertical selector switch

The "High shelf attenuation" vertical selector switch lowers the frequency range above

2 kHz independent of the VERA10P operating mode.

In the "0dB normal operation" mode, the frequency response is not attenuated above

2kHz.

In the "-6dB short throw" mode, the frequency response above 2 kHz is attenuated by

6dB.

In the "-3dB mid throw" mode, the frequency response above 2 kHz is attenuated by

3dB.

Figure 2.3.2 - High frequency range attenuation

6,3k 8k 10k

5k4k

3,15k

5k2,5k2k

1,6k

1,25k1k

250 315 400 500 600 800

0 dB

-3 dB

-6 dB

-9 dB

-12 dB

3 dB

0 dB

-3 dB

-6 dB
