TOTALINE Smart 1H/1C User manual
Operating
Manual
Totaline® Smart 1H/1C and 2H/2C
Programmable P330 Series Thermostat
570-212
69-2265EFS-01
®
ENGLISH

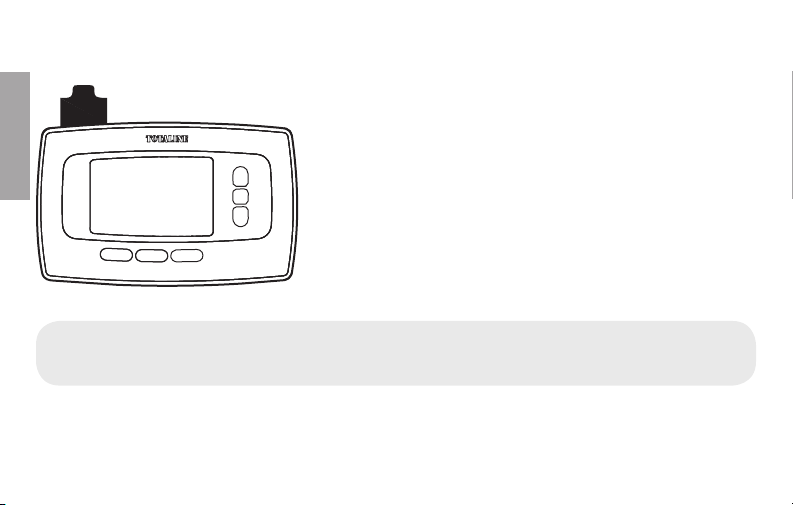

Quick Reference Card
Grasp and pull to see basic operating instructions at a glance.
Batteries should be replaced once a year (see
page 14).
This manual covers the following models:
P330 -1110: For 1 Heat/1 Cool systems
P330-1220: For up to 2 Heat/2 Cool systems
M27927
HOLD
Read and save these instructions.
® U.S. Registered Trademark. Patents pending.
All rights reserved.
Need Help?
Visit www.Totaline.com.
P330 Series
570-212 1 69-2265EFS—01
ENGLISH
About your new thermostat
Quick reference to controls.......................2
Quick reference to display ........................3
Programming & Operation
Set time and day........................................4
Select fan setting (auto/on) ....................... 5
Select system setting (heat/cool)..............6
Using program schedules .........................7
Program schedule overrides .....................9
Auto-changeover (heat/cool)...................11
Compressor protection............................12
Early Recovery .........................................13
Appendices
Battery replacement ................................14
Troubleshooting .......................................15
Customer assistance ............................... 16
Accessories/replacement parts .............. 16
Warranty ...................................................17
This thermostat is ready to go!
Your new thermostat is pre-programmed
and ready to go.
Table of contents
CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not operate
cooling system when outdoor
temperature is below 50°F (10°C).
Operating Manual
69-2265EFS—01 2 570-212
ENGLISH
M27924
HOLD
Digital display
(see page 3).
Temperature Buttons
Press to adjust temperature
settings (see page 7–8).
Hold Button
Press to override
programmed temperature
control (see page 10).
Function Buttons
Press to select the function displayed just above each
button. (Functions change depending on the task.)

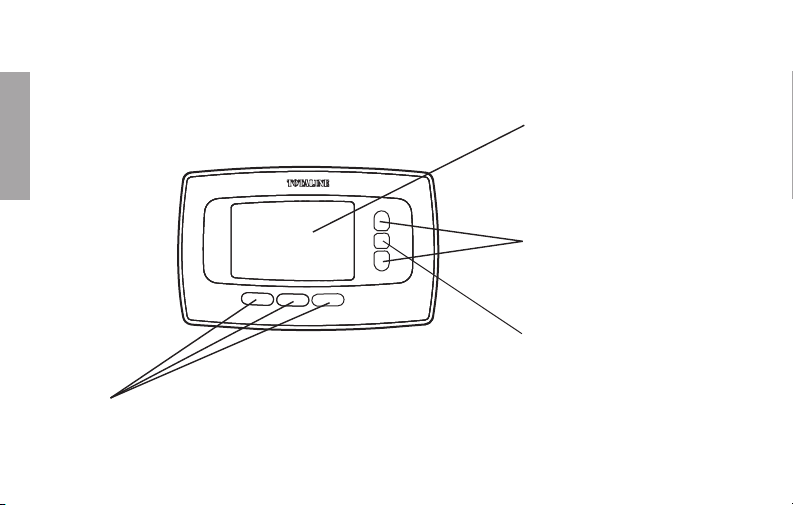

Quick reference to controls
P330 Series
570-212 3 69-2265EFS—01
ENGLISH
M27874
Current inside temperature
Early Recovery
(see page 13)
Current program period
Period 1/2/3/4 (see pages 7-8)
Set Time/Day/Program
(see pages 4 & 7)
Function buttons
Press the button beneath each function to
view or change settings (functions change
depending on the task)
Low battery warning
(see page 14)
Current time/day
(see page 4)
Temperature setting
(see pages 7–8)
Auxiliary heat
(Only for heat pumps
with auxiliary heat)
System status
Heat /Cool (If
flashing, see page 12)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 6)
Fan setting
Auto/On (see page 5)

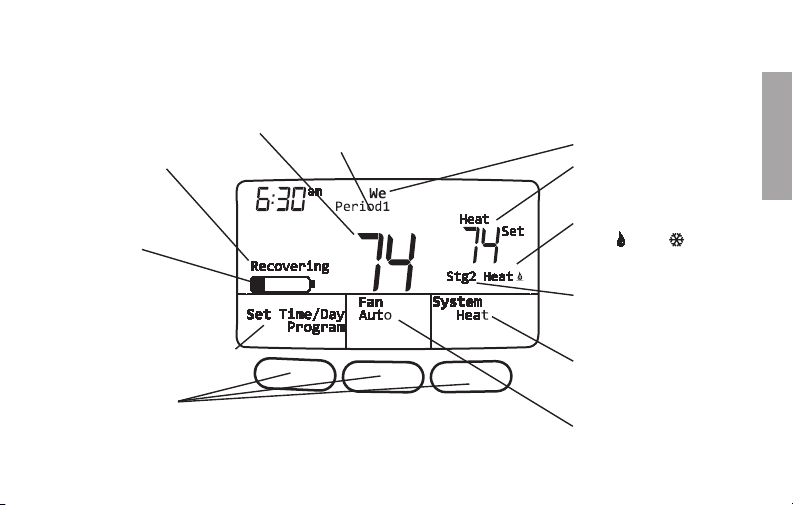

Quick reference to display screen
Operating Manual
69-2265EFS—01 4 570-212
ENGLISH
1. Press the SET TIME/DAY/PROGRAM but-
ton, then press s or t to set the
clock time.
2. Press the CHOOSE DAY button, then
press s or t to select the day of the
week.
3. Press DONE to save & exit.
Note: If the SET TIME/DAY/PROGRAM option is not
displayed, press DONE or SET PROGRAM.
Note: If the display flashes Set Time, the
thermostat will follow your settings for the
weekday time period until you reset the time
and day.

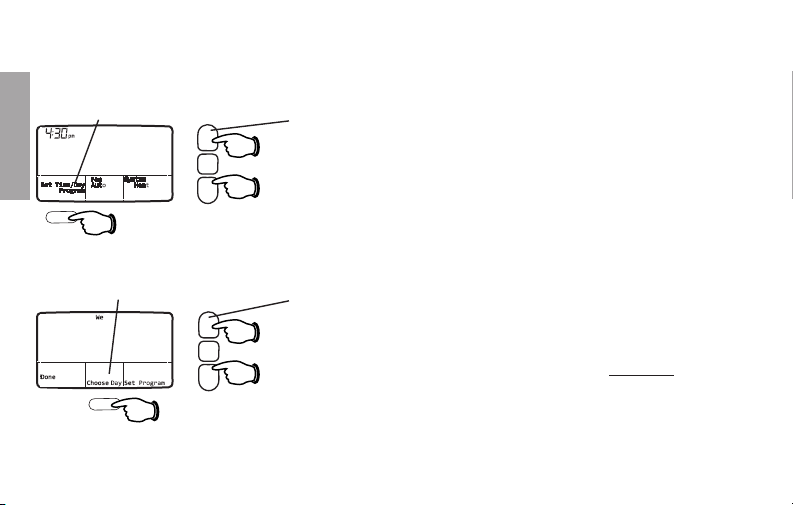

Set the time and day
Press SET TIME/DAY/PROGRAM, then adjust time
Press CHOOSE DAY, then select current day
M27875
HOLD
M27876
HOLD
P330 Series
570-212 5 69-2265EFS—01
ENGLISH
M27877
M27878
Press the FAN button to select Auto or On.
In “Auto” mode (the most commonly used
setting), the fan runs only when the heating
or cooling system is on. If set to “On,” the fan
runs continuously.
Select the fan setting
Operating Manual
69-2265EFS—01 6 570-212
ENGLISH
Note: The Auto and Em Heat
system settings may not
appear, depending on how your
thermostat was installed.
Press the SYSTEM button to select:
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects
heating or cooling depending on the
indoor temperature.
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.
Select the system setting
M27877
M27879
P330 Series
570-212 7 69-2265EFS—01
ENGLISH
To restore Energy Star
default settings:
Period 1
(6:00 am)
Period 2
(8:00 am)
Period 3
(6:00 pm)
Period 4
(10:00 pm)
Cool
(Mon-Fri)
Heat
(Mon-Fri)
Heat
(Sat-Sun)
Cool
(Sat-Sun)
70 °75 °70 °75 °
62 °83 °62 °
[Or cancel
period]
83 °
[Or cancel
period]
70 °75 °70 °
[Or cancel
period]
75 °
[Or cancel
period]
62 °78 °62 °78 °
This thermostat is pre-set to use Energy Star®program settings.
Energy Star®settings for maximum cost savings
1. Press SET TIME/DAY/
PROGRAM.
2. Press SET PROGRAM.
3. Press DONE and NEXT
at the same time for 4
seconds.
Operating Manual
69-2265EFS—01 8 570-212
ENGLISH
1. Press SET TIME/DAY/PROGRAM, then SET
PROGRAM.
2. Press s or t to set your weekday Period 1
time (Mon–Fri), then press NEXT.
3. Press s or t to set the temperature for this
time period, then press NEXT.
4. Set time and temperature for the next time
period (Period 2). Repeat steps 2 and 3 for
each weekday time period.
5. Press NEXT to set weekend time periods (Sat-
Sun), then press DONE to save & exit.
Note: Make sure the thermostat is set to the system you
want to program (Heat or Cool).
Note: You can press CANCEL PERIOD to eliminate unwanted
time periods (except Period 1).

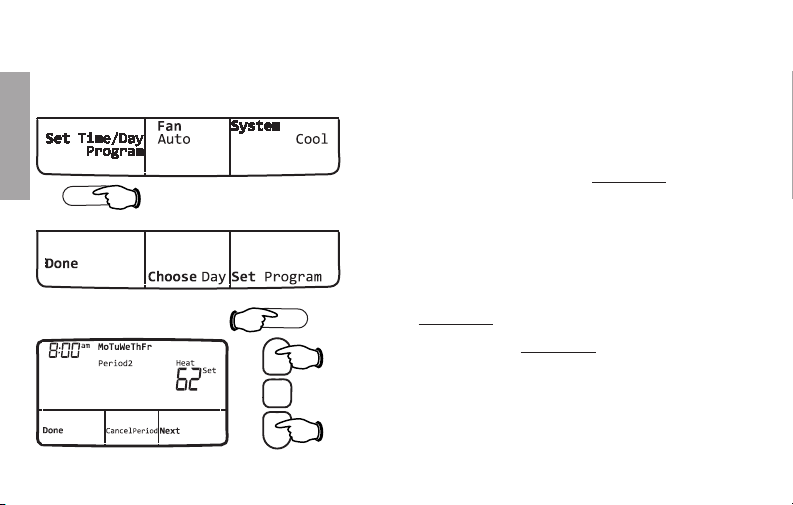

To adjust program schedules
M27879
M27880
M27881
HOLD
