Texas Instruments TPS8804EVM User manual

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

User's Guide

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

1 Introduction

The TPS8804EVM is used to evaluate the TPS8804 smoke and CO detector analog front end (AFE) and

power management IC. The EVM allows for easy connection from the TPS8804 to a user-supplied

photoelectric chamber and carbon monoxide sensor. The TPS8804 GUI interfaces with the EVM to quickly

evaluate the photo amplifier, LED driver, and CO amplifier performance, and other blocks with the register

map. For a more thorough evaluation, an external microcontroller can be connected to the TPS8804EVM

to create a smoke detection system.

1.1 Applications

• Smoke and CO detectors

1.2 Features

• Dual LED drivers for blue and IR LEDs

• Wide bandwidth, low offset photodiode amplifier

• Ultra-low power CO transimpedance amplifier

• LDOs for internal analog blocks and external microcontroller

• Single buffered analog output AMUX for CO and photo signals

• Serial interface for configuring amplifiers, drivers, regulators

• SLC interface for power line communication

• Under-voltage, over-temperature fault monitors

• Wide input voltage range for flexible power supply configuration

1.3 Recommended Equipment

• 4.5-V to 15.5-V power supply capable of 100mA

• USB2ANY™ interface adaptor

• TPS880x GUI software

– Installation files are available in the TPS8804EVM product folder

• Multimeter for measuring regulator voltages and CO amplifier output

• Oscilloscope for measuring photodiode signal pulse shape

2 Setup

Specific connections on the TPS8804EVM board require configuration before starting the evaluation.

2.1 Sensor Connections

TI recommends connecting a photoelectric smoke chamber and CO sensor to the TPS8804EVM for the

evaluation. The TPS8804EVM has a built-in photodiode (D7), blue LED (D8), and IR LED (D6) for

functional testing. These components can be de-soldered in order to connect a photoelectric chamber

photodiode, IR LED, and/or blue LED its place. Ensure the photodiode wires are kept short to preserve

signal integrity.

Setup

www.ti.com

2SLVUBT6A–October 2019–Revised May 2020

Submit Documentation Feedback

Using the TPS8804EVM

The CO sensor is connected to J17 screw terminals with the sensor counter terminal tied to AGND.

2.2 Jumper and Switch Configurations

The S1 switch position determines the VMCU voltage at power-up. Ensure that only one S1 sub-switch is

in the ON position. Table 1 displays the VMCU voltage corresponding with each S1 switch position. For

proper operation with the USB2ANY adapter, set VMCU to 3.3 V with sub-switch 4.

Table 1. VMCU Power-up Voltage

S1 Switch Position VMCU

1 1.5V

2 1.8V

3 2.5V

4 3.3V

The J2 jumper connects VSLC to VCC. A single supply connected to VCC powers the entire EVM with the

jumper connected.

The J6 jumper selects the I2C device address. Connect J6 to the AGND position to set the address to

0x3F. Connect J6 to the VMCU position to set the address to 0x2A. The GUI is compatible with both

options and defaults to 0x2A.

www.ti.com

Setup

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

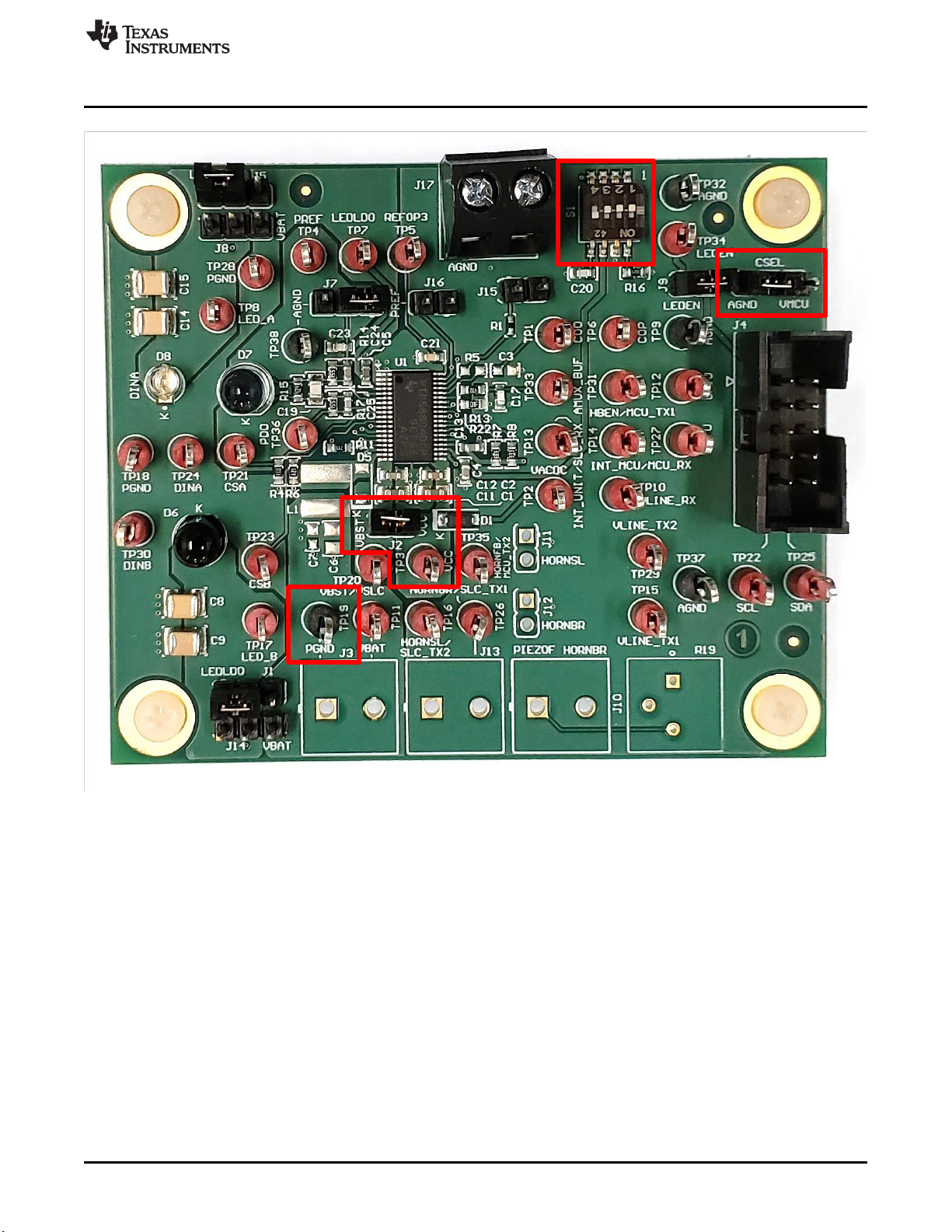

Figure 1. Switch, Jumper, and Power Connections

2.3 Power Connection

Connect the power supply to VCC and PGND. Set the power supply to 5 V, 100 mA. Enable the power

supply and measure the voltage on VMCU (TP27) to ensure it is operating at the voltage option selected

by S1:

• 1.5 V

• 1.8 V

• 2.5 V

• 3.3 V

See Table 1 for more information on the initial VMCU voltage.

Setup

www.ti.com

4SLVUBT6A–October 2019–Revised May 2020

Submit Documentation Feedback

Using the TPS8804EVM

2.4 USB2ANY Connection

Use a USB cable to connect the USB2ANY adapter to a computer with the TPS880x GUI installed. Open

the TPS880x GUI and verify the USB2ANY adapter is recognized (see Figure 2). With the EVM powered,

connect the USB2ANY adapter to the EVM using the USB2ANY adapter 10-pin ribbon cable. Click

EXPLORE TPS8804EVM then QUICK START and select the device address corresponding to the J6

jumper (see Section 2.2). Send the test command to verify the EVM, USB2ANY adapter, and GUI

software are all connected.

Figure 2. TPS880x GUI Connected to USB2ANY Adapter

www.ti.com

Analog Evaluation

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

Figure 3. Test Command Successful

3 Analog Evaluation

Click START EVALUATION and select the feature to evaluate. The Analog Front End section guides the

CO AFE and photo AFE evaluation. Enter the register map to evaluate the other blocks in the TPS8804

device.

Analog Evaluation

www.ti.com

6SLVUBT6A–October 2019–Revised May 2020

Submit Documentation Feedback

Using the TPS8804EVM

Figure 4. Evaluation Selection Menu

3.1 CO AFE Evaluation

If a CO sensor is available, connect it to the J17 terminal block. Select the feedback resistance and

reference voltage in the GUI software. The TPS8804EVM default configuration uses the internal resistors

and references. To use an external feedback resistor, solder a resistor to R5. To use an external input

resistor, replace the R1 0-Ωresistor with the required input resistance. The output resistor filters the CO

amplifier output when a capacitor is installed on C3.

Set the AMUX SELECTION to CO AMPLIFIER. Enable the CO amplifier and measure the voltage on

AMUX_BUF.

www.ti.com

Analog Evaluation

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

Figure 5. CO Amplifier Settings

Figure 6. Clean Air CO Amplifier Output

Analog Evaluation

www.ti.com

8SLVUBT6A–October 2019–Revised May 2020

Submit Documentation Feedback

Using the TPS8804EVM

Figure 7. CO Amplifier Output with Sensor and Calibration Gas

3.1.1 CO Connectivity Test

A simple test confirms that the CO sensor is connected to the EVM. Remove the shunt connected to J7

and connect a shunt to J15 and J16. Write COTEST_EN = 1 and measure the pulse shape on

AMUX_BUF using an oscilloscope. When COTEST_EN = 1, the PREF pin is pulled low and injects charge

into the CO sensor and amplifier. The AMUX pulse shape is different if the CO sensor is disconnected.

Write COTEST_EN = 0, remove the J15 and J16 shunts, and connect the J7 shunt when finished.

www.ti.com

Analog Evaluation

SLVUBT6A–October 2019–Revised May 2020

Using the TPS8804EVM

Figure 8. COTEST_EN Register Bit

Analog Evaluation

www.ti.com

10 SLVUBT6A–October 2019–Revised May 2020

Submit Documentation Feedback

Using the TPS8804EVM

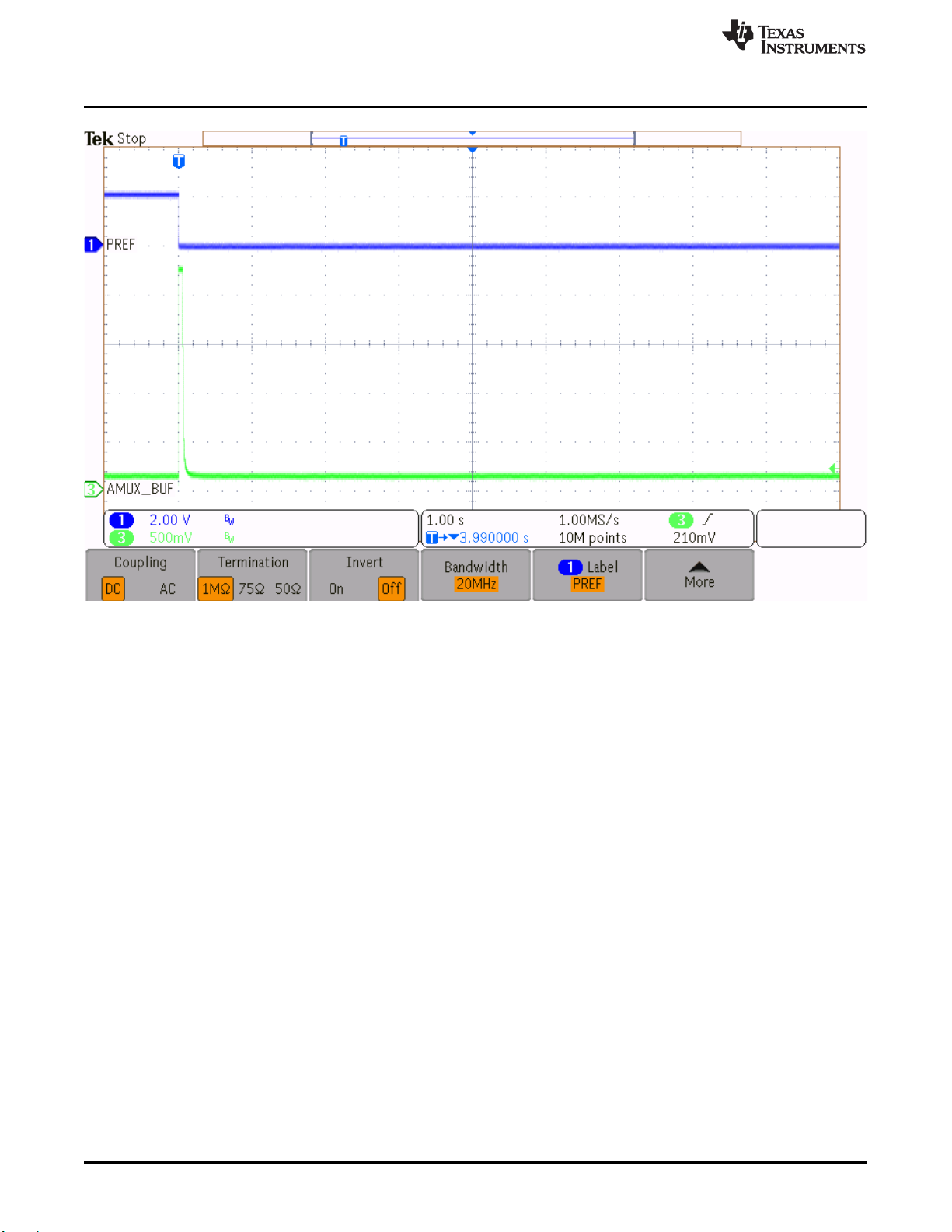

Figure 9. CO Connectivity Test without Sensor

This manual suits for next models
