1 Introduction

The Texas Instruments TPIC74100EVM evaluation module (EVM) helps designers evaluate the operation and

performance of the TPIC74100 Switch Mode Power Supply – Buck Regulator. The EVM contains one DC/DC

converter (See Table 1).

Table 1-1. Device and Package Configurations

CONVERTER IC PACKAGE

U1 TPIC74100QPWPRQ1 PWP-20

Introduction www.ti.com

2TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

2 Setup

This section describes the jumpers and connectors on the EVM as well and how to properly connect, set up, and

use the TPIC74100EVM.

2.1 Input/Output Connector Description

J1 – VBAT is the power input terminal for the converter. The terminal provides power (Vbat).

J2 – GND is the ground terminal for the EVM.

J3 – 5Vg is the power output terminal for the 5Vg regulator output.

J4 – VOUT is the regulated output voltage for the converter.

J5 – GND is a ground terminal for the EVM.

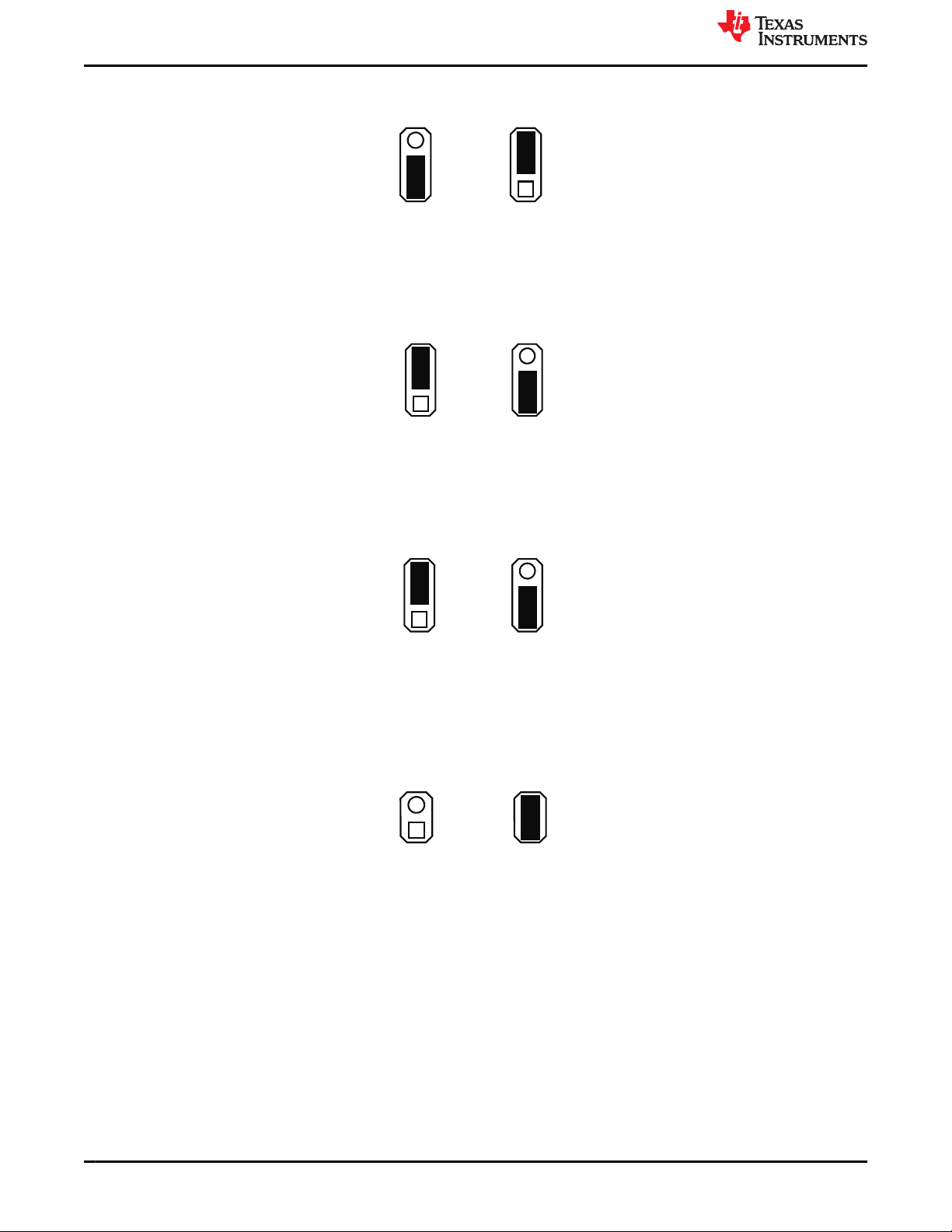

JP1, JP2 – SCR1, SCR0 are jumpers used to set the slew rate of the switching transistor for the L1 terminal

switch pin. Jumpers allow the slew rate to be set to four set points.

SCR1

slow

SCR0

SCR1

medium -slow

SCR0

SCR1

medium-fast

SCR0

SCR1

fast

SCR0

Figure 2-1. Slew Rate Jumper Settings

www.ti.com Setup

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 3

JP3 – LPM is the jumper used to enable Low Power Mode. The jumper allows LPM to be enabled or disabled.

The device will operate in Normal mode when LPM is disabled.

LPM

disabled

LPM

enabled

Figure 2-2. Low Power Mode Jumper Settings

JP4 – Enable is the jumper used to enable the converter. The converter is enabled when the Enable is high and

disabled when low. The jumper placement allows the converter to be enabled or disabled.

disabled

enabled

Figure 2-3. Enable Jumper Settings

JP5 – 5VgEN is the jumper used to enable switched 5V regulated output. The output is enabled when the

Enable is high and disabled when low. The jumper placement allows the converter to be enabled or disabled.

5Vg

disabled

5Vg

enabled

Figure 2-4. 5Vg Regulated Output Jumper Settings

JP6 – Bypass is the jumper used to bypass the low pass filter inductor on the power supply input to the device.

This allows the user to remove the filter from the circuit. The jumper placement allows the inductor to be active or

shorted.

BYPASS

active

BYPASS

shorted

Figure 2-5. Low Pass Filter Inductor Bypass Jumper Settings

2.2 Setup

The input voltage range for the converter is 1.5 volts to 40 volts. The input voltage must be at least 5 V during

start up.

2.3 Operation

For proper operation of the TPIC74100, JP1, JP2, JP3, JP4, JP5, and JP6 should be properly configured. The

recommended setting, using shorting blocks:

JP1 and JP2 to Fast

JP3 to Enabled

Setup www.ti.com

4TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

JP4 to Enabled

JP5 to Enabled, if 5Vg is used

JP6 to Shorted

In this configuration, the device powers up when power is applied. JP1, JP2 SCR0, SCR1 select how switch pin

slew rate is set: slow, medium-slow, medium-fast, or fast. JP3 LPM selects how Low Power Mode is set: Enabled

or Disabled. JP4 EN turns the device on or off. JP5 5Vg turns the regulated 5-V output on or off. JP6 Bypass

disables the low-pass filter located on the input supply to the device.

www.ti.com Setup

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 5

3 Board Layout

Figure 6, Figure 7, Figure 8, and Figure 9 show the board layout for the TPIC74100EVM PWB. The EVM offers

resistors, capacitors, and jumpers to program the switch pin slew rate and regulator turn-on Delay. Jumpers are

also provided to enable the device and to enable the low-power mode option.

The TPIC74100 offers high efficiency but does dissipate power. The PowerPAD™ package offers an exposed

thermal pad to enhance thermal performance. This must be soldered to the copper landing on the PCB for

optimal performance. The PCB provides 1-oz copper planes on the top and bottom to dissipate heat.

Figure 3-1. Top Assembly Layer

Figure 3-2. Bottom Assembly Layer (viewed from bottom)

Board Layout www.ti.com

6TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

Figure 3-3. Top Layer Routing

Figure 3-4. Bottom Layer Routing (viewed from bottom)

www.ti.com Board Layout

SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

TPIC74100EVM User's Guide 7

4 Schematic

GND

Aout 13

Cboot2

25Vg_ENABLE 19

Rmod 15

GND 16

PGND

Vdriver

Cboot1

SCR1

ENABLE 18

Vlogic 17

SCR0 20

5Vg

Ain

Vout

RESET 12

PAD

REST 14

TPIC74100PWP

CLP 11

GND

C10

VOUT

JP1

2 1

GND

VDRIVER

AIN

VBAT

VDRIVER

AIN

VLOGIC

SCR1

GND

JP2

VLOGIC

SCR0

VLOGIC

GND

VOUT

GND

ENABLE

VDRIVER

ENABLE

5VG_ENABLE

GND

JP5

5VG_ENABLE

VDRIVER

GND

JP6

5Vg

2 1

+C6

2 1

+C8

GND

REST

AOUT

RESET

GND

JP3

VLOGIC

LPM

JP4

Figure 4-1. TPIC74100EVM Schematic

Schematic www.ti.com

8TPIC74100EVM User's Guide SLIU002A – SEPTEMBER 2008 – REVISED OCTOBER 2022

Submit Document Feedback

Table 4-1. TPIC74100EVM Bill of Materials

COUNT REF

DES DESCRIPTION SIZE MFR PART NO.

2 C1, C2 Capacitor, ceramic, 4.7nF,

50V, 10% 0603 muRata GRM188R71H472KA01B

1 C3 Capacitor, ceramic, 470nF,

16V, 10% 0603 muRata GRM188R71C474KA88B

2 C4, C7 Capacitor, ceramic, 100nF,

16V, 10% 0603 muRata GRM188R71C104KA01J

1 C5 Capacitor, ceramic, 100nF,

50V, 10% 1206 muRata GCM319R71H104KA37B

1 C6 Capacitor, electrolytic, 470uF,

50V, 10% 10mm Panasonic EEU-FC1H471L

1 C8 Capacitor, tantalum, 47uF,

16V, 20% 6032 Kyocera AVX TPSD476K016T0100V

1 C9 Capacitor, ceramic, 1uF, 16V,

10% 0603 muRata GRM188R71C105KA12B

1 C10 Capacitor, ceramic, 10nF, 16V,

10% 0603 muRata GRM188R71C103KA01B

2 D1, D2 Diode, Schottky, 3A, 100V SMC IR 30BQ100

5 J1, J2, J3, J4, J5 Test point, 42-mil 0.042 Std Std

5JP1, JP2, JP3, JP4,

JP5

Header, 3-pin, 100-mil

spacing, (36-pin strip) 0.100 x 3 Sullins PTC36CAAN

1 JP6 Header, 2-pin, 100-mil

spacing, (36-pin strip) 0.100 x 2 Sullins PTC36CAAN

2 L1, L2 Inductor, SMT, 33-uH, 4.34,

54.9-mΩ 12.3mm x 12.3mm Coilcraft MSS1260T-333

1 R1 Resistor, chip, 12.1-kΩ,

1/16W, 1% 0603 Std Std

1 R2 Resistor, chip, 68.1-kΩ,

1/16W, 1% 0603 Std Std

2 R3, R4 Resistor, chip, 20-kΩ, 1/16W,

1% 0603 Std Std

1 R5 Resistor, chip, 33.2-kΩ,

1/16W, 1% 0603 Std Std

1 U1 IC, TPIC74100QPWPRQ1 TI TPIC74100QPWP
