Texas Instruments LMK61E2EVM User manual

LMK61E2EVM

User's Guide

Literature Number: SNAU188

October 2015

Contents

1 Overview ............................................................................................................................ 5

2 Features ............................................................................................................................. 5

3 Configuring the EVM ............................................................................................................ 6

4 Configuring the Power Supply .............................................................................................. 6

5 Configuring the Control Pins................................................................................................. 8

6 Configuring the Clock Output .............................................................................................. 10

7 Using the USB Interface Connection..................................................................................... 11

8 EVM Quick Start Guide........................................................................................................ 11

9 Recommended Test Instruments.......................................................................................... 11

10 Example Performance Measurements................................................................................... 12

11 EVM Layout ....................................................................................................................... 15

12 EVM Schematic.................................................................................................................. 18

13 EVM Bill of Materials........................................................................................................... 21

2Table of Contents SNAU188–October 2015

Submit Documentation Feedback

www.ti.com

List of Figures

1 LMK61E2EVM Photo........................................................................................................ 4

2 LMK61E2EVM Board Layout............................................................................................... 6

3 Power Terminals and Jumpers............................................................................................. 7

4 Control Pin Interfaces (Default jumper settings shown) ............................................................... 8

5 LMK61E2EVM Termination Schematic.................................................................................. 10

6 156.25 MHz LVPECL Differential Phase Noise ........................................................................ 12

7 156.25 MHz LVDS Differential Phase Noise ........................................................................... 13

8 161.1328125 MHz HCSL Differential Phase Noise.................................................................... 14

9 Top Overlay................................................................................................................. 15

10 Top Solder Mask ........................................................................................................... 15

11 Layer 1 (Top Side) ......................................................................................................... 15

12 Layer 4 (Bottom Side, View From Bottom) ............................................................................. 16

13 Bottom Solder Mask ....................................................................................................... 16

14 Bottom Overlay ............................................................................................................. 16

15 Drill Drawing ................................................................................................................ 17

List of Tables

1 Ordering Information ........................................................................................................ 4

2 Power Configurations ....................................................................................................... 7

3 Control Pin Interfaces ....................................................................................................... 9

4 Output Termination Schemes............................................................................................. 10

5 Recommended Device Configurations .................................................................................. 11

6 Typical Output RMS Jitter Summary..................................................................................... 12

SNAU188–October 2015 List of Figures

User's Guide

SNAU188–October 2015

LMK61E2EVM User's Guide

Figure 1. LMK61E2EVM Photo

Table 1. Ordering Information

EVM ID DEVICE ID DEVICE PACKAGE

LMK61E2EVM LMK61E2-SIA 5 mm x 7 mm 8-pin QFM (SIA)

4LMK61E2EVM User's Guide SNAU188–October 2015

Submit Documentation Feedback

www.ti.com

Overview

1 Overview

The LMK61E2EVM evaluation module provides a complete evaluation platform to evaluate the clock

performance and flexibility of the Texas Instruments LMK61E2 Ultra-Low Jitter Crystal Oscillator, with

integrated tunable 50 MHz crystal, low noise PLL, differential output, and integrated EEPROM.

The LMK61E2EVM can be used as a flexible clock source for compliance testing, performance evaluation,

and initial system prototyping. The onboard edge-launch SMA ports provides access to the LMK61E2’s

configurable clock output for interfacing to test equipment and reference boards using commercially

available coaxial cables, adapters, or baluns (not included). This connectivity enables integrated system

level testing between TI’s LMK61E2 and third-party FPGA/ASIC/SoC reference boards. A software

graphical user interface (GUI) platform can be installed on a Host PC to access the LMK61E2’s device

registers and EEPROM via the on-board USB-to-I2C interface.

2 Features

• Integrated low noise 50 MHz tunable crystal

– Fine frequency margining in ppm steps via I2C

• Coarse frequency margining in percentage steps via I2C

• Configurable output format of either LVPECL, LVDS, or HCSL

• Programmable Output Enable polarity

• EEPROM allows for custom configuration for power up defaults

• Footprint compatible with industry standard 5 mm x 7 mm XO package

– 2 additional pins allow for optional I2C programing

• GUI platform for full access to device registers and EEPROM

• On-board USB-to-I2C programming interface

• External Power supply inputs or powered over USB

• LEDs indicators: Device Power and USB / I2C activity

• Configurable output format of either LVPECL, LVDS, or HCSL

SNAU188–October 2015 LMK61E2EVM User's Guide

Configuring the EVM

www.ti.com

3 Configuring the EVM

The LMK61E2 is a highly-configurable crystal oscillator with simple power supply requirements and

flexible clock output formats. To support a wide range of evaluation use cases, the EVM was designed for

maximum flexibility so various configurations options that are not required in all typical system applications

have been included.

This section describes the jumpers and connectors on the EVM, as well as how to connect, set-up, and

use the LMK61E2EVM. When operating the LMK61E2EVM, the power supply and clock outputs can be

connected to the SMA ports shown in Figure 2. Additionally, the USB port can be used to power the entire

LMK61E2EVM without the need for external power supplies. These SMA ports are labeled in the top

silkscreen layer.

Figure 2. LMK61E2EVM Board Layout

4 Configuring the Power Supply

The LMK61E2 features a single VDD supply pin that operates from 3.3V (+ 5%). This supply can be

powered directly from an external supply or through an on-board LDO regulator. Although the LMK61E2

has integrated LDO regulators for excellent power-supply-ripple-rejection (PSRR), the EVM’s on-board

regulator (U2) can allow a higher supply voltage (like 5 V) to power the EVM. The direct external supply or

on-board regulator can be independently routed for the VDD supply pin by configuring the power terminals

and jumpers shown in Figure 3. J1 (USB mini connector) is the default power supply for the EVM,

featuring a low noise regulator for voltage step down. Power SMA Port EXTIN (P1) provides an alternative

connector style to apply power using coax cables. Using EXTIN while connected to USB power is not

required but can be useful when testing with externally regulated supplies.

6LMK61E2EVM User's Guide SNAU188–October 2015

Submit Documentation Feedback

www.ti.com

Configuring the Power Supply

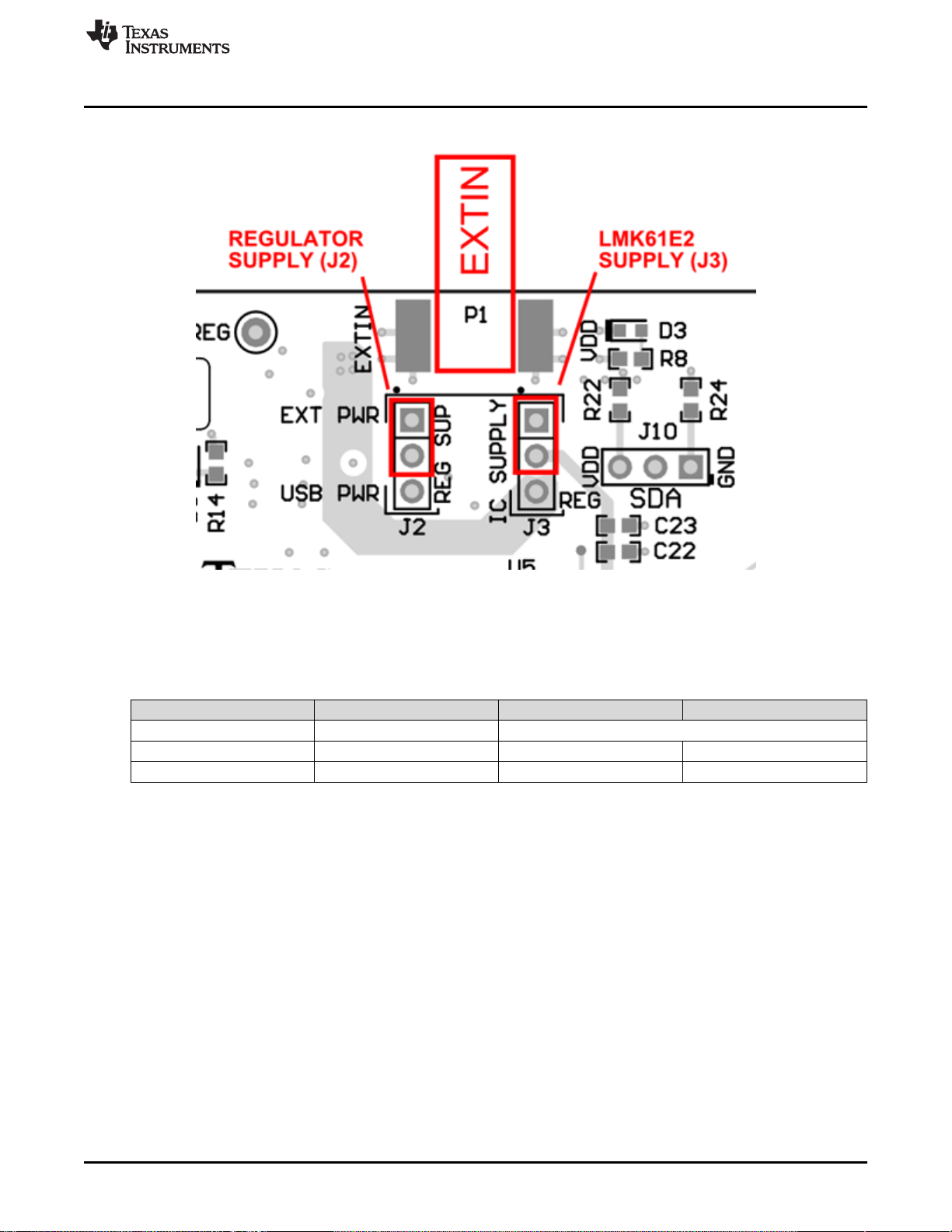

Figure 3. Power Terminals and Jumpers

Table 2 summarizes the EVM power configurations to connect and route power to the onboard LDOs and

LMK61E2. Refer to the EVM schematic for more details.

Table 2. Power Configurations

MODE EXTIN VOLTAGE J2 SETTING (1) J3 SETTING (1)

USB Powered (2) USB PWR

External Power + LDO 4.3 V to 5.5 V EXT PWR REG

External Power 3.3 V Remove Jumper EXT PWR

(1) Markings left of J2 indicate the orientation of jumper settings EXT PWR (pins 1 and 2 of jumper) and USB PWR / REG (pins 2

and 3 of jumper)

(2) USB cable must be connected to J1 for operation

SNAU188–October 2015 LMK61E2EVM User's Guide

Configuring the Control Pins

www.ti.com

5 Configuring the Control Pins

The LMK61E2 has several control pins dedicated for control of I2C communications, device I2C address,

and output enable control. These control pins can be configured through the jumpers shown in .

Figure 4. Control Pin Interfaces (Default jumper settings shown)

Jumpers J9 and J10 can be used to configure the corresponding control pin to either high or low state by

strapping the center pin to “VDD” position (tie pins 1-2) or “GND” position (tie pins 2-3), respectively.

Connections from the “VDD” position to the device supply or from the “GND” position to the ground plane

are connected by 4.7 kΩresistors.

Jumpers J5 and J6 can be configured in a static configuration through a high or low state by strapping the

center pin to “VDD” position or to the “GND” position. Similarly, these connections are made through a 4.7

kΩresistor to the respective supply and ground planes. The third position, “U2A”, allows for control of the

respective control pins over software via the onboard microcontroller. Biasing is established externally and

is default set to a high state.

The LMK61E2 control pins serve several functions unique to device pins. For a description of each pin’s

functionality and the device configuration based on their power up state, refer to Table 3.

8LMK61E2EVM User's Guide SNAU188–October 2015

Submit Documentation Feedback

www.ti.com

Configuring the Control Pins

Table 3. Control Pin Interfaces

COMPONENT NAME (TYPE) DESCRIPTION DESCRIPTION

J5 OE (passive or software control) Output Enable Pin Output Enable Pin

OE state controls the device output operation. Polarity can be

adjusted in the LMK61E2’s register settings.

OE STATE OPERATING MODE (based on

default)

GND Output Disabled

VDD (JP Default) Output Enabled

J6 ADD (passive or software I2C Slave Address LSB Select

control) pin

ADD is sampled on POR to configure the lower 2 bits of the 7-bit

slave address. The upper 5 bits of the slave address are initialized

from EEPROM (SLAVEADR[7:3] = 10110b). By configuring ADD, the

composite slave address can be selected as follows:

ADD STATE 7-BIT SLAVE ADDRESS

(excludes W/R bit)

GND 1011000b / 0x58

High Z (no connect) 1011001b / 0x59

VDD (JP Default) 1011011b / 0x5B

J9 J10 SCL SDA I2C Serial Interface Pins

(I2C inputs) An I2C master device can interface with the LMK61E2 over the I2C

clock line (SCL) and data line (SDA). The open drain topology of the

SCL and SDA pins require an external pull up resistor. J9 and J10

should always be set in the VDD position to ensure proper I2C

communication. The SCL and SDA lines are connected with the

onboard microcontroller, which is controlled by the GUI.

J1 USB (not shown in Figure 4) USB port (Mini-B type) USB port (Mini-B type)

Using the GUI platform, USB controller (U4) provides the USB-to-I2C

interface to manage the LMK61E2 device registers and EEPROM.

When USB communication is established with a Host PC running the

GUI, LED D5 should be lit solid green.

The USB port powers LDO regulator U1 to supply 3.3 V power for

the MCU and its peripheral circuitry.

J4 (not populated) U2A Optional Test Point Access to I2C and Control pins

Pin 1: SDA Pin 2: SCL

Pin 4: N/C Pin 3: N/C

Pin 5: GND Pin 6: N/C

Pin 7: OE Pin 8: ADD

Pin 9: N/C Pin 10: N/C

SNAU188–October 2015 LMK61E2EVM User's Guide

OUT_P

0.1µF

C25

0.1µF

C24

R25

R28

OUT_N

R_OUT_P

R_OUT_N

OUTP

OUTN

R27

100

R31

R30

150

R26

150

R29

Configuring the Clock Output

www.ti.com

6 Configuring the Clock Output

The LMK61E2’s differential output is routed via 50 ohm single ended traces to SMA ports (OUTN and

OUTP) through AC coupling capacitors. The output also has a series resistor (0 ohm populated by default,

R25 ad R28) and emitter resistors (150 ohm populated by default for LVPECL, R26 and R29). Common

output format terminations are shown in Table 4. The output termination schematic is shown in Figure 5.

Table 4. Output Termination Schemes

OUTPUT FORMAT COUPLING COMPONENT VALUE

LVPECL AC R25, R28 0 Ω

(default EVM R26, R29 150 Ω

configuration) C24, C25 0.01 uF

R27, R30, R31 DNP

DC(1) R25, R28, C24, C25 0 Ω

R26, R27, R29, R30, R31 DNP

LVDS(2) AC R25, R27, R28, R30 0 Ω

R31 100 Ω

C24, C25 0.01 uF

R26, R29 DNP

DC R25, R27, R28, R30, C24, C25 0 Ω

R31 100 Ω

HCSL AC R25, R28 0 Ω(22 Ωoptional)

R26, R29 50 Ω

C24, C25 0 Ω

R27, R30, R31 DNP

DC R25, R28 0 Ω(22 Ωoptional)

R26, R29 50 Ω

C24, C25 0.01 uF

R27, R30, R31 DNP

(1) 50 ohm to Vcc-2 V termination is required on receiver.

(2) 100 ohm differential termination (R31) is provided on the LMK61E2EVM. Removing the differential termination on the EVM is

possible if the differential termination is available on the receiver.

Figure 5. LMK61E2EVM Termination Schematic

10 LMK61E2EVM User's Guide SNAU188–October 2015

Submit Documentation Feedback

Table of contents

Other Texas Instruments Motherboard manuals

Texas Instruments

Texas Instruments LM5064EVK User manual

Texas Instruments

Texas Instruments PGA2500EVMV2 User manual

Texas Instruments

Texas Instruments TPS25740EVM-741 User manual

Texas Instruments

Texas Instruments UCC14240-Q1 User manual

Texas Instruments

Texas Instruments LM74670-SQEVM User manual

Texas Instruments

Texas Instruments bq4050EVM-561 User manual

Texas Instruments

Texas Instruments TSC2117EVM-K User manual

Texas Instruments

Texas Instruments TPS62110EVM-101 User manual

Texas Instruments

Texas Instruments TPS61130EVM User manual

Texas Instruments

Texas Instruments DLP5532HBQ1EVM User manual

Texas Instruments

Texas Instruments LP8862-Q1EVM User manual

Texas Instruments

Texas Instruments MSC1200EVM User manual

Texas Instruments

Texas Instruments BQ240729 User manual

Texas Instruments

Texas Instruments ADS1110EVM User manual

Texas Instruments

Texas Instruments LP876242-Q1 User manual

Texas Instruments

Texas Instruments BQ25611D User manual

Texas Instruments

Texas Instruments ADS42 Series User manual

Texas Instruments

Texas Instruments TSB42AA9 (StorageLynx) EVM User manual

Texas Instruments

Texas Instruments LM53625 QEVM Series User manual

Texas Instruments

Texas Instruments WL1837MODCOM8I User manual

Texas Instruments

Texas Instruments TPS53015EVM-126 User manual

Texas Instruments

Texas Instruments TPS2543EVM User manual

Texas Instruments

Texas Instruments TMAG5110-5111EVM User manual

Texas Instruments

Texas Instruments TAS5766MRMTEVM User manual

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

ASROCK

ASROCK ROMED8-2T user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Commell

Commell MS-C73 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Biostar

Biostar M7VIT Bravo Description

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
