Teleco TSDR5000CI User manual
Digital DVB
TSDR5000CI
receiver
Menu
Camping
VOLT
GB
V. 002
2 - Digital DVB TSDR5000CI receiver
Table of Contents
Table of Contents
Contents
Figures and Tables
Information
Safety information
General view
Remote control
Front view
Rear view
Technical specifications
Definition
Technical specifications
List of accessories
Installation
Introduction
Main connections
Connecting the lead from the satellite dish
Connecting the SCART cable between the receiver and the TV or monitor
Connecting the coaxial cable between receiver and TV
Connecting the remote control infrared sensor
Connecting to the power supply
Additional connections
Connecting to a video recorder
Connecting to a monitor in S-VHS
Connecting a Home Theatre system
Immediate use of the receiver
Introduction
Switching on the receiver
Changing service
Favourites lists which were factory loaded
Other immediate functions
Menu and advanced functions
Introduction
Accessing the menu
The favourites list
Creating a list
Modifying a list
Deleting a list
Installation
Antenna/Satellite configuration
Antenna configuration
2
3
5
6
7
7
9
9
11
11
11
12
13
13
13
13
13
13
13
13
14
14
14
14
15
15
15
15
16
16
19
19
19
19
20
22
24
24
25
25
Table of Contents
Digital DVB TSDR5000CI receiver - 3
Satellite configuration
Adding a new satellite
Modifying the satellites list
Deleting a satellite
Adding a transponder
Deleting a transponder
LNB configuration
Motor configuration
Service installation
TV configuration
Set time
VCR configuration
Reinstallation
System update
User settings
Language configuration
Access control
Modifying the PIN code
Information about system
Conditioned access
Reinstalling your receiver
Introduction
Re-installation sequence
Glossary
Figures and Tables
Figure 1 – frontal panel
Figure 2 – rear panel
Figure 3 – info banner
Figure 4 – Camping menu
Figure 5 - volume
Figure 6 – mute function
Figure 7 - EPG and info function
Figure 8 – audio service selection
Figure 9 – Main menu
Figure 10 – Service list management
Figure 11 – Creating a list
Figure 12 – Modifying a list
Figure 12 A – Modifying a list
Figure 12 B – Modifying a list
Figure 13 – Deleting a list
26
27
28
28
28
29
30
30
31
33
34
35
36
36
37
37
38
38
39
39
42
42
42
48
9
9
15
16
17
17
17
18
19
20
20
22
23
23
24
4 - Digital DVB TSDR5000CI receiver
Figure 14 – Installing the receiver
Figure 15 – Antenna/satellite configuration
Figure 16 – Configuring the antenna
Figure 17 – Services resetting message
Figure 18 – Configuring satellites
Figure 19 – Adding a new satellite
Figure 20 – Modifying the satellites list
Figure 21 – Adding a transponder
Figure 22 – Deleting a transponder
Figure 23 – LNB configuration
Figure 24 – Motor configuration
Figure 25 – Service installation mode
Figure 26 – Service acquisition
Figure 27 – Service acquisition over
Figure 28 – Services saved on the receiver
Figure 29 – TV configuration
Figure 30 – Setting the clock
Figure 31 – VCR configuration
Figure 32 – System update
Figure 33 – User settings menu
Figure 34 – Menu/audio language settings
Figure 35 – Controlling access to receiver functions
Figure 36 – PIN code
Figure 37 – System information
Figure 38 – Conditioned access
Figure 39 – Access to CAM information
Figure 40 – Example of information on the CAM
Figure 41 – Example of information on the SmartCard
Figure 42 – Confirm reinstallation
Figure 44 – Welcome message
Figure 45 – Setting the language during re-initialisation
Figure 46 – TV configuration
Figure 47 – LNB configuration
Figure 48 – Service installation
Figure 49 – Services being installed
Figure 50 – Service reception complete
Figure 51 – Services saved
Figure 52 – Clock setting
Figure 53 - Reinstallation completed
Table of Contents
24
25
26
26
27
27
28
30
30
30
31
32
32
33
33
34
35
35
36
37
37
38
38
39
39
40
40
41
42
43
43
44
44
45
45
46
46
47
47
Information
Digital DVB TSDR5000CI receiver - 5
Information
Congratulations on purchasing our TSDR5000CI receiver, one of the most technologically advanced
products in the satellite TV reception field. This handbook has been drawn up to provide information
on installation, use and maintenance of your TSDR5000CI system.
This handbook contains all the information pertaining to the TSDR5000CI receiver:
Issue date: 15th July 2006
Document version: TSDR5000CI rev. 2.0
Software version: 1.9
Electronics version: V2
Should you require further information please contact your local dealer or:
TELECO s.p.a.
Via E. Majorana 49
I-48022 LUGO (RA)
Web site: www.telecogroup.com
Technical Assistance : lab@telecogroup.com
Technical Assistance 899.899.856
Newsgroup : news:\\85.47.106.113
Ftp: ftp: \\ 85.47.106.113
TELECO s.p.a. shall not be held responsible for any errors in drawing up this manual. All information
which is contained herein is updated on the date of issue and the aforementioned revisions.
TELECO s.p.a. reserves the right to make modifications according to technological changes.
6 - Digital DVB TSDR5000CI receiver
Information about safety
Information about safety
The following safety information refers to installation, use and maintenance. The handbook contains
specific info/safety warnings on specific topics. Always observe safety information with the utmost
care.
Electronic devices on the TSDR5000CI receiver can generate potentially dangerous
voltages. Electronic device covers must only be removed for maintenance and
set-up purposes and only after taking all the required precautions.
Before removing the electronic device covers always check that the
mains power supply is OFF and that the power lead
has been disconnected.
Installation and maintenance work must only be carried out
by qualified personnel.
Always disconnect the unit from the mains power supply before cleaning it.
Use a dry cloth and clean the outer shell only.
Protect the unit against condensation and splashes. The unit must be positioned
so that adequate ventilation is provided via the grilles.
Maximum working temperature = 45 C
General view
Digital DVB TSDR5000CI receiver - 7
General view

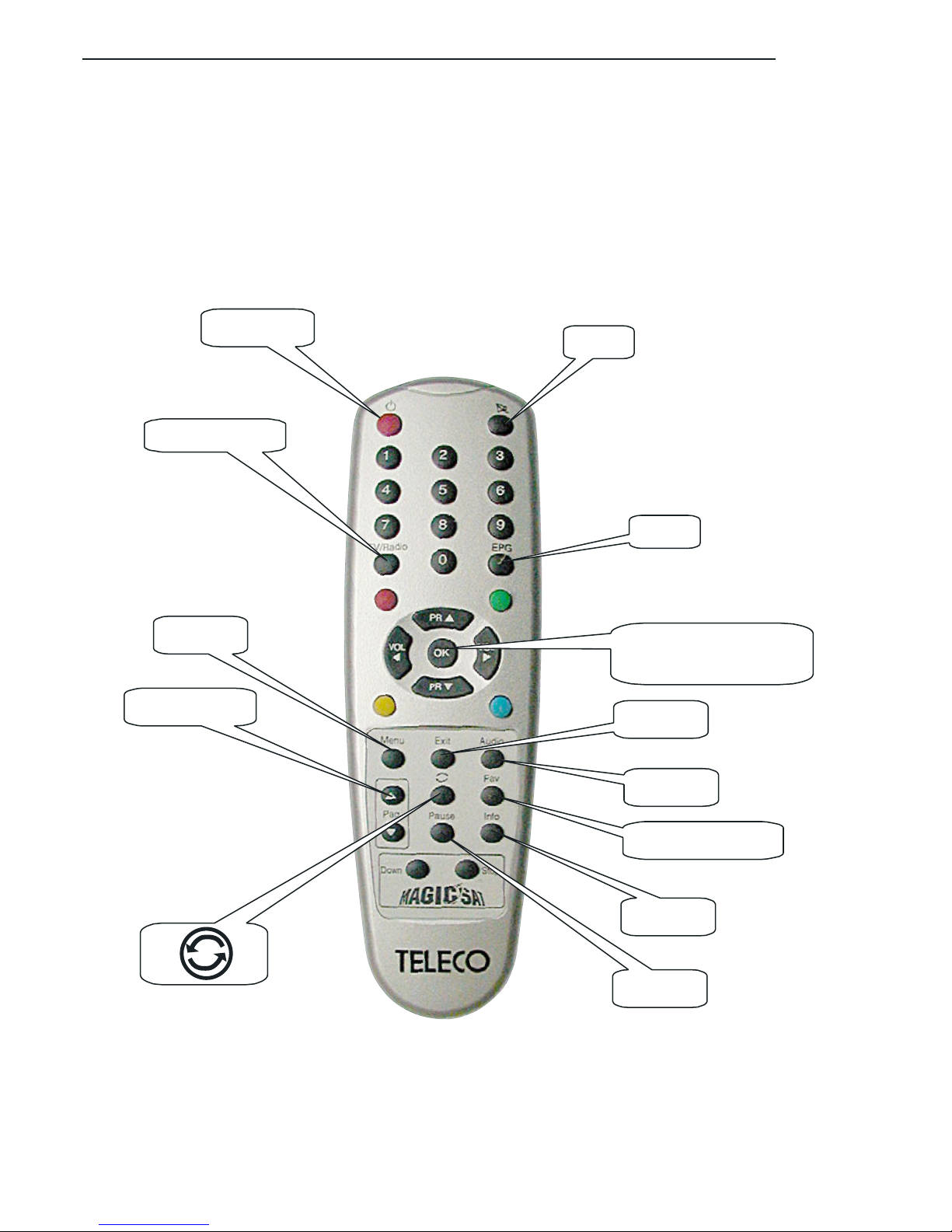

Remote control
ON/OFF
TV/RADIO
Menu
Page + e -
Mute
EPG
Right, left, up, down
and OK keys
Exit
Audio
Favourites list
Info
Pause
8 - Digital DVB TSDR5000CI receiver
General view
ON / OFF
TV/RADIO
EPG
Menu
0..9
Right, Left, Up, Down, OK
Exit
Audio
Favourites list
Info
Pause
Page + / -
Mute
Switches the receiver on and off
Switches from TV to radio reception
Electronic Program Guide
Access to advanced receiver functions
Numerical keypad
Multi-function keys: volume control, Camping menu access key,
next or previous service (program) and other functions.
Exits the currently selected page.
Chooses which audio service to listen to (if the broadcaster has
activated the multi-audio service)
Selects which service list to use from among those available
(general, favourite, satellite).
Additional information on the currently selected service
Image freeze (analogous to VHS pause function)
Sat Finder: sound level and quality tone of the signal
Goes to next or previous page on a list.
Audio service disabled
General view
Digital DVB TSDR5000CI receiver - 9
Fronte view
On/off Display CAM modules (2)
Figure 1 - frontal panel
Rear view
Figure 2 - rear panel
LNB input
(1) VCR (4)
Audio
outputs
(7)
Antenna
input (9)
Power supply
12V
(12)
LNB
output (2) Computer
port (3)
TV
(5)
S-VHS
(6)
TV output
(8) IR-
remote
(10) DataPort
(11)
10 - Digital DVB TSDR5000CI receiver
General view
On/off switch
CAM modules
LNB input
LNB output
Computer port
VCR
TV
S-VHS
Audio outputs
Antenna input
TV output
IR_Remote
DataPort
12V Power supply
General power switch
Two slots for CAM PCMCIA modules
F-type connector for satellite dish lead.
F-type connector for second receiver (e.g. an analogue receiver) to make
use of the same satellite dish connection.
DB9 connector for computer link
SCART socket for video recorder connection
SCART socket for TV connection
Video output connector in S-VHS
Auxiliary audio output connectors. L & R connectors are available as is
a S/PDIF connector for PCM (Digital) format audio output
TV signal output connector for signals from traditional antenna mixed
with UHF band digital receiver signal. These connections should only be
used if the TV does not have a SCART connector or a base band
audio/video input.
Remote control IR sensor connector
DataPort connector for additional devices
12 Volt power connector.
Traditional VHF/UHF band antenna input connector
