Technics SD-S7258 User manual

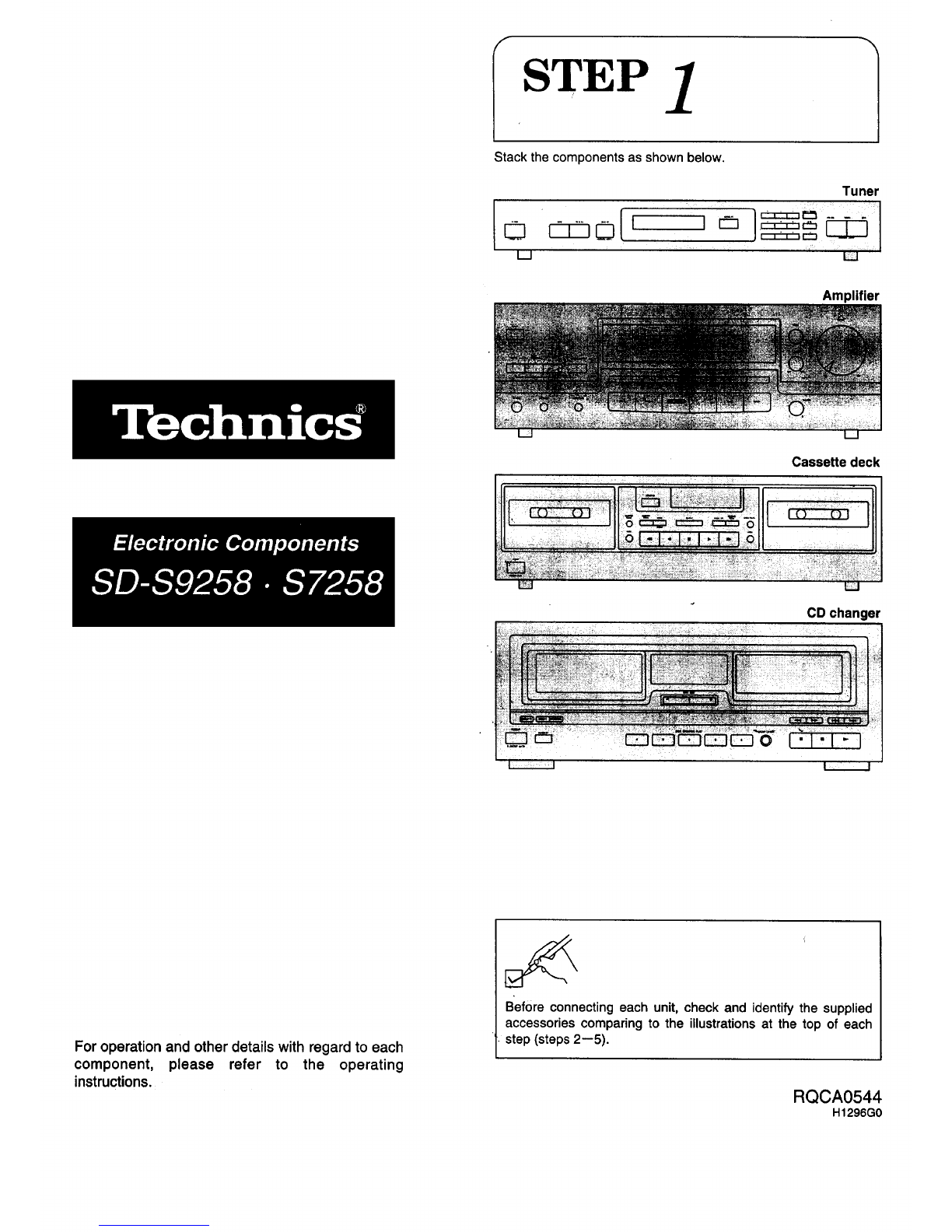

ISTEP1

Stack the components as shown below. 1

©i i

Tuner

Amplifier

Cassette deck

For operation and other details with regard to each

component, please refer to the operating

instructions.

Before connecting each unit, check and identify the supplied

accessories comparing to the illustrations at the top of each

step (steps 2--5).

RQCA0544

H1296G0

STEP 2D

(4 pcs.)

When these terminals are

not in use, be sure to insert

the "shorting" pins.

Shorting pins

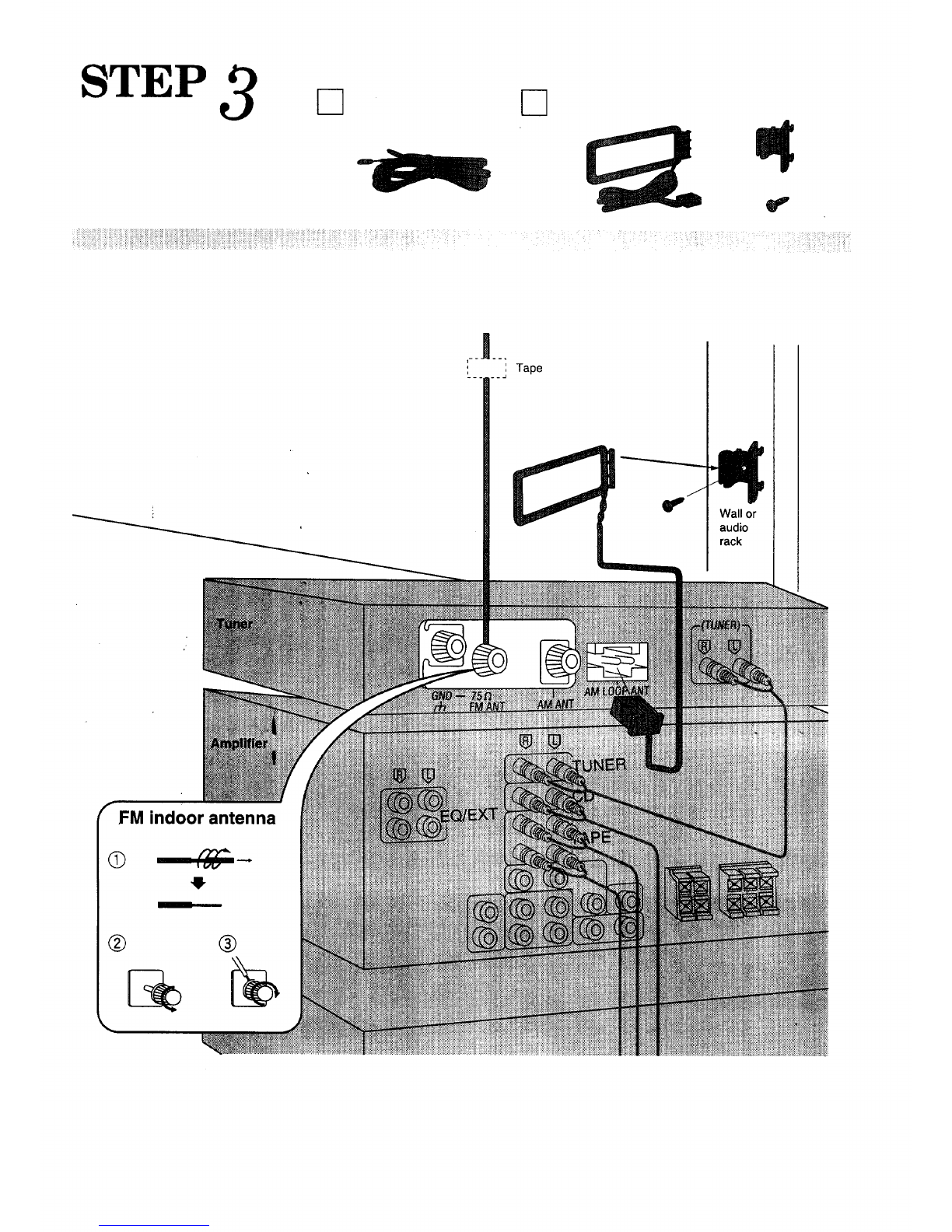

STEP 3DN

,:Tape

..... J

Wall or

audio

rack

fFM indoor antenna

® ®

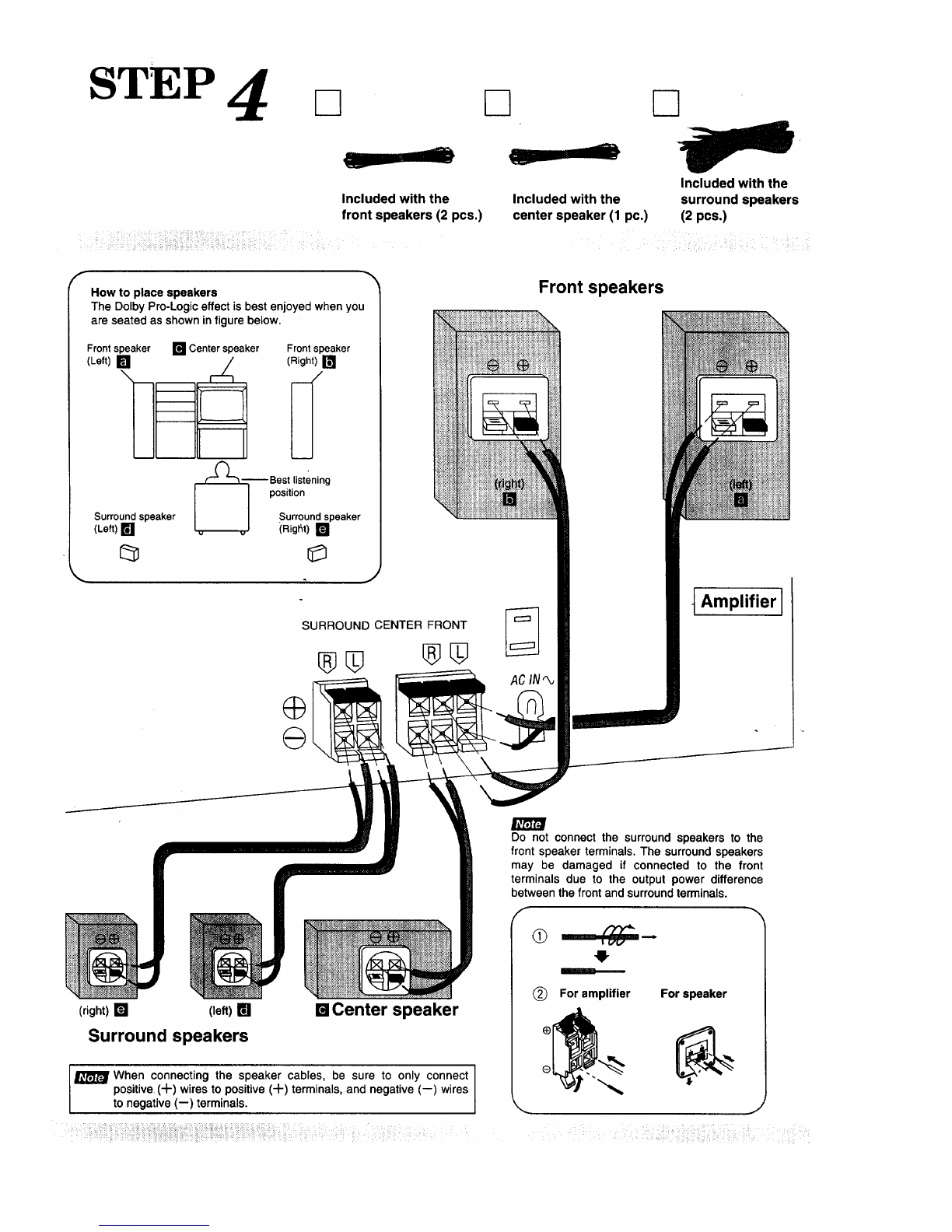

STEP 4D D

Included with the

front speakers (2 pcs.)

FHow to place speakers

The Dolby Pro-Logic effect is best enjoyed when you

are seated as shown in figure below.

Front speaker [] Center speaker Front speaker

(Left) ___ (Right)[ _

r__-- Best listening

IJp°siti°n

Surround speaker I I Surround speaker

(Left) [] Iv _,J iRigl_t) []

SURROUND CENTER FRONT

Includedwith the

center speaker (1 pc.)

Front speakers

Included with the

surround speakers

(2 pcs.)

fAmplifier J

(right) [] (left) []

Surround speakers

[] Center speaker

When connecting the speaker cables, be sure to only connect

positive. (-I-) wires to positive (Jr-) terminals, and negative (--) wires

to negative (--) terminals.

Do not connect the surround speakers to the

front speaker terminals. The surround speakers

may be damaged if connected to the front

terminals due to the output power difference

between the front and surround terminals.

®0

(_) For amplifier For speaker

STEP 5D

Long, thick type (2 pcs.)

Short, thin type (2 pcs.)

deck

Short, thin type J

Connect this cord after

all other cables and

cords are connected.

Household AC outlets

(AC 120 V/60 Hz)

Long, thick type]

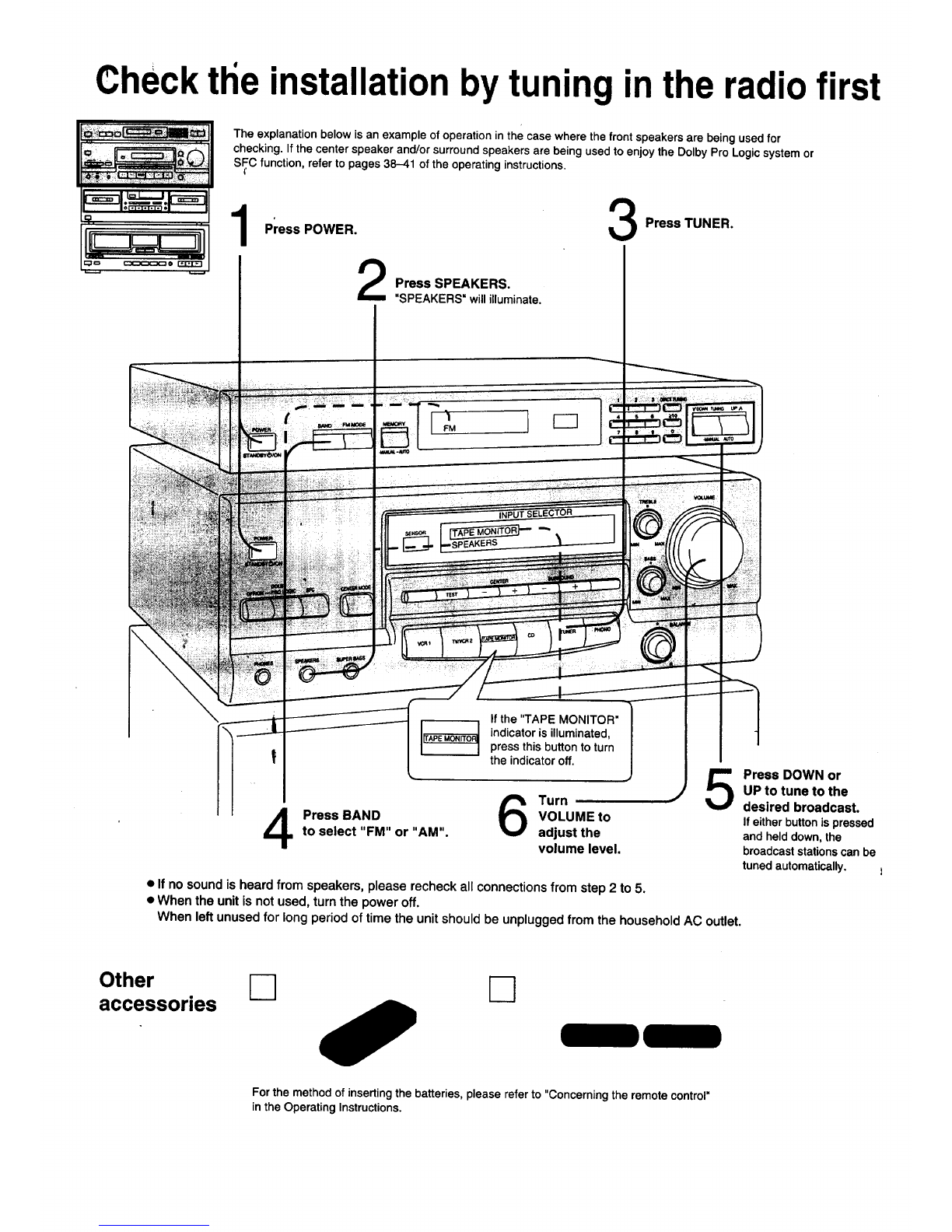

Check tl'ieinstallationby tuning inthe radiofirst

The explanation below is an example of operation in the case where the front speakers are being used for

checking. If the center speaker and/or surround speakers are being used to enjoy the Dolby Pro Logic system or

SFC function, refer to pages 38-41 of the operating instructions.

Press POWER.

Press SPEAKERS.

"SPEAKERS" will illuminate.

1 [221 j,.s

If the "TAPE MONITOR"

indicator is illuminated,

press this button to turn

the indicator off.

Press BAND 6

to select "FM" or "AM".

Turn

VOLUME to

adjust the

volume level,

Press TUNER.

JPress DOWN or

UP to tune to the

desired broadcast.

If either button is pressed

and held down, the

broadcast stations can be

tuned automatically.

• If nosoundisheardfrom speakers,please recheck all connections from step2 to 5.

•Whentheunitisnotused,turnthepoweroff.

Whenleftunusedfor longperiodoftimetheunitshouldbe unpluggedfrom thehouseholdAC outlet.

Other _[_

accessories

For the method of inserting the batteries, please refer to "Concerning the remote control"

in the Operating Instructions.
