Introduction

Getting Acquainted with Your Printer2

Getting Acquainted with Your Printer

Printer Parts

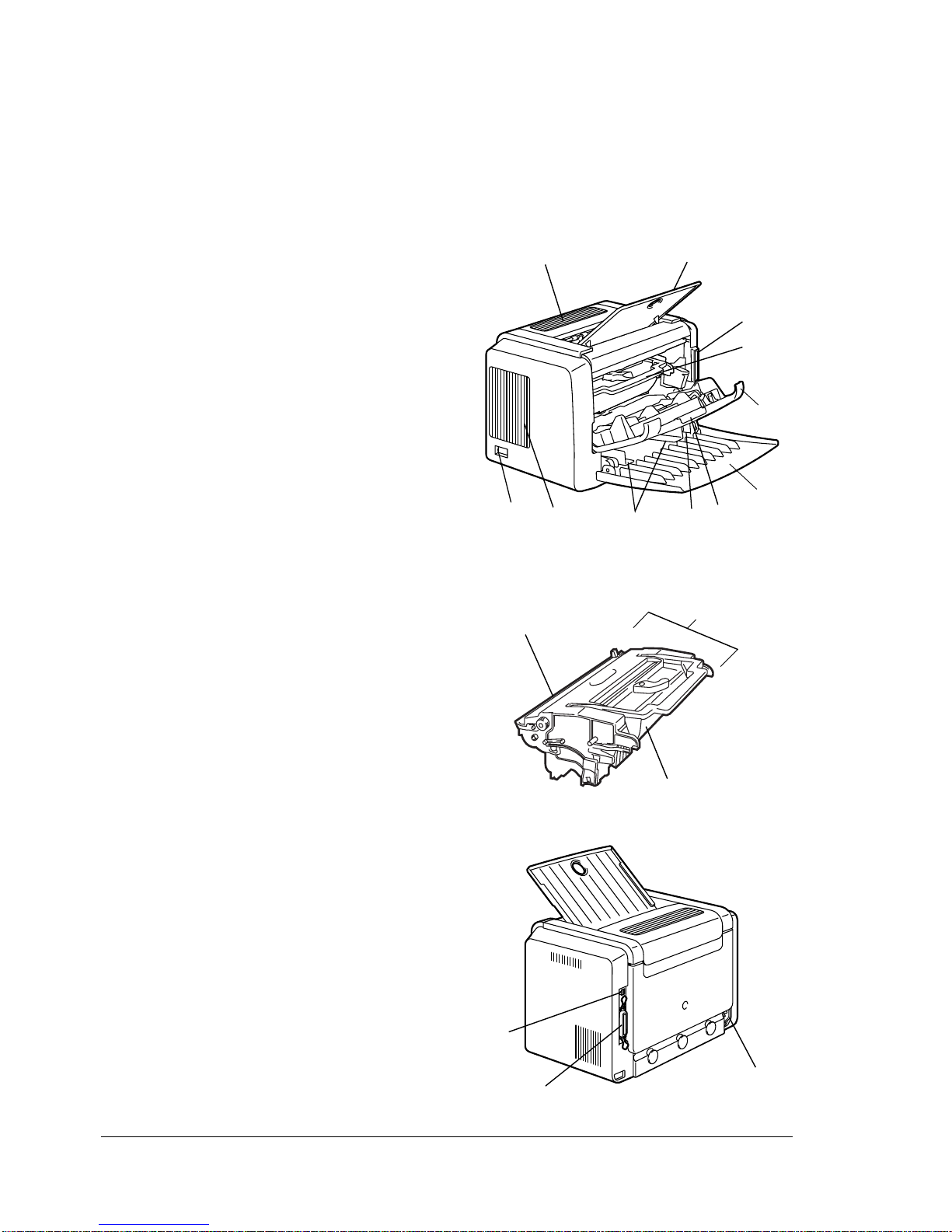

The following drawings illustrate the parts of your printer referred to through-

out this guide, so please take some time to become familiar with them.

Front View

1—Top cover

2—Output tray

3—Control panel

4—Imaging cartridge

(Toner cartridge plus Drum car-

tridge)

5—Front cover

6—Tray 1

7—Front cover grip

8—Paper guide stopper

9—Paper guides

10—Ventilation grilles

11—Power switch

Rear View

1—AC power connection

2—Parallel port

3—USB port

1 2

Imaging

Drum cartridge

Toner cartridge

cartridge

About the Indicator Functions 3

About the Indicator Functions

Indicator Functions

The control panel has two indicators

and one button. The control panel

indicatorsprovide information on the

status of the printer.

1—Ready indicator

2—Error indicator

3—Cancel button

The Cancel button allows you to:



Continue a print job after an

error message



Cancel a print job

Continuing a Print Job after an Error Message

You can continue the print job after correcting the following types of errors:



When the print job is too complex and the memory capacity of the printer

is inadequate



When there is no more paper in the tray



When paper of a different format than that set in the printer driver was fed

into the printer

1Check that one of the above errors has occurred.

2Perform the remedial action according to the error.

3Press the Cancel button to operate the media feed.

The print job continues.

For details on the error messages, refer to chapter 8, “Troubleshooting” on

page 47.

Cancelling a Print Job

You can cancel a print job that is currently being processed.

1While data is being processed or printed (the green “Ready” indicator is

blinking), hold down the Cancel button for more than 5 seconds.

2Release the Cancel button after both indicators light up.

The current print job has now been cancelled.

About the Indicator Functions4

The indicators may show five types of signals:



Off



Slow blinking—1 blink every 2 seconds



Blinking—1 blink per second



Rapid blinking—2 blink per second

Status Message

Status messages indicate the current condition of the printer. The printer sta-

tus also can be checked on the Status Display. (Refer to the “Working with the

Status Display” on page 16.)

Ready

indicator

(green)

Error

indicator

(orange)

Condition Action

Off Off Power off None

On Off Ready to print None

Rapid blink-

ing Off Warming up None

Blinking Off Processing data None

Printing

On On Initializing (power on) None

Canceling a print job

Slow blinking Off Power save mode None
