Supermicro SUPER P4DC6+ User manual

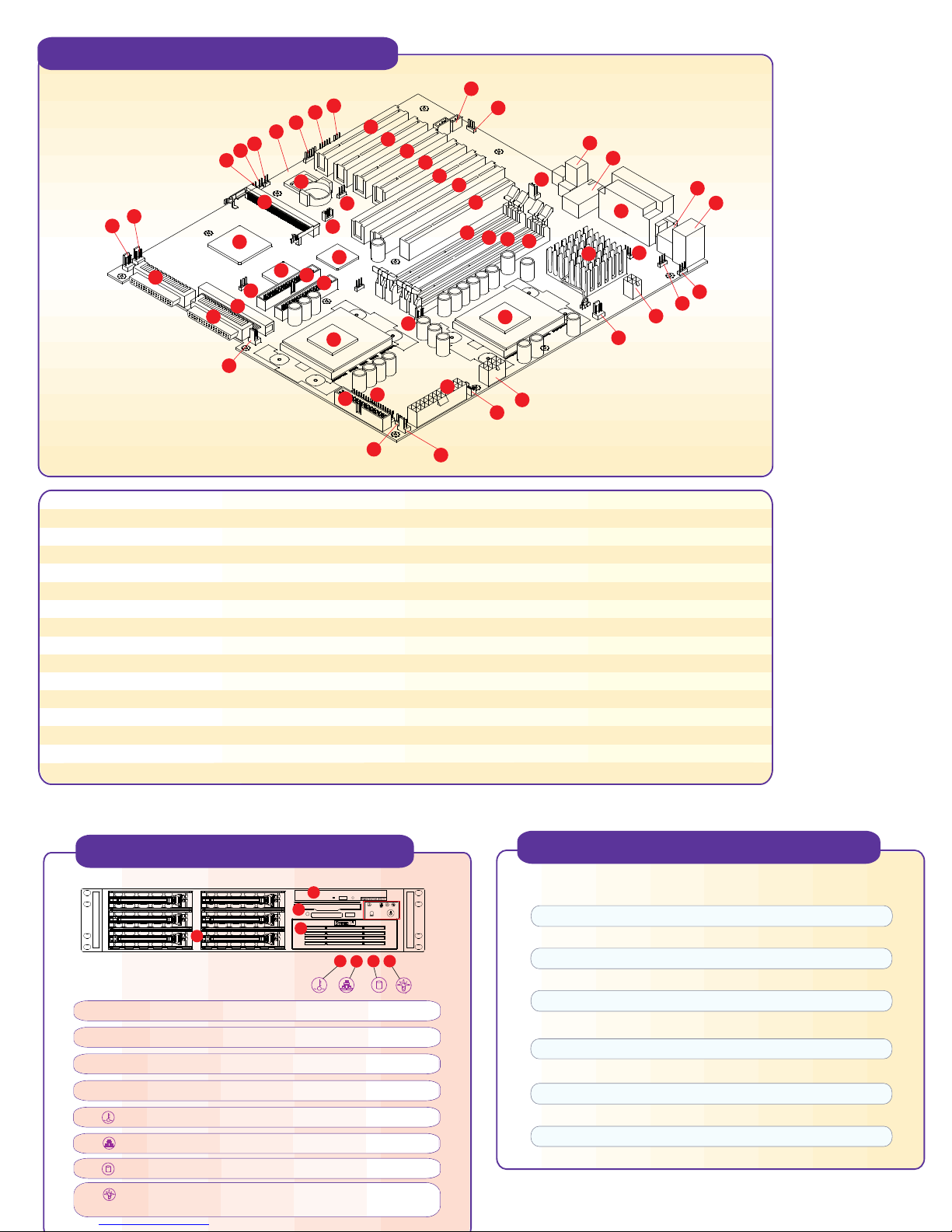

Motherboard Components

P4DC6+ Quick Reference

Front Panel Functions

1. 6 SCA Ultra160 hot-swap drive bays

2. 1 slim CD-ROM

3. Floppy drive

4. 1 x 5.25" drive bay

5. Overheat: Indicates an overheat condition in the system

6. NIC1: Indicates network activity on LAN1 when flashing

7. HDD: Indicates IDE channel activity.

8. Power: Indicates power is being supplied to the system's

power supply units

Two continuity memory modules must be installed in Bank 1 if only one pair of RAMBUS modules is installed in Bank 0.

1 System Board

2 BIOS

3RAID Port

4 JWOR

5 JPA1 SCSI Terminator

6 JPA2 SCSI Terminator

7JP34

8 WOL

9AIC-7899

10, 11 CH FAN1, CH FAN2

12 Ultra160 LVD SCSI CHA

13 Ultra160 LVD SCSI CHB

14 Ultra SCSI CHB

15 ICH2

16, 17 IDE#1, IDE#2

18 JBT1

19 P64H

20 CH FAN3

21, 22 CPU#1, CPU#2

23 JF1

24 Floppy

25 JP38

26 CH FAN4

27 ATX Power

28 JP37 Power Fail Signal Conn.

29 J24 (8-pin 12V conn.)

30, 31 CPU FAN1, CPU FAN2

32 J23 (4-pin 12V conn.)

33 JP39

34 JPWAKE

35 JP36

36 MCH

37 Mouse and Keyboard Ports

38 2 USB Porta

39 Parallel Port, COM1, COM2

40 LAN

41 AC97' Audio CODEC

42 OH FAN

43,44 Rambus Bank 0 *

45,46 Rambus Bank 1*

47 AGP Pro Slot

48,49 2 64-bit PCI (66MHz)

50,51,52,53 4 32-bit PCI (33MHz)

54 JP35

55 CD1, CD2

56 JP4

57 J20

58 J29

5678

Jumper Description Default Setting

JBT1  CMOS clear Pins 1-2 (Normal)

JP2, JP2A1 Manufacturer setting Pins 1-2 (Auto)

JPA1, A2 SCSI termination Open (Enabled)

JPA3 64-bit PCI speed select Open (66 MHz)

JP4 Onboard audio Pins 1-2 (Enabled)

JP35 LAN enable/disable Pins 1-2 (Enabled)

JP34 SCSI enable/disable Pins 1-2 (Enabled)

JP36  Manufacturer setting Pins 1-2 (Enabled)

JP38 Third power supply fail alarm Open (Disabled)

JP39 USB wake up Pins 1-2 (Enabled)

JPWAKE Keyboard wake up Pins 1-2 (Disabled)

39 37

44 43

46 45

51 50

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

Rear Panel Functions

2345

Cooling Fan Installation

Due to the fact that adequate air flow and proper thermal control are very critical in

maintaining 2U system's stability and performance, it is imperative that the proper

installation procedures listed below be followed in order to maximize system performance.

This is especially critical for 2U dual processor servers with speeds of 1 GHz and above.

Warning !

CPU Heatsink Installation Procedures

(For Supermicro SuperServer 2U Systems)

1) Only those CPU heatsinks that are provided by Supermicro should be used.

2) Apply a small amount of silicon compound on the CPU's die.

3) Place the CPU heatsink on top of the CPU.

4) Place the heatsink spring on top of the CPU heatsink and secure the clip of the spring into its notch.

(Make sure the clip position is the same as in the picture shown)

CPU

Clip

CPU heatsink retention

1. AC Power connector

2. PS/2 Mouse and Keyboard ports

3. 2 USB ports

4. COM 1

5. COM 2

6. Parallel port

7. Intel 82559 LAN port

8. AC'97 audio CODEC

9. 7 low-profile I/O expansion slots
