StarTech.com PEX1TO16R User manual

PEX1TO16R / PEX4TO16R

PEX8TO16R

PCI Express Riser Card x1/x4/x8 to x16 Left Slot Adapter for 1U Servers

Installation Guide

Packaging Contents

• 1xRiserCard

• 1xInstallationGuide

System Requirements

• PCIExpressenabledcomputersystemwithavailable

x1/x4/x8PCIeslot

• 1UServerchassis

ManualRevision:10/28/2010

Forthemostup-to-dateinformation,pleasevisitwww.startech.com

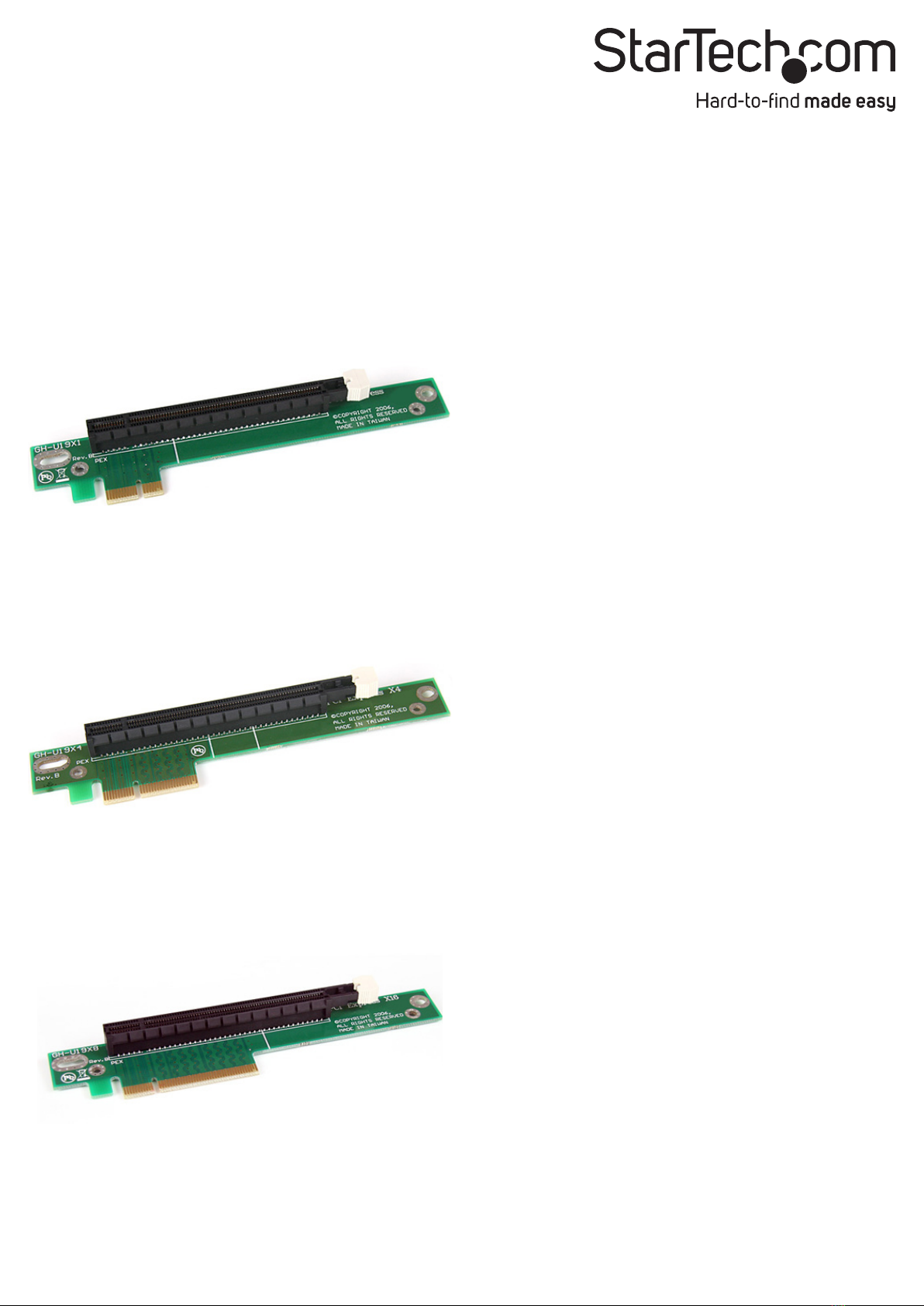

PEX1TO16R

*actualproductsmayvaryfromphotos

PEX4TO16R

PEX8TO16R

Installation

WARNING!PCIExpresscards,likeallcomputer

equipment,canbeseverelydamagedbystatic

electricity.Besurethatyouareproperlygrounded

beforeopeningyourcomputercaseortouchingyour

PCIExpresscard.StarTech.comrecommendsthatyou

wearananti-staticstrapwheninstallinganycomputer

component.Ifananti-staticstrapisunavailable,

dischargeyourselfofanystaticelectricitybuild-upby

touchingalargegroundedmetalsurface(suchasthe

computercase)forseveralseconds.Alsobecarefulto

handlethePCIExpresscardbyitsedgesandnotthe

goldconnectors.

1. Makesurethatyoursystemisunpoweredand

unpluggedandyouaregrounded.

2. Removethecoverofyoursystem(refertocomputer

systemdocumentationfordetails,ifnecessary)so

thatthePCIExpressexpansionslotopeningsonthe

motherboardareaccessible.

3. AlignthePCIExpressconnectorontherisercard

withanavailablePCIExpressslot.

4. Gentlyinsertthecardintotheemptyslot,making

sureitisseatedrmly.Fastenthecardtotheriser

cardmountingbracketonthecomputerchassis(refer

tocomputersystemdocumentationfordetails,if

necessary).

5. InstallthedesiredPCIExpresscardintothex16slot

ontherisercardandfastensecurelytothecomputer

chassis(refertocomputersystemdocumentationfor

details,ifnecessary).

6. Replaceandfastenthecomputercover.

Warranty Information

Thisproductisbackedbyaoneyearwarranty.

Inaddition,StarTech.comwarrantsitsproductsagainstdefectsinmaterials

andworkmanshipfortheperiodsnoted,followingtheinitialdateofpurchase.Duringthisperiod,theproductsmaybereturnedforrepair,orreplacementwith

equivalentproductsatourdiscretion.Thewarrantycoverspartsandlaborcostsonly.StarTech.comdoesnotwarrantitsproductsfromdefectsordamages

arisingfrommisuse,abuse,alteration,ornormalwearandtear.

Limitation of Liability

InnoeventshalltheliabilityofStarTech.comLtd.andStarTech.comUSALLP(ortheirofcers,directors,employeesoragents)foranydamages(whetherdirect

orindirect,special,punitive,incidental,consequential,orotherwise),lossofprots,lossofbusiness,oranypecuniaryloss,arisingoutoforrelatedtotheuse

oftheproductexceedtheactualpricepaidfortheproduct.Somestatesdonotallowtheexclusionorlimitationofincidentalorconsequentialdamages.Ifsuch

lawsapply,thelimitationsorexclusionscontainedinthisstatementmaynotapplytoyou.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

Thismanualmaymakereferencetotrademarks,registeredtrademarks,andotherprotectednamesand/orsymbolsofthird-partycompaniesnotrelatedinanywayto

StarTech.com.WheretheyoccurthesereferencesareforillustrativepurposesonlyanddonotrepresentanendorsementofaproductorservicebyStarTech.

com,oranendorsementoftheproduct(s)towhichthismanualappliesbythethird-partycompanyinquestion.Regardlessofanydirectacknowledgementelse-

whereinthebodyofthisdocument,StarTech.comherebyacknowledgesthatalltrademarks,registeredtrademarks,servicemarks,andotherprotectednames

and/orsymbolscontainedinthismanualandrelateddocumentsarethepropertyoftheirrespectiveholders.

Technical Support

StarTech.com’slifetimetechnicalsupportisanintegralpartofourcommitmenttoprovideindustry-leadingsolutions.Ifyoueverneedhelpwithyourproduct,

visitwww.startech.com/supportandaccessourcomprehensiveselectionofonlinetools,documentation,anddownloads.

Specications

PEX1TO16R PEX4TO16R PEX8TO16R

Bus Interface PCIExpress

(x1slotconnector)

PCIExpress

(x4slotconnector)

PCIExpress

(x8slotconnector)

Connectors x16PCIExpressslot

Maximum Bandwidth

PCIe 1.0 motherboard:

2.5Gbps

PCIe 2.0 motherboard:

5Gbps

PCIe 1.0 motherboard:

10Gbps

PCIe 2.0 motherboard:

20Gbps

PCIe 1.0 motherboard:

20Gbps

PCIe 2.0 motherboard:

40Gbps

Operating Temperature 0°C~60°C(32°F~140°F)

Storage Temperature 0°C~60°C(32°F~140°F)

Humidity 5%~95%RH

Dimensions (LxWxH) 158.0mmx32.0mmx17.0mm

Weight 25g 25g 25g
