PEXMSATA3422

2x mSATA + 2x SATA PCIe SATA III 6Gbps

RAID Controller Card with HyperDuo

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements ............................................................................................................................. 1

Product Overview ..................................................................................1

Product Diagram ....................................................................................................................................... 1

LED and PIN Header LED ........................................................................................................................ 2

Installation ..............................................................................................2

mSATA SSD Installation........................................................................................................................... 2

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 3

Management Utility Installation.......................................................................................................... 5

Verifying Installation................................................................................................................................ 7

Hard Drive Initialization........................................................................8

Port Multiplier ........................................................................................9

Operation ................................................................................................9

RAID Conguration .................................................................................................................................. 9

Administration Console Method......................................................................................................... 10

HyperDuo Conguration........................................................................................................................ 11

Card BIOS Method .................................................................................................................................... 12

Administration Console Method......................................................................................................... 13

HyperDuo Management ........................................................................................................................ 14

Specications..........................................................................................16

Technical Support ..................................................................................17

Warranty Information............................................................................17

Instruction Manual

Introduction

Packaging Contents

• 1x PCIe mSATA/SATA Controller Card

• 1x Low-Prole Bracket

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• PCI Express enabled computer with an available PCI Express x4 slot

• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), Windows Server®

2012, 2008 R2, 2003, Mac OS® 10.6 and up (Tested up to 10.9), Linux 3.5

Product Overview

Product Diagram

2x mSATA Slots

2x SATA III Ports

Instruction Manual

LED / Header Status

LED0/LED1 - mSATA

Green LEDs On: Drive is linked Blinking: Accessing the drive

LED2/LED3 – SATA

LED Pin Headers On: Drive is linked Blinking: Accessing the drive

LED All – LED

Pin Header

On: When any one of the 4 drives is linked

Blinking: When any one of the 4 drives is accessing

LED and PIN Header LED

Installation

mSATA SSD Installation

WARNING!

SSD Drives and storage adapters require careful handling. If you are not careful

with your SSD Drive, lost data may result. Always handle your drive with caution. Be

sure that you are properly grounded by wearing an anti-static strap when handling

computer components or discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer case) for several

seconds.

1. Gently slide the mSATA connector on your mSATA SSD into the reciprocal connector

/ slot labeled mSATA0 on the controller card, line the “male” connector widths up on

the SSD, with the slot widths on the controller card to ensure your SSD is inserted

properly.

2. Once inserted, gently press the SSD down toward the black mounting bracket clips,

until the drive clicks into place. The SSD has now been installed.

3. Repeat for a second mSATA SSD if desired, using the mSATA1 slot on the controller

card.

Note: To remove a SSD, push the two black clips near the top of the drive toward each

other while simultaneously gently lifting the SSD up at the clips/latch location, once

released from the bracket clips, slide the drive out.

Instruction Manual

Hardware Installation

WARNING!

PCI Express cards, like all computer equipment, can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your computer

case or touching your PCI Express card. StarTech.com recommends that you wear an

anti-static strap when installing any computer component. If an anti-static strap is

unavailable, discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds. Also be

careful to handle the PCI Express card by its edges and not the gold connectors.

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation for your computer

system for details.

3. Locate an open PCI Express x4 slot and remove the metal cover plate on the rear of

the computer case (Refer to documentation for your computer system for details).

Note: This card will work in PCI Express slots of additional lanes (i.e. x8, or x16 slots).

4. Gently insert the card into the open PCI Express slot and fasten the bracket to the

rear of the case.

Note: If installing the card into a small form factor/low-prole desktop system,

replacing the pre-installed standard-prole bracket with the included low-prole

(half-height) installation bracket may be necessary.

5. Connect SATA cables from the SATA Ports on the card to the SATA Hard Drives inside

your computer as desired.

6. Place the cover back onto the computer case.

7. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Driver Installation

Windows

Note: The card may auto-install using native drivers, however it is recommended to

use the procedure below to update to the latest driver version.

1. Upon starting Windows, if the Found New Hardware dialog appears on the screen,

cancel/close the window.

2. Download the latest drivers from the www.startech.com website (recommended),

applicable to the Operating System on the host computer that you are installing the

card to, or insert the provided Driver CD into your computers DVD/CD-ROM drive.

Instruction Manual

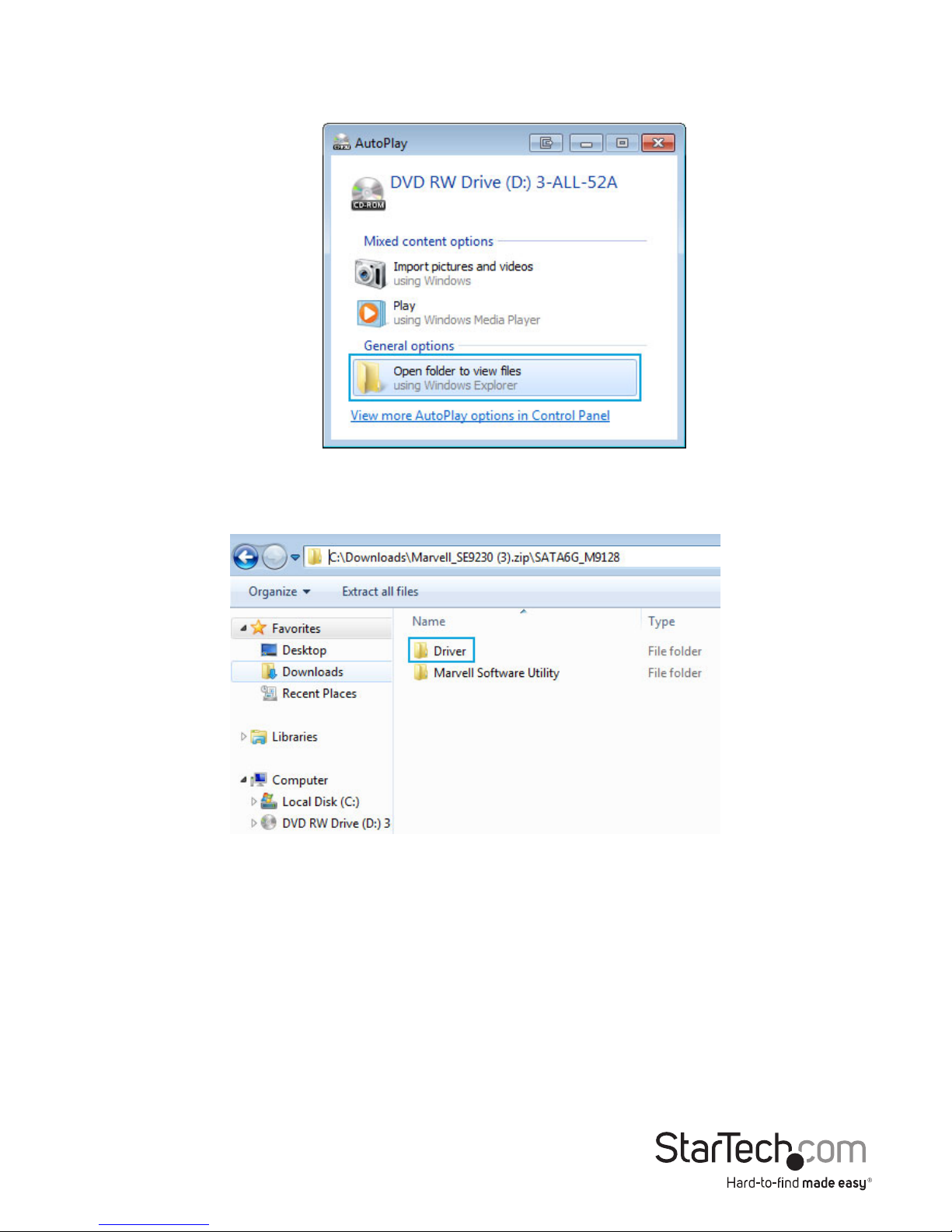

3. Select the Open folder to view les option from the AutoPlay Menu, if AutoPlay is

disabled on your system, or if you have downloaded the driver, browse to your DVD/

CD drive or to the downloaded driver location.

4. Run the Setup/Install “.exe” application within the Driver folder, to start the driver

installation process.

5. Follow any on-screen instructions to complete the driver installation.

Note: You may be prompted to restart your system once installation is complete.

Instruction Manual

Management Utility Installation

RAID and/or HyperDuo conguration can be accomplished either through the

integrated card-BIOS utility, or through the Marvell Storage Utility (MSU). Details for

installing the MSU are below.

To install the Marvell Storage Utility (MSU) in Windows:

1. Run the MSU Setup/Install “.exe” application located within Marvell Software Utility

folder and follow the on-screen instructions. Select Next and accept the license

agreement when prompted – the default installation options are recommended.

2. After installing the Apache2 HTTP Server (which is a built-in component of the

installation package), the installation may trigger a Windows Security Alert on some

versions of Windows, please allow access.

3. Before opening the MSU, verify that Active Scripting or JavaScript is enabled in

the browser.

a. Internet Explorer

i. From the menu bar, select Tools > Internet Options.

ii. Select the “Security” tab, then “Local Intranet”, then “Custom level”.

iii. In the list of settings, scroll down to Scripting > Active scripting.

iv. Select “Enable”, then click “OK” to conrm the selection.

Instruction Manual

b. Firefox

i. From the menu bar, select Tools > Options

ii. Select the “Content” tab and ensure that the “Enable Javascript” option is

checked (should be by default) – if it is not, select it and click “OK”

Instruction Manual

Verifying Installation

Windows

1. From the main desktop or start menu, open the Device Manager by right-clicking

on Computer, and then selecting Manage. In the Computer Management window,

select Device Manager from the left window panel. (For Windows 8.1, right-click on

the Start button and click Device Manager).

2. Expand the Storage controllers section, on a successful install you should see the

following device in the list with no exclamation points or question marks. You may

right-click on the device and select Properties to further ensure it is installed and

working correctly.

Note: Depending on your Operating System version, after a successful installation

some users may notice a yellow icon next to Marvell Console ATA Device under the

Other Devices category within the Device Manager. Device performance and operation

is not aected by this notication. If you wish to remove this icon, ensure you have run

the main driver Setup/Install “.exe” application within the Driver folder.

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com PEXUSB3S2EI User manual

StarTech.com

StarTech.com PEXUSB314A2V2 User manual

StarTech.com

StarTech.com PCISCSI2 User manual

StarTech.com

StarTech.com PCI1224PUSB User manual

StarTech.com

StarTech.com ST1000BTPEX User manual

StarTech.com

StarTech.com 8STPEX1394B3LP User manual

StarTech.com

StarTech.com PEX1S553 User manual

StarTech.com

StarTech.com PEXUSB3S4V User manual

StarTech.com

StarTech.com ST1000SPEXD3 User manual

StarTech.com

StarTech.com PEX4S950 User manual

StarTech.com

StarTech.com PEX2S953 User manual

StarTech.com

StarTech.com PEXSATA24E User manual

StarTech.com

StarTech.com 10P6G-PCIE-SATA-CARD User manual

StarTech.com

StarTech.com PEX1394B3 User manual

StarTech.com

StarTech.com PEXUSB311A1C User manual

StarTech.com

StarTech.com ECHDCAP User manual

StarTech.com

StarTech.com PEX1P User manual

StarTech.com

StarTech.com PCIESATA2I User manual

StarTech.com

StarTech.com PCI2S1P2 User manual

StarTech.com

StarTech.com PEXUSB312A2 User manual

StarTech.com

StarTech.com PEX2S952 User manual

StarTech.com

StarTech.com PEXSATA22 User manual

StarTech.com

StarTech.com PCIIDE2 System manual

StarTech.com

StarTech.com PCI2S4851050 User manual

Popular PCI Card manuals by other brands

ERMA

ERMA SSI 1417 instruction manual

SIIG

SIIG CyberSerial Dual PCI Software installation

Moxa Technologies

Moxa Technologies CP-102E Quick installation guide

I-Bus

I-Bus IBC2602 user guide

Exsys

Exsys EX-60102 manual

Chelsio Communications

Chelsio Communications T5 Series Installation and user guide

Conrad Electronic

Conrad Electronic 97 46 71 operating instructions

Micro Innovations

Micro Innovations USB650A Quick installation guide

KTI Networks

KTI Networks KF-310 user guide

Asus

Asus SpaceLink WL230 user manual

SIIG

SIIG SC2475 Quick installation guide

TRENDnet

TRENDnet TEW-703PI Quick installation guide

Belkin

Belkin F5D7000F user manual

Pericom

Pericom PI7C7100 manual

ADLINK Technology

ADLINK Technology cPCI-3548 user manual

Digium

Digium TE200 Series user manual

Allo.com

Allo.com 2nd Gen E1/T1/J1 Quick installation guide

Western Digital

Western Digital FireWire PCI Adapter installation guide
