StarTech.com PEX1S553 User manual

PEX1S553/ PEX1S553LP

PEX2S553/ PEX2S553LP

PEX2S5531P

Manual Revision: 10/24/2012

Dual Prole PCI-Express RS232 Serial Adapter Card

(2 Port Serial, 1 Port Parallel)

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

For the most up-to-date information, please visit: www.startech.com

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected names and/or

symbols contained in this manual and related documents are the property of their respective

holders.

Instruction Manual i

Table of Contents

Introduction .......................................................................................................................................................1

Features...........................................................................................................................................................1

Package Contents.....................................................................................................................................1

Hardware Guide ...............................................................................................................................................2

Installation............................................................................................................................................................2

Setting Power Mode ...............................................................................................................................3

Hardware Installation..............................................................................................................................3

Software Installation ...............................................................................................................................4

Verifying Installation ...............................................................................................................................5

Specications.....................................................................................................................................................6

Technical Support...........................................................................................................................................7

Warranty Information....................................................................................................................................7

Instruction Manual 1

Introduction

Thank you for your purchase of a StarTech.com Dual Prole PCI Express I/O card. This convenient

I/O solution utilizes a native, single-chip design for maximum performance and reliability, and

includes an optional low prole bracket that allows the card to be installed in virtually any size/

form factor case.

Features

• Native PCI Express (single chip)

• Supports data transfer rates of up to: 2.7 Mbps (parallel) 460.8 Kbps (serial)

• Congurable in 5V, 12V, and RI (non-powered) modes

• Compliant with PCI Express base specications revision 1.0a

• 128-byte deep FIFO per transmitter and receiver

• Automated in-band ow control using programmable Xon/Xo in both directions

• Automated out-of-band ow control using CTS/RTS and DSR/DTR

• Standard and low prole brackets included

Package Contents

• 1 x PCI-Express I/O Card (LP cards come with a low prole bracket preinstalled)

• 1 x Separate parallel port with ribbon cable (PEX2S5531P only)

• 1/2/3 x Low Prole Bracket (PEX1S553/PEX2S553/PEX2S5531P)

• 1 x Full Prole Bracket (PEX1S553LP and PEX2S553LP)

• 1 x Driver CD

• 1 x Instruction Manual

Instruction Manual 2

Hardware Guide

Serial Port #1

Serial Port #2

(PEX2S553,

PEX2S553LP,

PEX2S5531P)

Parallel Port

Connector

(PEX2S5531P)

LP4

Power Port

**PEX2S5531P Shown

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely

damaged by static electricity. Be sure that you are properly grounded

before opening your computer case or touching your PCI Express card.

StarTech.com recommends that you wear an anti-static strap when

installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Also be careful to handle the PCI Express card by its edges and not the

gold connectors.

Instruction Manual 3

Setting Power Mode

This card is specially designed to allow for power output from the ninth pin of the DB9

connector(s) for devices that support power over serial. This card allows users to set each port

with 5V, 12V, or RI (no power). Users can also choose to draw the necessary power from the

system power supply by connecting to the LP4 power connector.

Hardware Installation

1. Remove the cover of your system (see your computer’s user manual for details, if necessary)

and gently turn your computer onto its side, so that the PCI Express expansion slot openings

on the motherboard are facing upwards.

2. Locate an empty PCI Express slot and remove the metal plate that covers the corresponding

rear bracket. You may need a Phillips screw driver to perform this step. Retain any screws! You

will need them to secure the card later. Refer to documentation of your computer system for

further details.

PEX2S5531P Only: Please ensure that the metal plate that covers the rear bracket adjacent

to the above mentioned bracket is vacant, so that it can be used for the parallel port

installation).

3. Gently insert the card into the empty slot, making sure it is rmly seated, then secure the card

in place using the screw you removed in Step 3, if applicable.

4. PEX2S5531P: Connect the ribbon cable provided by the (separate) parallel port to the

provided slot on the PEX2S5531P board (please see diagram on previous page), then secure

the parallel port to the slot adjacent to the one used to secure the main PEX2S5531P board.

5. OPTIONAL: If supplying power from the computer system power supply, (see “Setting Power

Mode”) connect the LP4 molex plug into the card.

6. Once the card (and additional port, if necessary) are secured to the motherboard (and within

the case), replace the computer cover and power on the computer, then proceed to the next

section, titled Software Installation.

Instruction Manual 4

Software Installation

When the computer is booted up following the physical installation of the PCI Express card, the

operating system will detect the presence of the card within the computer system and prompt

for software installation:

1. The Found New Hardware Wizard will appear. When asked if you want Windows to search for

software, select No, not this time, then click Next to continue:

2. On the screen that follows, select Install from a list or specic location, then click on Next.

3. On the screen that follows, select Search for the best driver in these locations. Ensure

there is a checkmark next to Include this location in the search, then click Browse to locate

the correct le. (Please note: The correct le can be located on the accompanying CD in the

MCS9922 folder).

Once you’ve specied the correct le, please click Next to continue.

4. A Windows security warning will appear, notifying you that the software you are installing

has not passed Windows Logo testing. Please click on Continue Anyway:

5. Once the driver les have been installed, you will be notied that the Wizard has nished

installing the software for “High Speed PCIe Serial Port”. Please click on Finish.

6. PEX2S553: Repeat steps 1-5 once more for the remaining serial port to be installed.

PEX2S553LP: Repeat steps 1-5 twice more, once for each of the remaining ports (one serial,

one parallel).

Instruction Manual 5

Verifying Installation

To verify that the installation was successful in Windows 2000/XP/Vista:

1. Right-click on My Computer and select Manage to open the Computer Management

window.

2. In the left pane, select Device Manager.

3. In the right pane, click on Ports (COM & LPT). You should see the newly added port(s) listed

here:

Instruction Manual 6

Specications

PEX1S553

PEX1S553LP

PEX2S553

PEX2S553LP PEX2S5531P

Bus Type PCI Express x1

Chipset ID Moschip MCS9922CV-AA Moschip

MCS9901CV-CC

Maximum

Data Transfer

Rate

Serial:

460.8 Kbps

Serial:

460.8 Kbps

Parallel:

2.7 Mbps

Serial:

460.8 Kbps

OS Support

Windows®2000/XP/2003/Vista/7

Linux®Kernel 2.6.11 and above

MAC OS®10.4

External

Connectors 1 x DB9 male 2 x DB9 male 2 x DB9 male

1 x DB25 female

Product

Dimensions

(LxWxH)

105mm (4.13”) x 120mm (4.72”) x 20mm (0.79”)

Product

Weight 51.5 g (1.82 oz ) 63.5 g (2.24 oz ) 140 g (4.94oz )

Regulatory

Certications CE, FCC, RoHS

Instruction Manual 7

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-

leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the

periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors,

employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or

related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

This manual suits for next models

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com 10P6G-PCIE-SATA-CARD User manual

StarTech.com

StarTech.com M2E4SFF8643 User manual

StarTech.com

StarTech.com 8STPEX1S953LP User manual

StarTech.com

StarTech.com PCI2S1P2 User manual

StarTech.com

StarTech.com PEX2S1050 User manual

StarTech.com

StarTech.com PEX8S1050LP User manual

StarTech.com

StarTech.com PEXUSB312A2 User manual

StarTech.com

StarTech.com PEX1TO16R User manual

StarTech.com

StarTech.com PEXSAT34RH User manual

StarTech.com

StarTech.com USB32VGCAPRO User manual

StarTech.com

StarTech.com PEX1S1P950 User manual

StarTech.com

StarTech.com PCISCSI2U User manual

StarTech.com

StarTech.com PEX100S User manual

StarTech.com

StarTech.com PCI1P User manual

StarTech.com

StarTech.com PEX2S953LP User manual

StarTech.com

StarTech.com PCI2S485LP User manual

StarTech.com

StarTech.com PCI1394B_3 User manual

StarTech.com

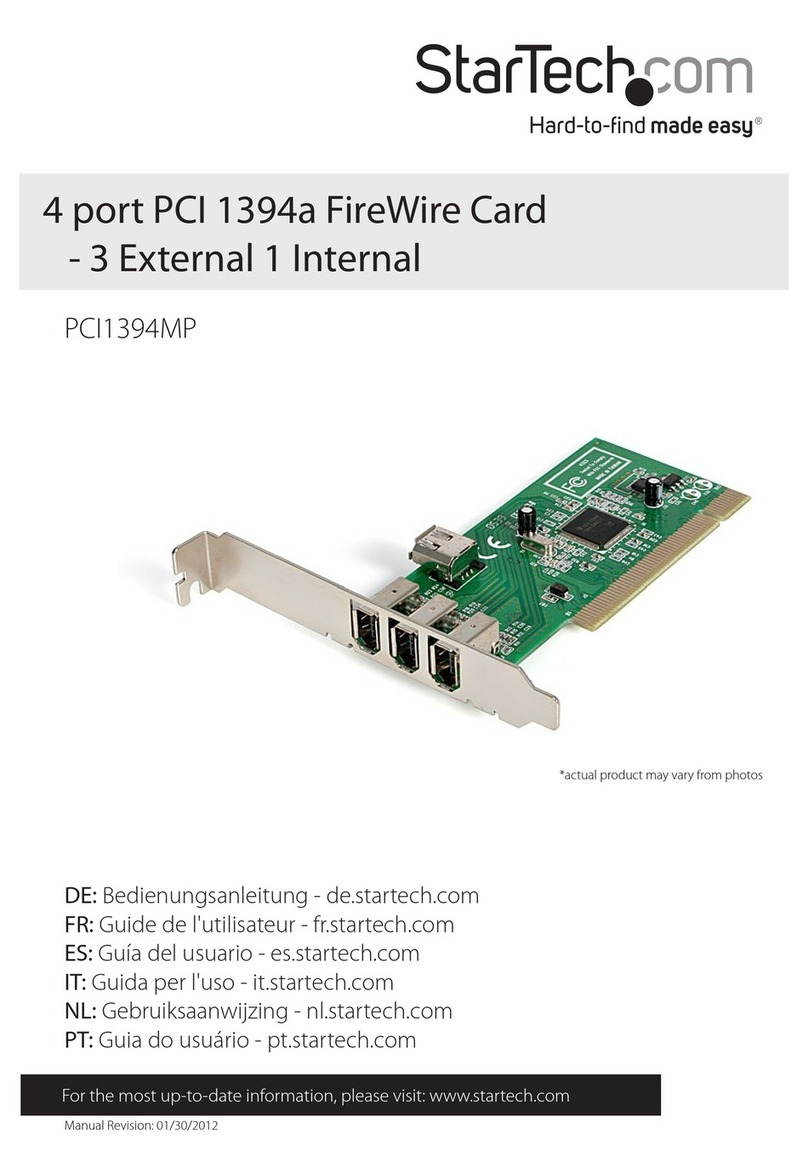

StarTech.com PCI1394MP User manual

StarTech.com

StarTech.com PEXSAT31E1 User manual

StarTech.com

StarTech.com PEX2S1P552B User manual

StarTech.com

StarTech.com PEXUSB4DP User manual

StarTech.com

StarTech.com PEXUSB312C3 User manual

StarTech.com

StarTech.com QUAD-M2-PCIE-CARD-B User manual

StarTech.com

StarTech.com PCI420USB User manual

Popular PCI Card manuals by other brands

ERMA

ERMA SSI 1417 instruction manual

SIIG

SIIG CyberSerial Dual PCI Software installation

Moxa Technologies

Moxa Technologies CP-102E Quick installation guide

I-Bus

I-Bus IBC2602 user guide

Exsys

Exsys EX-60102 manual

Chelsio Communications

Chelsio Communications T5 Series Installation and user guide

Conrad Electronic

Conrad Electronic 97 46 71 operating instructions

Micro Innovations

Micro Innovations USB650A Quick installation guide

KTI Networks

KTI Networks KF-310 user guide

Asus

Asus SpaceLink WL230 user manual

SIIG

SIIG SC2475 Quick installation guide

TRENDnet

TRENDnet TEW-703PI Quick installation guide

Belkin

Belkin F5D7000F user manual

Pericom

Pericom PI7C7100 manual

ADLINK Technology

ADLINK Technology cPCI-3548 user manual

Digium

Digium TE200 Series user manual

Allo.com

Allo.com 2nd Gen E1/T1/J1 Quick installation guide

Western Digital

Western Digital FireWire PCI Adapter installation guide
