StarTech.com DK30ADD User manual

Manual Revision: 10/16/2017

Forthemostup-to-dateinformation,pleasevisit:www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

DK30ADD

HDMI and DVI/VGA Dual-Monitor Dock - USB

3.0

*actualproduct mayvary fromphotos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction......................................................................................................... 1

Package contents...................................................................................................................................... 1

Requirements ............................................................................................................................................. 1

Front View.................................................................................................................................................... 2

Rear View...................................................................................................................................................... 2

About USB 3.0 and USB 3.1 Gen 1................................................................. 3

About the docking station ports................................................................... 3

About installation .............................................................................................. 3

Install the hardware..................................................................................................................................4

Congure a display device .............................................................................. 5

Use Windows to congure your display devices ........................................................................... 5

Use macOS to congure your display devices.......................................................................... 5

Supported resolutions...................................................................................... 5

LED indicator ....................................................................................................... 5

Technical Support .............................................................................................. 6

Warranty Information ....................................................................................... 6

Instruction Manual

Introduction

Package contents

• 1 x docking station

• 1 x USB 3.0 cable

• 1 x DVI to VGA adapter

• 1 x universal power adapter (NA/JP, UK, EU, ANZ)

• 1 x quick-start guide

Requirements

• A computer system with:

USB 3.0

Windows 7 (32-bit and 64-bit)

Windows 8.1 (32-bit and 64-bit)

Windows 10 (32-bit and 64-bit)

macOS El Capitan 10.11

macOS Sierra 10.12

CPU: Intel® Core™2 Duo 2.0 GHz or better (Intel® Core™ i5 Quad Core 2.4 GHz or

better recommended for video playback)

RAM: 2 GB or more (4 GB recommended for video playback)

• An AC electrical outlet

• An HDMI display with cabling

• A DVI or VGA display with cabling

• A 10/100/1000 Mbps compatible TCP/IP Ethernet network

Note: If you connect the docking station to a USB 2.0 host port or if you use a USB 2.0

host connection cable, this device will be limited to USB 2.0 performance.

Operating system requirements are subject to change. For the latest requirements,

please visit http://www.StarTech.com/DK30ADD.

Instruction Manual

Front View

Rear View

3.5 mm

audio port

Power LED

USB 3.0

ports

USB 3.0

ports HDMI

output

port DVI-I

output

port

RJ-45

LAN

Port

USB-B 3.0

host port

input

Power switch

USB 3.0

fast-charge

and sync

USB 3.0 fast

charge and

sync

Instruction Manual

About USB 3.0 and USB 3.1 Gen 1

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard oers speeds up to

5Gbps.

About the docking station ports

The USB 3.0 ports on the on the docking station (one on the front and three on the

rear) are standard USB 3.0 throughput ports. When the dock is connected to a host

laptop, these ports provide a trickle charge to a selection of USB-charged devices.

The USB 3.0 fast-charge and sync ports the docking station (one on the front and

one on the rear) are compliant with USB Battery Charging Specication Revision 1.2

(BC1.2), which means that you can use the port to connect and charge a device faster

than you can using a traditional standard USB 3.0 port.

This front USB 3.0 port can fast-charge a connected device even when the dock isn’t

connected to a host laptop. When the docking station is connected to a host laptop,

the front USB 3.0 port functions as a Charging Downstream Port (CDP), which has

simultaneous charge and sync capabilities.

The provided power adapter must always be connected to the docking station in order

to charge a device using the USB 3.0 fast-charge and sync port.

About installation

Depending on the version of operating system that you’re currently running and

whether your network connection is active, the docking station might automatically

install or download the proper drivers. When the dock is connected to an available USB

port on the host system.

If you receive a prompt to automatically install the driver, follow the on-screen

instructions to complete the installation.

Install the driver

1. On your computer, use a web browser to navigate to:

http://www.StarTech.com/DK30ADD

2. Click the Support tab.

3. Click the driver le and complete the on-screen instructions to download the le.

Instruction Manual

4. Extract the les to your computer and browse to the location of the driver le that

you extracted and do one of the following:

• If you’re running a version of the Windows operating system, right-click on the run

the DisplayLink .exe le and click Run as Administrator.

• If you’re running a version of the macOS operating system, run the DisplayLink.dmg

le.

Install the hardware

1. Select the appropriate regional clip and connect the power adapter to an AC

electrical outlet.

2. Connect the power adapter to the DC input on the docking station.

3. Attach the provided USB 3.0 cable to the USB 3.0 host port on the docking station

and to a USB 3.0 port on the host laptop.

4. Connect your HDMI display to the HDMI output port on the docking station.

5. Connect your DVI or VGA display to the DVI output port on the docking station. If

you’re using a VGA display, use a VGA cable (sold separately) to connect the DVI to

VGA adapter to your VGA display rst then connect DVI to VGA adapter to the DVI

port on the docking station.

Note: You must attach the adapter to your display rst, otherwise the dock will not

output video from this port.

6. As necessary, connect any other devices to the docking station, including an RJ45

network connection, USB peripherals, a headphones or speakers.

Instruction Manual

LED indicator

There is an LED indicator located on the front of the docking station. For more

information about what the LED behavior indicates, see the table below.

LED Behavior Meaning

Power LED LED is illuminated The docking station is

plugged in and powered on.

LED is o The docking station is not

powered on and/or is not

plugged in.

Supported resolutions

The following resolutions are supported on each display that’s connected through the

docking station:

2048x1152, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720,

1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640x480.

Congure a display device

You can use your computer’s operating system to congure a display device.

Use Windows to congure your display devices

1. Right-click on some empty space on your Windows Desktop and select Screen

Resolution from the menu that appears.

2. Adjust the display order, screen resolution, orientation and display mode as needed.

Use macOS to congure your display devices

1. Click the Apple Menu and select System Preferences.

2. Click Displays to open the Display preferences windows.

3. Adjust the display order, screen resolution, orientation and display mode as needed.

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a three year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Table of contents

Other StarTech.com Docking Station manuals

StarTech.com

StarTech.com USB3SMDOCKHV User manual

StarTech.com

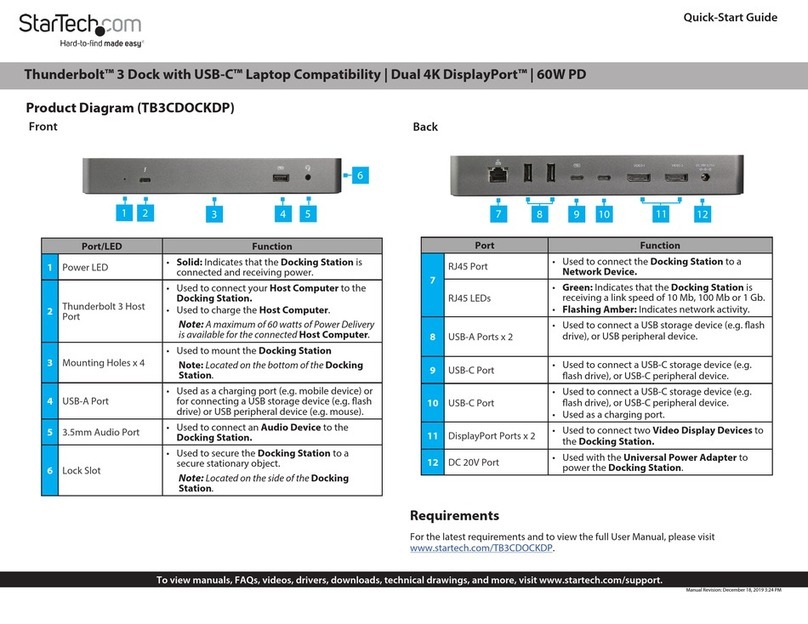

StarTech.com Thunderbolt TB3CDOCKDP User manual

StarTech.com

StarTech.com SATDOCK4U3 User manual

StarTech.com

StarTech.com USB3SDOCKHDV User manual

StarTech.com

StarTech.com SATDOCK25U User manual

StarTech.com

StarTech.com DKT31CHDVCM User manual

StarTech.com

StarTech.com 8STSATDOCK4U3RE User manual

StarTech.com

StarTech.com USB6N1DOCK Manual

StarTech.com

StarTech.com SDOCK2U33V User manual

StarTech.com

StarTech.com DK30CH2DEPUE User manual

StarTech.com

StarTech.com TBDOCKHDPBC User manual

StarTech.com

StarTech.com USB5N1DOCK User manual

StarTech.com

StarTech.com USB3DOCKHDPC User manual

StarTech.com

StarTech.com USBVGADOCK User manual

StarTech.com

StarTech.com 116N-USBC-DOCK User manual

StarTech.com

StarTech.com InfoSafe SATDOCKU2GB User manual

StarTech.com

StarTech.com SATADOCKU2 User manual

StarTech.com

StarTech.com TB3DKM2HDL User manual

StarTech.com

StarTech.com SATDOCK4U2E User manual

StarTech.com

StarTech.com TB2DOCK4K2DP User manual

StarTech.com

StarTech.com 129N-USBC-KVM-DOCK User manual

StarTech.com

StarTech.com SDOCKU33BV User manual

StarTech.com

StarTech.com TB3DKM2HD User manual

StarTech.com

StarTech.com USB5N1DOCK User manual

Popular Docking Station manuals by other brands

Sony

Sony Dream Machine XDR-DS12iP user manual

Acer

Acer USB Type-C Dock II user manual

ATEN

ATEN UC-2000 user manual

Xcellon

Xcellon HDD-202 user manual

Dok

Dok CR09 user guide

Philips

Philips BTM630/12 quick start guide

IOGear

IOGear Travel Pro GUD3C09 quick start guide

RKI

RKI SDM-E2 Operator's manual

iHome

iHome iP15 instruction manual

VITURE ONE

VITURE ONE MOBILE DOCK quick start guide

Lindy

Lindy 42984 user manual

CipherLab

CipherLab 8001 quick guide

Pyle

Pyle PIPDSP2 owner's manual

Avol

Avol AS2350 user manual

Datalogic

Datalogic JoyaTouch quick start guide

Philips

Philips DC190/79 user manual

Targus

Targus DOCK315EUZ user guide

Akasa

Akasa DuoDockX3 AK-DK08U3-BK user manual
