StarTech.com USB5N1DOCK User manual

5-in-1 Docking Station

USB5N1DOCK Instruction Manual

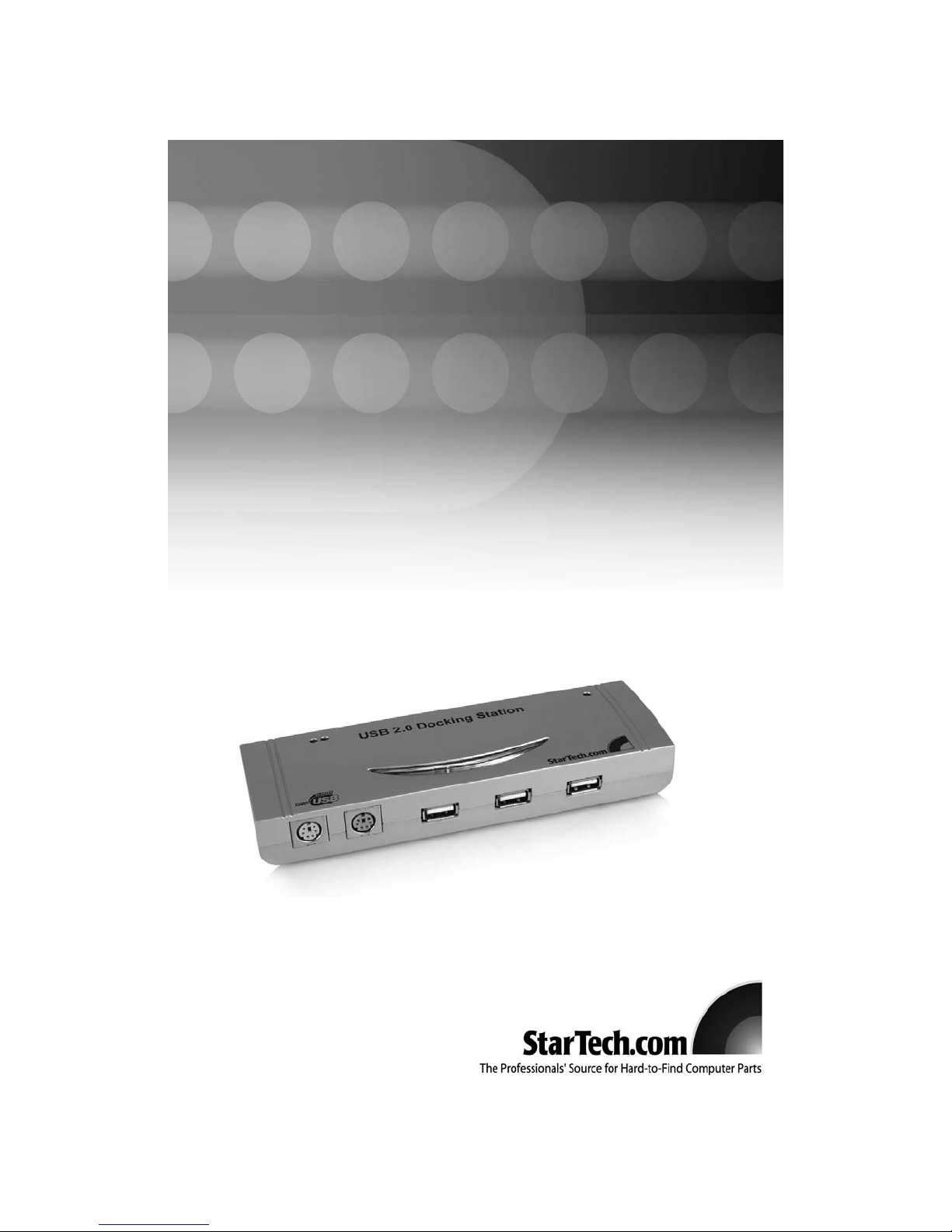

Actual product may vary from photo

5-in-1 USB 2.0 Notebook Docking Station / Port Replicator

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing the RJ45 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the Mouse and Keyboard Ports . . . . . . . . . . . . . . . . . . . . . . . . .4

Verifying Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com 5-in-1 USB 2.0 Notebook Docking Station. This product

allows you to add multiple high performance USB 2.0 peripheral devices to your laptop, and

provides an RJ45 port for network connectivity as well as an additional parallel port.

FFeeaattuurreess

•Compact, space-saving design

• Supports hot plug and play connectivity

• Maximum Data transfer rates of up to 480Mbps

• Backwards compatible with USB 1.1 devices

• Full-duplex operation in both 10 and 100Mbps Ethernet modes

BBeeffoorreeYYoouuBBeeggiinn

Contents

This package should contain:

• 5-in-1 USB 2.0 Docking Station (1)

• USB Type B to Type A cable (1)

• 5V DC Power Adapter (1)

• Driver CD (1)

• User Manual (1)

System Requirements

• Windows 98SE, ME, 2000, XP

• A PC with an available USB port

Instruction Manual

IInnssttaallllaattiioonn

Connecting USB5N1DOCK to your computer

1. Plug the power adapter into the power port on the USB5N1DOCK. Plug the opposite

end of the adapter into an available power source.

2. Plug the rectangular (Type A) end of the USB 2.0 cable into an available USB 2.0 port

on your computer. Plug the opposite end (Type B) into the corresponding port on the

USB5N1DOCK.

3. Once all necessary connections have been made, Windows will automatically detect

the new device, and run the Add New Hardware Wizard. Please click on Next,

once the wizard appears.

5. At the next screen, you will be given the option to Search for the best driver for your

device (Recommended). Please ensure that this option is selected, and click Next.

6. Windows will then locate the appropriate driver for the device, titled Generic USB Hub

on USB 2.0 Bus. Once the file has been found, please click on Next.

7. When you receive the message Windows has finished installing the software that

your new hardware device requires, please click on Finish.

Instruction Manual

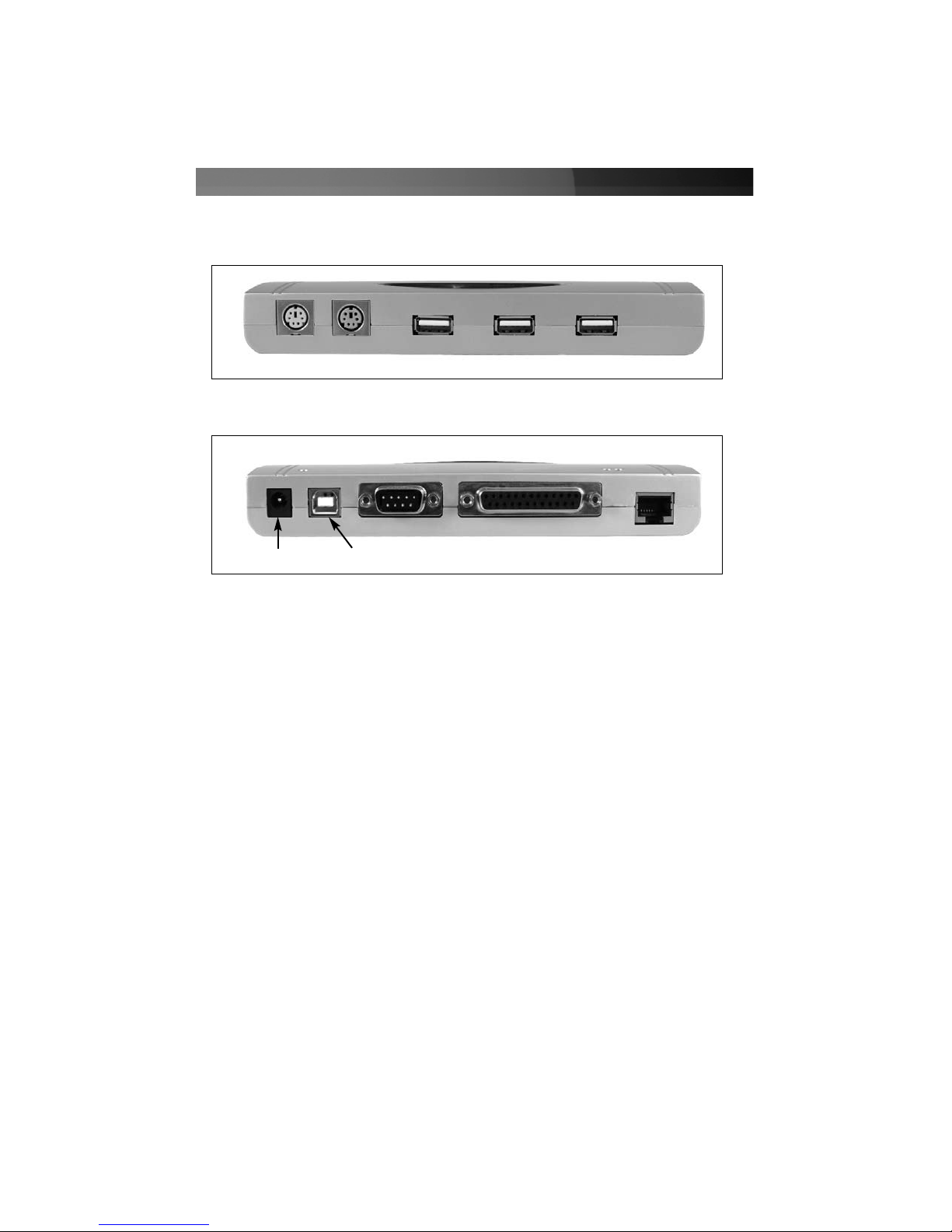

Front View

Rear View

Power port USB port (to computer)

Installing the RJ45 LAN port

Once the USB Hub has been installed successfully, Windows will automatically detect

and attempt to install the USB to LAN Converter, which provides the RJ45 LAN

connection.

1. Once the Add New Hardware Wizard launches for the USB to LAN Converter,

please click on Next.

2. When prompted, please ensure that Specify a location is selected, and click the

Browse button. Locate the CD/DVD-ROM device, and click OK to designate this as

the source of the file. Please click on Next.

3. Once Windows has installed the correct driver, you will be prompted to restart your

computer. Please select No.

Installing the Parallel Port

Once the RJ45 port has been installed successfully, Windows will automatically detect

and attempt to install the USB-Parallel Bridge, which provides the Parallel port.

1. Once the Add New Hardware Wizard launches for the USB-Parallel Bridge, please

click on Next.

2. When prompted, please ensure that Specify a location is selected, and click the

browse button. Locate the CD/DVD-ROM device, and click OK to designate this as the

source of the file. Please click on Next.

3. Once Windows has installed the correct driver for the Prolific USB-Parallel Bridge,

please click on Finish.

Installing the Serial port

Once the Parallel port has been installed successfully, Windows will automatically detect

and attempt to install the Prolific USB-to-Serial Cable, which provides the Serial port

connection.

1. When prompted, please select Search for the best driver for your device.

2. Click on the Browse button, and locate the CD/DVD-ROM drive.

3. Once the correct folder has been designated, please click on Next.

4. Once Windows has installed the driver, please click on Finish.

Instruction Manual

Installing the Mouse and Keyboard ports

Following the Serial port installation, Windows will automatically detect and attempt to

install the USB Human Interface Device, which provides connectivity to the Mouse and

Keyboard ports.

1. Once the Add New Hardware Wizard launches for the USB Human-Interface

device, please click on Next.

2. Windows will then search for the appropriate driver. When prompted, please click

Next.

3. Once the driver has been installed, you will be prompted to finish installation. Please

click on the Finish button.

Upon completing driver installation for the USB Human-Interface Device, please restart

the computer for all settings to take effect.

Verifying Installation

After rebooting the computer, locate and right-click on the My Computer icon. Select

Properties, and select the Hardware tab. Click on the Device Manager tab.

1. Click on Network Adapters to expand the selection. You should see Ax88172 USB to

Fast Ethernet Adapter.

2. Click on Universal Serial Bus Controller, where you should see Generic Hub on

USB 2.0 BUS.

3. Click on the second listing of Universal Serial Bus Controller, where you should see

USB-Parallel Bridge, as well as Prolific USB to Serial Cable.

4. Click on Human Interface Devices, where you will notice USB Human Interface

Devices.

Instruction Manual

Specifications

Instruction Manual

Bus Type USB

Connectors

USB 2.0 Type B Data Transfer Port x 1

USB 2.0 Type A Male ports x 3

PS/2 Keyboard port x 1

PS/2 Mouse port x 1

Serial port (DB9 male) x 1

Printer port (DB25 female) x 1

10/100 Base Ethernet LAN port (RJ45) x 1

Power Adapter 5V DC 1 Amp Type M connector (included)

Maximum Data Transfer rate 480Mbps

Operating system support Windows 98SE/ME/2000/XP or higher

Operating temperature 0 to 70° C

Certifications (Regulatory and other) FCC, CD, RoHS, WEEE

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a two-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Revised: 2 June 2006 (Rev. A)

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.

Other manuals for USB5N1DOCK

Table of contents

Other StarTech.com Docking Station manuals

StarTech.com

StarTech.com SATDOCKCRH User manual

StarTech.com

StarTech.com SATDOCK22RE User manual

StarTech.com

StarTech.com USB3SDOCKHD System manual

StarTech.com

StarTech.com SATDOCK25U User manual

StarTech.com

StarTech.com UNIDOCK2U User manual

StarTech.com

StarTech.com SDOCK2U33HFB User manual

StarTech.com

StarTech.com TB3DKM2HDL User manual

StarTech.com

StarTech.com TB3DK2DPW User manual

StarTech.com

StarTech.com DK30CH2DEPUE User manual

StarTech.com

StarTech.com USBDOCK2 User manual

StarTech.com

StarTech.com DK30CHHPD User manual

StarTech.com

StarTech.com 8STSATDOCK5U3ER User manual

StarTech.com

StarTech.com TB3DK2DPM2 User manual

StarTech.com

StarTech.com Thunderbolt 3 Series User manual

StarTech.com

StarTech.com SATDOCKCRH User manual

StarTech.com

StarTech.com SATADOCK525 System manual

StarTech.com

StarTech.com DKT31CHDVCM User manual

StarTech.com

StarTech.com DKT31CHDVCM User manual

StarTech.com

StarTech.com UNIDUPDOCK User manual

StarTech.com

StarTech.com SDOCK4U33E User manual

StarTech.com

StarTech.com USB3SDOCKHDV System manual

StarTech.com

StarTech.com SDOCK1EU3P User manual

StarTech.com

StarTech.com SDOCK2U33V User manual

StarTech.com

StarTech.com TB4CDOCK User manual

Popular Docking Station manuals by other brands

Sony

Sony Dream Machine XDR-DS12iP user manual

Acer

Acer USB Type-C Dock II user manual

ATEN

ATEN UC-2000 user manual

Xcellon

Xcellon HDD-202 user manual

Dok

Dok CR09 user guide

Philips

Philips BTM630/12 quick start guide

IOGear

IOGear Travel Pro GUD3C09 quick start guide

RKI

RKI SDM-E2 Operator's manual

iHome

iHome iP15 instruction manual

VITURE ONE

VITURE ONE MOBILE DOCK quick start guide

Lindy

Lindy 42984 user manual

CipherLab

CipherLab 8001 quick guide

Pyle

Pyle PIPDSP2 owner's manual

Avol

Avol AS2350 user manual

Datalogic

Datalogic JoyaTouch quick start guide

Philips

Philips DC190/79 user manual

Targus

Targus DOCK315EUZ user guide

Akasa

Akasa DuoDockX3 AK-DK08U3-BK user manual
