StarTech.com USB2PS2 User manual

Installation Manual

USB2PS2

PS/2 to USB Keyboard/ Mouse Adapter

USB Adapter

Overview

Universal Serial Bus (USB) port technology has emerged in response to the growth in

popularity of external peripheral devices (keyboards, mice, scanners, digital cameras,

removable drives, etc.), that are increasingly being connected to the latest generation

of PCs. The USB behaves in a similar fashion to the conventional bus ports (i.e., serial

parallel, PS/2), but is much faster, and since it does not require any IRQs, more devices

can be attached to the system, and the problem of IRQ conflict is eliminated.

The USB2PS2 PS/2-to-USB Keyboard and Mouse interface converter provides the means

for PS/2 type keyboards and mice to connect a PC, notebook, laptop, or handheld

computing device that supports the USB specification via the USB instead of using

conventional bus technology.

The USB2PS2 comes with 2 standard 6 pin mini DIN female connectors for the PS/2

keyboard and PS/2 mouse to plug into, and has an attached 30 cm (1 ft.) USB cable with

a type A plug for connection to the PCs USB port, or to a USB hub.

Note: Since most computers only have 1 or 2 USB ports, USB hubs are often used to

provide additional ports so that numerous USB pripheral devices can be

connected up at the same time.

For further convenience - especially to users of notebooks, laptops, and handhelds -

the USB2PS2 Adapter derives its operating power from the Universal Serial Bus itself,

so no bulky external power supply needs to be taken along. And because it is a USB

Specification compliant device, the USB2PS2 supports energy-saving suspend and

resume operations.

Features

1. 2 PS/2 devices (keyboard and mouse) to USB interface converter

2. Supports PS/2 mouse and Microsoft IntelliMouse

3. Supports PC Windows98 and Apple G3/iMac w/OS 8.6 Computers

4. Wake up function

5. USB 1.0 and 1.1 specification compliant

6. Easy Installation - no software required

7. Bus Powered - external power adapter not required

8. Compatible with KVM devices

System Requirments

1. PC running Windows 98; or Apple running MAC OS 8.6 or higher

2. USB host controller installed on the system.

Introduction

Top View

Bottom View

1. Mouse and keyboard ports. The cables from the PS/2 mouse and PS/2 keyboard

plug in here. The ports are marked with an icon to indicate which is which.

2. Mouse and keyboard LEDs. These flash when the keyboard or mouse is

transmitting datapackets.

3. USB A type connector. This connector plugs into the computer’s USB port, or into a

USB Hub that is connected back to the computer.

4. Wake up switch - used to bring your computer out of sleep mode when PS/2

peripherals do not work.

Installation

To instal simply plug the cables into their appropriate sockets:

1. Plug the PS/2 mouse and PS/2 keyboard into the appropriate connectors on the

USB2PS2 adapter. The ports are marked with an icon to indicate which is which.

2. Plug the USB2PS2 USB plug into the computer’s USB port, or into a USB Hub that

is connected back to the computer.

After completing these steps, simply use the mouse and keyboard as you normally

would.

USB Port

Limited Warranty

IN NO EVENT SHALL THE DIRECT VENDORS LIABILITY FOR DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE

PAID FOR THE PRODUCT.

The direct vendor makes no warranty or representation, expressed, implied, or use of

this documentation, and especially disclaims its quality, performance, merchantability, or

fitness for any particular purpose.

The direct vendor also reserves the right to revise or update the device or

documentation without obligation to notify an individual or entity of such revisions, or

update. For further inquiries, please contact your direct vendor.

Radio & TV Interface

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However there is no guarantee that interface will not occur in a

particular installation.

Function Specification

Connectors

Function Switches

Cable Length

Supported Platforms

Transfer Rate

USB Specifications

Power Mode

Operating Temperature

Storage Temperature

Casing Material

Weight

Dimensions (L x W x H)

LED

(2) 6 DIN Female, USB AMale

1 Remote Wake Up Pushbutton

0.3 m (1 ft.)

Windows98, Windows2000, Apple Mac OS 8.6

12Mbps (bits per second)

1.0 and 1.1 Compatible

Bus Powered (via the USB cable)

5~40 deg. C, 0~80% RH, non-condensing

-20~60 deg. C, 0~80% RH, non-condensing

Plastic

80 g

82 x 55 x 23 mm

Keyboard activity, mouse activity

Specifications

Table of contents

Other StarTech.com Adapter manuals

StarTech.com

StarTech.com 120B-USBC-MULTIPORT User manual

StarTech.com

StarTech.com DP2DVID User manual

StarTech.com

StarTech.com CF2USAT18E User manual

StarTech.com

StarTech.com USB21000S User manual

StarTech.com

StarTech.com PEX2S552B User manual

StarTech.com

StarTech.com USB32DPPRO User manual

StarTech.com

StarTech.com MDVIVGAMF User manual

StarTech.com

StarTech.com DUAL-M2-PCIE-CARD-B User manual

StarTech.com

StarTech.com PCI EXPRESS SERIAL ADAPTER PEX4S952 User manual

StarTech.com

StarTech.com ICUSB232PROC User manual

StarTech.com

StarTech.com USB32VGAV User manual

StarTech.com

StarTech.com ST1000BT32 Manual

StarTech.com

StarTech.com USB2DVIE3 User manual

StarTech.com

StarTech.com TB32HD2 User manual

StarTech.com

StarTech.com PEX16S952LP User manual

StarTech.com

StarTech.com IDE4044 User manual

StarTech.com

StarTech.com PEXESAT32 User manual

StarTech.com

StarTech.com SVID2USB22 User manual

StarTech.com

StarTech.com RJ45SPLITTER User manual

StarTech.com

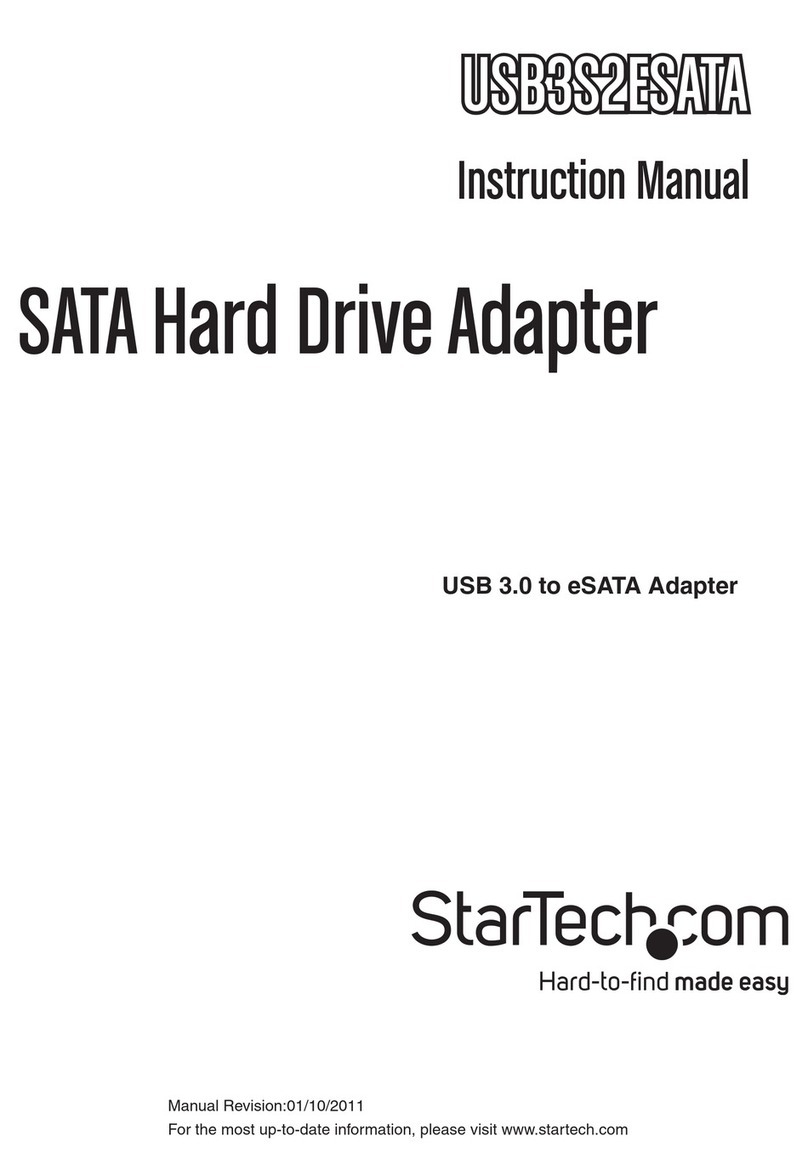

StarTech.com USB3S2ESATA User manual
