Star TSP400 SERIES User manual

THERMAL PRINTER

TSP400

INSTALLATION MANUAL

GUIDE D’INSTALLATION

AUFSTELLANLEITUNG

MANUALE DI INSTALLAZIONE

TABLE OF CONTENTS

1. UNPACKING AND INSPECTION......................................................1

1-1. Unpacking ....................................................................................1

1-2. Handling Notes ............................................................................1

2. PARTS IDENTIFICATION AND NOMENCLATURE ......................2

3. FERRITE CORE INSTALLATION *EUROPE ONLY ..................................3

Installation of the interface cable ferrite core......................................4

Installation of the peripheral unit cable ferrite core ............................4

4. CONNECTING THE INTERFACE CABLE .......................................5

4-1. RS-232C or RS-422A Serial interface .........................................5

4-2. Centronics-type Parallel interface...............................................5

APPENDIX .............................................................................................24

– 1 –

ENGLISH

1. UNPACKING AND INSPECTION

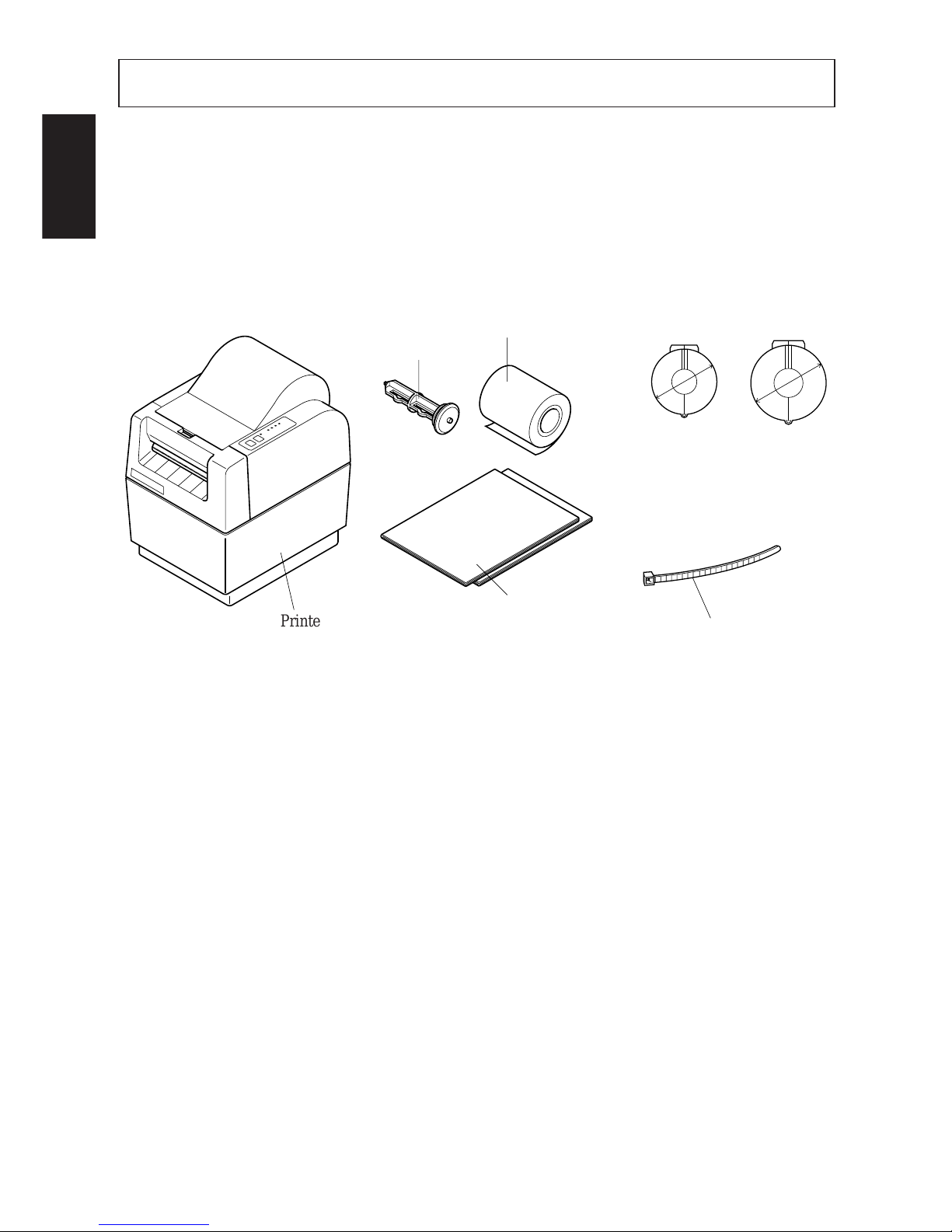

1-1. Unpacking

Check each item in the box against Figure 1-1 to make sure that you have

everything (there should be five items).

If any of these items are missing, contact your supplier.

Fig. 1-1

1-2. Handling Notes

Before you start setting up your printer, make sure that you have a suitable place

in which to locate it. By “a suitable place”, we mean:

•Close to an easily accessible socket-outlet.

•A firm, level surface which is fairly vibration-free

•Away from excessive heat (such as direct sunlight, heaters, etc)

•Away from excessive humidity

•Away from excessive dust

•With access to a steady power supply that is not subject to power surges. For

example, do not connect the printer to the same circuit as a large, noise-

producing appliance such as a refrigerator or an air conditioner.

NOTE: Make sure that the line voltage is the voltage specified on the printer’s

identification plate.

Ø24mm Ø28mm

,,,

Printer

Paper-roll shaft Sample paper roll

User’s manual

Installation Manual fastener

(E.U. only)

Ferrite core for

interface cable

(E.U. only)

Ferrite core

for peripheral

unit cable

(E.U. only)

– 2 –

ENGLISH

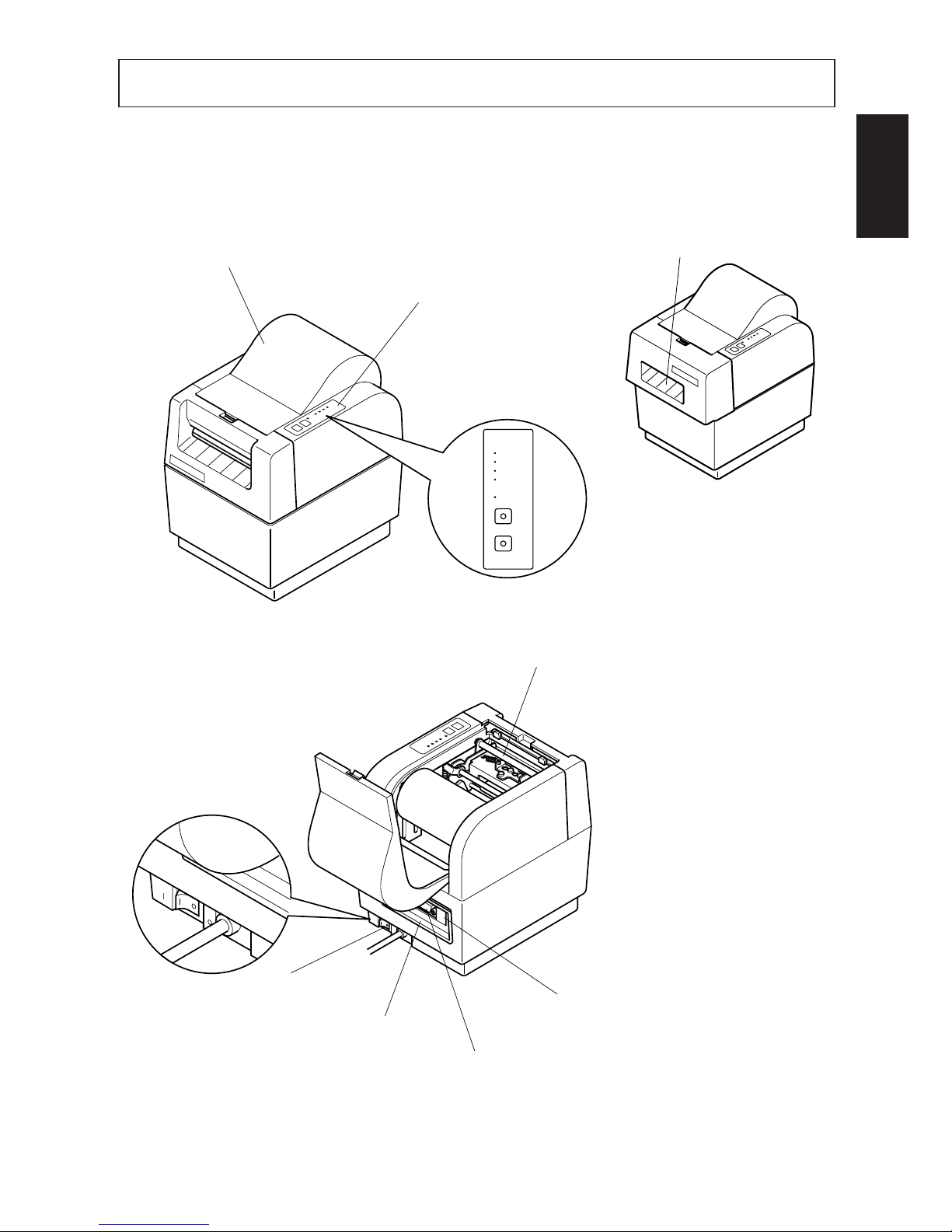

2. PARTS IDENTIFICATIONAND NOMENCLATURE

To get acquainted with the printer’s components and capabilities, refer to

Figure 2-1.

Fig. 2-1

Printer cover

Protects the print head and

other internal components of

your printer.

Control panel

Indicates printer status

and makes control of

printer functions simple

and convenient.

Automatic paper cutter

(Controlled by command)

(TSP442)

POWER

HEAD UP

NO PAPER

ERROR

ON LINE

FEED

ONOFF

ON OFF

Power switch

Switches power on or off.

Connector cover

Interface connector

Connects the computer to the printer.

Peripheral drive connector

Only connects to peripheral units

such as each drawers, etc.

Release bar

Opens and closes the print head unit which holds

the paper against the platen.

(TSP412)

– 3 –

ENGLISH

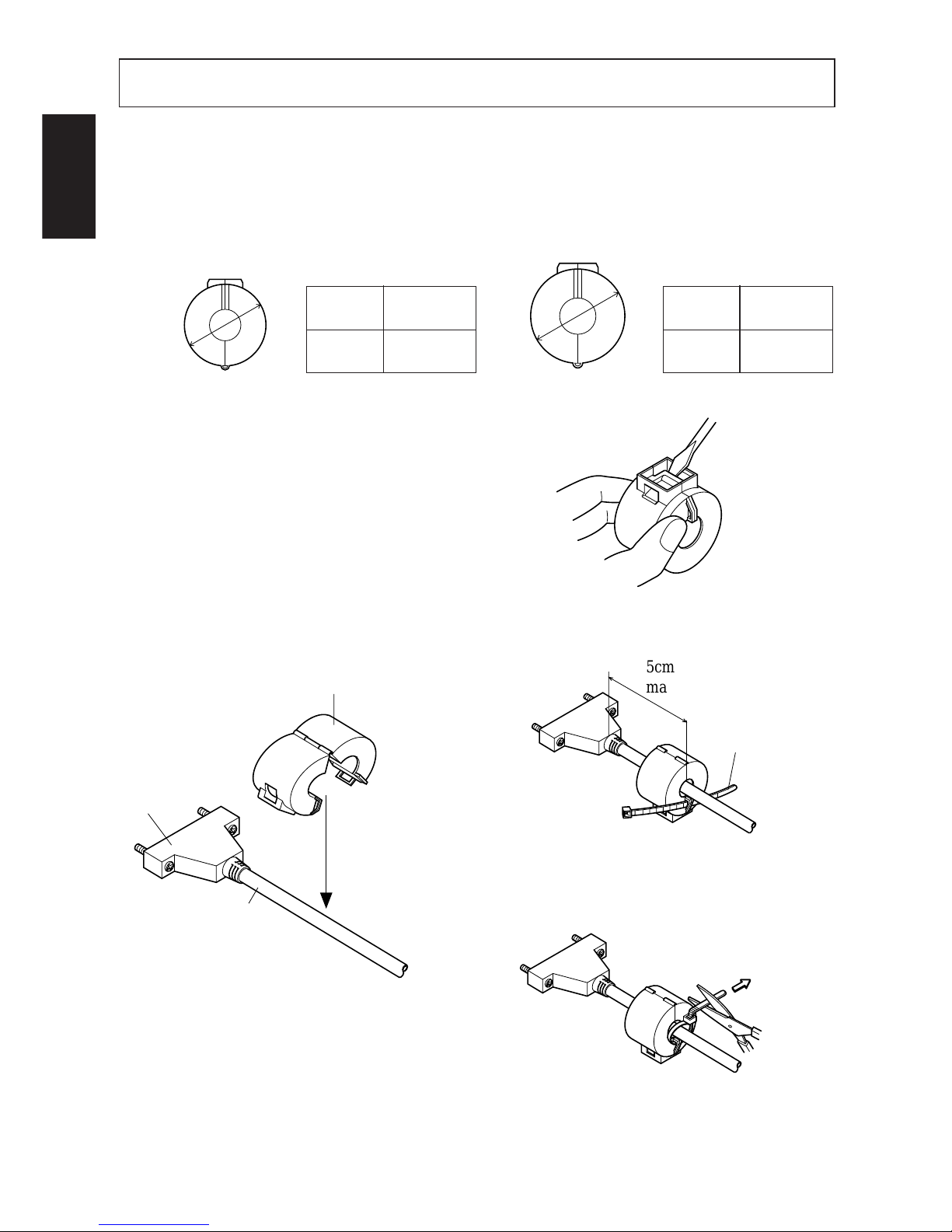

3. FERRITE CORE INSTALLATION *EUROPE ONLY

NOTE: Take special care when following the procedures listed below.

■Two ferrite core noise filters, large and small, come packed with the printer.

The small noise filter is for the RS232C serial interface cable, while the larger

one is for the cable of peripheral units.

Fig. 3-4

Fig. 3-3

Fig. 3-1

Pass fastener through ferrite core.

Pass fastener around cable and lock it.

Cut off excess with scissors.

Product

Code

Model

Name

09990723

Ferrite Core

TFC-23-11-14

Product

Code

Model

Name

09990728

Ferrite Core

TFC-20-10-10

For Interface Cable For Peripheral Unit Cable

Ø28mm

Ø24mm

■The ferrite cores are packed so they

are open, as shown in Fig. 3-2. If you

find that a ferrite core is not open, use

apointedobjecttoprytheplasticlock

of the ferrite core apart (Fig. 3-1).

Whenyoudo,takecarenottodamage

the ferrite core or the plastic lock.

,,,

5cm

maximum

Fastener

Pull and cut

Small ferrite Core(24mm diameter)

Interface

Cable

Fig. 3-2

– 4 –

ENGLISH

Installation of the interface cable ferrite core

■ClampthesmallferritecoreontotheinterfacecableasshowninFig.3-2.Take

caretoavoiddamagingtheinterfacecablewheninstallingtheferritecore.The

ferrite core should be anchored firmly in place with the fastener that comes

with it, as shown in Fig.3-3 and 3-4.

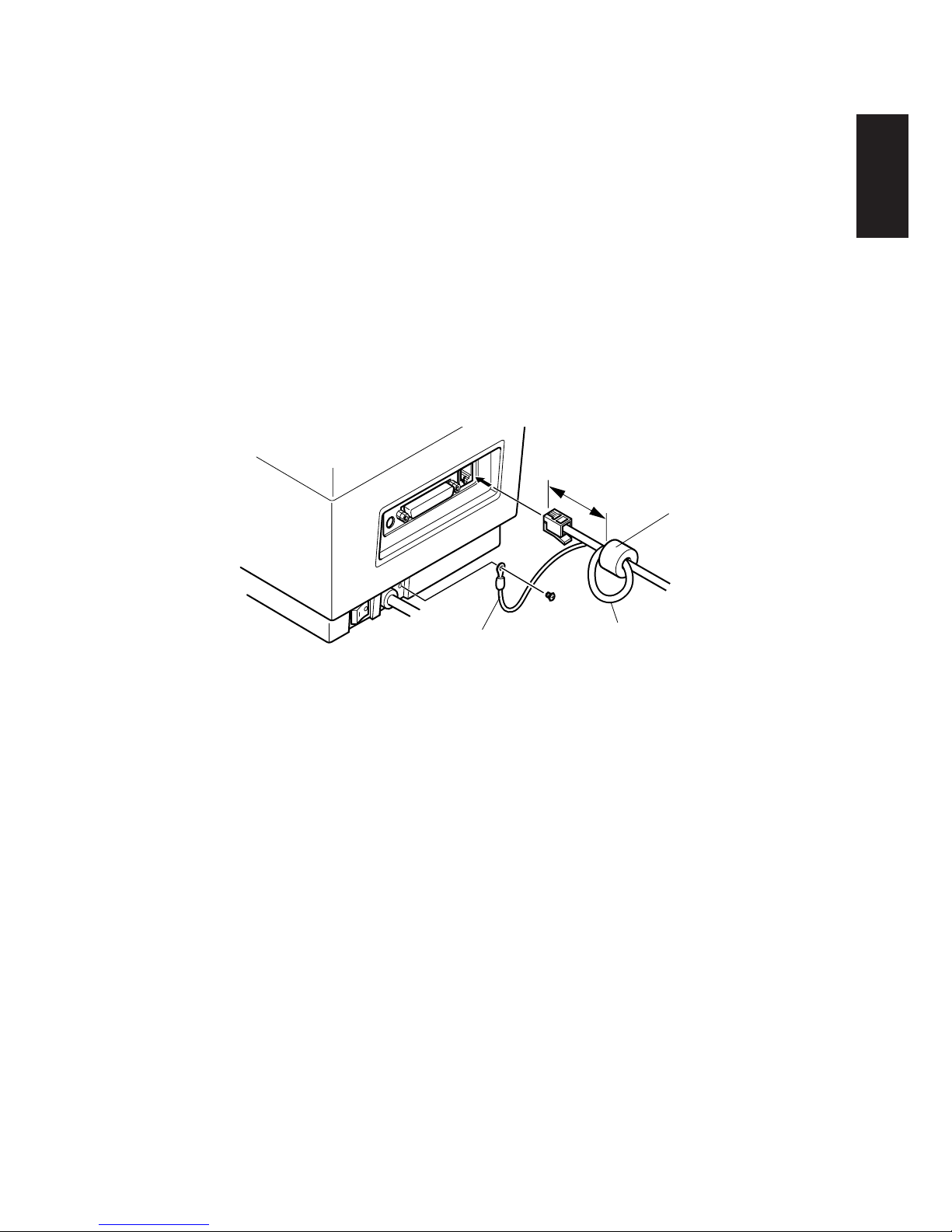

Installation of the peripheral unit cable ferrite core

■Clamp the large ferrite core onto the cable of the interface unit using the same

procedureasyoudofortheinterfacecableferritecore.Withtheperipheralunit

cable ferrite core, however, you have to loop the cable as shown in Fig. 3-5.

Fig. 3-5

Ground wire One loop

Large ferrite core

(28mm diameter)

5cm or less

– 5 –

ENGLISH

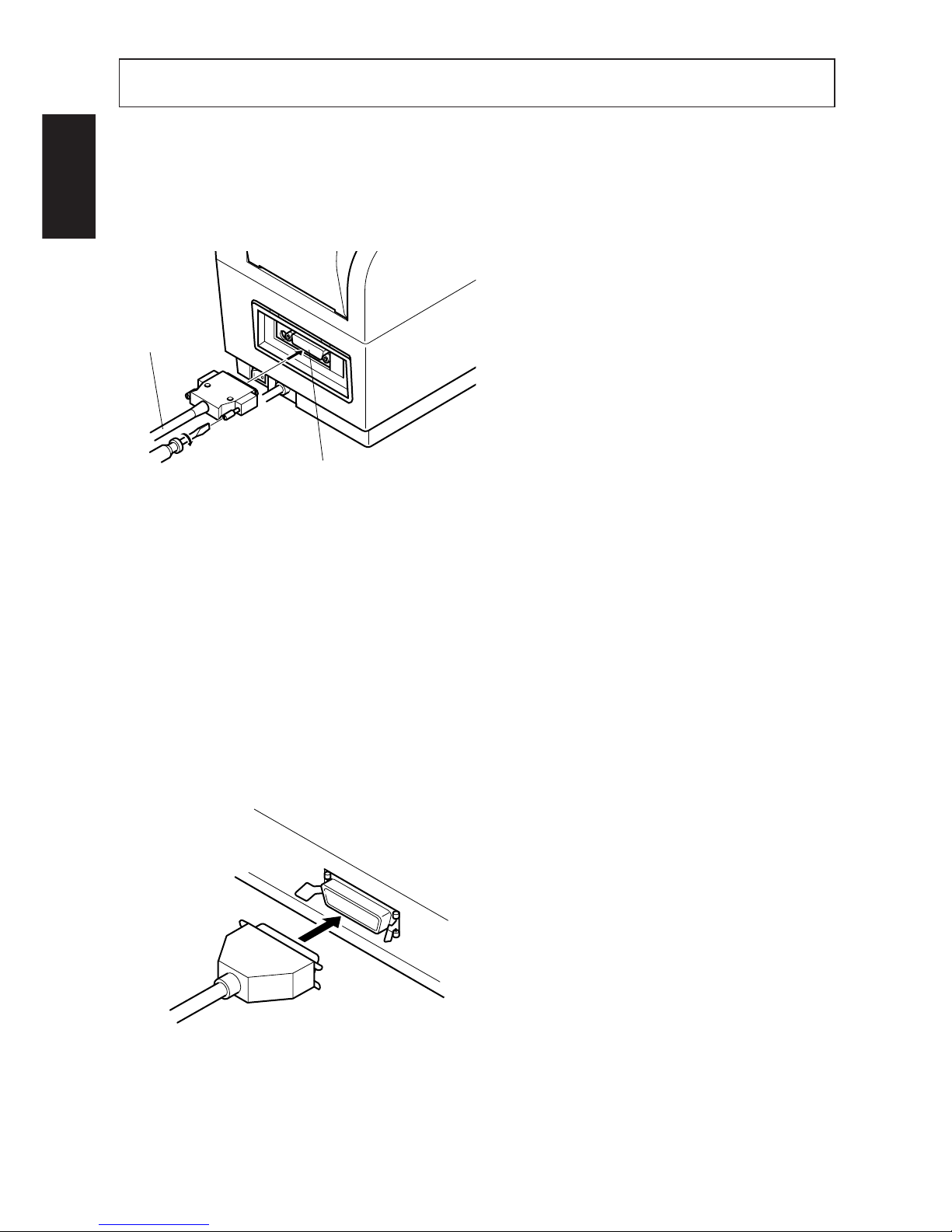

4. CONNECTING THE INTERFACE CABLE

4-1. RS-232C or RS-422A Serial interface

Follow the procedures below to connect the interface cable:

Fig. 4-1

1Switch off the power to the printer

and computer.

2Insert the interface cable into the

connector. (Besurethatthecableis

oriented correctly before inserting

it.)

3Fasten the right and left screws to

fix them in place on the connector.

4Connect the other end of the inter-

face cable to your computer.

Interface cable

Interface connector

NOTE: The data transfer conditions between the computer and the printer must

be made compatible with the DIP switch settings on the printer. (Refer

to “APPENDIX”.)

4-2. Centronics-type Parallel interface

1Switch off the power to the printer

and computer.

2Insert the interface cable into the

connector. (Besurethatthecableis

oriented correctly before inserting

it.)

3Fasten the connector clasps.

4Connect the other end of the inter-

face cable to your computer.

Fig. 4-2

TABLE DES MATIERES

1. DEBALLAGE ET INSPECTION.......................................................7

1-1. Déballage .....................................................................................7

1-2. Remarques sur la manipulation....................................................7

2. IDENTIFICATION DES PIECES ET NOMENCLATURE ...............8

3. INSTALLATION DU TORE DE FERRITE *EUROPE UNIQUEMENT ......9

Installation du tore de ferrite de câble d’interface.............................10

Installation du tore de ferrite de câble de périphérique .....................10

4. RACCORDEMENT DU CÂBLE D’INTERFACE ...........................11

4-1. Interface série RS-232C ou RS-422A........................................11

4-2. Interface parallèle type Centronics ............................................11

APPENDICE ...........................................................................................24

L’appendice n’est pas traduit.

– 7 –

FRANÇAIS

1. DEBALLAGE ET INSPECTION

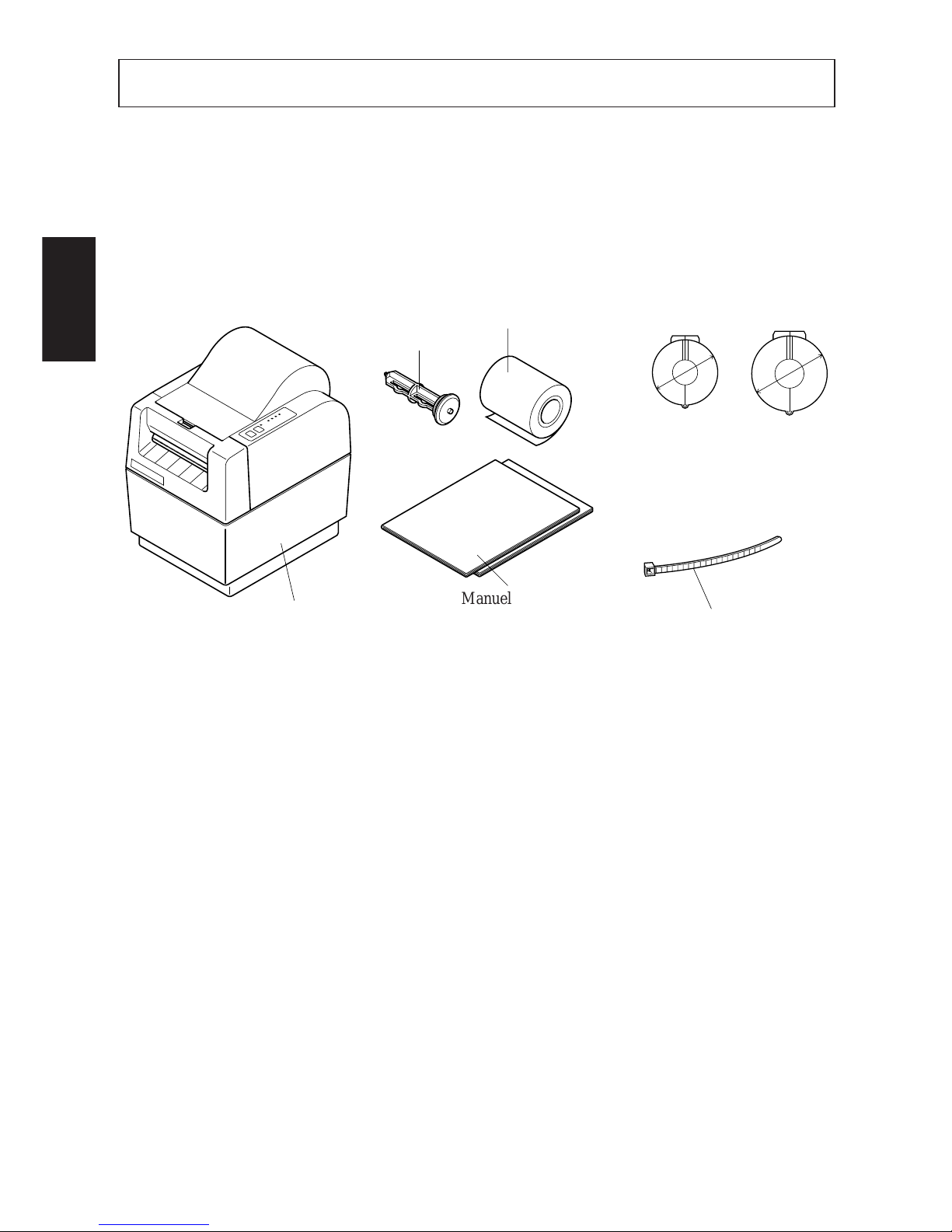

1-1. Déballage

VérifierchaquepiècedelaboîteenseréférantàlaFigure1afindes’assurerqu’on

a bien tout reçu (il doit y avoir cinq pièces).

En cas d’absence d’une de ces pièces, contacter le fournisseur.

Fig. 1-1

1-2. Remarques sur la manipulation

Avantdecommencerl’installationdel’imprimante,s’assurerqu’ondisposebien

d’un endroit approprié pour la mettre. Un “endroit approprié” doit satisfaire aux

conditions suivantes:

•A proximité d’une prise d’accès facile

•Surface ferme et à niveau pratiquement sans aucunes vibrations

•A distance de toute chaleur excessive (par exemple lumière du soleil directe,

radiateurs etc.)

•A distance de toute humidité excessive

•A distance de poussière excessive

•Accès à une source d’alimentation constante ne subissant pas de pointes

d’alimentation.Ainsi,parexemple,ilnefautpasrelierl’imprimanteaumême

circuitqu’unappareilimportantbruyantdugenreréfrigérateurouclimatiseur.

REMARQUE:S’assurerquelatensiondelignecorrespondàlatensionindiquée

sur la plaque signalétique de l’imprimante.

Ø24mm Ø28mm

,,,

Manuel d’utilisation

Manuel d’installation Attache

(Europe uniquement)

Tore de ferrite de

câble d’interface

(Europe

uniquement)

Tore de ferrite

de câble de

périphérique

(Europe

uniquement)

Rouleau de papier échantillon

Arbre du rouleau

de papier

Imprimante
