ST STSW-STUSB002 User manual

STSW-STUSB002

QUICK START

Customizing the STUSB45 using

the Graphical User Interface (GUI)

STEVAL-ISC005V1

Eval BOARD

STREF-SCS001V1

Demo BOARD

Ref. DESIGN

QUICK START

Introduction 2

Main components

NUCLEO-F072RB

STM32 Nucleo

-64 development board with AMR Cortex M0

Mini-B USB cable

with USB data support

USB-C cable

with USB data support

STSW-STUSB002

STUSB4500 Graphical User Interface

STEVAL-ISC005V1

STUSB4500 evaluation board

Operating System

Windows OS

This document describes how to configure an STM32 NUCLEO board as a USB to I²C

bridge. Configuration of such a NUCLEO board is required in order to connect the STUSB

Graphical User Interface (STSW-STUSB002) running on a laptop with an STUSB

evaluation board.

HARDWARE CONFIGURATION

(1/8) 3

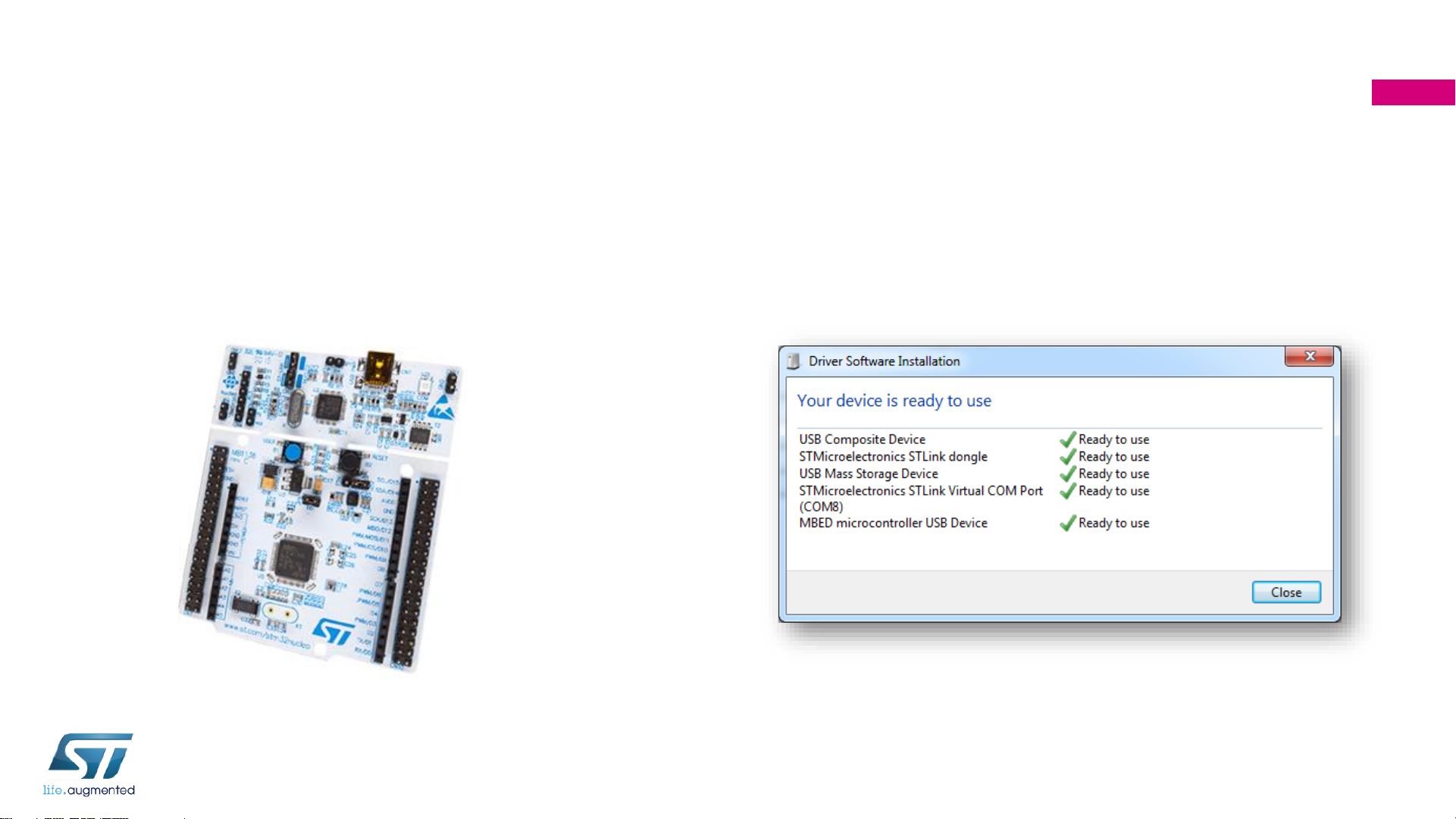

1) Connect the NUCLEO-F072RB to the Laptop using

mini-B USB cable

2) Please make sure the device drivers are installed

successfully:

HARDWARE CONFIGURATION

(2/8) 4

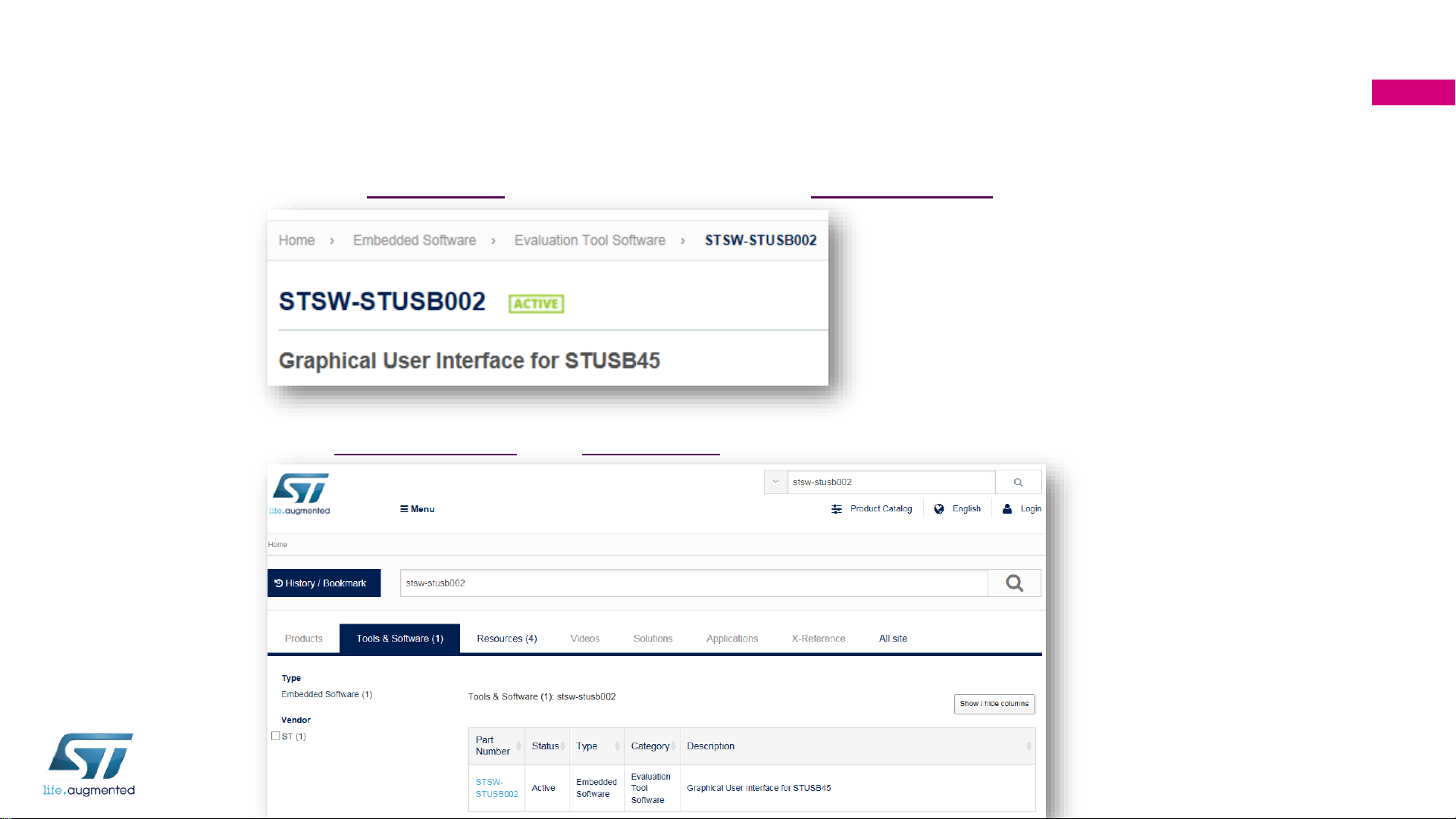

3) Download from www.st.com the STUSB45 GUI package (STSW-STUSB002) from the following location:

or by searching STSW-STUSB002 from www.st.com home page:

HARDWARE CONFIGURATION

(3/8) 5

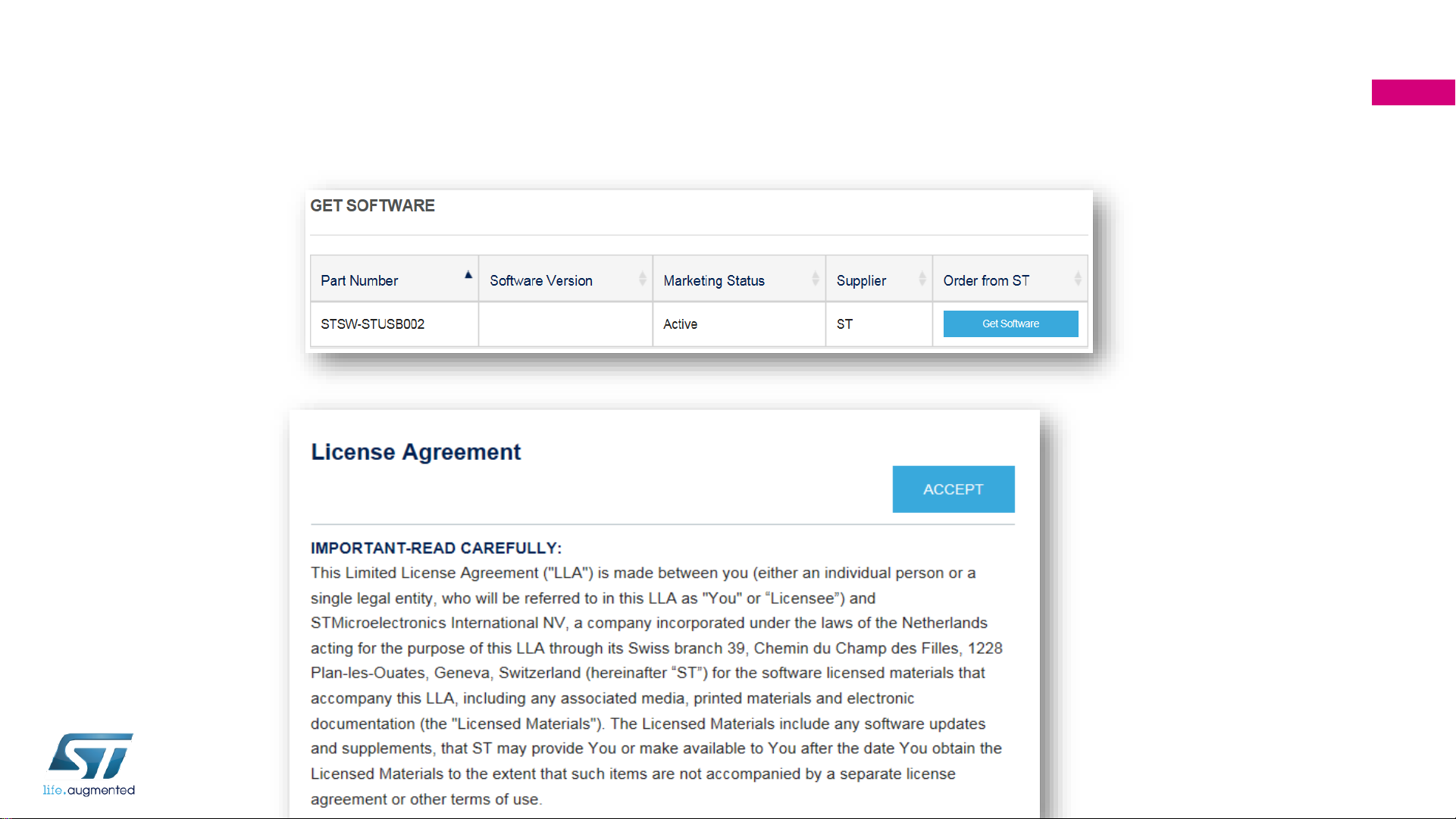

4) Then click on “Get Software” from the bottom of the page

5) Download will start after accepting the License Agreement, and filling contact information.

1.0.7

HARDWARE CONFIGURATION

(4/8) 6

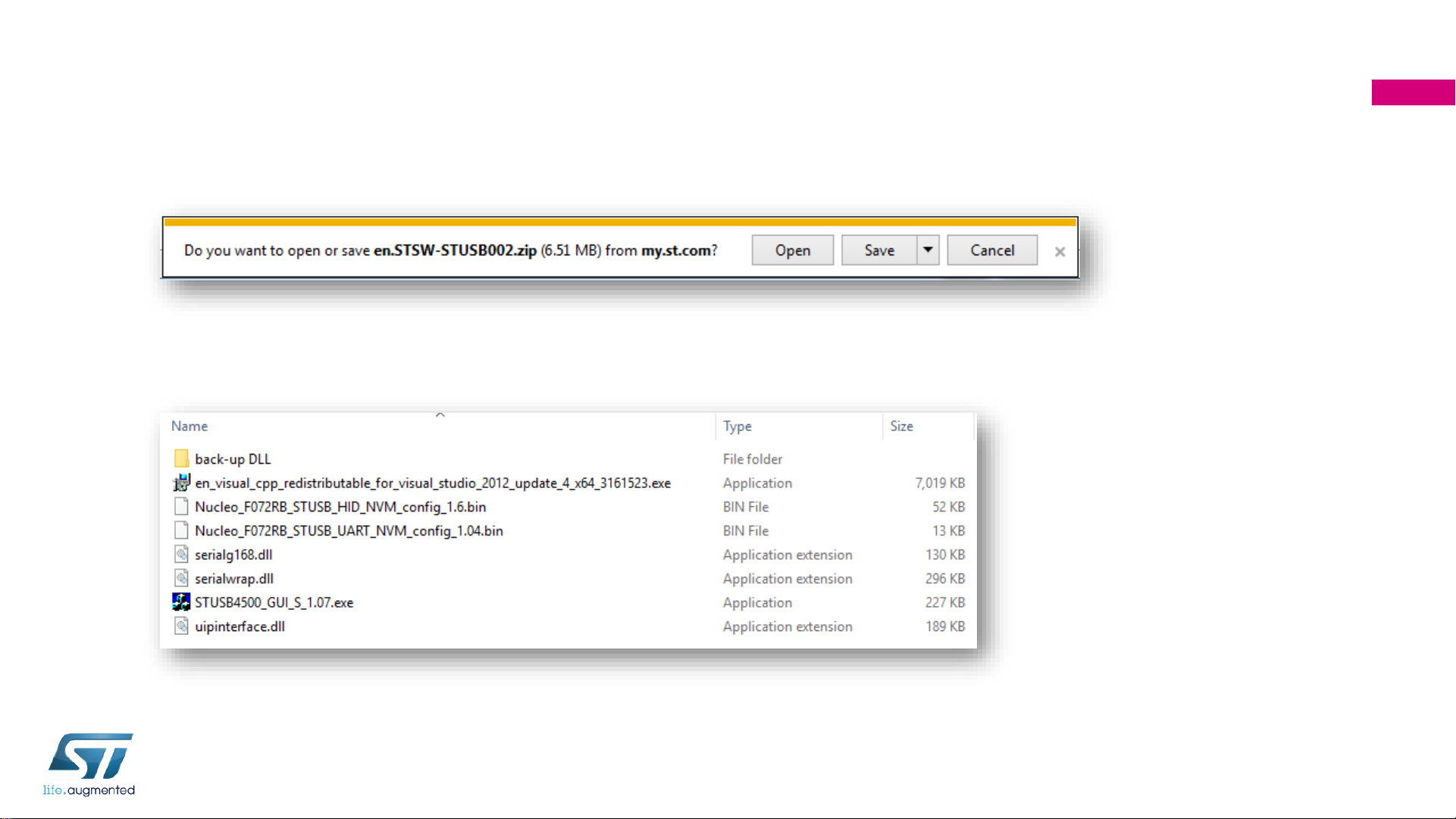

6) Save the file en.STSW-STUSB002.zip on your laptop

and unzip:

HARDWARE CONFIGURATION

(5/8) 7

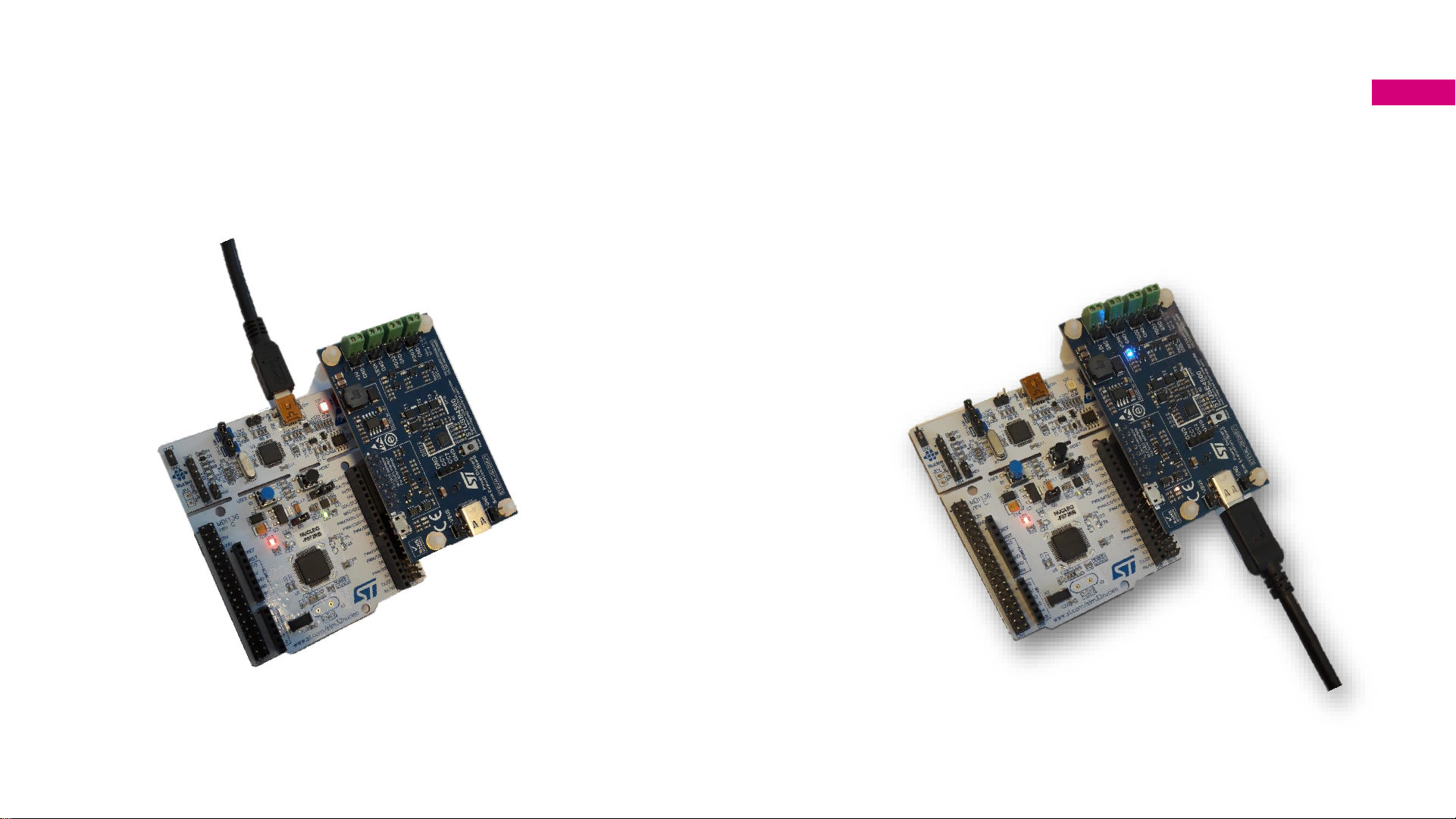

Connection between the GUI and

NUCLEO-F072RB + STEVAL-ISC005V1

through USB mini-B cable.

Connection between the GUI

NUCLEO-F072RB and STEVAL-ISC005V1

with USB type-C cable

Drag and drop

NUCLEO_F072RB_STUSB_UART_NVM_config_1.04.bin

into NUCLEO-F072RB

Drag and drop first

NUCLEO_F072RB_STUSB_HID_NVM_config_1.6.bin

into NUCLEO-F072RB using USB mini-B cable

HARDWARE CONFIGURATION

(6/8) 8

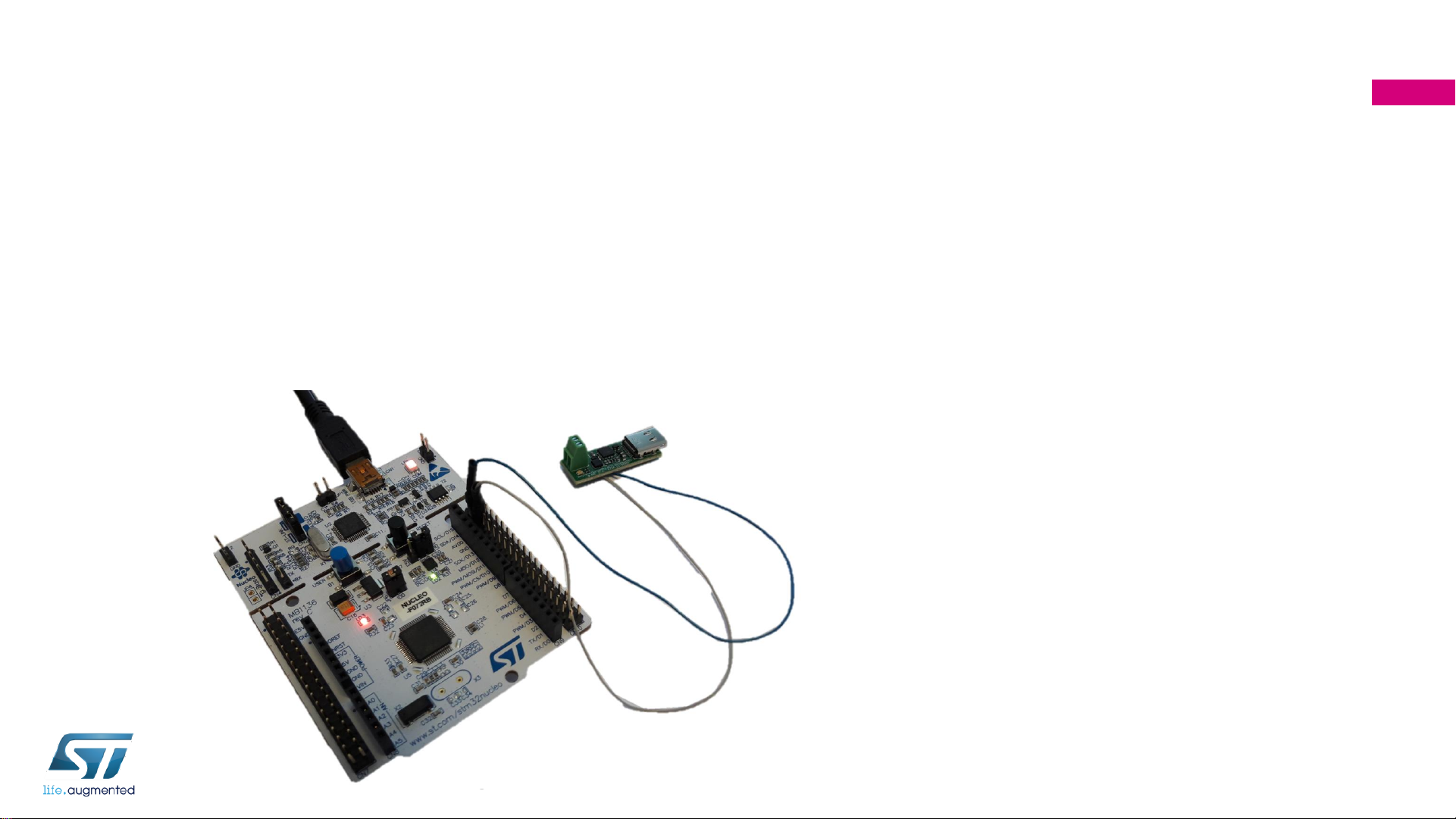

I²C connection between

NUCLEO-F072RB and STREF-SCS001V1

using

NUCLEO_F072RB_STUSB_UART_NVM_config_1.04.bin

with USB mini-B cable

NB:

STREF-SCS001V1 must be supplied through

USB connector

Additional GND connection to the NUCLEO is

recommended

SCL

SDA

HARDWARE CONFIGURATION

(7/8) 9

7) For the laptop connection (GUI):

•if using a USB mini-B cable, please follow a)

•if using a USB type-C cable, please follow b)

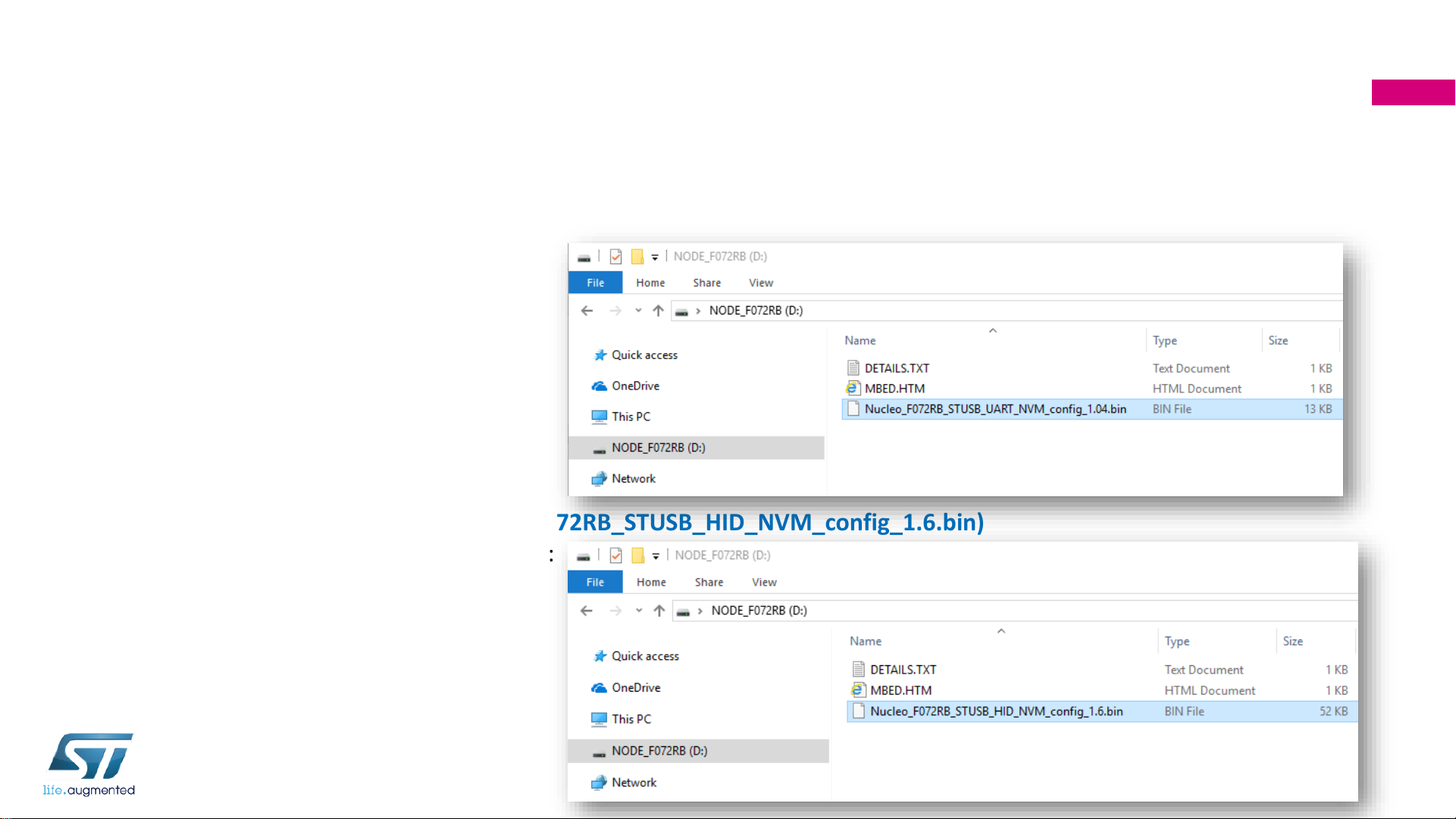

a) Drag and drop (*) the BIN file (NUCLEO_F072RB_STUSB_UART_NVM_config_1.04.bin)

to the STM32 Nucleo board (NODE_F072RB):

b) Drag and drop (*) the BIN file (NUCLEO_F072RB_STUSB_HID_NVM_config_1.6.bin)

to the STM32 Nucleo board (NODE_F072RB):

(*) using the mini-B cable

HARDWARE CONFIGURATION

(8/8) 10

8) Press the NUCLEO-F072RB “RESET” button (B2 – Black push button).

9) The board is now configured to act as a USB to I²C bridge between the STUSB Graphical User Interface

(GUI) and STUSB4500.

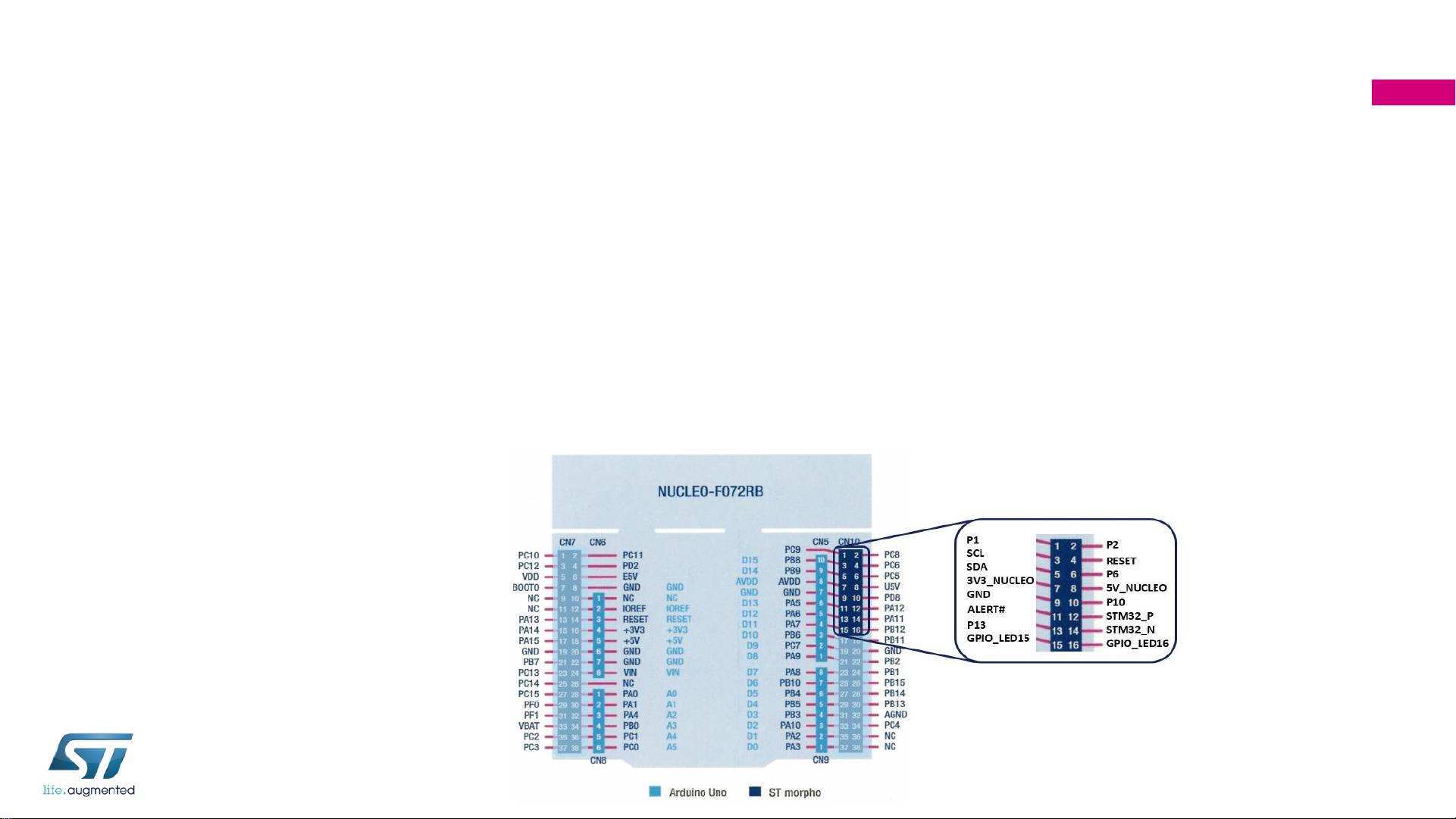

10) Before opening the GUI, please make sure SDA and SCL signals from the STUSB evaluation board are

properly connected to their counterpart from NUCLEO-F072B (see below connection).
