Speco HT-INTT5 User manual
Intensifier Series
Camera
HT-INTT5
200 New Highway
Amityville, NY 11701
631-957-8700
www.specotech.com
Please read this manual thoroughly before operation and keep
it handy for further reference.
Contents
3~4
Features --------------------------7
Operating Your Camera
* SET UP----------------------------------------------------------------9~11
Precautions
Troubleshooting
* SET UP LENS-----------------------------------------------------------12
5~6
* SHUTTER SPEED CONTROL ---------------------------------13~16
* BACK LIGHT-------------------------------------------------------------17
* AUTO GAIN (AGC) ----------------------------------------------------18
* WHITE BALANCE -------------------------------------------------19~20
* REDUCE NOISE--------------------------------------------------------21
* INTENSIFIER------------------------------------------------------------22
* CAMERA TITLE-----------------------------------------------------23~24
* DAY/NIGHT/SYNC ----- -------------------------------------------25~26
* MOTION DETECTION---------------------------------------------27~28
* PRIVACY------------------------------------------------------------------29
* REVERSE-----------------------------------------------------------------30
* DETAIL---------------------------------------------------------------------31
* DEFAULT/RETURN-----------------------------------------------------32
33~34
35~36
Specifications / Dimensions
37
Warranty
1 2
Features
♣SLC ( Speco Light Compensation )
When the image is in front of strong background lighting,
your camera allows you to get the best image.
♣OSD
Gives you full control of the camera’s advanced functions.
♣INTENSIFIER
1/3 inch density CCD and digital processor permit
high quality pictures to be captured in very low light
conditions.
♣REDUCE NOISE
A DSP chip removes image noise efficiently and
shows a clean image in low light conditions.
♣High Resolution
Horizontal resolution of 530TV lines is
achieved by using a SONY CCD having Double
Speed 410,000 pixels.
♣ELECTRONIC DAY/NIGHT
You can choose between having the camera always remain in
color or having it change into the B/W mode in low light
conditions.
♣Motion Detection
Built into the OSD. No external devices required.
♣MANUAL/DC LENS
You can use Auto Iris, Manual Iris and Fixed Iris lenses
3 4
Precautions
* Do not install the camera in extreme temperature conditions.
- Only use the camera under conditions where temperatures
are between -10℃and +50℃. Be especially careful to provide
ventilation when operating under high temperatures.
* Do not install or use the camera in an environment where
the humidity is high.
- It can cause the image quality to be poor.
* Do not install the camera under unstable lighting conditions.
-Severe lighting change or flicker can cause the camera
to work improperly.
* Do not drop the camera or subject them to physical shocks.
-It can cause malfunctions to occur.
* Do not expose the camera to radioactivity.
* Never allow the camera to face the Sun.
- It can damage the CCD.
5 6
Operating your camera
◈Functions ◈OSD Menu Setting
LENS OPTION
●DC ●MANUAL
SET UP MENU 1. When you control by Buttons on the Product, refer to the following
(OPTION)
SHUTTER
●OFF ●F/L ●MANUAL UP
WHITE BALANCE
●ATW ●AWC MANUAL●
BACKLIGHT
●OFF ●LOW ●MIDDLE ●HIGH
AGC
●OFF ●LOW ●MIDDLE ●HIGH
REDUCE NOISE
●OFF ●LOW ●MIDDLE ●HIGH
INTENSIFIER
●AUTO ●OFF
NEXT PAGE
●CAMERA TITLE ●DAY/NIGHT ●SYNC
●MOTION DET ●PRIVACY ●REVERSE
●DETAIL ●DEFAULT ●PAGE 1
EXIT
7
SET DOWNUP RIGHT
LEFT
SET
LEFT RIGHT
DOWN
8
Operating your camera ( Option )
C. System Integration
CCD Camera
485(+)
•Please Observe Polarity!
1. When controlled by RS-485, Pelco-D protocol (Option), refer to the following.
A. DIP Switch Setting on the Camera
(Factory default : Camera Address = 01, Baud Rate = 2400bps) 485(-)
Receiver
•Up to 15 Cameras can be
controlled by 1 IR Remote
Controller & 1 Receiver. You
must set up each camera’s
address by DIP Switches for
proper addressing.
910
When you call Camera Address
01
->Push 0 Button
->Push 1 Button
->Push CAM Button
Power Connector
(DC12V in)
485(+),(-)
Baud Rate Setting
Buzzer On/Off
B. Receiver Setting to use with IR Remote Controller
(Factory default : Baud Rate = 2400bps, Chart is same as
above)
D. IR Remote Controller ( Optional )
- Can call and control each camera on the monitor by the following.
Multiflexer Monitor
SET buttonUP button
RIGHT button
DOWN
button
LEFT button
IR Remote
Controller
①②

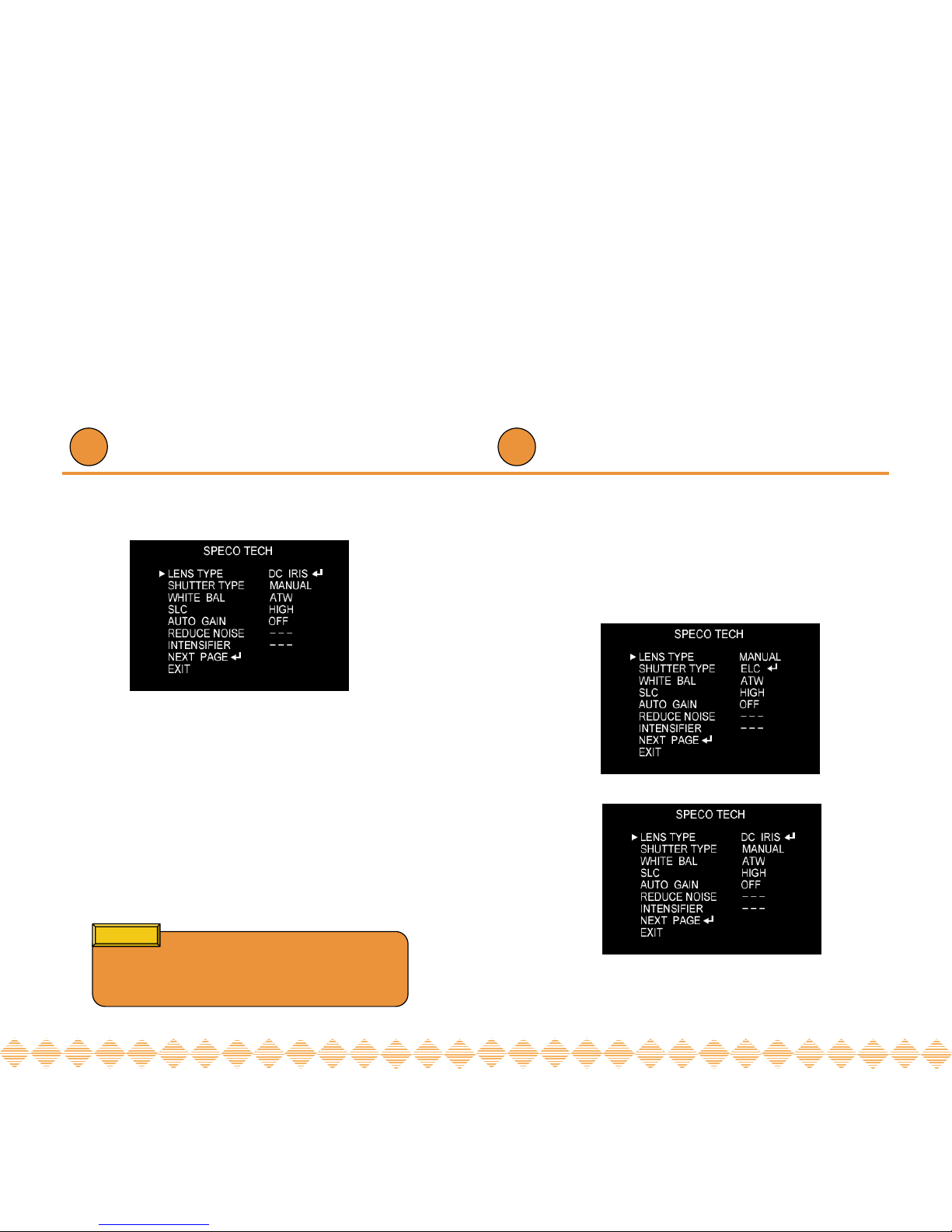

Operating your camera -SET UP Operating your camera - LENS
1. Press the SET button to access the SETUP mode.
●SETUP menu is displayed on the monitor screen. 1) Setting up the LENS
Select the lens pressing the RIGHT button.
①On the SETUP menu screen, move the arrow indicator to the lens
using the UP or DOWN button.
②Select the desired feature using the LEFT or RIGHT button.
2. Select the desired feature using the UP or DOWN button.
●Each time you press the UP or DOWN button, the arrow
indicator moves up or down.
●Move the arrow indicator to the desired feature item.
3. Change the status of the selected feature using the LEFT
or RIGHT button.
4. When completed, move the arrow indicator to ‘EXIT’ and press
the SET button.
Notes
•●You can access submenu by using SET button.
•●For the mode with ’---’, you may not access submenu.
11 12
Operating your camera – SHUTTER SPEED CONTROL①
2) Shutter status and speed control
You can control brightness of the screen by the shutter speed.
①Press the SET button to display the setup menu and move the arrow
indicator to ‘SHUTTER’ using the UP or DOWN button.
②Set ‘SHUTTER’ to the desired mode using the LEFT or RIGHT
button.
▶OFF : Deactivation
▶When DC LENS selected, press SET button to control the
BRIGHTNESS.
Notes
▶FLK (1/100) : Flicker mode
●AUOT IRIS LENS(DC TYPE) is recommended
13 14
Operating your camera –SHUTTER SPEED CONTROL ②
▶MANUAL : When setting shutter speed manually.
You can select speed from ‘1/60’ to ‘1/200,000’sec ▶ELC : You can control the BRIGHTNESS.
③When completed, press ‘SET’
Notes
●Avoid pointing the camera directly at a fluorescent lamp.
●When the SHUTTER menu is set to FLK mode, the INTENSIFIER
will not work.
15 16
