Smeg CS9GMNHA User manual

Contents

1 Instructions 4

1.1 General safety instructions 4

1.2 Identification plate 7

1.3 Manufacturer liability 8

1.4 Appliance purpose 8

1.5 This user manual 8

1.6 How to read the user manual 8

2 Description 9

2.1 General Description 9

2.2 Cooktop 10

2.3 Control panel 10

2.4 Other parts 11

2.5 Available accessories 12

3 Use 14

3.1 Instructions 14

3.2 First use 15

3.3 Using the accessories 16

3.4 Using the cooktop 19

3.5 Using the storage compartment 20

3.6 Using the oven 20

3.7 Cooking advice 22

3.8 Programmer clock 23

4 Cleaning and maintenance 28

4.1 Instructions 28

4.2 Cleaning the appliance 28

4.3 Removing the door 29

4.4 Cleaning the door glazing 30

4.5 Removing the internal glass panes 30

4.6 Vapour Clean 32

4.7 Extraordinary maintenance 33

5 Installation 36

5.1 Minimum clearance to combustible surfaces 36

5.2 Gas connection 36

5.3 Adaptation to different types of gas 39

5.4 Positioning 41

5.5 Electrical connection 46

5.6 For the installer 47

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when handling food

inside the oven cavity.

• Never try to put out a fire or flames

with water: turn off the appliance

and smother the flames with a fire

blanket or other appropriate

cover.

• This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in

a safe way and understand the

hazards involved.

• Children must not be allowed to

play with the appliance.

• Keep children under eight years of

age at a safe distance if they are

not constantly supervised.

• Do not allow children younger

than 8 years old to come near the

appliance when in operation.

• Cleaning and maintenance must

not be carried out by unsupervised

children.

• Make sure that the flame-spreader

crowns are correctly positioned in

their housings with their respective

burner caps.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid on

the pan and turn off the relevant

cooking zone.

• The cooking process must always

be monitored. Short cooking

processes must be monitored

continuously.

• When in use, do not place metal

objects, such as dishes or cutlery,

on the surface of the cooktop as

they may overheat.

• Do not insert pointed metal objects

(cutlery or utensils) into the slots in

the appliance.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed during

cooking.

Instructions

• If you need to move food or at the

end of cooking, open the door 5 cm

for a few seconds, let the steam

come out, then open it fully.

• Do not open the storage

compartment (if present) when the

oven is on and still hot.

• The items inside the storage

compartment could be very hot

after the oven has been used.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS IN THE

APPLIANCE STORAGE DRAWER

OR NEAR THIS APPLIANCE.

• NEVER USE AEROSOL CANS

IN THE VICINITY OF THIS

APPLIANCE WHILE IT IS IN

OPERATION.

• Switch the appliance off

immediately after use.

• DO NOT MODIFY THIS

APPLIANCE.

• Before carrying out any work on

the appliance (installation,

maintenance, positioning or

moving), wear personal protective

equipment.

• Before carrying out any work on

the appliance, disconnect the

mains power supply.

• Have authorised persons carry out

installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of authorised persons.

• Do not pull the cable to remove

the plug.

• In order to avoid hazard, if the

power supply cable is damaged,

contact technical support and they

will replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

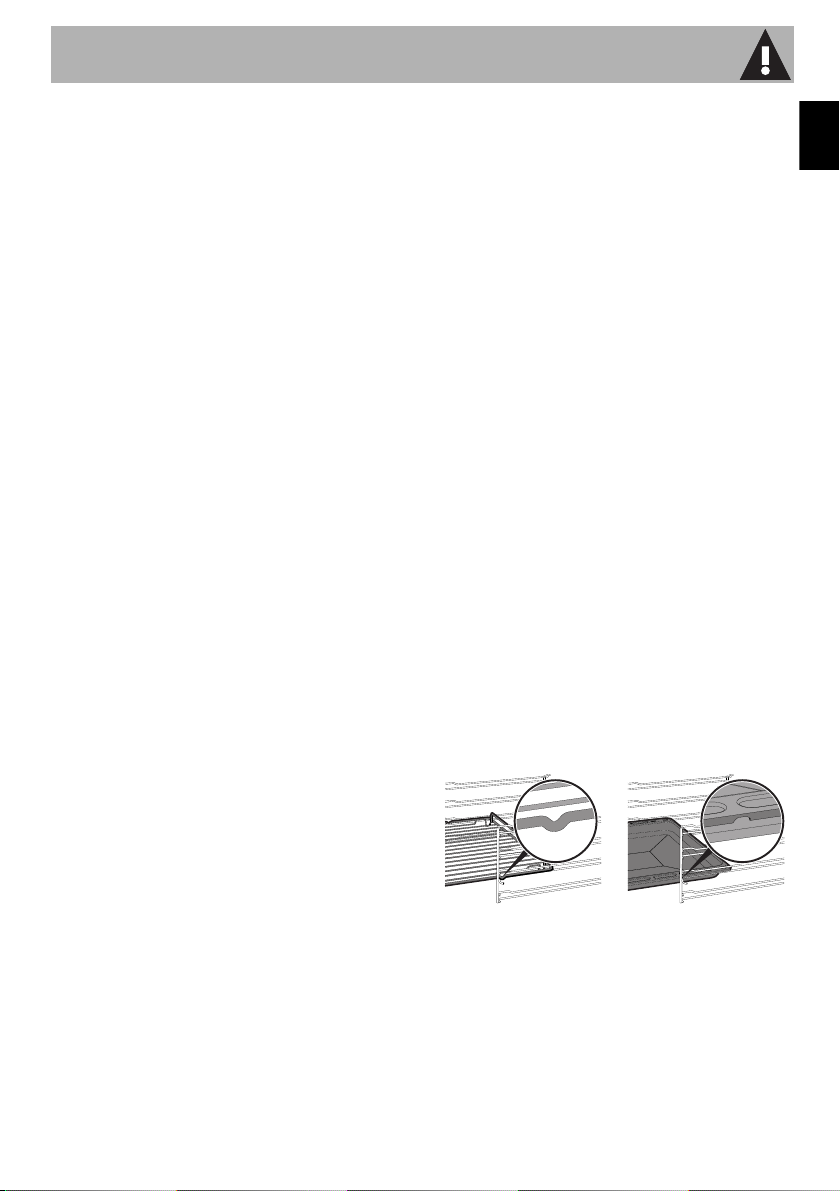

• Racks and trays must be inserted

as far as they will go into the side

guides. The mechanical safety

locks that prevent them from being

removed must face downwards

and towards the back of the oven

cavity.

• Do not seat on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

Instructions

• Never leave the appliance

unattended during cooking

operations in which fats or oils

could be released that could

overheat and catch fire. Be very

careful

• Danger of fire: do not store items

on the cooking surfaces.

• DO NOT USE THE APPLIANCE

AS A SPACE HEATER.

• DO NOT PLACE ARTICLES ON

OR AGAINST THIS APPLIANCE

• Do not spray any spray products

near the oven.

• Do not use plastic kitchenware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays directly

on the bottom of the oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

panel.

• The cooking vessels or griddle

plates should be placed inside the

perimeter of the cooktop.

• All cookware must have smooth,

flat bottoms.

• If any liquid does boil over or spill,

remove the excess from the

cooktop.

• Take care not to spill acidic

substances such as lemon juice or

vinegar onto the cooktop.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on steel parts or parts with

metallic surface finishes (e.g.

anodizing, nickel- or chromium-

plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Do not wash the removable

components such as the cooktop

pan stands, flame-spreader

crowns and burner caps in a

dishwasher.

Instructions

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the oven door when open.

• Do not use the handle to lift or

move the appliance.

Installation

• THIS APPLIANCE MUST NOT BE

INSTALLED IN BOATS OR

CARAVANS.

• The appliance must not be

installed on a stand.

• Position the appliance into the

cabinet cutout with the help of a

second person.

• To prevent overheating, the

appliance must not be installed

behind a decorative door or a

panel.

• The gas connection should be

carried out by authorised persons.

• Installation with flexible hose must

be carried out so that the length of

the piping does not exceed 2 metres

when fully extended as regards

flexible steel hoses and 1.5 metres

in case of rubber hoses.

• The hoses should not come into

contact with moving parts and

should not be crushed in any way.

• If required, use a pressure

regulator that complies with

current regulations.

• After carrying out any operation,

check that the tightening torque of

gas connections is between 10 Nm

and 15 Nm.

• At the end of the installation, check

for any leaks with a soapy

solution, never with a flame.

• Have the electrical connection

performed by authorised persons.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90°C.

• The tightening torque of the screws

of the terminal supply wires must

be 1.5 - 2 Nm.

For this appliance

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on the

open door of the appliance.

• Take care that no objects are stuck

in the doors.

1.2 Identification plate

• The identification plate bears the

technical data, serial number and

brand name of the appliance. Do

not remove the identification plate

for any reason.

Instructions

1.3 Manufacturer liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• use of the appliance other than the

one envisaged;

• non-observance of the user

manual provisions;

• tampering with any part of the

appliance;

• use of non-original spare parts.

1.4 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.5 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and in an

accessible place for the whole

working life of the appliance.

Read this user manual carefully

before using the appliance.

1.6 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for authorised persons:

installation, operation and

inspection.

Safety instructions

Information

Advice

Description

2 Description

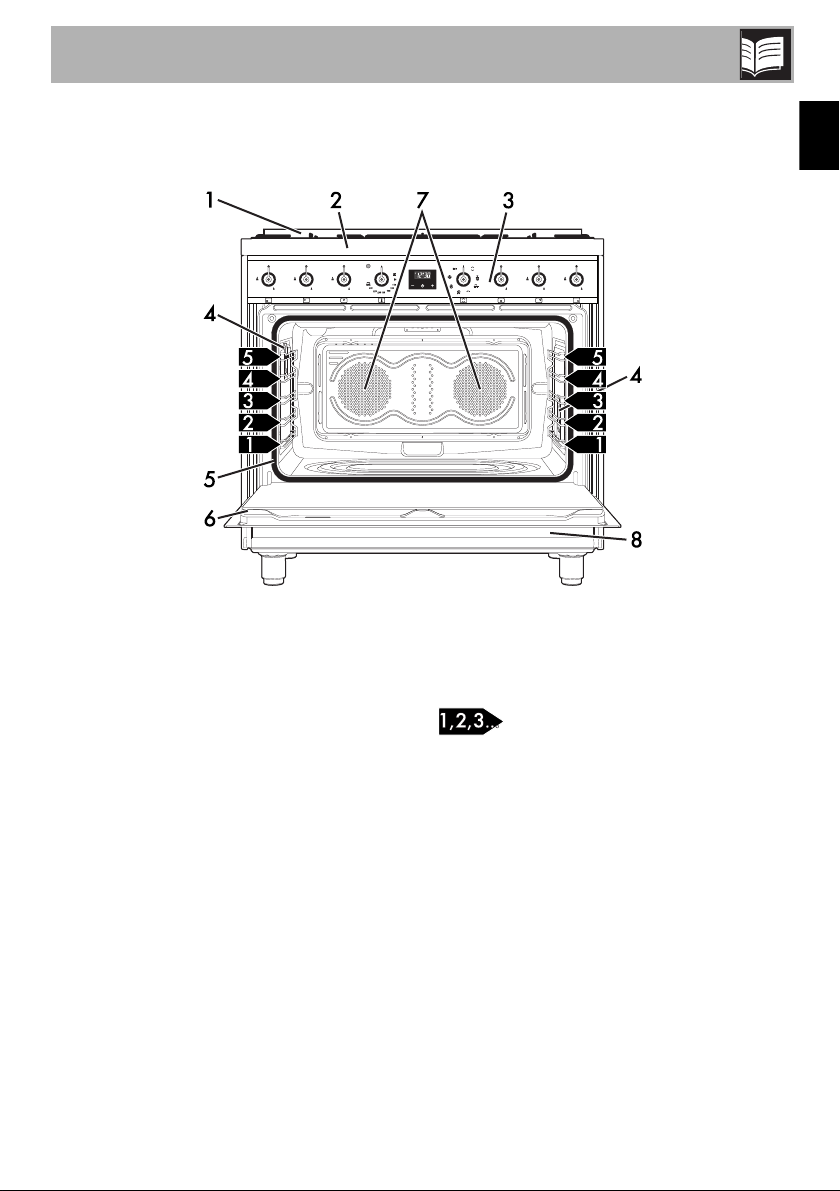

2.1 General Description

1 Backguard

2 Cooktop

3 Control panel

4 Oven light

5 Seal

6 Door

7 Fan

8 Storage compartment

Rack/tray support frame shelf

Description

2.2 Cooktop

AUX = Auxiliary

SR = Semi-rapid

R= Rapid

UR2 = Ultra rapid

2.3 Control panel

1 Cooktop burner knobs

Useful for lighting and adjusting the cooktop

burners.

Press and turn the knobs anti-clockwise to

the value to light the relative burners.

Turn the knobs to the zone between the

maximum and minimum setting to

adjust the flame.

Return the knobs to the position to turn

off the burners.

2 Indicator light

The indicator light comes on to indicate that

the oven is heating up. It turns off as soon as

it reaches the set temperature. It flashes

regularly to indicate that the temperature set

inside the oven is kept constant.

Description

3 Temperature knob

This knob allows you to select the cooking

temperature.

Turn the knob clockwise to the required

value, between the minimum and maximum

setting.

4 Programmer clock

Useful for displaying the current time, setting

programmed cooking operations and

programming the minute minder timer.

5 Function knob

The oven's various functions are suitable for

different cooking modes. After selecting the

required function, set the cooking

temperature using the temperature knob.

2.4 Other parts

Shelves

The appliance features shelves for

positioning trays and racks at different

heights. The insertion heights are indicated

from the bottom upwards (see 2.1 General

Description).

Cooling fan

The fan cools the oven and comes into

operation during cooking. The fan causes a

steady outflow of air that exits from the rear

of the appliance and which may continue

for a brief period of time even after the

appliance has been turned off.

Interior lighting

The appliance interior lighting comes on:

• When the door is opened

• When any function is selected.

Do not obstruct ventilation

openings and heat dispersal slots.

Description

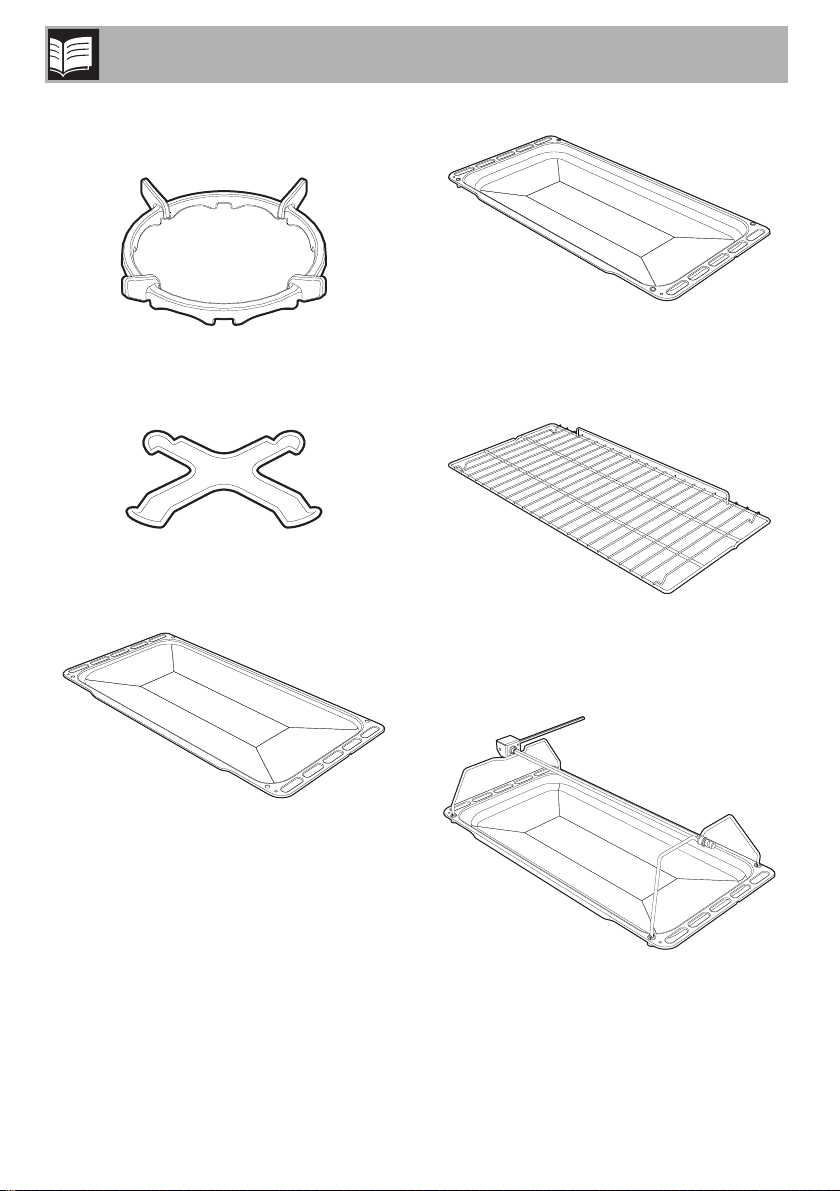

2.5 Available accessories

WOK ring

Useful when using a wok.

Ring reducer

Useful when using small cookware.

Tray (on some models only)

Useful for collecting fat from foods placed

on the rack above.

Deep tray

Useful for collecting fat from foods placed

on the rack above.

Rack

Useful for supporting containers with food

during cooking.

Rotisserie (on some models only)

Useful for cooking chicken and all foods

that require uniform cooking over their entire

surface.

Table of contents

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Electrolux

Electrolux Insight EKG6049 user manual

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
