Smeg Concerto SX91MDS9 User manual

Table of contents

1 Instructions 52

1.1 General safety instructions 52

1.2 Manufacturer liability 56

1.3 Appliance purpose 56

1.4 Identification plate 56

1.5 This user manual 56

1.6 Disposal 56

1.7 How to read the user manual 57

2 Description 58

2.1 General Description 58

2.2 Cooking hob 59

2.3 Control panel 59

2.4 Other parts 60

2.5 Available accessories 60

3 Use 62

3.1 To save energy 64

3.2 Using the accessories 64

3.3 Using the hob 65

3.4 Using the oven 66

3.5 Cooking with the Direct Steam function 67

3.6 Cooking advice 69

4 Cleaning and maintenance 74

4.1 Cleaning the hob 75

4.2 Cleaning the door 76

4.3 Cleaning the oven cavity 78

4.4 Extraordinary maintenance 79

5 Installation 81

5.1 Gas connection 81

5.2 Adaptation to different types of gas 83

5.3 Positioning 88

5.4 Electrical connection 94

5.5 Instructions for the installer 95

We advise you to read this manual carefully, as it contains all the instructions for maintaining

the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg SX91MDS9 o cerca

il tuo prodotto tra le migliori offerte di Cucine e Piani cottura

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or flames

with water: turn off the appliance

and smother the flames with a fire

blanket or other appropriate

cover.

• This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in

a safe way and understand the

hazards involved.

• Children must not play with the

appliance.

• Keep children under the age of 8

at a safe distance unless they are

constantly supervised.

• Keep children under the age of

8 away from the appliance when

it is in use.

• Cleaning and maintenance must

not be carried out by unsupervised

children.

• Make sure that the flame-spreader

crowns are correctly positioned in

their seats with their respective

burner caps.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid on

the pan and turn off the relevant

cooking zone.

• The cooking process must always

be monitored. A short cooking

process must be continuously

surveyed.

• While cooking do not place metal

objects, such as cutlery or dishes

on the hob surface as they may

overheat.

• Do not insert pointed metal objects

(cutlery or utensils) into the slots in

the appliance.

• Do not pour water directly on very

hot trays.

• Keep the oven door closed during

cooking.

Instructions

• If you need to move food or at the

end of cooking, open the door

5 cm for a few seconds, let the

steam come out, then open it fully.

• Do not open the storage

compartment (where present)

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot

after using the oven.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS IN

THE STORAGE COMPARTMENT

(IF AVAILABLE) OR NEAR THE

APPLIANCE.

• DO NOT USE AEROSOLS IN THE

VICINITY OF THIS APPLIANCE

WHILST IT IS IN USE.

• Switch off the appliance

immediately after use.

• DO NOT MODIFY THIS

APPLIANCE.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any operation

on the appliance, switch off the

power supply.

• Have qualified personnel carry out

installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• Do not pull the cable to remove

the plug.

• In order to avoid hazard, if the

power supply cable is damaged,

contact technical support and they

will replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

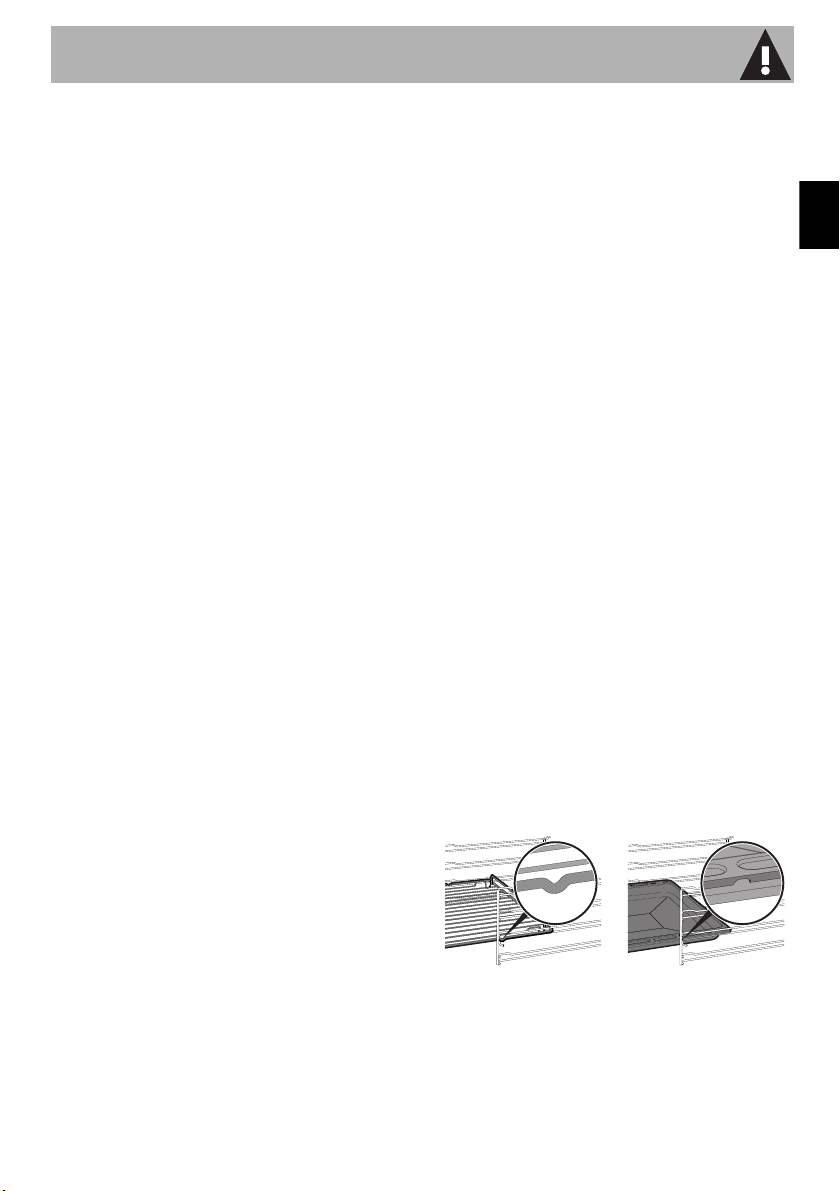

• Racks and trays should be inserted

as far as they will go into the side

guides. The mechanical safety

locks that prevent them from being

removed must face downwards

and towards the back of the oven

cavity.

• Do not sit on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

Instructions

• Never leave the appliance

unattended during cooking

operations where fats or oils could

be released, as these could then

heat up and catch fire. Be very

careful

• Danger of fire: do not store items

on the cooking surfaces.

• DO NOT USE THE APPLIANCE

TO HEAT ROOMS FOR ANY

REASON.

• Do not spray any spray products

near the oven.

• Do not use plastic cookware or

containers for cooking.

• Do not place sealed tins or

containers in the oven cavity.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays directly

on the bottom of the oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to place

pans or trays on the internal

glazing pane.

• Cooking vessels or griddle plates

should be placed inside the

perimeter of the hob.

• All pans must have smooth, flat

bottoms.

• If any liquid does boil over or spill,

remove the excess from the hob.

• Take care not to spill acid

substances such as lemon juice or

vinegar on the hob.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Do not wash the removable

components such as the hob grids,

flame-spreader crowns and

burner caps in a dishwasher.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the door when open.

Instructions

• Do not use the handle to lift or

move this appliance.

• If liquids fall on the lid when it is

closed, carefully remove them with

a cloth before opening it.

• The hob surface should be

allowed to cool before closing the

lid.

Installation

• THIS APPLIANCE MUST NOT

BE INSTALLED IN A BOAT OR

CARAVAN.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of

a second person.

• To prevent any possible

overheating, the appliance should

not be installed behind a

decoration door or a panel.

• Have the gas connection

performed by authorised staff.

• Installation using a hose must be

carried out so that the length of the

hose does not exceed 2 metres

when fully extended for steel

hoses.

• The hoses should not come into

contact with moving parts and

should not be crushed in any way.

• If required, use a pressure

regulator that complies with

current regulations.

• After carrying out any operation,

check that the tightening torque of

gas connections is between

10 Nm and 15 Nm.

• At the end of the installation, check

for any leaks with a soapy

solution, never with a flame.

• Have the electrical connection

performed by authorised

technicians.

• The appliance must be connected

to ground in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90 °C.

• The tightening torque of the screws

of the terminal board leads must

be 1.5 - 2 Nm.

• Before installation, make sure that

the local distribution conditions

(nature and pressure of the gas)

and the adjustment of the

appliance are compatible;

• The adjustment conditions for this

appliance are shown on the gas

setting label.

• This appliance is not connected to

an exhaust system for combustion

products. It must be installed and

connected in compliance with the

current installation regulations.

Special attention should be paid

to the relevant requirements as for

ventilation.

Instructions

For this appliance

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on the

open door of the appliance.

• Take care that no objects are stuck

in the doors.

1.2 Manufacturer liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified;

• failure to comply with the

instructions in the user manual;

• tampering with any part of the

appliance;

• use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered inappropriate.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Identification plate

The identification plate bears the

technical data, serial number and

brand name of the appliance. Do not

remove the identification plate for

any reason.

1.5 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and within the

user's reach for the whole working

life of the appliance.

Read this user manual carefully

before using the appliance.

1.6 Disposal

This appliance must be

disposed of separately from

other waste (Directives

2002/95/EC, 2002/96/EC,

2003/108/EC). The appliance

does not contain substances in

quantities sufficient to be considered

hazardous to health and the

environment, in accordance with

current European directives.

Instructions

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

• Deliver the appliance to the

appropriate recycling centre for

electrical and electronic equipment

waste, or return it to the retailer

when purchasing an equivalent

product, on a one for one basis.

Our appliances are packaged in

non-polluting and recyclable

materials.

• Deliver the packing materials to

the appropriate recycling centre.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Use instruction sequence.

• Standalone instruction.

Power voltage

Danger of electrocution

• Disconnect the mains power

supply.

• Unplug the appliance.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or

any part of it unattended.

• Do not let children play with the

plastic bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

2.1 General Description

1 Lid

2 Cooking hob

3 Control panel

4 Light bulb

5 Seal

6 Door

7 Fan

8 Evaporation tray

Rack/tray support frames

Description

2.2 Cooking hob

AUX = Auxiliary burner

SR = Semi-rapid burner

R = Rapid burner

UR = Ultra rapid burner

2.3 Control panel

1 Timer knob

Allows you to set manual cooking or a timer

with automatic oven switch off at the end of

cooking.

2 Temperature knob

This knob allows you to select the cooking

temperature.

Turn the knob clockwise to the required

value, between the minimum and maximum

setting.

3 Indicator light

The indicator light comes on to indicate that

the oven is heating up. It turns off as soon as

it reaches the set temperature. It flashes

regularly to indicate that the temperature set

inside the oven is kept constant.

4 Function knob

The oven's various functions are suitable for

different cooking methods. After selecting

the required function, set the cooking

temperature using the temperature knob.

5 Hob burner knobs

For lighting and adjusting the hob burners.

Press and turn the knobs anti-clockwise to

in order to light the relative burners.

Turn the knobs to the zone between the

Description

maximum and minimum setting to

adjust the flame. Return the knobs to the

position to turn off the burners.

2.4 Other parts

Shelves

The appliance features shelves to position

trays and racks at different heights. The

insertion heights are indicated from the bottom

upwards (see 2.1 General Description).

Interior lighting

The appliance’s interior lighting comes on:

• When the door is opened.

• When any function is selected, apart

from the function.

Cooling fan

The fan cools the ovens and comes into

operation during cooking. The fan causes a

steady outflow of air that exits from the rear

of the appliance and which may continue

for a brief period of time even after the

appliance has been turned off.

2.5 Available accessories

Rack

Used for supporting containers with food

during cooking.

Do not obstruct ventilation

openings and heat dispersal slots.

The accessories intended to come

into contact with food are made of

materials that comply with the

provisions of current legislation.

Table of contents

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Electrolux

Electrolux Insight EKG6049 user manual

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
