SIIG CE-CM0011-S1 User manual
1
IntroducingtheYPbPr/VGAtoVGAwithAudio
The YPbPr/VGA to VGA with Audio Converter/Switch takes
two video and audio sources and displays them on one
VGAmonitor,plasma,LCDorprojectorinhighresolution
formats. With a press of a button, you can select between
your PC, game console or DVD player.
FeaturesandBenefits
• Automatic conversion between YPbPr and VGA
• Supports PC video display resolutions up to UXGA
(1600x1200 @75Hz)
• YPbPr supports 480p, 576p and 720p
• Fully compatible with DVD players and game
consoles
• Handy stereo audio switch
TechnicalSpecifications
• Video bandwidth: 400MHz for VGA, 70MHz for
YPbPr
• Input connectors: 1 x VGA, 1 x YPbPr In, 2 x Audio
In
• Output connectors: 1 x VGA Out, 1 x Audio Out
• Power supply: 5V, 2A DC
• Dimensions: 5" x 3.7" x 1" (L x W x H)
• Weight: 11oz
04-0509A
YPbPr/VGA to VGA with
Audio Converter / Switch
Quick Installation Guide
2
PackageContents
•YPb/VGA to VGA with Audio Converter / Switch
• 4 rubber pads
•Power supply (5V, 2A)
•Quick Installation Guide
Layout
Figure 1: Front Panel
• Power Jack: Plug in the included power adapter
• Power LED: Indicates powered up status
• VGA/YPbPr Switching Button: Push the button
into select VGA source. Push the button out to select
YPbPr source.
• YPbPr In: Connects to your source device's YPbPr
(component) output (cable not included)
• Audio In: Connects to your source device's stereo
audio output (cable not included)
Power
Jack
Power
LED
VGA/YPbPr
Switching
Button
YPbPr In Audio In
3

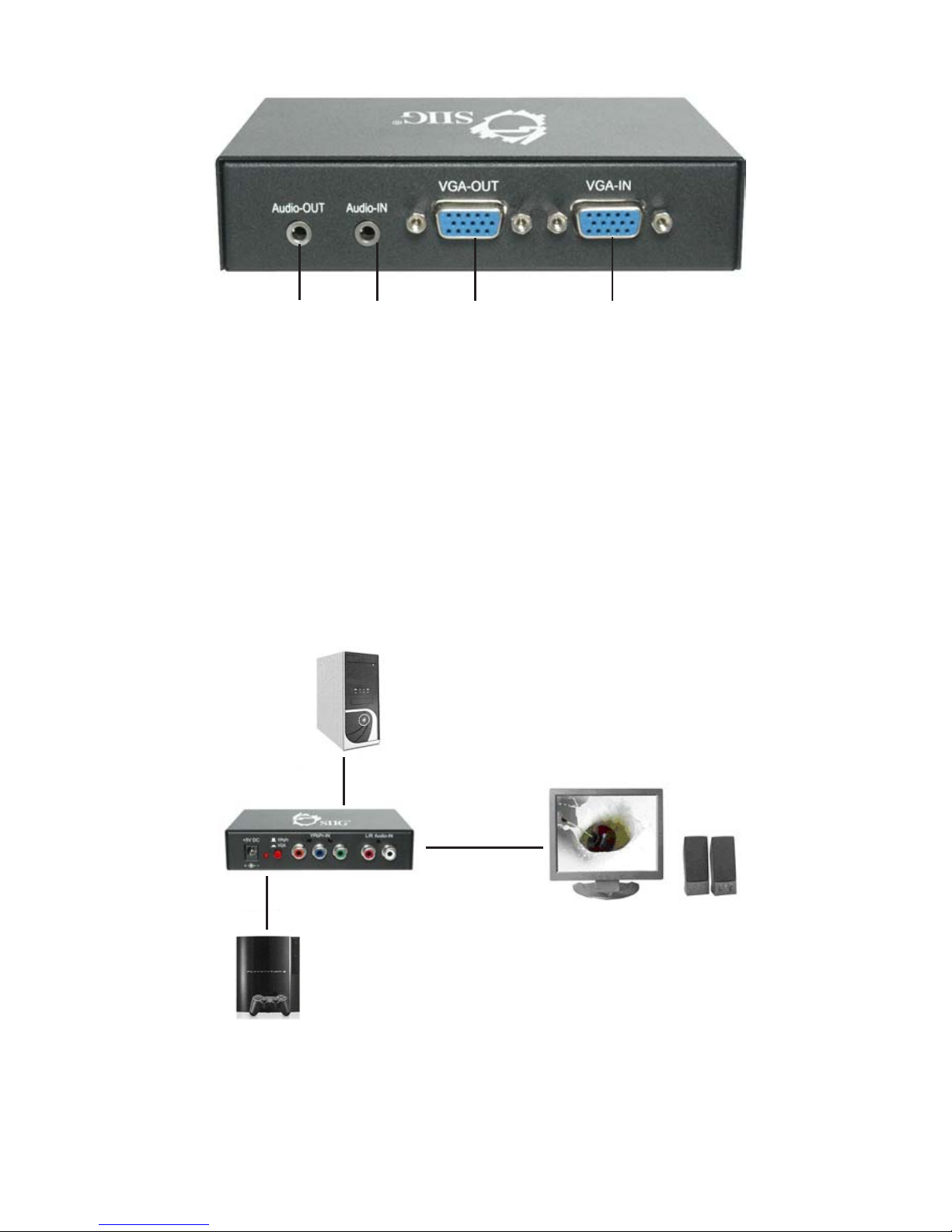

Figure 2: Rear Panel
• Audio In: Connects to your PC's audio out
• Audio Out: Connects to your PC's audio in or stereo
speakers
• VGA In: Connects to your PC's video card
• VGA Out: Connects to your VGA monitor
Audio
Out
Audio
In
VGA
Out
VGA In
Figure 3: Device Connection
VGA Input
YPbPr Input
VGA Monitor and Speakers
4
Hardware Installation
Please read and follow the safety guidelines to protect
yourself from possible injury and to minimize the risk of
damage to your equipment.
• Do not attempt to service the unit yourself.
• Provide proper ventilation and air circulation, do
not use near water
• Keep objects that might damage the device a safe
distance away and place the unit on a stable surface.
• Use only the power adapter and accessories that
came with the unit.
• Do not use liquid or aerosol cleaners to clean the
unit. Always unplug the power to the unit before
cleaning.
1. Connect your VGA and audio source to the VGA In
and Audio In located on the back panel.
2. Connect your VGA enabled display to the VGA
Out.
3. Connect your YPbPr source to the YPbPr In and
connect the audio to the YPbPr Audio In located on
the front panel.
4. Plug the power adapter into the Power Jack, then
plug the power adapter into a reliable power source.
5. Press the switching button to select either VGA or
YPbPr source device.
5
Notes
1. Sincemany LCD monitorsdo not supportinterlaced
video inputs such as 1080i or 480i, you must adjust
the source, such as Xbox or PS2/3, output resolution
to progressive 720p for the best compatibility.
2. Some LCD monitors do not recognize 480p, 576p
and 720p resolutions. Please read the monitor's
specifications before connecting to the YPbPr/VGA
to VGA with Audio Converter/Switch.
6
Blank Page
7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support has answers! Simplyvisit our
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyour questionscould be justa fewclicksaway. You canalso submit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a2-year manufacturerwarranty withthis product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchasehas passedthe store's returnpolicy period,please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
YPbPr/VGAtoVGAwithAudioConverter/SwitchisatrademarkofSIIG,Inc. SIIGandtheSIIGlogo
areregisteredtrademarksofSIIG,Inc. Other names used in thispublicationareforidentificationonly
andmaybetrademarks of theirrespectivecompanies.
October, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking,sound cards,andotheraccessories. SIIG isthe
premier one-stop source of upgrades.
SIIGproductsoffer comprehensive usermanuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
YPbPr/VGAtoVGAwithAudioConverter/Switch
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Ph: 510-657-8688
