SIIG JU-SW2212-S1 User manual

04-0399C

USB 2.0 Switch

Quick Installation Guide

Introducing the USB 2.0 Switch

The USB 2.0 Switch is designed to share USB devices

between multiple systems.

FeaturesandBenefits

• Compliant with USB Specifications, Revision 2.0.

Hot-swapping feature allows you to attach/detach

USB devices without powering down your

computer

• Use keyboard Hotkey control (PC only) or Power

LED/Manual Switching Button to switch between

computers

• Designed for USB devices including printers,

scanners, external hard drive enclosures, cameras,

CD-ROMS and more. Note: Not designed to work

with keyboard or mouse.

SystemRequirements

• PC or Mac®computer with an available USB port

(USB 2.0 recommended)

• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) /

2000/ ME / 98SE

• Mac OS®X v10.0 or later

PackageContents

•USB 2.0 Switch

• 2 USB 2.0 cables (6 Ft, Type A to Type B)

• Driver CD and Quick Installation Guide

Layout

Do Not plug the USB 2.0 Switch into your system until

after the driver has been installed. Please refer to the

Installation section starting on page 4 to install its driver.

USB2.0Switch2-to-2

• Two Type B connectors for system connection

• Two Type A connectors for USB device connection

• Convenient Manual Switching Buttons

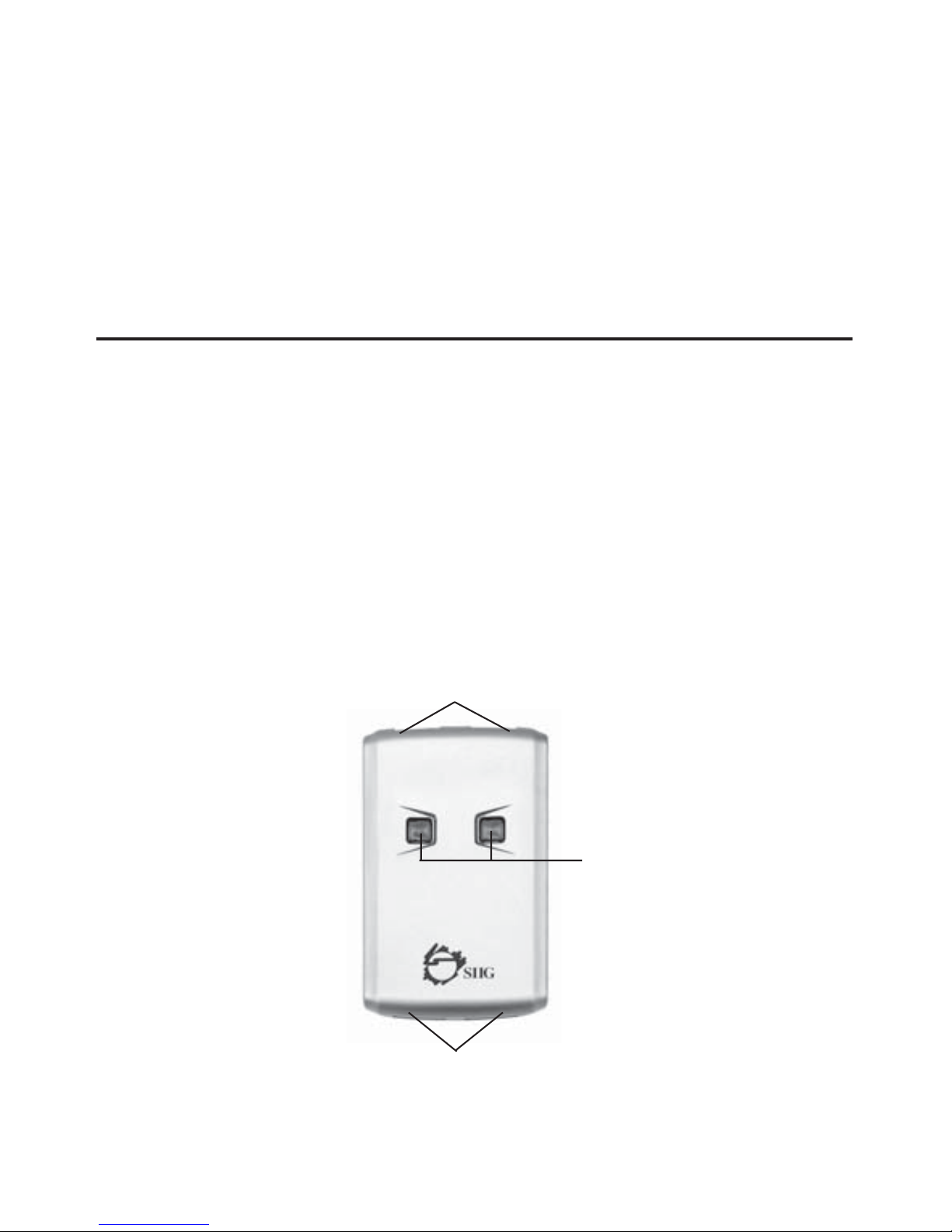

Figure 1. USB 2.0 Switch 2-to-2 Layout

To System (Type B connector)

To USB device (Type A connector)

Power LED/Manual

Switching Button

USB2.0Switch4-to-2

• Four Type B connectors for system connection

• Two Type A connectors for device connection

• Convenient Manual Switching Buttons

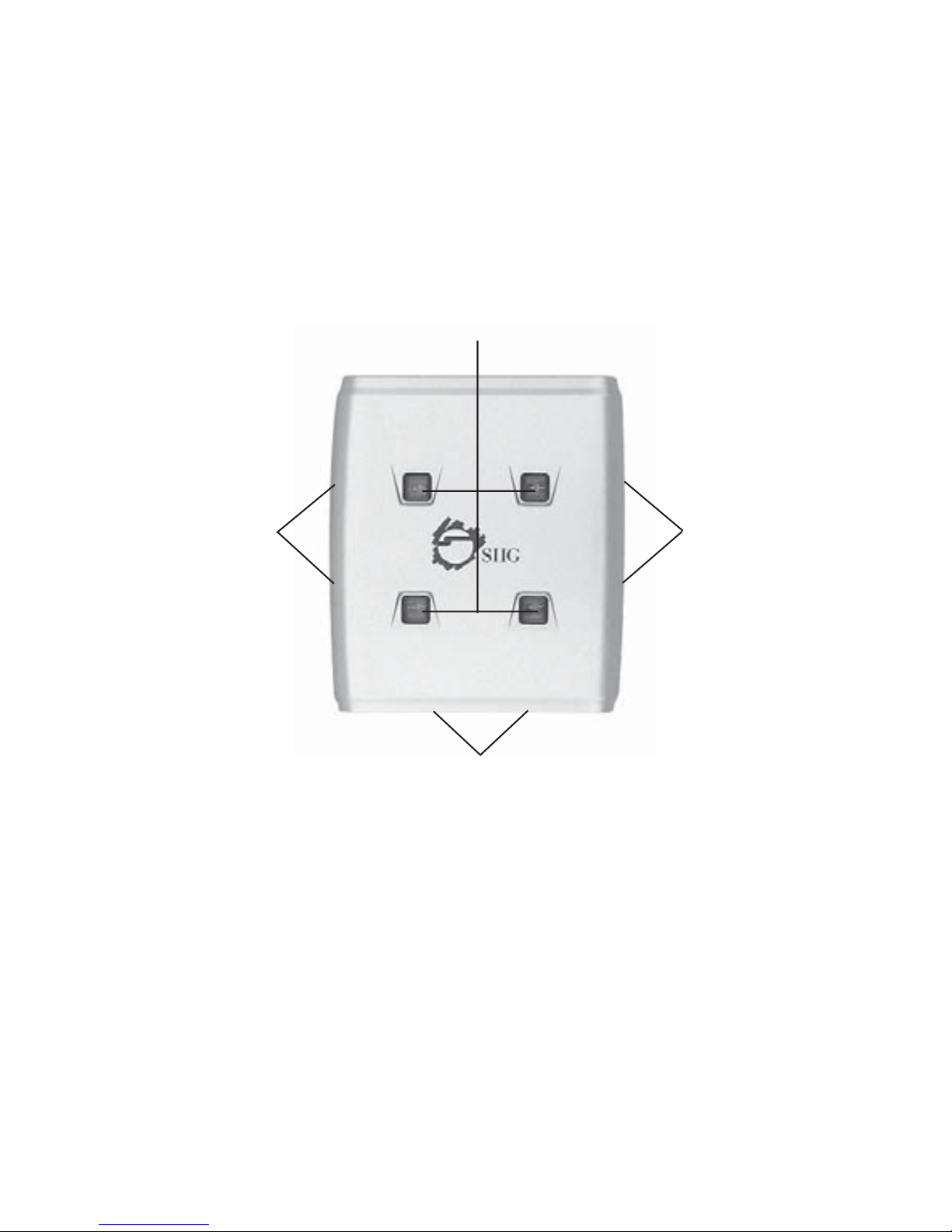

Figure 2. USB 2.0 Switch 4-to-2 Layout

To USB device (Type A connector)

Power LED/Manual Switching Button

To System

(Type B connector)

To System

(Type B connector)

Windows Installation

Important: Do not connect the USB 2.0 Switch to your

system until after the driver has been installed.

Windows 7 (32-/64-bit) / Windows Vista™(32-/64-bit)

1. Insert the driver CD after Windows boots.

At the AutoPlay box: Click Run Setup.exe

If AutoPlay doesn't start: Click Start, in Start Search

type D:\Setup.exe, press Enter. (Change D: to

match your CD/DVD-ROM drive letter)

2. At User Account Control, click Allow.

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

6. Press the Power LED/Manual Switching Button

thatmatchesthesystemtocompletetheinstallation.

WindowsXP(32-/64-bit)/Server2003(32-/64-bit)

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

thenclickOK. (Change D: tomatchyourCD/DVD-

ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

6. Press the Power LED/Manual Switching Button

thatmatchesthesystemtocompletetheinstallation.

WindowsServer2008(32-/64-bit)

1. Insert the driver CD after Windows boots.

At the AutoPlay box: Click Run Setup.exe.

If AutoPlay doesn't start: Click Start, in Start Search

type D:\Setup.exe, press Enter. (Change D: to

match your CD/DVD-ROM drive letter)

2. Select your language, then click OK.

3. Click Next, Next, then Finish.

4. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

5. Press the Power LED/Manual Switching Button

thatmatchesthesystemtocompletetheinstallation.

Windows 2000 / ME

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

then click OK. (Change D: to match your CD/

DVD-ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Restart Windows. When Windows resumes, plug

the USB 2.0 Switch into an available USB port (USB

2.0 recommended) with the supplied USB cables

and the driver will install automatically.

6. Press the Power LED/Manual Switching Button

thatmatchesthesystemtocompletetheinstallation.

Windows98SE

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

then click OK.(ChangeD: to match your CD/DVD-

ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Restart Windows. When Windows resumes, plug

the USB 2.0 Switch into an available USB port (USB

2.0 recommended) with the supplied USB cables.

6. When Windows prompts for the driver again, click

Next.

7. Select Search for the best driver..., and click Next.

8. Clear all check boxes, click Next, click Next again.

Note: If prompted for Windows Installation CD-

ROM, click OK. Insert this CD, thenclickOKagain.

9. Click Finish. If prompted, click Yes to restart.

ToVerify Windows Installation

1. Go to Device Manager to verify installation.

For Windows 7:RightclickComputer, click Manage,

then click Device Manager.

For Windows Vista: Right click Computer, click

Manage,click Continue,thenclickDeviceManager.

For Windows XP / Server 2003 / 2000: Right click My

Computer, click Manage, then click Device

Manager.

For Windows Server 2008: Right click Computer,

click Manage, double click Diagnostics, then click

Device Manager.

For Windows 98SE/ME: Right clickMy Computer,

click Properties, then click Device Manager.

2. Depending on the status of the Power LED/Manual

Switching Button, use the option that best matches

the system.

Power LED is lit: Double click Universal Serial Bus

controllers and Generic USB Hub should be

displayed.

Power LED is off: Double click Human Interface

Devices. HID-compliant device and either USB

Human Interface Device or USB Input Device

should be displayed.

Windows Device Switching

HotkeyControl,StatusIndicator andPowerLED/Manual

Switching Button are the three methods that can be used

to switch devices between systems.

Note: For mass storage devices, such as Zip drives,

USB readers and CD-ROMs, before switching the

USB device to another system, it must be released

from the system that controls it. Before switching

devices to another system, use Windows' Safely

Remove Hardware feature, located in the taskbar,

to Stop the USB device.

HotkeyControl

Press Ctrl+F11 to switch the USB device to the current

system.

StatusIndicator

1. TheStatus Indicator is located in the taskbar by the

system clock. The indicator has three functions:

Red: Another system is accessing the device -

switching not allowed.

Green: The current system controls the device.

Yellow: No system controls the device - switching

is allowed.

2. If the Status Indicator does not show on the taskbar,

double click the USB Sharing icon, located on the

desktop, to start it manually.

3. Right click the Status Indicator and select Switch

can also switch USB access to the current system.

Note: Devices such as external hard drives and

printers send signals back and forth to your

computer when they are connected. This causes

the Status Indicator to remain red. Switching

is still possible by clicking Yes in the Enforce

Switching pop-upbox.

ManualSwitching

Pressing a PowerLED/ManualSwitchingButtonswitches

to the system that is connected to that port.

Mac OS Installation

No driver installation is necessary. Simply plug the USB

2.0 Switch intoanavailableUSB port with the supplied USB

cables (USB 2.0 recommended).

Mac OS Device Switching

Device switching is controlled by the Power LED/Manual

Switching Button. Follow the instructions below for your

device type.

MemoryCardReaders

1. Dragthememorycard'sdriveiconintotheTrashcan.

2. Remove the memory card from the card reader

then press a switching button to change systems.

3. Insert the memory card into the reader.

MassStorageDevices

CD-ROMs, flash drives and external hard drives drives

typicallyadddrive icons to the desktop. Use the directions

below for switching these devices.

1. Drag the drive icon into the Trashcan.

2. Press the switching button to change systems.

3. The drive icon will appear on the other system.

OtherDevices

For other devices just press the switching button to

change to another system.

Connecting USB Devices

Every USB device has it's own unique installation

procedure. Therefore, it is recommended to read the

device's installation manual before connecting it to the

USB 2.0 Switch.
