SIIG Wireless-N Mini USB Wi-Fi Adapter User manual
1
Wireless-N Mini USB
Wi-Fi Adapter
Installation Guide
04-0869D
Features and Benefits
•MIMO technology improves data
throughput and range
•Supports2.4GHzWLANnetworksand
complies with IEEE 802.11n/g/b
•Operating distance: up to 300ft indoor
and 900ft open space
•Supports WLAN security with WPA,
WEP (128/64) and WPS
Lot Number Sticker
Forproductreturnorexchange,thisnumber is
required. Keep it for your reference.
Lot Number Part Number
2
Package Contents
•Wireless-N Mini USB Wi-Fi Adapter
• DriverCD
• Installation guide
System Requirements
•Laptop or desktop computer with an
available USB port
•Windows®
10 (32-/64-bit) /8 (32-/64-
bit) / 7(32-/64-bit) / Vista (32-/64-bit)
/XP(32-/64-bit) /Server 2003 & 2008
(32-/64-bit)/2008R2 /Server2012(32-
/64-bit) /Server 2016
•Mac OS®
X 10.4 to 10.8.x
Layout

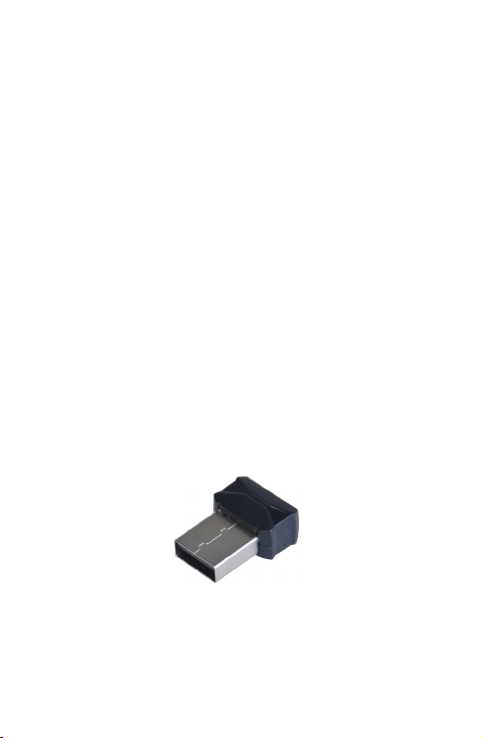

Figure1:Layout
3
Windows Driver Installation
1. Plug in the Wireless-N Mini USB Wi-Fi
Adapter toyourcomputer.
2. ClickClose atthe FoundNewHardware.
Skip this step if not prompted.
3. Insertthe driverCD,clickWindows key
and R, type D:\windows\setup.exe,
then click OK. (Change D:\ to match
yourCD-/DVD-ROM drive letter.)
4. Follow the on-screen instructions to
complete the installation.
Windows Wireless LAN Service
Installation
ForServer 2008and 2008R2 only, pleaseenable
theWireless LAN Service featureafterinstalling
thedriver. ForotherWindows OSes,godirectly
to the REALTEK USB Wireless LAN Utility
section.
1. At the Server Manager, Features, click
Add Features.
2. Check the Wireless LAN Service box,
click Next, then click Install.
3. After installation is done, click Close.
4
Mac OS Driver Installation
Important:Donot connect the Wireless-N Mini
USB Wi-Fi Adapter to the computer until
instructed to do so.
1. Insert the driver CD, double click
Driver CD icon on the Desktop,
then double click Mac folder.
2. Double click 10.x folder, then
double click Installer.pkg or
Installer.mpkg
Figure 2

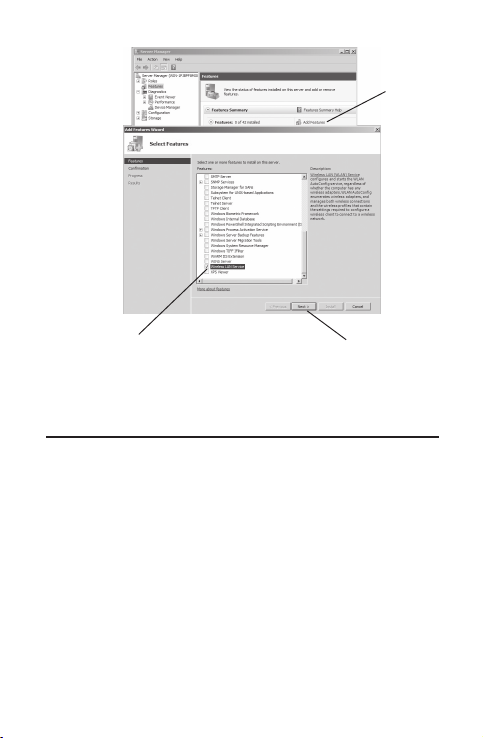

Add Features
Wireless LAN Service Next
5
3. Follow the on-screen instructions to
complete the installation.
4. Restart your computer, then plug the
Wireless-N Mini USB Wi-Fi Adapter to
yourcomputer.
Realtek USB Wireless LAN Utility
Thewindows below are taken fromWindows
OS. For Mac OS, the images will be slightly
different.
1. Double click the utility icon to initiate
theprogram.
2. SelecttheAvailable Network tab,select
yourpreferred network, then click Add
to Profile or Connect.

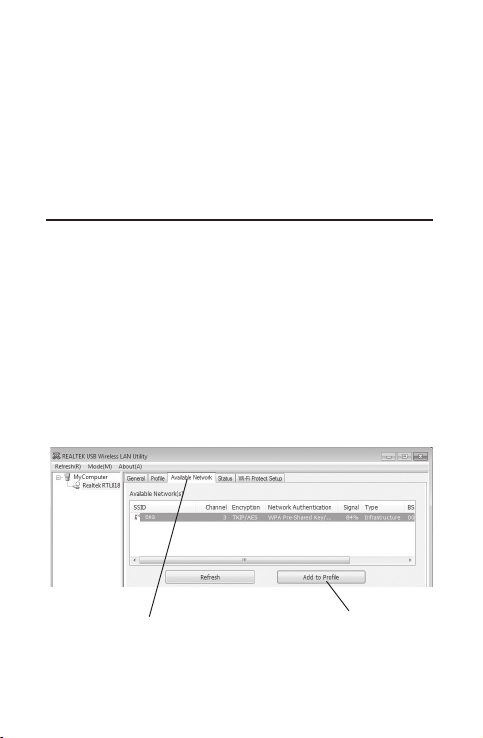

Figure 3
Add to Profile
Available Network
6
Associated
3. At the prompted Wireless Network
Properties, type in the Network key,
then click OK.
4. Once the network is connected, the
networkstatus will show Associated or
Connected.

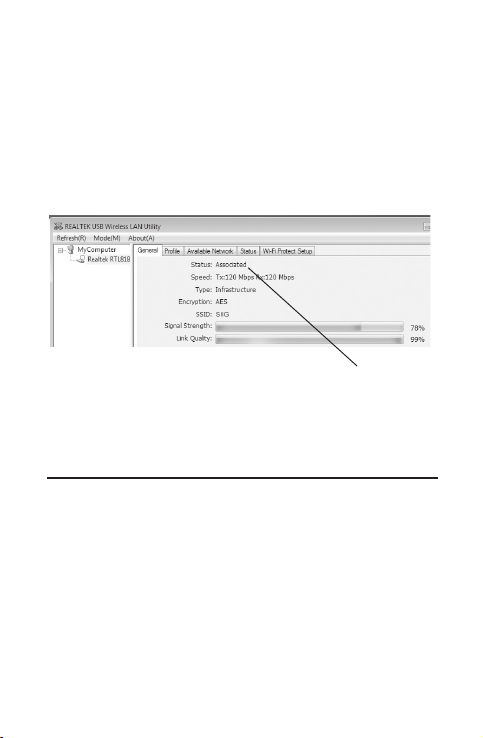

Figure 4
Wi-Fi Protected Setup (WPS)
WPS is an easy way to setup a secure wireless
network with each Windows OS. A WPS
compatible wireless access point (AP) is
required. Insert the PIN code to set up.
7

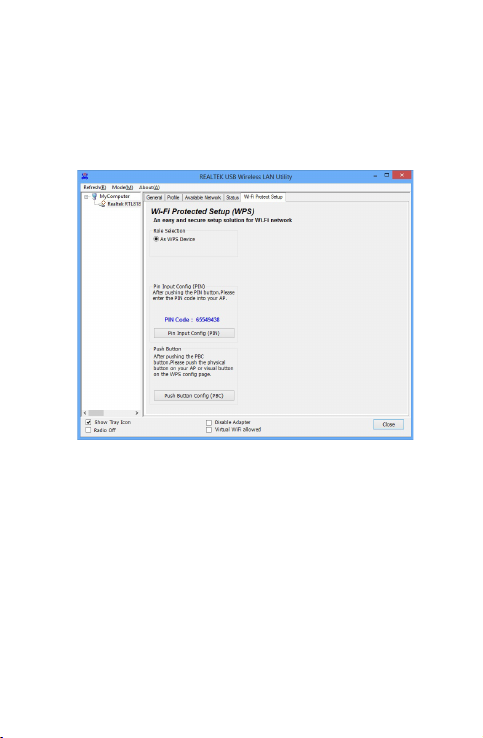

Figure 5
Pin Input
1. Launch the REALTEK USB Wireless
LANUtilityand selectthe"Wi-FiProtect
Setup"tab.
2. Make sure the driver has installed and
the adapter is connected. Click Push
Button Config (PBC) on the screen to
initialize the connection.
8
3. PushthePin Input Config (PIN)button,
then enter the PIN code into your AP's
WPS configuration section.
4. When the devices are communicating,
WPS Protocol Communication will be
displayed.
5. See Figure 4 on page 6 to verify the
connection status as Associated or
Connected.
Figure 6
9
Blank Page
10
Blank Page
