SIIG JU-H20511-S1 User manual
1
USB 3.0 to HDMI/DVI Dual
Display Adapter
Installation Guide
04-1005B
Introduction
The USB 3.0 to HDMI/DVI Dual Display Adapter
lets you easily and quickly add dual displays to
your USB 3.0 enabled system.
Key Features and Benefits
• Adds an HDMI and DVI-I port to Windows
and Mac computers
• SuperSpeed USB 3.0 data transfer rate
supports smooth video and images
• Supports high resolutions up to 1080p (Full
HD) and 2048x1152
• Easy and quick installation, no external
power adapter required
• Allows connecting up to 3 adapters per
system
2
System Requirements
• Intel Core Due 2.0 GHz CPU with an
available USB 2.0/3.0 port (USB 3.0
recommended)
• Windows®
10 (32-/64-bit) / 8 (32-/64-bit) /
7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-
bit)
• Mac OS X®
v10.6 to 10.11
Package Contents
•USB 3.0 to HDMI/DVI Dual Display Adapter
• USB 3.0 cable (Type A/B)
• Software CD
• Installation guide
Layout
Figure 1: Front Layout
DVI-I Output
HDMI Output
3
Figure 2: Back Layout
USB 3.0 Type B
Application
PC
DVI
Display
HDMI
Display
Figure 3: Application
One PC can connect up to three USB 3.0 to HDMI/DVI Dual Display Adapters,
equivalent to up to six monitors.
4
Windows Installation
Follow the instructions below to install the USB
3.0 to HDMI/DVI Dual Display Adapter drivers.
1. Insert the driver CD.
2. The AutoPlay window will pop- up. If not,
browse the CD/DVD manually.
3. Run Setup.exe, and click Yes at the User
Account Control window. (For Vista and
XP, choose the specific folder first then run
Setup.exe.)
4. DisplayLink Graphics window appears,
select Install at "system check" stage.
5. At "First connect" stage, connect your
monitor(s) to the adapter then connect the
adapter to a USB port of the computer.
6. When the adapter is detected, the Final Setup
will run automatically.
7. Once the Final Setup is done, an "Installation
complete" message shows, at that time select
Finish.
8. Restart the computer and the adapter is
ready for use.
5
To Verify Windows Installation
1. Right click This PC, Computer or My
Computer on the desktop, and click
Manage.
2. Select Device Manager and expand Sound,
Video and game controllers.
3. U3 Multi Video Audio should be displayed
in the list.
Note: If there is a (yellow question mark)
or (exclamation mark) next to that item,
then the driver is not properly installed.
Please delete the item, unplug the adapter
and repeat the driver installation steps.
6
Display Configuration
Note: The screen shots in this section are
using Windows 7 operating system. Other
operating systems may not match, however,
the buttons, tabs and menus will be similar.

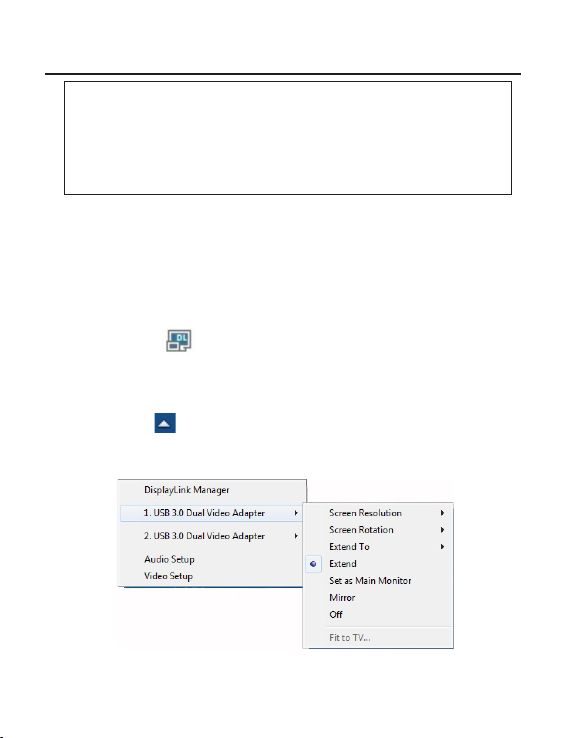

Utility Settings
The supplied utility allows configuring display
mode, screen rotation, screen resolution, and
physical arrangement of your monitors.
1. Click (utility icon) in the Windows
System Tray. Note that the utility icon may
be hiddden in the Windows System Tray.
Click (arrow icon) to bring up more icons.
2. Select a preferred option, and then click it.
Figure 4: Utility Setting
7
Description of the Settings
•DisplayLink Manager: Shows the version
of the software
USB 3.0 Dual Video Adapter:
•Screen Resolution: Click to select an
availableresolution.Thisfunctionisdisabled
in mirror mode, as the resolution is defined
by the resolution of the primary monitor
•Screen Rotation: Rotates the screen
according to the desired orientation
(Normal / Rotated Left / Rotated Right /
Upside-Down)
•Extend To: Extends the screen according to
the desired orientation (Right / Left / Above
/ Below)
•Set as Main Monitor: Sets the selected
monitor as the main screen
•Mirror: Displays the same image on all
connected monitors
•Off: Turns off the selected monitor
8
•Fit to TV: Adjusts the size of Windows
Desktop on the TV. Note that this function
works only when one add-on monitor is
connected
•Audio Setup: Enables the Windows audio
configuration page. This function works
only in specific models
•Video Setup: Enables the Windows screen
resolution for advanced settings such as
display resolution and display modes
(Mirror / Extend / Primary)
Figure 5
9
Cursor Disappearing
In some cases, when removing the adapter in
extended mode, the desktop will still be paired to
the add-on monitor(s) and the mouse cursor may
not return to the primary monitor. If this happens,
connect the add-on monitor(s) and adapter again
or keep moving the mouse until the curser
appears.
Video Playback in Extended Mode
If the video or DVD playback quality is poor or
the performance is slow, please playback on the
primary monitor instead of the add-on monitor(s).
10
Uninstalling the Driver
For Windows 10 / 8 / 7 (32-/64-bit)
1. Open the Control Panel > Programs >
Programs and Features. Under the
Uninstall or change a program, double
click DisplayLink Graphics.
2. For Windows 10 / 8: Click Yes, Yes, and OK.
For Windows 7: Click Yes two times.
3. Click Yes to restart the computer.
For Windows Vista (32-/64-bit)
1. Open the Control Panel > Programs and
Features. Under the Uninstall or change a
program, double click DisplayLink
Graphics.
2. Click Yes, Allow, OK, then click Yes to
restart the computer.
For Windows XP (32-bit)
1. Open the Control Panel >Add or Remove
Program. Click DisplayLink Graphics and
click Remove.
2. Click Yes and OK to restart your computer.
