SIIG JJ-CFTS11 User manual
1
CF to Serial Adapter
Quick Installation Guide
04-0331A
Features and Benefits
•16-bitCompactFlashinterface
•Compatiblewith16-bitPCMCIACard(viaa
CF-to-PCMCIAadapter)
•Supports RS232E serial port specification
•Supports data rate up to 115,200 bps
•Works with modems, PDAs, Pocket PCs and
other serialdevices
System Requirements
ForDesktoporNotebookPCwithaPCMCIAslot:
•Windows 98/98SE/ME/2000/XP/Server
2003
•CF-to-PCMCIAadapter(notincluded)
•CD-ROM(fordriverinstallation)
2
ForPocketPC:
•Windows CE 3.0 or later
•Pocket PC 2000 or later
•Built-inCFslot
Package Contents
•(1)CF to Serial adapter
•(1)CFtoSerial cable
•(1)DriverCD
•This quick installation guide
3

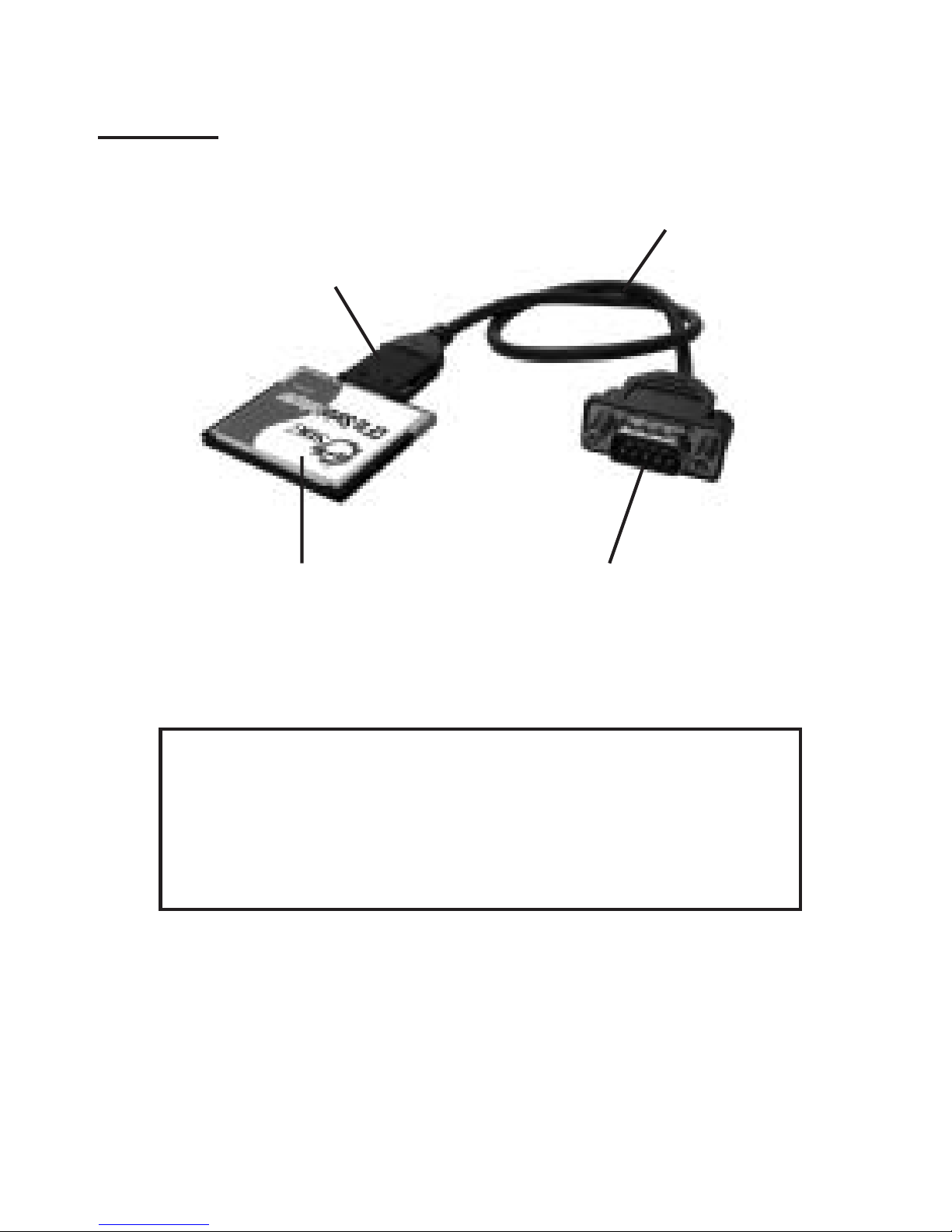

Figure 1. CF to Serial Adapter layout
Note: When connecting the CF to Serial
Cable to the CF to Serial Adapter, make
sure the triangle on the CF to Serial flat
connector is pointing up.
Layout
9 Pin
Connector
CF to Serial
Cable
CF to Serial
Adapter
CF to Serial
flat connector
4
SoftwareInstallation
Windows Driver Installation
Windows98:
The CF to Serial Adapter must be inserted into the
computerbeforebootingupWindows98otherwiseit
willnotbedetectedbythesystem.
1. Insert the CF to Serial Adapter into the CF-to-
PCMCIAadapter(notincluded),theninsertthe
unitintothesystem'sPCMCIAslot. Bootupto
Windows.
2. AttheAddNewHardwareWizard,clickNext.
3. SelectSearchforthebestdriverforyourdevice.
(Recommended) and click Next.
4. Insert the driver CD, check CD-ROM drive,
uncheck the other boxes, then click Next.
5. Click Next, at the Insert Disk box click OK.
Insert your Windows 98 Installation CD, click
OK,thenclickFinishtocompleteinstallation.
Windows98SE:
1. Boot up to Windows. Insert the CF to Serial
Adapter into the CF-to-PCMCIA adapter (not
included),theninserttheunitintothesystem's
PCMCIAslot.
5
2. AttheAddNewHardwareWizard,clickNext.
3. SelectSearchforthebestdriverforyourdevice.
(Recommended) and click Next.
4. Insert the driver CD, check CD-ROM drive,
uncheck the other boxes, then click Next.
5. Click Next, at the Insert Disk box click OK.
Insert your Windows 98 Installation CD, then
clickOK.
6. ClickFinishtocompletetheinstallation.
WindowsME:
1. Boot up to Windows. Insert the CF to Serial
Adapter into the CF-to-PCMCIA adapter (not
included),theninserttheunitintothesystem's
PCMCIAslot.
2. InsertthedriverCD. AttheAddNewHardware
Wizard, click Automatic Search for a better
driver,thenclickNext.
3. ClickFinish.
4. RestartWindowstocompletethe installation.
6
Windows 2000:
1. Boot up to Windows. Insert the CF to Serial
Adapter into the CF-to-PCMCIA adapter (not
included),theninserttheunitintothesystem's
PCMCIAslot.
2. At the Found New Hardware Wizard, click
Next.
3. SelectSearchforasuitabledriverformydevice
(Recommended) and click Next.
4. Insert the driver CD, check CD-ROM drives,
uncheck the other boxes, then click Next.
5. ClickNextandFinish.
6. RestartWindowstocompletethe installation.
WindowsXP/Server2003:
1. Boot up to Windows. Insert the CF to Serial
Adapter into the CF-to-PCMCIA adapter (not
included),theninserttheunitintothesystem's
PCMCIAslot.
2. Insert the driver CD. At the Found New
HardwareWizard,selectInstallthesoftware
automatically (Recommended), then click
Next.
7
3. Click Continue anyway. Our driver has been
thoroughly tested in Windows for stability and
compatibility.
4. ClickFinish.
5. RestartWindows to completethe installation.
Verify Windows Installation
1. Check Device Manager to verify successful
driverinstallation.
Windows 98/98SE/ME: From the main desktop,
right click MyComputer, then click Properties.
Click Device Manager tab.
Windows 2000/XP/Server 2003: Right click My
Computer, then click Manage. Click Device
Manager.
2. Double click Ports (COM & LPT) option and
Billionton Compact Flash Serial... should be
displayed.
Windows CE /Pocket PC Installation
No driver installation is needed for Windows CE or
Pocket PC operating systems. The driver installs
automaticallywhentheCFtoSerialAdapterisplugged
intothe CFslotofthePocketPC.
Technical Support
QUESTIONS? SIIG’s Online Support has the answers!
Simply visit our web site at www.siig.com and click on
Support. Our online support database is updated daily
with new drivers and solutions. The answers to your
problems could be just a few clicks away.
PRODUCT NAME
CF to Serial Adapter
FCC RULES: TESTED TO COMPLY WITH FCC PART 15,
CLASS B OPERATING ENVIRONMENT: FOR HOME OR
OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
THE PARTY RESPONSIBLE FOR
PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Ave.
Fremont, CA 94538-3152
CF to Serial Adapter is a trademark of SIIG, Inc. All other names
used in this publication are for identification only and may be
trademarksoftheirrespectivecompanies.
April, 2004 Copyright ©2004 by SIIG, Inc.
