Sierra Wireless AirCard 319U User manual

MOBILE INTERNET KEY

QUICK START GUIDE

LA CLÉ INTERNET MOBILE

GUIDE DE DÉMARRAGE RAPIDE

Welcome to the AirCard 319U

Mobile Internet Key Quick Start Guide

This Quick Start Guide provides instructions for installing

and using your AirCard 319U.

Your package contains:

• AirCard 319U with TRU-Install

• This Quick Start Guide

• USB extension cable

• Screen clip

You can use the AirCard 319U with these operating

systems:

• Windows®7

• Windows Vista®

• Windows XP (Service pack 3 or later)

• Mac OS®X 10.5 or later

Windows and Mac 64-bit editions

are also supported.

USB connector

Power LED

Data LED

External antenna connector

SIM card slot and microSD slot are under the back cover.

See page 2 for details.

The AirCard 319U is TRU-Install enabled and does not

require a CD for installation.

Move the USB connector to the side. Remove the

back cover and insert the SIM card as shown in the

illustrations.

Installation

SIM card slot

Replace the back cover.

microSD card slot

English

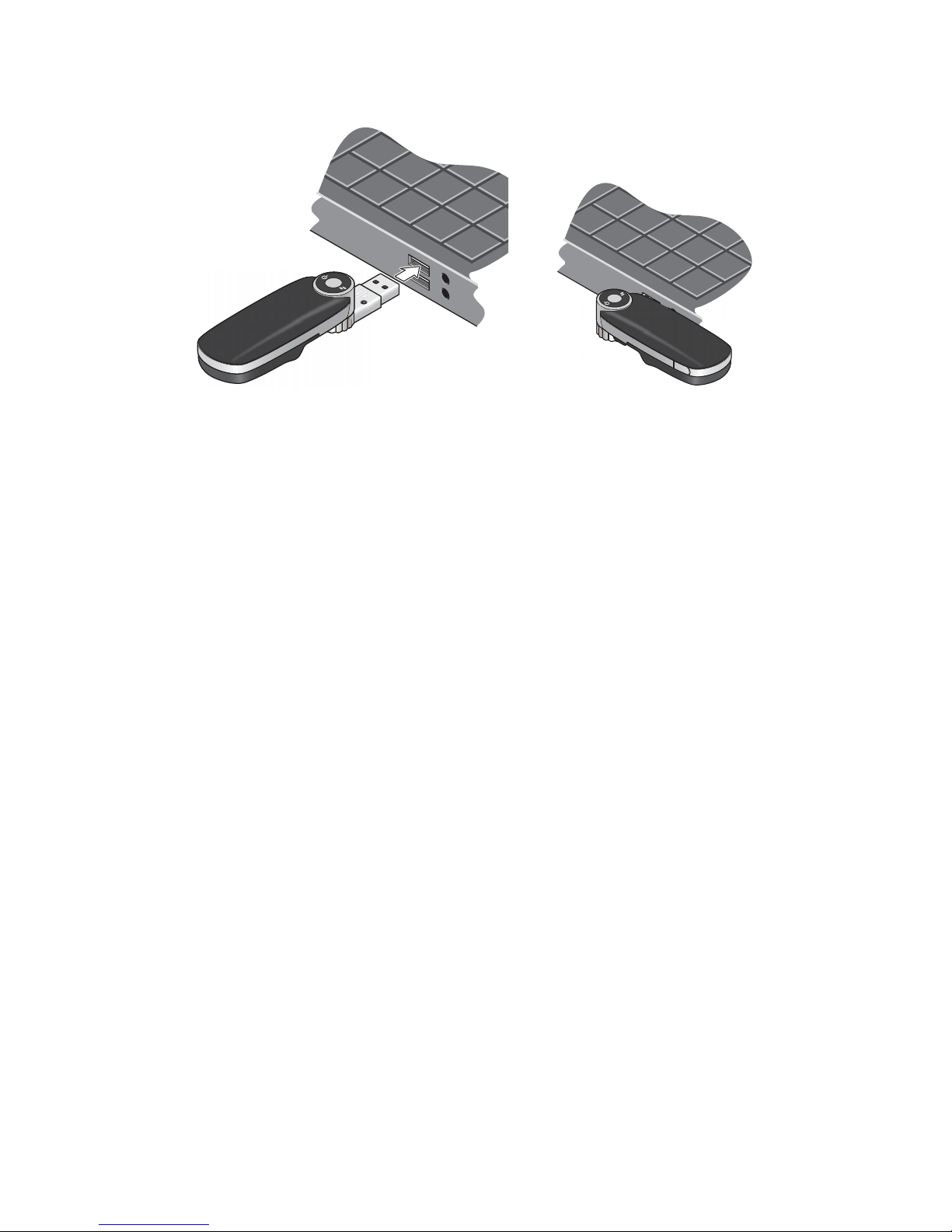

Insert the AirCard 319U into the USB slot.

Once the software is installed, the AirCard 319U

searches for a network.When the AirCard 319U ﬁnds

a network, the Connect button in Watcher becomes

available.

Click Connect to connect to the Internet.

Windows

The software installation process starts automati-

cally. Follow the on-screen prompts to install Sierra

Wireless AirCard Watcher®software. If the installation

does not start automatically, see page 7.

Mac OS X

1. Double-click the installer package when it

appears. If the installer package does not appear,

see page 7.

After the installation is complete, the message “A

new network interface has been detected”

appears.

2. Click the Network Preferences... button.

3. In the Network window, click Apply.

Your AirCard 319U is ready to connect.

Windows 7 Mobile Broadband*

To connect to the network using Windows 7

Mobile Broadband:

1. Click the signal strength icon in the system tray.

The Mobile Broadband connection window opens.

2. Select your network and click Connect.

Note: Features such as SMS are only available by using

Watcher.

*This product has passed Microsoft-designed tests for a

high standard of performance, reliability, and compatibility

with Windows 7.

Using Watcher

Start Watcher (Windows)

To launch Watcher:

• Double-click the Watcher icon on your desktop.

• In Windows Vista or Windows 7, select

Start > All Programs > Sierra Wireless > AirCard

Watcher.

• In Windows XP, select Start > Programs > Sierra

Wireless > AirCard Watcher.

Start Watcher (Mac)

To launch Watcher:

• Click the Watcher icon in the dock.

• In Finder, select Applications > Sierra Wireless >

AirCard Watcher.

Color / State

Power LED Data LED

Off

Not powered

Unable to

detect service

Blinking

Firmware is

updating.

Do not remove

your

AirCard 319U

3G+ network

detected

Blinking Initializing

2G network

detected

Solid Powered on

Connected to

a 3G+ network

Solid

AirCard 319U

error

Connected to

a 2G network

The two LEDs show the current status of the

AirCard 319U.

LED Operation

For troubleshooting information related to the LEDs, see

page 10.

Removing the AirCard 319U

Windows

1. Exit Watcher.

2. Remove the AirCard 319U by pulling it straight out from

the USB port.

Mac OS X

1. Exit Watcher.

2. If a microSD card is inserted in the AirCard 319U,

locate the microSD card drive in Finder and click the

Eject icon.

3. Remove the AirCard 319U by pulling it straight out from

the USB port.

View the User Guide

The User Guide provides additional operating information,

troubleshooting suggestions, and speciﬁcations for the

AirCard 319U.

• In Windows Vista or Windows 7, select Start > All

Programs > Sierra Wireless and then double-click the

PDF ﬁle.

• In Windows XP, select Start > Programs > Sierra

Wireless and then double-click the PDF ﬁle.

• In Mac OS X, in Finder, select Applications >

Sierra Wireless and then double-click the PDF ﬁle.

What do I do if the software installation does

not start (Windows) or I don't see the Installer

package (Mac)?

Windows

1. Double-click Computer (Windows Vista, Windows 7) or

My Computer (Windows XP) on your desktop.

2. Click the TRU-Install drive.

3. Under the TRU-Install drive, open the Win folder and

double-click Setup.exe. Follow the on-screen prompts

to install the software.

For additional information, refer to the User Guide. If the

software failed to install, you’ll ﬁnd the User Guide in

Computer > TRU-Install > Win (Windows Vista, Windows

7) or My Computer > TRU-Install > Win (Windows XP) .

Mac OS X

If you do not see the installer package:

1. Open Finder.

2. Under Devices, click AirCard 319U.

3. Double-click the installer package.

For additional information, refer to the User Guide. In

Finder, select Applications > Sierra Wireless > AirCard

Watcher.

Frequently Asked Questions

Does the latest version of Watcher work with

my other Sierra Wireless modems?

Yes, Watcher is backwards compatible with all Sierra

Wireless USB and ExpressCard modems. It is not compat-

ible with non-Sierra Wireless products.

When do I use the extension cable?

If the orientation of your computer’s USB slot or the thick-

ness of your computer are such that pressure is applied

to the end or side of the AirCard 319U, you may damage

the AirCard 319U or your computer. In such cases, do not

insert the AirCard 319U directly into your computer’s USB

slot. Use the USB extension cable and laptop clip instead.

What are some ways I can optimize my data

usage?

• Close any unnecessary application running in the

background.

• Set the web browser’s home page to a web site with

minimal graphics (e.g. Google™).

• Conﬁgure automatic software updates to notify you

before installation begins.

• Conﬁgure Outlook®, Entourage®, or Mail to retrieve

emails less frequently or to retrieve them manually.

• Conﬁgure Outlook, Entourage, or Mail to download

email headers only (i.e. not the full email).

What tools are available to help me monitor

my data usage?

You can keep track of your data usage in Watcher. For

details, see the User Guide (available in Windows—Start

> All Programs > Sierra Wireless and in Mac Finder,

select Applications > Sierra Wireless).

You can set Watcher to automatically check for updates.

For more information see the Watcher Help (select Help >

Help topics. )

Unable to connect?

1. Check the physical connection of the AirCard 319U.

(Remove and reinsert it.)

2. Try another USB port. Do not use a hub or any external

equipment.

If you are still unable to connect, look for additional

troubleshooting tips online at www. telusmobility.com

under Support.

Once connected, what do I do if I have trouble

with my email account or Internet browser?

1. Check the browser settings:

a. Select File. Ensure there is no check mark next to

“Work Ofﬂine”.

b. Select Tools > Internet Options.

• General tab. Delete Cookies and Temp ﬁles, and

clear History.

• Privacy tab. Disable the Pop-up Blocker.

• Connections tab > LAN settings. Ensure that all

check boxes are clear (no check marks).

• Advanced tab. Restore Default settings.

2. Consult the help systems on your email or Internet

browser to ﬁnd troubleshooting help speciﬁc to what

you are doing.
