SIMATIC Ident
RFID systems
SIMATIC RF200 IO-Link
System Manual
03/2012
C79000-G8976-C276-01
Introduction
1
Description
2
System overview
3
Planning an RF200 IO-Link
system
4
Commissioning and
parameter assignment
5
Readers
6
Diagnostics
7
Technical data
8
Connecting cable
9
Ordering data
10
Service & support
11
Appendix
A
Legal information
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the relevant information is not taken into account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: C79000-G8976-C276
Ⓟ 03/2012 Technical data subject to change
Copyright © Siemens AG 2012.
All rights reserved
SIMATIC RF200 IO-Link
System Manual, 03/2012, C79000-G8976-C276-01 3
Table of contents
1 Introduction................................................................................................................................................ 5
2 Description................................................................................................................................................. 7
2.1 Area of application of the RF200 IO-Link reader ...........................................................................7
2.2 IO-Link basics ................................................................................................................................7
2.3 Characteristics of the RF200 IO-Link reader .................................................................................9
2.4 System integration .........................................................................................................................9
3 System overview...................................................................................................................................... 11
3.1 RFID components and their function ...........................................................................................11
3.2 Overview of transponders ............................................................................................................13
4 Planning an RF200 IO-Link system ......................................................................................................... 15
4.1 Fundamentals of application planning .........................................................................................15
4.1.1 Selection criteria for SIMATIC RF200 components.....................................................................15
4.1.2 Transmission window and read/write distance ............................................................................15
4.1.3 Width of the transmission window................................................................................................18
4.1.4 Permissible directions of motion of the transponder....................................................................19
4.1.5 Operation in static and dynamic mode ........................................................................................20
4.1.6 Communication between the IO-Link master, reader and transponder.......................................21
4.1.7 Impact of secondary fields ...........................................................................................................22
4.2 Field data of transponders and readers.......................................................................................25
4.2.1 Field data .....................................................................................................................................25
4.2.2 Minimum clearances ....................................................................................................................27
4.3 Installation guidelines...................................................................................................................29
4.3.1 Overview ......................................................................................................................................29
4.3.2 Reduction of interference due to metal........................................................................................29
4.3.3 Effects of metal on different transponders and readers...............................................................32
4.3.4 Impact of metal on the transmission window...............................................................................32
4.3.4.1 RF210R........................................................................................................................................33
4.3.4.2 RF220R........................................................................................................................................35
4.3.4.3 RF260R........................................................................................................................................37
4.4 Further information.......................................................................................................................39
5 Commissioning and parameter assignment............................................................................................. 41
5.1 Configuring...................................................................................................................................41
5.2 Parameter assignment of the IO-Link system..............................................................................45
5.2.1 The Port Configuration Tool (PCT) ..............................................................................................47
5.2.2 Parameter assignment with PCT .................................................................................................48
5.3 The modes of the RF200 IO-Link reader.....................................................................................68
5.3.1 SIO mode.....................................................................................................................................68
5.3.2 IO-Link mode: Scan UID ..............................................................................................................68
Table of contents
SIMATIC RF200 IO-Link
4 System Manual, 03/2012, C79000-G8976-C276-01
5.3.3 IO-Link mode: Scan user data .................................................................................................... 69
5.4 ISDU data traffic.......................................................................................................................... 71
5.4.1 IOL_CALL.................................................................................................................................... 71
5.5 Application example .................................................................................................................... 72
6 Readers................................................................................................................................................... 75
6.1 Features ...................................................................................................................................... 75
6.2 Pin assignment of the RF200 reader with IO-Link interface ....................................................... 76
6.3 Display elements of the RF200 reader .......................................................................................76
6.4 Minimum distance between several readers............................................................................... 77
6.5 Dimensional drawings................................................................................................................. 79
7 Diagnostics .............................................................................................................................................. 81
8 Technical data ......................................................................................................................................... 83
8.1 Technical data of the RF200 reader ........................................................................................... 83
8.2 FCC information .......................................................................................................................... 85
8.3 cULus information ....................................................................................................................... 85
9 Connecting cable..................................................................................................................................... 87
10 Ordering data........................................................................................................................................... 89
11 Service & support .................................................................................................................................... 91
A Appendix.................................................................................................................................................. 93
A.1 IO-Link error codes ..................................................................................................................... 93
A.1.1 ISDU return error codes.............................................................................................................. 93
A.1.2 Event error codes........................................................................................................................ 94
A.2 Overview of the service data....................................................................................................... 96
A.3 Certificates and Approvals ........................................................................................................ 101
Index...................................................................................................................................................... 103
SIMATIC RF200 IO-Link
System Manual, 03/2012, C79000-G8976-C276-01 5
Introduction 1
Purpose of this system manual
The information provided in this system manual enables you to commission the IO Link
reader.
Basic knowledge required
This system manual assumes general knowledge of automation engineering and
identification systems.
Scope of the manual
The system manual is valid for the IO-Link reader.
Position in the information landscape
In addition to this system manual, you require the operating instructions for the IO Link
master you are using.
Conventions
The following terms/abbreviations are used synonymously in this document:
● Reader, reading device, SLG
● Tag, transponder, mobile data memory, data carrier, MDS
Registered trademarks
SIMATIC ® is a registered trademark of Siemens AG.
IO-Link is a registered trademark of the IO-Link consortium.
Introduction
SIMATIC RF200 IO-Link
6 System Manual, 03/2012, C79000-G8976-C276-01
Guide
This system manual describes hardware and programming of the IO-Link reader. They
comprise introductory chapters and reference chapters (e.g. technical data).
The system manual covers the following topics:
● Introduction to IO-Link
● Connecting the reader
● Assigning reader parameters
● Commissioning
● Diagnostics
● Technical specifications
● Ordering data
Additional documentation
The following documents contain information on the IO-Link masters ET 200S and ET
200eco and may contain further information that is relevant for you:
● Distributed I/O system ET 200S
(http://support.automation.siemens.com/WW/view/en/1144348)
● Distributed I/O device ET 200eco PN
(http://support.automation.siemens.com/WW/view/en/29999018)
Recycling and disposal
● Since RF200 IO-Link readers only contain low levels of harmful substances, they are
suitable for recycling.
● For ecologically compatible recycling and disposal of your old device, contact a
certificated disposal service for electronic scrap.
SIMATIC RF200 IO-Link
System Manual, 03/2012, C79000-G8976-C276-01 7
Description 2
2.1 Area of application of the RF200 IO-Link reader
SIMATIC RF200 IO-Link is an inductive identification system that is compatible with the ISO
15693 standard and was specially designed for use in industrial production for the control
and optimization of material flow. With the IO-Link communications interface, readers can be
used below the fieldbus level.
SIMATIC RF200 IO-Link is an alternative to SIMATIC RF300 and represents a simple and
cost-effective option for RFID applications.
2.2 IO-Link basics
The system components
IO-Link is a specified point-to-point communications interface for sensors/actuators and
consists of the following system components:
● IO-Link master,
● IO-Link device (e.g. sensors, actuators, RFID readers),
● Unshielded 3-wire standard cable.
The master / the port operating modes
A master has one or more ports and one device can be connected to each port.
The port can basically be set to two different operating modes:
● SIO mode (Standard Input Output mode)
In this mode, the device can be used like a digital input module.
● IO-Link mode (SDCI: Single Drop digital Communication Interface)
In this mode, the master communicates with the device and process data and service
data can be transferred.
Description
2.2 IO-Link basics
SIMATIC RF200 IO-Link
8 System Manual, 03/2012, C79000-G8976-C276-01
The types of communication
During communication at the IO-Link level, the following types of data are distinguished:
● Cyclic process data (input/output data)
The data is always transferred with a previously specified length.
● Acyclic service data (parameters, on-request data)
The data to be written or read is transferred only on request. Since a fixed area is
reserved for this in the communication cycle, the acyclic data transfer does not influence
the transfer of the cyclic process data.
● Events (errors, warnings, notifications)
This works in the same way as with acyclic service data, the only difference being that
the transfer is triggered by the device due to events.
The data types
While the cyclic process data is exchanged via a defined fixed area, the acyclic service data
is selected and addressed using an index or subindex. The indexes available for the RF200
IO-Link reader can be found in the section "Commissioning and parameter assignment
(Page 41)".
To allow system integration, each device type has an IODD file available that contains the
following information:
● Representation of the communications properties
● Representation of accessible device data
● Identification, process and diagnostics data
● Menu layout
● Textual descriptions in various languages
● Image of the device
● Logo of the manufacturer
Description
2.3 Characteristics of the RF200 IO-Link reader
SIMATIC RF200 IO-Link
System Manual, 03/2012, C79000-G8976-C276-01 9
2.3 Characteristics of the RF200 IO-Link reader
The IO-Link reader reads out either the UID or user-specific data of a transponder and maps
this to cyclically updated process data. This data can be read out via the IO-Link master by a
PC or a PLC.
The IO-Link reader has the following characteristics:
● Point-to-point communication, the address of the IO-Link device does not need to be set
● Supports IO-Link according to specification V1.0
● IO-Link baud rate 38.4 Kbaud, cycle time 2.5 ms
● Transfer of service data parallel to process data
● SIO mode (reader indicates the presence of a transponder on the data line (C/Q))
● IODD file for support of parameter assignment, diagnostics and data access.
● System integration (TIA) using Port Configuration Tool (PCT)
● Degree of protection IP67
● RFID 13.56 MHz complying with ISO 15693
2.4 System integration
The readers are IO-Link device modules intended for operation with an IO-Link master.
Depending on the category of the IO-Link master, this can be connected to various
controllers or fieldbus systems.
The number of devices or readers that can be connected to an IO-Link master differs
depending on the master type. The master type and the number of available IO-Link ports
affect the maximum process data length of the master.
Description
2.4 System integration
SIMATIC RF200 IO-Link
10 System Manual, 03/2012, C79000-G8976-C276-01
Interfacing to the controller
With the readers RF210R, RF220R and RF260R, the connection to the controller is via the
following IO-Link masters from Siemens:
● ET 200eco PN
● ET 200S with 4SI IO-Link master
or via masters of other manufacturers.
352),1(7
,QGXVWULDO(WKHUQHW
352),%86
,2/LQNPDVWHU
HJ(7HFR31
,2/LQNPDVWHU
HJ(76
5HDGHU 5HDGHU
0DVWHUPRGXOH
6,0$7,&6
7UDQVSRQGHU
7KLUGSDUW\
FRQWUROOHU
5HDGHUV
,2/LQNPDVWHU
IRUILHOGEXV
,2/LQN
%DFNSODQHRU
)LHOGEXV
WRUHDGHUVFRQQHFWDEOHSHU,2/LQNPDVWHU

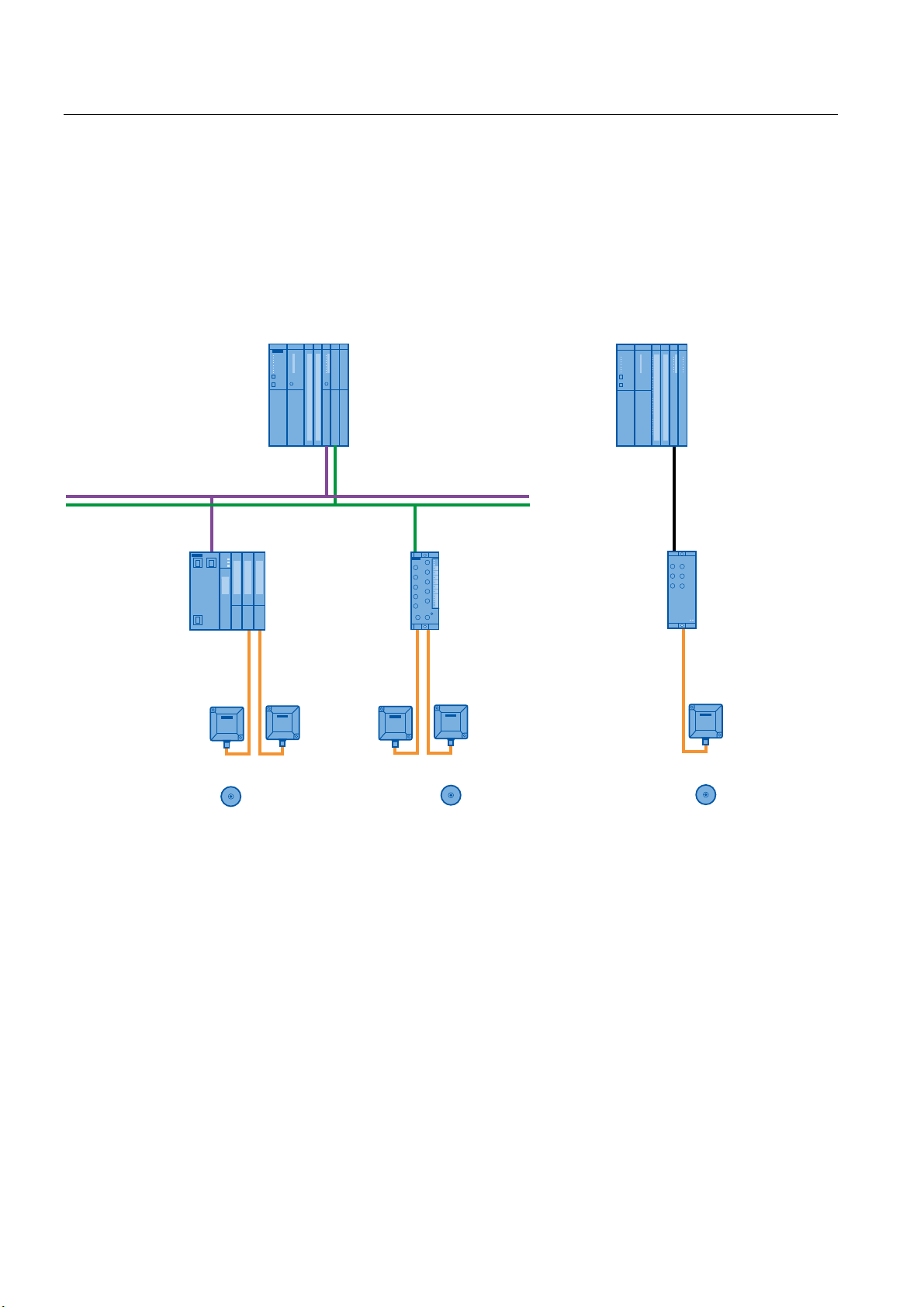

Figure 2-1 Configuration example
Other manuals for SIMATIC RF200
2
Table of contents
Other Siemens Industrial Equipment manuals
Siemens
Siemens SITOP UPS500S Ex User manual
Siemens
Siemens VersiCharge AC Wallbox IEC User manual
Siemens
Siemens SIMATIC ET 200SP User manual
Siemens
Siemens 3RV1 Series User manual
Siemens
Siemens MindConnect IoT2040 User manual
Siemens
Siemens 3VM9 1-0WK.0 Series User manual
Siemens
Siemens SIMATIC NET S7-CPs Instruction Manual
Siemens
Siemens Desigo PXC4.E16 User manual
Siemens
Siemens Simatic S7-400 Technical Document
Siemens
Siemens Simatic ET 200pro FC User manual
Siemens
Siemens 6EP1331-2BA10 User manual
Siemens
Siemens ARCOSKOP User manual
Siemens
Siemens 3VA9687-0GK00 User manual
Siemens
Siemens KMS User manual
Siemens
Siemens SIRIUS S00 User manual
Siemens
Siemens MLFB User manual
Siemens
Siemens CASTOMAT ION ANALOGINPUT T001 User manual
Siemens
Siemens SINUMERIK ONE NCU 1760 Technical Document
Siemens
Siemens S7-1200 PROFIBUS User manual
Siemens
Siemens 8DA series User manual
