Siemens RAJA+ 3TE7111-2SC18-1A Series Operating instructions
Installation, Maintenance
& Troubleshooting Guide
For RAJA
+
Agriculture Starters
& Controllers
Contents:
1. Automatic Direct ON Line Starter:
1.1 Product description
1.2 Wiring diagram
1.3 Technical Details
1.4 Installation
1.5 Operating procedure in normal condition
1.6 Troubleshooting guidelines in case any incoming
fault is present before switching ON the motor
1.7 Troubleshooting guidelines in fault condition
when motor stops while it is in running condition
1.8 Troubleshooting guidelines in case any fault is at the load side
Product: Automatic Direct
ON Line Starter

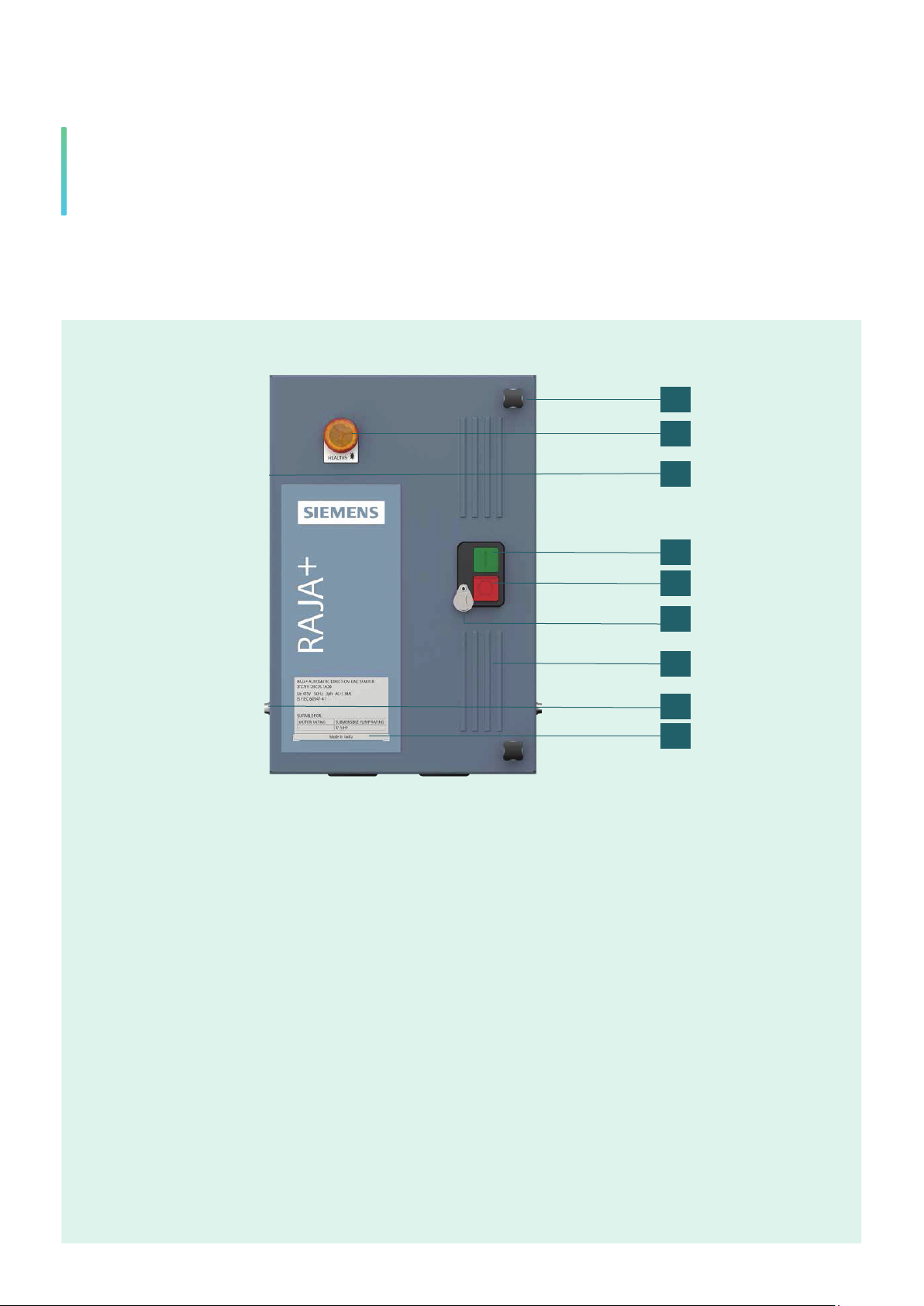

1.1: Product Description
1: Door Knob - For screwing & unscrewing the door
2: Amber LED - For indicating the incoming power supply availability & healthiness.
3: Metal enclosure - Metallic enclosure of ADOL starter
4: ON Push button (Green) - For switching ON the motor
5: OFF/RESET push button (Red) - For switching OFF the motor / Reset the overload relay
6: Mechanical Latch (OFF push button) - For preventing undesired ON operation of motor
7: Door - Door of ADOL starter
8: Earthing screw - Earthing screw of ADOL starter for Customer
9: Name Plate - Name plate with technical details of ADOL
1
2
3
4
5
6
7
8
9
3
Installation, Maintenance & Troubleshooting guide | Version 01

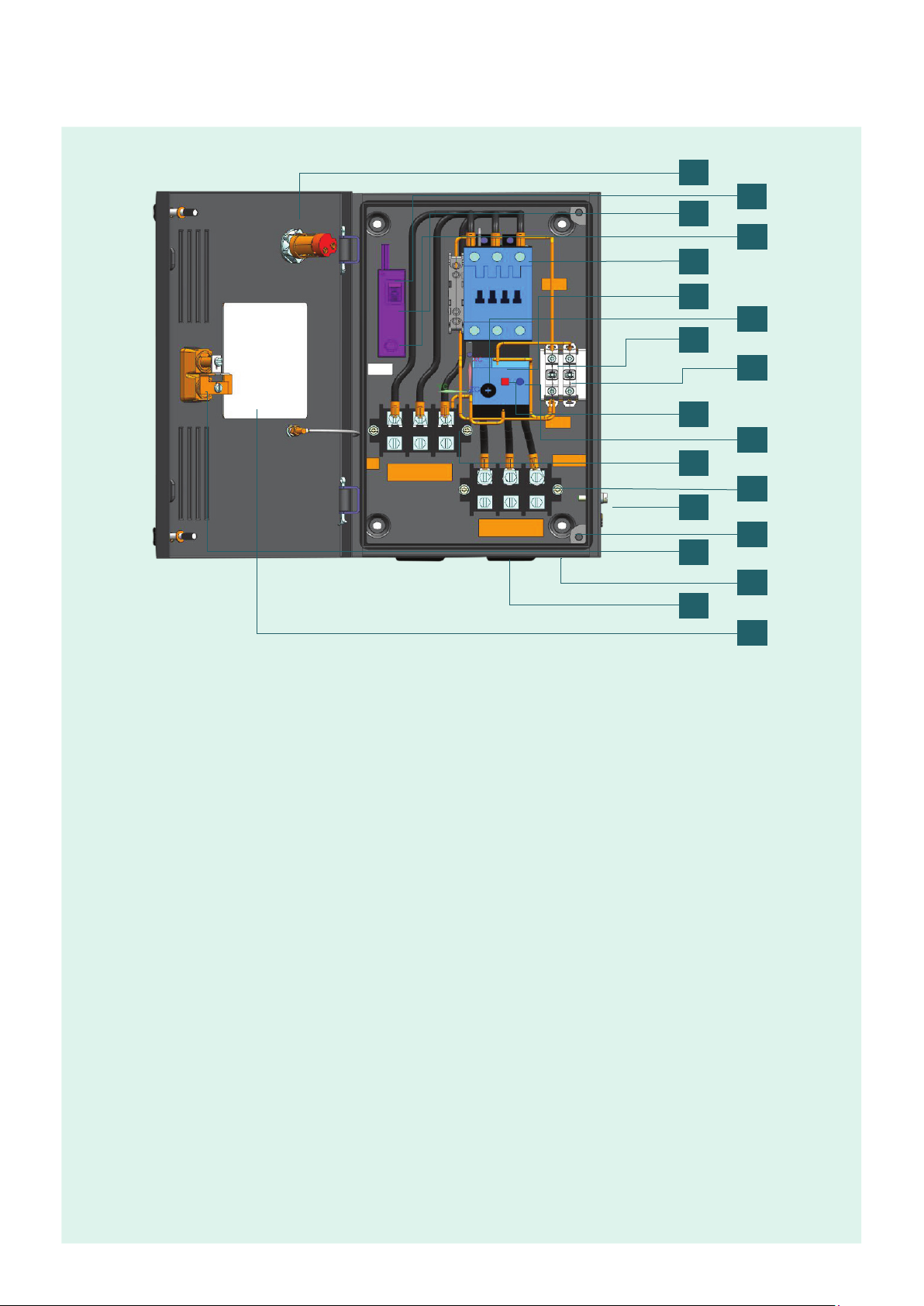

1: Amber LED - For indicating the healthiness of incoming power supply
2: Starter Mode selecting switch - For the selection of starter operating mode (Auto,Manual, Bypass)
3: LMRA - For checking the healthiness of incoming power supply
4: LMRA On delay dial - On delay setting dial (0.5-5min)
5: Contactor
6: Thermal overload relay
7: Relay setting dial - Dial which can be set according to the motor current
8: Green NO Aux.contact - For switching ON the motor if starter enclosure is open
9: Red NC Aux.contact - For switching OFF the motor if starter enclosure is open
10: Relay Red test button - For checking the relay trip circuit
11: Relay reset button - For resetting the relay
12: Incoming terminal block (TB1) - For connecting the incoming supply cables
13: Outgoing terminal block (TB2) - For connecting the outgoing supply cables to motor
14: Earthing screw - Starter earthing provision
15: Mounting hole - 4x holes for mounting the starter
16: Links - Links of ON & OFF push buttons
17: Gasket
18: Grommet - For the incoming & outgoing cable passage
19: Wiring diagram label
1
2
3
4
7
9
11
13
15
17
19
5
6
8
10
12
14
16
18
4
Installation, Maintenance & Troubleshooting guide | Version 01

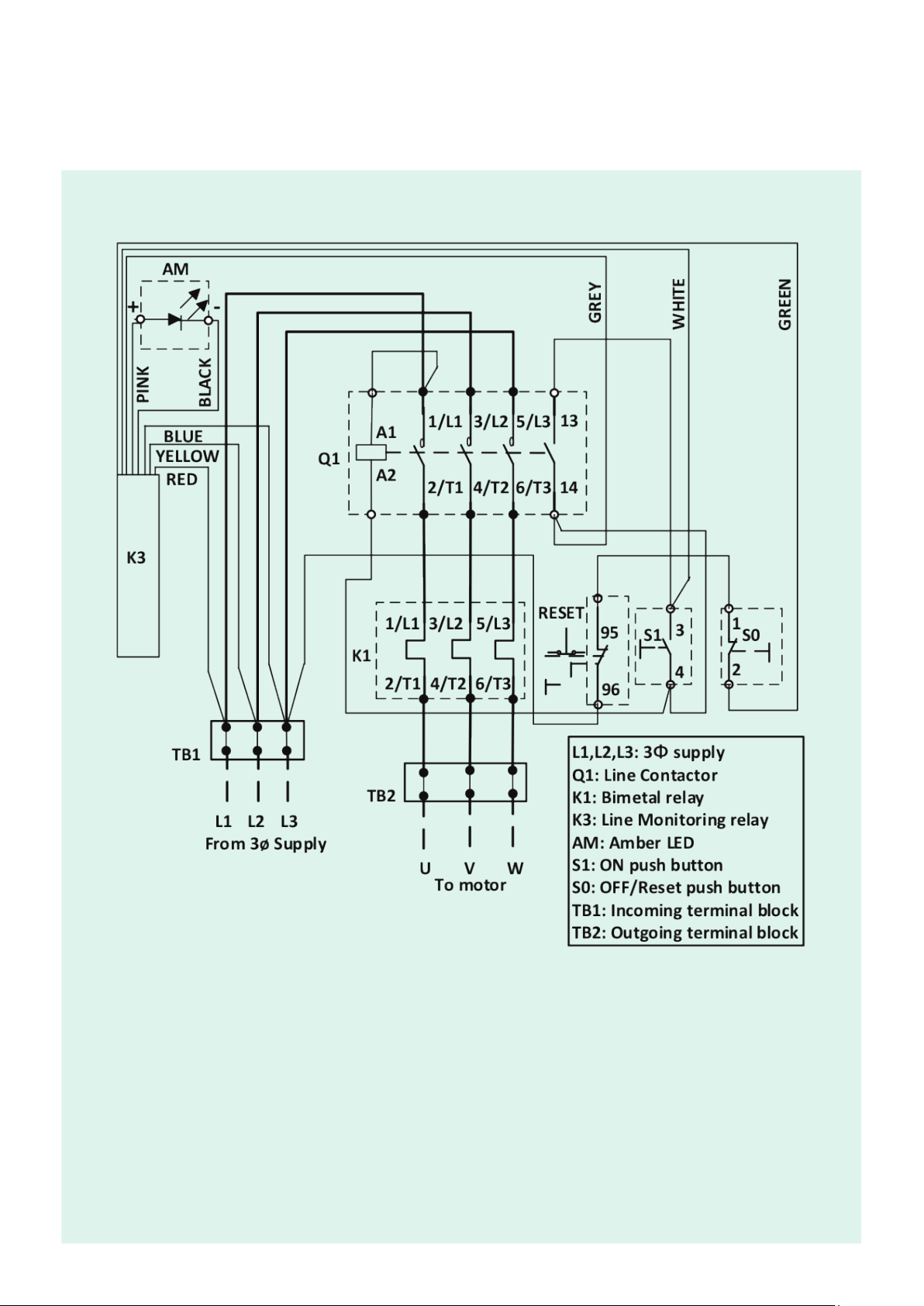

1.2: Wiring Diagram
Installation, Maintenance & Troubleshooting guide | Version 01
5
6

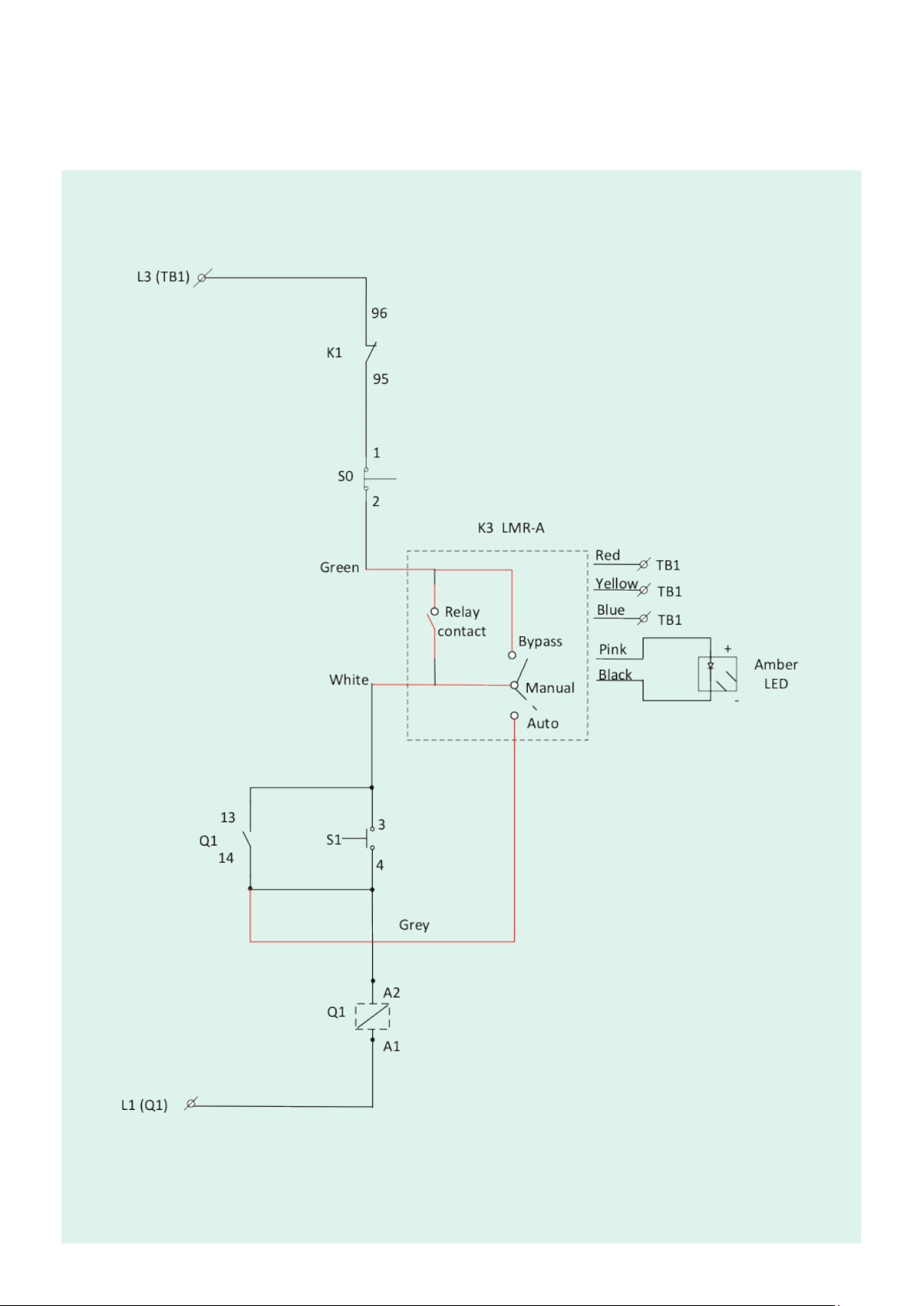

Control logic diagram
Installation, Maintenance & Troubleshooting guide | Version 01
7

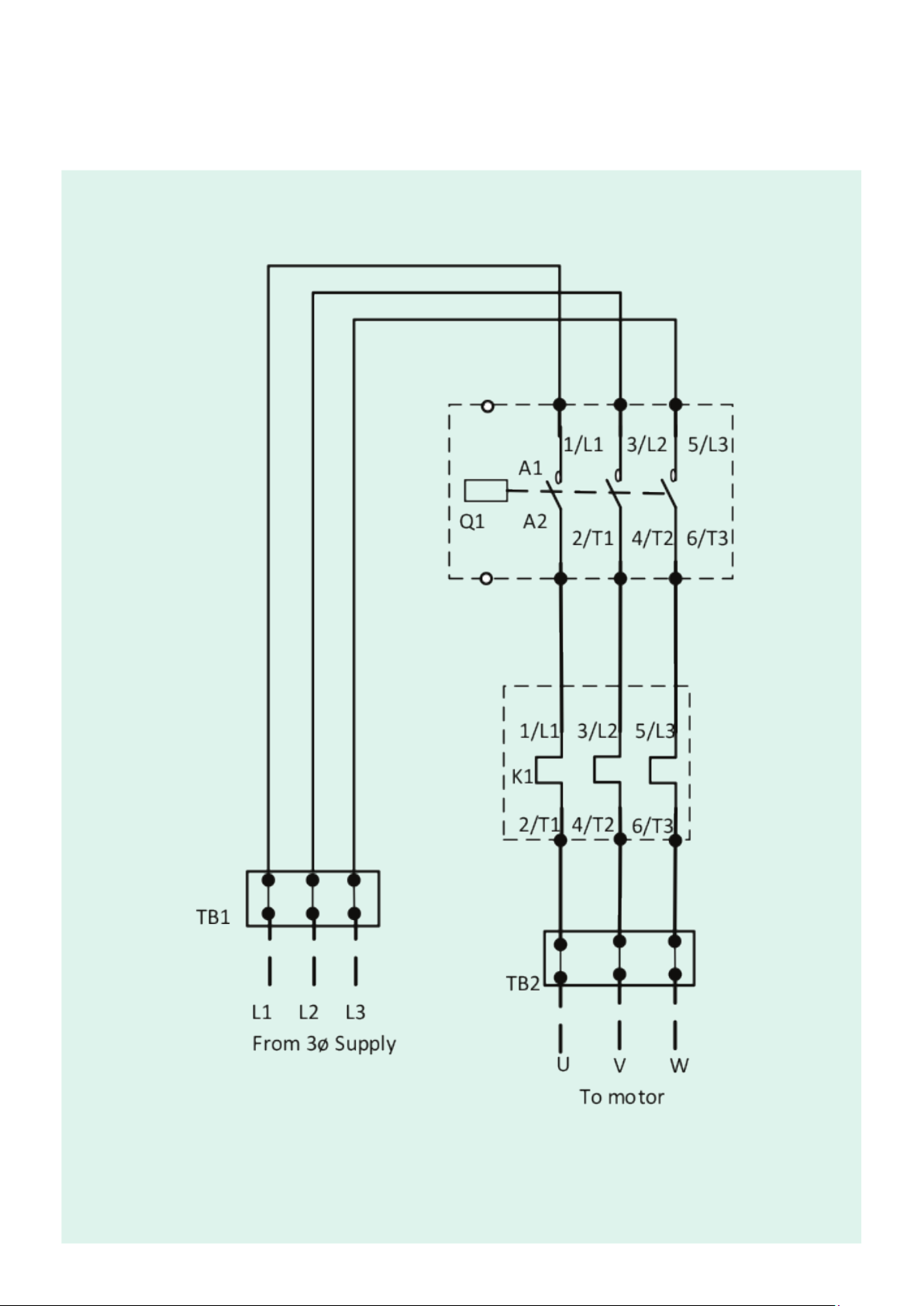

Power circuit diagram
Installation, Maintenance & Troubleshooting guide | Version 01
Table: 1 Technical details of ADOL Starter
Note: xx: Coil voltage; Z6:200-400V AC; Z8: 260-460V AC
yy: Coil voltage; FE:200-400V AC; FF: 260-460V AC
*Type 1 coordination as per IS/IEC 60947-4-1 Standard.
1.3: Technical details
Type (HP /
kW)
Ie
(A)
Contactor Relay Range
(A)
Line
Monitoring
Relay
Recomm-
ended
Max. Back-up
HRC Fuse
rating,
SIEMENS Make
type 3NA7
– 500V*
Max.
Recomm
ended
Cu cable
size
(sq:mm)
3TE7111-2SC18-1Axx
3TE7111-2CC21-1Axx
3TE7111-2BC21-1Axx
3TE7111-2DC23-1AZ8
3TE7111-2CC24-1Axx
3TE7111-2QC24-1AZ8
3TE7111-2RC25-1AZ8
7.5/5.5 11.4 3TS3210-0Ax x-08K 3UW5102-2A 10-16 7UG0613-0yy20 32A 2.5
7.5/5.5 14.5 3TS3210-0Axx-08K 3UW5102-2A 10-16 7UG0613-0yy20 32A 2.5
10/7.5 15.4 3TS3311-0Axx-08K 3UW5102-2B 10-16 7UG0613-0yy20 32A 2.5
10/7.5 19.5 3TS3311-0Axx-08K 3UW5202-2C 12.5-20 7UG0613-0yy20 32A 2.5
12.5/9.3 19.5 3TS3311-0Axx-08K 3UW5202-2C 16-25 7UG0613-0yy20 32A 4.0
12.5/9.3 25 3TS3511-0AZ8-08K 3US5600-2D 20-32 7UG0613-0yy20 63A 4.0
15/11 23 3TS3411-0Axx-08K 3UW5202-2C 16-25 7UG0613-0yy20 32A 4.0
15/11 29 3TS3511-0AZ8-08K 3US5600-2Q 25-36 7UG0613-0yy20 63A 10
17.5/13 34 3TS3611-0AZ8-08K 3US5600-2R 32-40 7UG0613-0yy20 80A 10
Installation, Maintenance & Troubleshooting guide | Version 01
8
1.4: Installation
1. Open the door by unscrewing the door knob.
2. Fix the starter enclosure vertically on a rigid surface free from vibration.
3. Remove the rubber grommets for incoming and outgoing cable connections. (Fig: 2)
4. Connect incoming and outgoing cables as follows (Fig: 2)
-Select correct size of cable from Table 1.
-Remove approx. 10mm of insulation.
-Pass the cable through proper cable gland to avoid ingress of material.
-Connect the incoming supply cables to terminal block TB1 and tighten the screws firmly
(ref.tightening torque from Table 3).
5. NOTE: LMRA is set in Manual mode (Factory setting).
6. Set the overload relay scale (Fig: 2) using proper screw driver as per the procedure given below.
7. Set the overload relay to rated current mentioned on motor name plate.
8. Press green button of the Aux.contact block (Fig: 2) to start the motor and wait till it reaches to normal speed.
9. Reduce the overload relay settings till it trips.
10. Set the overload relay at slightly higher value.
11. Allow a reset time approx 4min. and reset the overload relay manually (Fig: 2)
12. Restart the motor. If the relay does not trip, consider the overload relay as properly set. If it trips,
set it at little higher value and recheck.
13. Press the red knob (Fig: 2) on the overload relay to stop the motor
14. Fix the door by screwing the knob
9
Table: 2 Mounting Torque Values
Sr. No Location Size Torque
1 Earthing screw (cover to body) M5 2.5-3.0Nm
2 Contactor 3TS30..36 M4 0.8-1.4Nm
3 LMR-A M4 0.8-1.4Nm
4 Terminal block 30A M4 0.8-1.4Nm
5 Terminal block 60A M4 0.8-1.4Nm
6 ON& OFF /Rest link ST4.2x9.5 0.8-1.2Nm
Table: 3 Terminal Torque Values
Sr. No Location Size Torque
1 3TS30..32 M3.5 0.8-1.4Nm
2 3TS33/34 (Power wiring) M4 1.0-1.5Nm
3 3TS35/36 (Power wiring) M5 2.5-3.0Nm
4 Terminal block 30A M4 0.8-1.4Nm
5 Terminal block 60A M5 1.5-2.1Nm
6 Contact block 3SB5 M3.5 0.8-1.2Nm
7 Aux terminal (side add on) of 3TS35/36, 3TS33/34 M3.5 0.8-1.4Nm
8 Coil Terminals A1/A2 M3.5 0.8-1.2Nm
9 Aux. terminals of all Relays M3.5 0.8-1.2Nm
10 3UW51/52 M4 1.0-1.5Nm
11 3US56 M5 2.5-3.0Nm
12 Indicating light - Amber M3 0.8Nm
Installation, Maintenance & Troubleshooting guide | Version 01
LMR-A: Manual mode
1A : Keep the LMR-A in Manual mode.
1B : Switch ON 3-Phase incoming main supply.
1C : Amber LED will start blinking for a period of min 0.5 min.
1D : 0.5 min is the default setting which can vary from min 0.5 min to max.5min.
1E : After the ON-delay duration, amber LED will ON continously indicating that the incoming supply
is Healthy (Assuming incoming supply is healthy).
1F : Press the green push putton for switching ON the starter.
1G : Starter gets switched ON.
1H : Press the red push button for switching OFF the starter.
1I : Starter gets switched OFF.
1J : Amber LED indication remains continous ON.
1K : Switch OFF the 3-phase incoming main supply.
1L : Amber LED indication gets turned OFF indicating that there is no incoming main supply.
LMR-A: Auto mode
1A : Keep the LMR-A in Auto mode.
1B : Switch ON the 3-Phase incoming main supply.
1C : Amber LED will start blinking for a period of min 0.5 min.
1D : 0.5 min is the default setting which can vary from min 0.5 min to max.5min.
1E : After the ON-delay duration, amber LED will ON continously indicating that the incoming supply is
healthy(Assuming incoming supply is healthy).
1F : Not applicable (No need to press ON push button)
1G : Starter gets switched ON automatically.
1H : Press the red push button and lock by mechanical latch for switching OFF the starter.
1I : Starter gets switched OFF.
1J : Amber LED indication remains continous ON.
1K : Switch OFF the 3-phase incoming main supply.
1L : Amber LED indication gets turned OFF indicating that there is no incoming main supply.
1.5: Operating procedure in normal condition
Starter operation:
LMR-A
Mode
Manual
Auto
Bypass
Amber
LED
indication
Blink
(On-delay
duration)
Blink
(On-delay
duration)
Blink
(On-delay
duration)
On-
Delay
0.5-
5min
0.5-
5min
0.5-
5min
Amber
LED
ON
ON
ON
‘ON’
Push
button
ON
ON
ON
Starter
Operation
ON
ON
ON
ON
ON
ON
‘OFF’
Push
button
OFF
Lock
OFF
Starter
Operation
OFF
OFF
OFF
Amber
LED
indication
OFF
OFF
OFF
Amber
LED
Table: 4 ADOL operating sequence in normal condition
1A
3ф
main
supply
ON
ON
ON
1B 1C 1D 1E 1F 1G 1H 1J 1K 1L1I
ON operation OFF operation
Installation, Maintenance & Troubleshooting guide | Version 01
10
3ф
main
supply
OFF
OFF
OFF
