Sennheiser SK 2013 PLL User manual

SYSTEM 2013PLL

GEBRAUCHSANLEITUNG

INSTRUCTIONS FOR USE

INSTRUCTIONS POUR L‘USAGE

ISTRUZIONI PER L‘USO

MODO DE EMPLEO

GEBRUIKSAANWIJZING

BRUKSANVISNING

EK2013 PLL

2.1

BUILT-IN

MICROPHONE

INTERCHANGEABLE

STANDARD OR

RECHARGEABLE

BATTERY PACK

CHANNEL

SELECTOR SWITCH

FOR UP TO 16

FREELY-SELECTABLE

FREQUENCIES

RECEPTION AND

BATTERY INDICATOR LAMP

CHARGING CONTACT FOR CHARGING

IN CHARGING UNIT L 2013 (ONLY ON

RECHARGEABLE BATTERY PACK)

OUTPUT JACK

FOR CONNECTION

TO HEARING AID

TRANSMISSION

INDICATOR LAMP

LOCKABLE

COVER

HEADPHONE

OUTPUT JACK

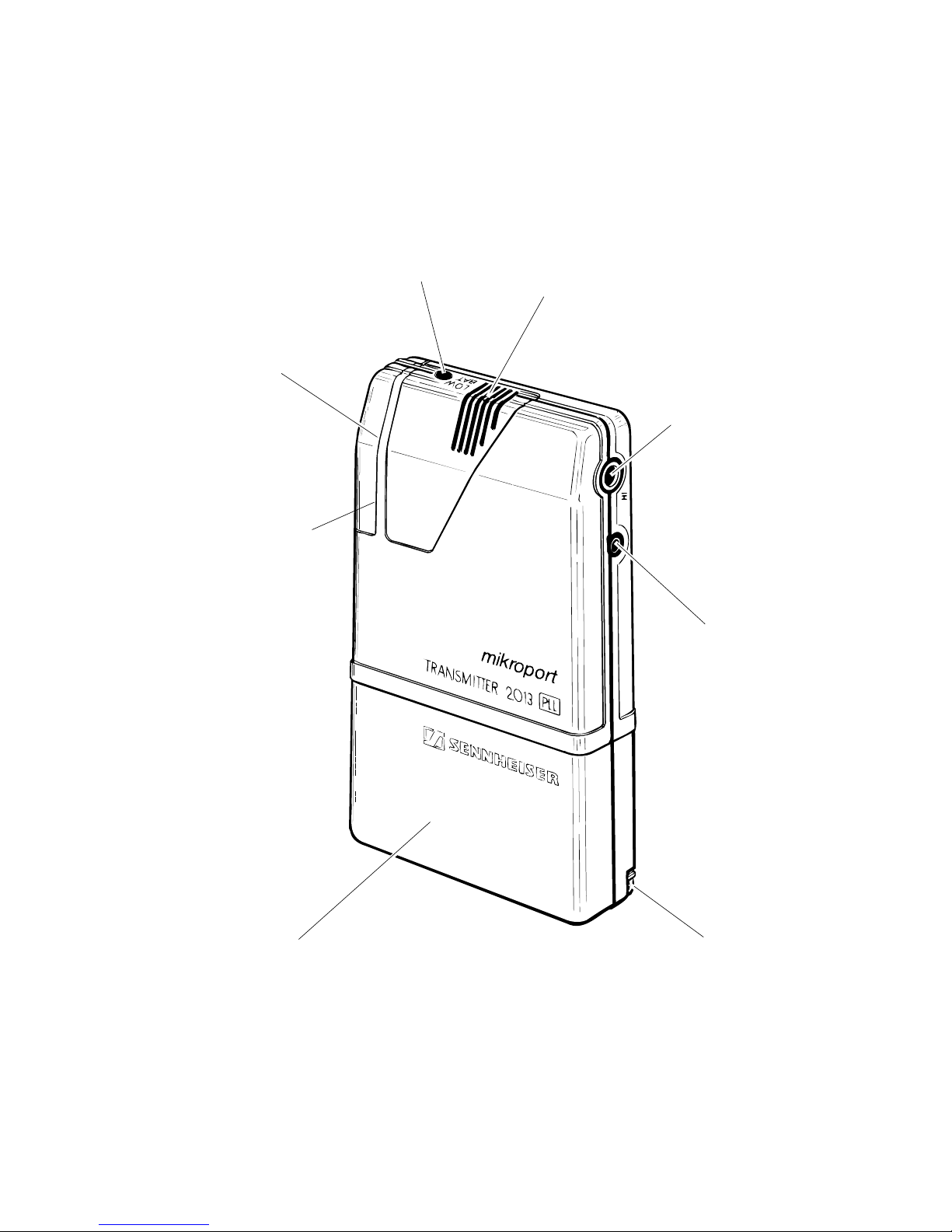

SK 2013 PLL

Input

BATTERY INDICATOR LAMP

2.2

LOCKABLE

COVER

CHANNEL

SELECTOR SWITCH

FOR UP TO 16

FREELY-SELECTABLE

FREQUENCIES

INTERCHANGEABLE

STANDARD OR

RECHARGEABLE

BATTERY PACK

BUILT-IN

MICROPHONE

CONNECTION FOR

ADDITIONAL DEVICES,

E.G. CASSETTE

RECORDER

CHARGING CONTACT FOR CHARGING

IN CHARGING UNIT L 2013 (ONLY ON

RECHARGEABLE BATTERY PACK)

CONNECTION

FOR ADDITIONAL

MICROPHONE

MKE 2013

2.3

System description

2.4 Units

2.4 Operating principle

2.5 Common characteristics

2.6 Initial operation

2.6 Inserting battery pack

2.6 Operation with rechargeable batteries

2.6 Switching on / Securing on clothing

2.6 List of available transmission/reception ranges

2.7 Frequency selection

2.7 Setting channels on transmitter and receiver

Receiver EK 2013 PLL

2.8 Connection possibilities on receiver

2.8 Integrated antenna

2.8 Operation on hearing aid with audio input

2.8 Operation on hearing aid without audio input

2.8 Operation with headphones

2.9 Lockable cover

2.9 Automatic fade-in and microphone adjustment on receiver

2.10 Setting automatic fade-in

2.10 Switching automatic fade-in and built-in microphone on/off

2.11 Indicator lamps on receiver EK 2013 PLL

2.11 Automatic fade-in, green LED

2.11 Squelch and battery check, red LED

Transmitter SK 2013 PLL

2.12 Connection possibilities

2.12 Indicator lamps

2.13 Setting microphone sensitivity

2.10 Accessories

2.14 Cables

2.15 Technical data - SK 2013 PLL

2.16 Technical data - EK 2013 PLL

2.4

The System 2013 PLL enables the successful integration of people with hearing problems

in schools and universities, at the workplace and during leisure activities.

The design and control details have been optimally adapted to this target group.

Operationissimpleandeasytolearn.Theunitsaresmall,light-weightandinconspicuous.

Units

•Transmitter SK 2013 PLL for the speaker

•Receiver EK 2013 PLL for the hearing impaired

Operating principle

The speaker, e.g. the instructor, wears the Transmitter SK 2013 PLL. The hearing

impaired person wears the Receiver EK 2013 PLL. Headphones or a connecting cable to

hearing aids can be connected to the EK 2013 PLL. The student can now hear the

instructor as if he/she were sitting directly next to him/her - without wires and with

retained freedom of movement. For the time during which the instructor speaks, the

surrounding noises are considerably reduced. If the instructor is not speaking, the hearing

aid or the microphone built into the EK 2013 PLL is completely effective; now fellow

students can be heard. Yet the dialogue between the instructor and the student is always

given priority.

The System 2013 PLL also remains a dependable aid under difficult conditions. The

transmitting output reaches over great distances. Loud secondary noises and poor room

acoustics can be faded out with the use of the additional microphone MKE 2013 on the

Transmitter SK 2013 PLL. The wide range of accessories allows connection of the

receiver to nearly any type of hearing aid; the connection to the hearing aid can be either

electrical or inductive.

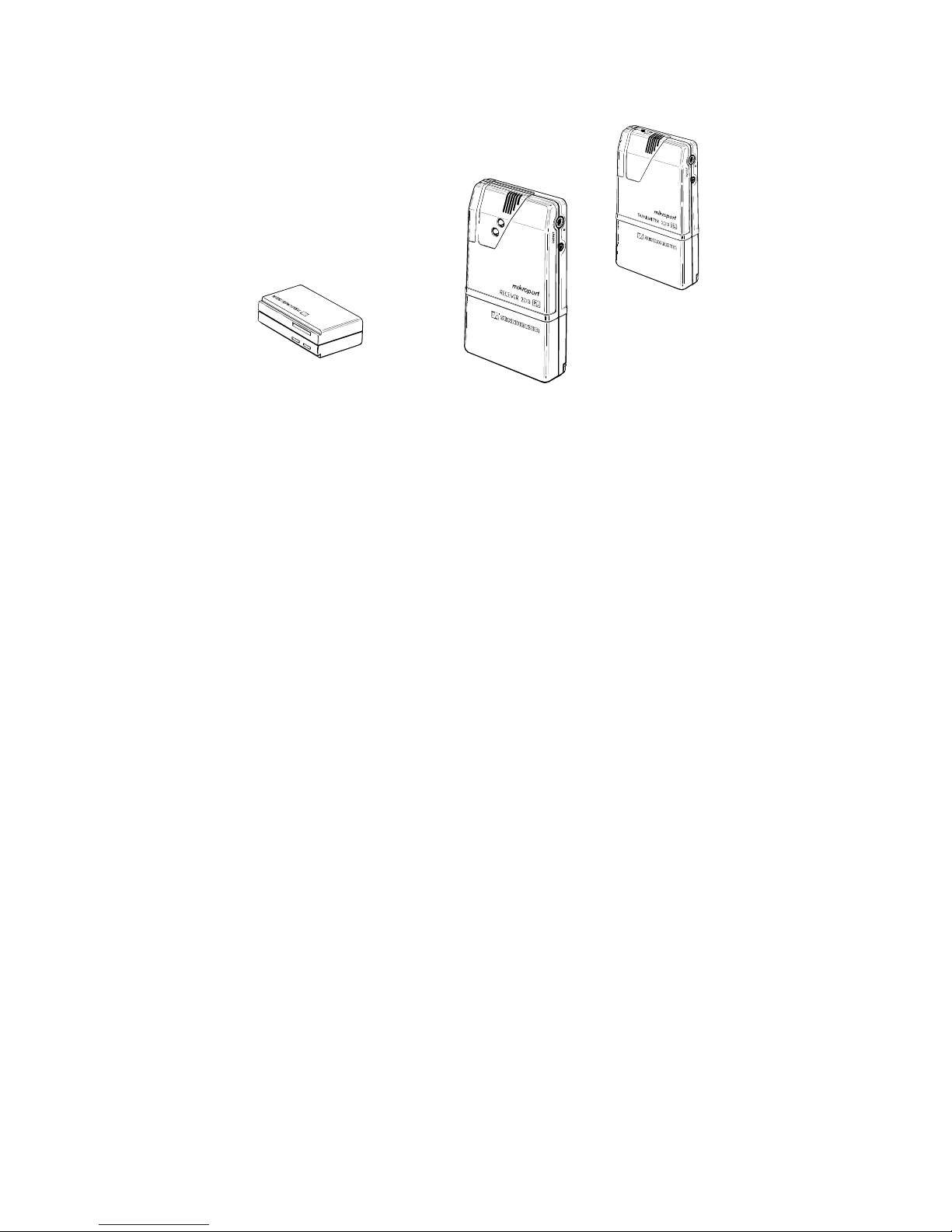

System 2013

SK 2013 PLL

or EK 2013 PLL B 2013 BA 2013

2.5

The Transmitter SK 2013 PLL and the Receiver EK 2013 PLL are supplied with current

by attachable RECHARGEABLE battery packs, type BA 2013. These battery packs are

charged over night separately or in conjunction with their unit in the Dual Charging Unit

L 2013. One battery pack has sufficient power for a normal working day (up to 12 hours).

It is completely recharged over night.

Standard (non-rechargeable) battery packs allow operation far from an electrical system

(maximum operating time: over 40 hours). They replace the rechargeable battery packs.

Common characteristics for transmitter and receiver

•up to 40 hour operating time, interchangeable standard and

rechargeable battery pack

•built-in microphone in transmitter and receiver

DEUTSCH

english

Français

Italiano

Español

Svenska

Nederlands

OFF

2.6

Initial operation

Inserting battery pack

Two batteries (AA size) are inserted in the removable base compartment (same for

transmitter and receiver). The battery compartment lock (see diagram) can be easily

pressed open with a screwdriver or a similar pointed instrument.

Operation with rechargeable batteries

The RECHARGEABLE battery pack BA 2013 is recommended for daily use. The

battery pack is slid onto the base of the transmitter or receiver in the same manner as the

standard battery pack. The RECHARGEABLE batteries are recharged in the Dual

Charging Unit L 2013.

Switching on/securing on clothing

Toswitchtheuniton,slidetheON/OFFswitchonthetransmitterorreceiverdownward.

The transmitter or receiver is secured on the body with the neck strap and the retaining

plate. The transmitter or receiver can also be clipped onto a shirt or belt with the attached

clip.

List of available transmission/reception ranges

EK/SK 2013-6-D 8 m frequency band 36.64-37.98 MHz

EK/SK 2013-6-1 8 m frequency band 30-36 MHz

EK/SK 2013-6-2 8 m frequency band 35-40 MHz

EK/SK 2013-6-3 8 m frequency band 39-45 MHz

EK/SK 2013-8 4 m frequency band 72.025-75.975 MHz

EK/SK 2013-9 2 m frequency band 173.350-175.02 MHz

Frequency selection

2.7

Setting channels on transmitter and receiver

The transmission frequencies are set with the rotary switch (D) on the transmitter and

receiver. The assignment of a switch position to a frequency is listed on the back of the

unit on the information plate. Depending on the model, up to 16 frequencies are available.

This allows multi-channel operation, e.g. in schools.

Important information:

•The transmitter and receiver of one transmission unit must be

set to the same frequency!

•One transmitter can be used with several receivers set to the same frequency.

•One receiver cannot be used with several transmitters set to one frequency! This

type of incorrect setting can be noticed from crackling and chirping noises at the receiver.

3.5 mm dia. Stereo jack

High-level output (2 x 0.7 V / 32 Ω)

2.5 mm dia. Stereo jack

Low-level output (2 x 3 mV / 2 kΩ)

2.8

Characteristics

•Up to 16 PLL-controlled frequencies

•Highly visible indicator lamp for all important functions

•Child-proof due to lockable cover of adjustment elements

•Integrated automatic fade-in feature

•Built-in microphone. The receiver becomes a hearing aid

if required. - even without additional accessories -

Connection possibilities on receiver EK 2013 PLL

There are two stereo cinch jacks on the left side of the unit: a large jack with 3.5 mm dia.

and a small jack with 2.5 mm dia.

Only stereo cinch plugs may be inserted into the two jacks! Mono plugs lead to

malfunction or short circuit. Mono headphones must be equipped with stereo cinch plugs.

Integrated antenna

In both jacks the inserted cable is simultaneously used as an antenna. Only use original

Sennheiser cables!

Operation on hearing aid with audio input

The small jack (2.5 mm dia.) supplies the output signal for a hearing aid with an audio

input. Hearing aid dealers carry suitable connection cables.

(also see „CABLES“)

Operation on hearing aid without audio input

The „Tele-Loop“ETZ 1011 or the Induction Disc EZI 120 for hearing aids without an

audio input is connected to the large jack (3.5 mm dia.).

Operation with headphones

Stereo headphones (impedance > 32 Ω) are connected to the large jack.

Receiver EK 2013 PLL

2.9

Lockable cover on receiver

In order to reach the operating elements, a slide (S) is located on the right side of the unit.

This protects the operating elements against unauthorized or accidental use. It is secured

with a set screw (M), which is screwed in completely in order to open the slide.

After removing the slide two potentiometers are accessible:

•The lower potentiometer (P1) adjusts the receiver volume, i.e. regulates the volume

of the signal from the speaker.

•The upper potentiometer (P2) adjusts the basic volume of the built-in microphone.

Automatic fade-in and microphone adjustment

The receiver is equipped with an automatic fade-in feature. The connected hearing aid

microphone or the microphone built into the receiver are turned down for the duration

of speech transmission. This enables the signal of the speaker to be given preference at the

wearer of the receiver.

In addition, the automatic fade-in is complimented by a speech filter. As a result,

disturbing noises (doors banging etc.) do not trigger the automatic fade-in feature.

The automatic fade-in and the basic volume of the faded-in microphone can be set

separately.
