1Introduction

1.1 Product Features

This series of HD-TVI camera adopts high

performance sensors and advanced circuit board

design technology. It features high resolution, low

distortion, and low noise, etc. Designed for use in

surveillance systems..

The main features are as follows:

 High performance CMOS sensor to produce an

exceptional quality image;

 Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR;

 IR cut filter with auto switch;

 OSD menu, parameters are configurable;

 Auto white balance and internal synchronization;

 SMART IR mode;

 True WDR;

 Advanced 3-axis design meets different installation

requirements;

1.2 Overview

The cables of device vary according to different models. The

cables of each type are shown in the figures below, please

refer to the actual product in use.

You can debug the camera by connecting an auxiliary HD TVI

cable to the auxiliary video output.

1.2.1 Overview of Type I Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24VAC/12VDC

Power Cord

Cables

Video Cable

DC 12V Power Cord

Model I Cables

Model II Cables

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24VAC/12VDC

Power Cord

Cables

Video Cable

12VDC Power Cord

Model I Cables

Model II Cables

Base Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

2.1 Ceiling Mounting

Steps:

1. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling

according to the drill template.

Type I Camera：

Type II Camera：

Figure 2-1 Drill Template

2. Loosen the three screws on the edge of the bubble

with the supplied screwdriver to remove the bubble.

3. Attach the back box of Type I camera/base plate of

Type II camera to the ceiling and secure them with

supplied self-tapping screws.

Type I Camera：

Type II Camera：

Figure 2-2 Attach the Back Box/Base Plate

4. Route the cables through the cable hole.

5. Align the cameras with the back box/base plate, and

tighten the set screws to secure the camera with the

back box/base plate.

 Please make sure that the device in the package is in

good condition and all the assembly parts are

included.

Make sure that all the related equipment is

powered-off during installation.

Check the product specifications for the installation

environment requirements.

Check whether the power supply is compatible with

your required output to avoid damage.

Please make sure the wall is strong enough to

withstand three times the weight of the camera and

the mounting.

If the wall is the cement wall, you need to insert

expansion screws before you install the camera. If the

wall is the wooden wall, you can use self-tapping

screw to secure the camera.

If the product does not function properly, please

contact your dealer or the nearest service center. Do

not disassemble the camera for repair or

maintenance by yourself.

Type I Camera：

Type II Camera：

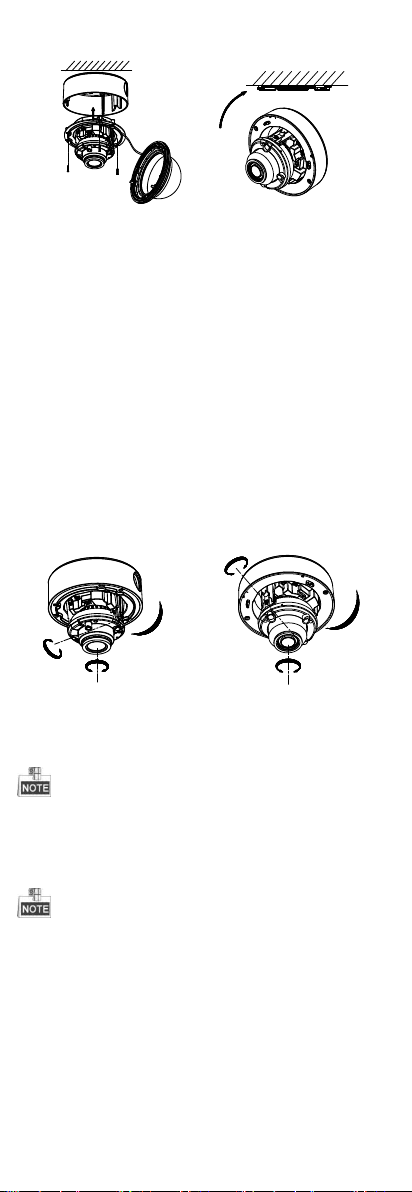

Figure 2-3 Fix the Camera to the Ceiling

6. Connect the video cable to the monitor and connect

the power cable to the power supply.

7. Adjust the camera according to Figure 2-4 to get an

optimum angle.

1). View the camera image with the monitor.

2). Rotate the panning table to adjust the pan

direction.

3). Loosen the tilting lock screw.

4). Rotate the tilting table to adjust the tilt

direction.

5). Tighten the tilting lock screw.

6). Rotate the camera to adjust the lens to the

surveillance angle.

Type I Camera：

0° to 355°

0° to 75°

0° to 355°

0° to 340°

0° to 75°

Type II Camera:

Figure 2-4 3-axis Adjustment

8. Tighten the screws to secure the bubble with the

back box/base plate.

Once installation is complete, use caution when

removing the plastic film protecting the dome cover.

2.2 In-ceiling Mounting

You need to purchase an in-ceiling mount separately if you

adopt in-celling mounting.

2.2.1 In-ceiling Mounting without Gang Box

Steps:

1. Drill the screw holes and the cable hole in the ceiling

according to the supplied drill template.

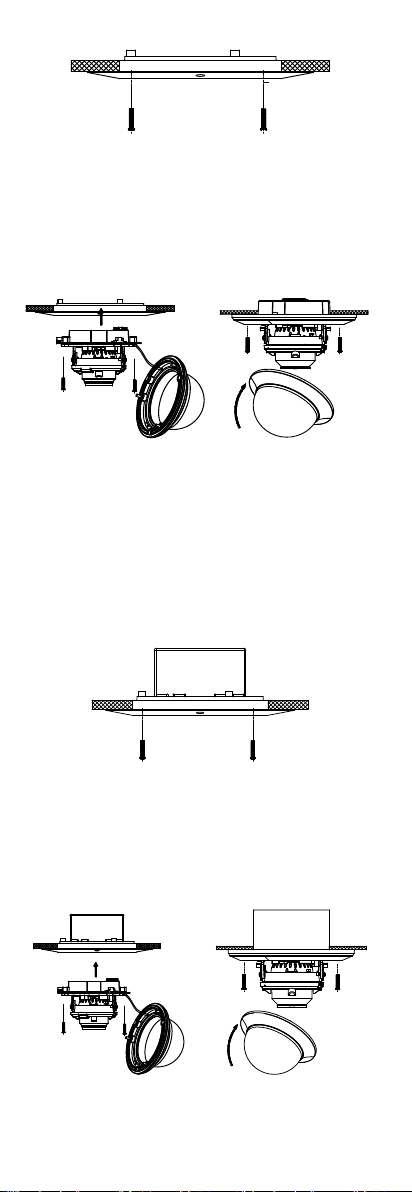

2. Secure the in-ceiling mount with two screws as

shown in Figure 2-5.

Figure 2-5 Install the Mount

3. Route the cables through the hole of in-ceiling

mount and connect the corresponding cables.

4. Fix the camera to the in-ceiling mount with the

supplied screws.

Type I Camera：

Type II Camera：

Figure 2-6 Fix the Camera to the Mount

5. Repeat the steps 6 to 8 of the ceiling mounting

section to complete the installation.

2.2.2 In-ceiling Mounting with Gang Box

Steps:

1. Repeat the steps 1 to 3 of in-ceiling mounting

without gang box and secure the in-ceiling mount

(supplied) to the gang box with two screws.

Figure 2-7 Install the Mount

2. Route the cables through the hole in the center of

the in-ceiling mount.

3. Align the camera with the gang box, and tighten the

screws to secure the camera with the gang box.

Type I Camera：

Type II Camera:

Figure 2-8 Secure the Camera

4. Repeat the steps 6 to 8 of the ceiling mounting

section to complete the installation.

2.3 Mounting with Inclined Base of Type I Camera

Steps:

1. Install the inclined base to the ceiling with supplied

screws, as shown in Figure 2-9.

Figure 2-9 Fix the Inclined Base

2. Route cables through the hole of the in-ceiling

mount and connect the corresponding cables.

3. Fix the camera to the in-ceiling mount with the

supplied screws.

Figure 2-10 Fix the Camera to the Base

4. Repeat steps 6 to 8 of the ceiling mounting

section to complete the installation.

3Menu Description

MAIN MENU

AE WB DAY

&NIGHT

VIDEO

SETTING RESET

SAVE

&EXIT

BRIGHTNESS

EXPOSURE

MODE

GAIN

ATW

MWB

COLOR

B/W

CONTRAST

SHARPNESS

COLOR

GAIN

DNR

MIRROR

SMART

FORMAT FOCUS

SETUP

Figure 3-1 Main Menu Overview

With a camera controller (purchased separately) or calling

the preset No. 95 of DVR you can select the menu and

adjust the parameters.

Move the cursor up/down to select the menu item.

Move the cursor left/right to adjust the value of the

selected item.

Press the OK key to confirm a selection.

3.1 Format

Move the cursor to FORMAT, and press the menu

button to enter the FORMAT sub menu. You can set the

format of camera and confirm.

3.2 Focus

Move the cursor to FOCUS, and press the menu button

to enter the FOCUS sub menu. Move the cursor to

adjust the camera lens by the FOCUS+, FOCUS-, ZOOM

+ and ZOOM-. *MZL models

3.3 Main Menu

3.3.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You

can adjust the image brightness by the BRIGHTNESS,

EXPOSURE MODE, and GAIN in different light

conditions.

EXPO SURE

BRIGHTNESS

EXPO SURE MODE

GAIN

RETURN

BLC

MIDDLE

Figure 3-2 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 10 to darken or

brighten the image. The higher the value is, the brighter

the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is

for adjusting the situations including unusual lighting

distribution, variations, non-standard processing, or

other conditions of under exposure to get an optimum

image.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensate light to the

object in the front to make it clear, but this causes the

over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the

camera provide clear images even under back light

circumstances. WDR balances the brightness level of

the whole image and provide clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The

GAIN level can be set to HIGH, MIDDLE, and LOW.

Select OFF to disable the GAIN function.

The noise will be amplified if the GAIN is on.

3.3.3 WB (White Balance)

White balance is the white rendition function of the

camera to adjust the color temperature according to

the environment. It can remove unrealistic color casts

in the image. You can set WB mode as ATW, and MWB.

ATW

In ATW mode, white balance is being adjusted

automatically according to the color temperature of

the scene illumination.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

B GAIN

RETURN

MWB

Figure 3-3 MWB Mode

3.3.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and

NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR

LED turns on in low-light conditions.

SMART

You can select to turn on/off the INFRARED and set the

value of SMART IR in this menu.

DAY/NIGHT

MODE

INFRARED

SMART IR

RETURN

SMART

OPEN

Figure 3-4 Day & Night

INFRARED

You can select to turn on/off the IR LED to respond to

different site requirements.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and to prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The higher the value is, the more obvious

effects are, and it is disabled when the value is 0.

3.3.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press the

confirm button to enter the submenu. CONTRAST,

SHARPNESS, COLOR GAIN, DNR and MIRROR are

adjustable.

VIDEO SET TING

CONTRAST

SHARPNESS

COLOR GAIN

DNR

MIRROR

RETURN

DEFAULT

Figure 3-5 Video Setting

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,

especially when capturing moving images in low light

conditions and delivering a more accurate and sharp

image.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180 degree horizontally.

V: The image flips 180 degree vertically.

HV: The image flips 180 degrees both horizontally and

vertically.

3.3.6 RESET

Reset all the settings to the default.

3.3.7 SAVE &EXIT

Move the cursor to SAVE &EXIT and press OK to save

the setting and exit the menu.

4IR Reflection Prevention

For the cameras that supports IR, you are required to

pay attention to the following precautions to prevent IR

reflection:

Dust or grease on the dome cover will cause IR reflection.

Please do not remove the dome cover film until the

installation is finished. If there is dust or grease on the

dome cover, clean the dome cover with clean soft cloth and

isopropyl alcohol.

Make sure that there is no reflective surface too close to

the camera lens. The IR light from the camera may reflect

back into the lens causing poor image quality.

The foam ring around the lens must be seated flush against

the inner surface of the bubble to isolate the lens from the

IR LEDS. Fasten the dome cover to camera body so that the

foam ring and the dome cover are attached seamlessly.

Table of contents

Other Securitytronix Security Camera manuals

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-TD3.6-1MP User manual

Securitytronix

Securitytronix HD-COAXINATOR TVI ST-HDC2FB-CNV User manual

Securitytronix

Securitytronix ST-D1000P-W User manual

Securitytronix

Securitytronix ST-IP2FTD User manual

Securitytronix

Securitytronix ST-IP2VFB User manual

Securitytronix

Securitytronix ST-BT540IR50VFDV-B User manual

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2VFTD-MZ User manual

Securitytronix

Securitytronix ST-IP-MD36-1 User manual

Securitytronix

Securitytronix ST-HD-BT2812M-2MP User manual

Securitytronix

Securitytronix ST-IP-BTVF-2 User manual

Securitytronix

Securitytronix ST-DLI540IRVP-B User manual

Securitytronix

Securitytronix ST-PTZIR480-22X User manual

Securitytronix

Securitytronix ST-PTZIR530-36 User manual

Securitytronix

Securitytronix ST-BTLI540IR30-B User manual

Securitytronix

Securitytronix ST-WD600PTZMINI User manual

Securitytronix

Securitytronix ST-DLI600VPDV2812-B-W User manual

Securitytronix

Securitytronix ST-IP-BT3.6-1 User manual

Securitytronix

Securitytronix HD-CDAXINATORTVI ST-HDC2VFD-MZ User manual

Securitytronix

Securitytronix HD-CoaxinatorTVI ST-HDC2VFB-MZ User manual

Securitytronix

Securitytronix ST-CVTMD420-WPIR-W User manual

Securitytronix

Securitytronix HD-Coaxinator ST-HD-D2812-1MP User manual

Securitytronix

Securitytronix ST-BT6003.6-W2 User manual

Securitytronix

Securitytronix ST-D600IR2812 User manual

Securitytronix

Securitytronix ST-D600VP3.6-B-W User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
