Securitytronix HD-COAXINATOR ST-HD-PTZ-2MP User manual

INSTALLATION MANUAL

www.nacebrands.com www.securitytronix.com

Professional Pan Tilt Zoom Camera

ST-HD-PTZ-2MP

Description:

The ST-HD-PTZ-2MP is a professional-grade intelligent dome color

camera with Pan/Tilt/Zoom (PTZ) capabilities, and 1080p resolution.

The camera is designed to function with HD-COAXINATOR™ recorders to

utilize Control Over Coax (COC) without the need for an additional

RS485 connection.

Specifications:

Image Sensor 1/2.8” Exmor CMOS

Resolution

1920(H) x 1080(V) @25fps

Scanning System Progressive

Auto Electronic Shutter

1/1 ~ 1/30,000s

Minimum Illumination Color: 0.[email protected]; B/W: 0.005L[email protected]

Signal to Noise Ratio

> 50dB

Video Output

1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch)

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction 2D/3D

Lens

4.3mm - 129mm

Pan/Tilt Range Pan: 0° ~ 360° endless / Tilt: -10° ~ 90°, auto flip 180°

Pan Speed

350° /sec

Protocol DH-SD, Pelco-P/D (Auto recognition)

Alarm

2/1 channel In/Out

Power Supply AC 24V/1.5A

Power Consumption 10.5W, 19W (Heater on)

Working Environment

-30°f ~ 130°f / Less than 90% RH

Ingress Protection IP66

Dimensions

Φ7.5”x 10”

Weight 6lbs

Default Address

Default Baud Rate 9600

CAUTION: To reduce the risk of electrical shock do not remove the

cover or back of this unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not

use other than specified power source.

Unpacking

Package Contents:

(1) ST-HD-PTZ-2MP High-Speed Color Camera

(1) Wall Mounting Bracket

(1) 24V AC Power Supply

(1) Installation Manual

Ensure that all accessories and documentation are removed from the

container before discarding packing material.

Inspect the front, sides, and rear of the equipment for shipping

damage. Make sure the equipment is clean, and no connectors are

broken, damaged, or loose. If equipment appears to be damaged or

defective please contact your distributor or SecurityTronix at:

(800) 688-9282, press 3for tech support, then press 2for CCTV.

Setup & Installation

!! ATTENTION !!

Be sure that all three screws that attach the camera to the

mounting bracket are tightened securely.

The installer must comply with electrical safety standards.

There must be sufficient space between the camera’s power

supply and video line and any high voltage equipment and/or

cables.

To help ensure the camera’s life and proper operation do not

point the camera towards the sun or strong light.

Do not install the camera in an environment where the

temperature is above 130°f.

Do not install the camera near a magnetic field or a high-

power motor.

Do not mount the camera near a radiator or heater.

The installation site and material must fully support the

weight of the product.

Only use a dry cloth to clean the camera. If there is dirt that is

difficult to remove wipe gently with a mild detergent. Never

use strong or abrasive detergents.

The included 24VAC power supply must be used. Using a DC

or other incorrect power supply will damage the camera.

Only qualified installers are allowed to install and test the

camera.

The camera is a low voltage product. If installed outdoors

proper safety and lightning grounding are required.

Be sure the grounding, wiring, input power, and voltage are

correctly set prior to powering up and using.

Making Connections

1. Connect the AC power supply cable to the camera’s power

leads.

2. Connect the camera to the CVR with a 75Ω coaxial video

cable.

3. (Optional) Connect unshielded twisted pair (UTP) control

cable between the camera’s labeled RS485 leads and the PTZ

controller. Be sure wire polarities (+/-) are the same at each

connection.

4. Connect power supply’s AC plug to a suitable AC power

outlet.

Operation

Default Address: 1

Default Baud Rate: 9600

Setting Address

On your PTZ controller, CALL preset 95 to enter the OSD MENU. The

symbol will indicate your current selection. Using the joystick or

up/down arrows, navigate to SYSTEM SETTING and press OPEN to

enter.

Navigate to ADDR INFORMATION and press OPEN to enter.

Change ADDR TYPE to SOFT by moving left or right using your PTZ

controller. Next, navigate to ADDR-SOFT and set your desired address

by moving right to increase, or left to decrease.

Once the desired address has been set, navigate to SAVE and press

OPEN to save the address settings. Finally, navigate to EXIT and press

OPEN on your PTZ controller to exit the OSD MENU.

Basic Operation

The table below is a quick guide to the camera’s basic operations using

a PTZ controller.

Function Operation

Pan/Tilt Move joystick or press arrows left, right, up, or down.

Zoom Out Press WIDE or rotate the joystick counter-clockwise for the

desired image.

Zoom In Press TELE or rotate the joystick clockwise for the desired

image.

Focus Near Press NEAR until there is a clear image.

Focus Far Press FAR until there is a clear image.

Note: the camera will attempt auto-focus after being panned, tilted, or zoomed.

Enter OSD Menu CALL Preset 95

Confirm Menu Selection Press OPEN

Set Left Point WRITE Preset 92

Set Right Point WRITE Preset 93

Begin Left/Right Scan CALL Preset 99

End Left/Right Scan Move joystick or press arrows left, right, up, or down.

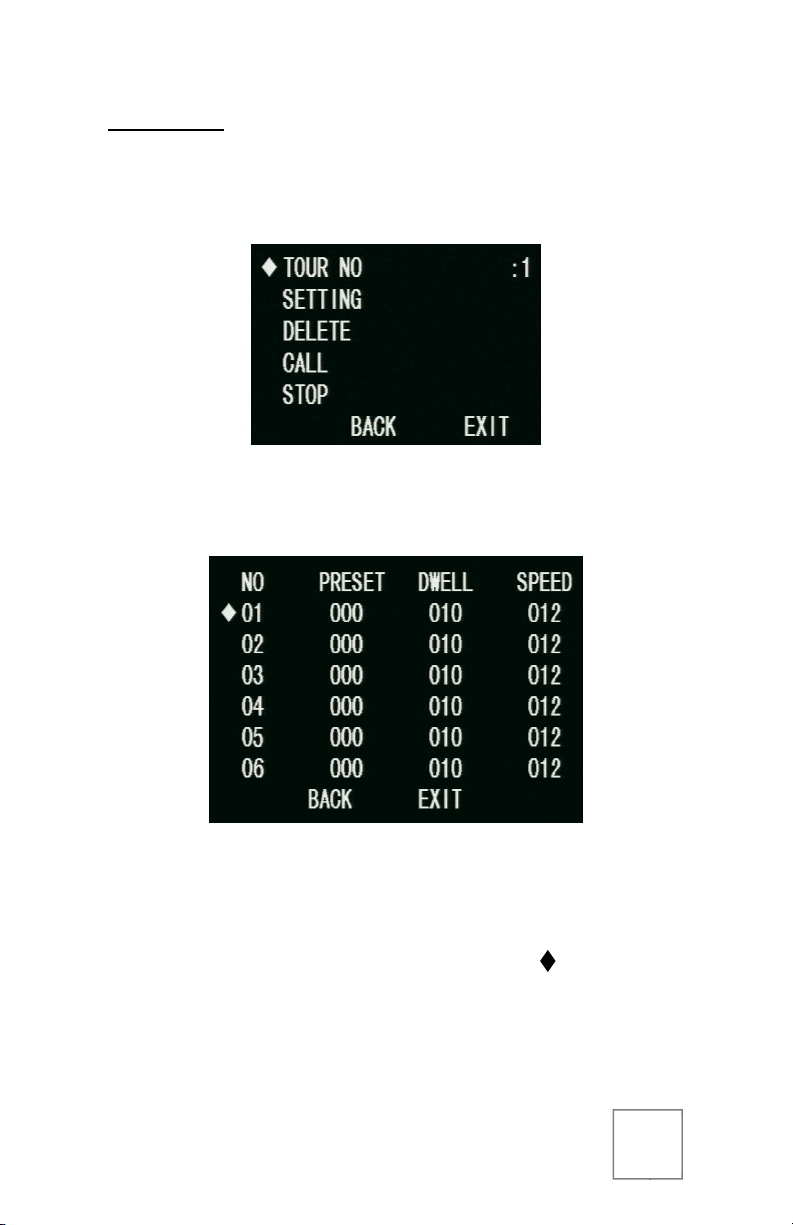

Setting a Tour

After PRESET locations have been set, enter the OSD MENU, then use

the joystick or up/down arrows to navigate to FUNCTION SETTING and

press OPEN to enter. Next, navigate to TOUR and press OPEN.

Using the controller’s joystick or arrow buttons, move left or right at

TOUR NO to select the desired tour to edit, then navigate to SETTING

and press OPEN.

Use the joystick or arrow buttons to navigate tour positions. Up and

down will cycle through the positions currently displayed on screen,

and left and right will cycle through pages of positions.

Once a tour position is selected (indicated by the symbol), press

OPEN to edit the tour position’s parameters. Move the joystick left

and right to choose which parameter to edit, or up and down to

change parameter values.

PRESET indicates which preset number will be called for the

tour position.

DWELL indicates the amount of time the camera will spend at

the tour position.

SPEED indicates the speed that the camera will move to the

next tour position.

Press OPEN to return to position selection.

Enter the parameters for desired tour positions in order starting at 1.

Up to 32 tour positions may be assigned per tour. Any positions left

with PRESET 000 will not be included in the tour.

Once all desired tour positions have been configured. Navigate to

BACK and press OPEN to return to the TOUR menu.

To begin the tour: make sure that the desired TOUR NO is

selected, then navigate to CALL, and press OPEN. The tour

will begin, and no further steps are needed. The OSD menu

will disappear from the screen after a few moments.

To end a running tour: simply move the controller’s joystick

or directional buttons left, right, up, or down.

Troubleshooting

Issue Solution

No picture after applying

power.

(1) Check that all plugs and cables are securely connected

to the proper connectors.

(2) Ensure that the power supply is providing the correct

voltage and current.

Picture is consistently

tinted or distorted.

(1) Check that the coaxial video cable from the camera to

the CVR is securely connected at both ends.

(2) Connect the camera to an alternate working coaxial

video cable between the camera and CVR.

(3) Re-terminate the coaxial video cable between the

camera and CVR with new BNC connectors.

Picture has ripples or

rolling lines.

(1) Check to see if the power supply is experiencing AC

ripple; if so, a filter may be required. (2) Determine if the

monitor is faulty. (3) Determine if other peripheral

equipment is causing ripple, and if so, make the necessary

adjustments.

The picture is tinted / Fluorescent lights’ magnetic field may cause color roll. (1)

continuously changing

Colors.

Check that the coaxial video cable between the camera

and CVR is not too close to fluorescent lights; increase

distance as needed. (2) Reduce the number of fluorescent

lights near the camera.

Power and video are on,

but the controller does

not move the camera.

(1) Check to ensure that the controller is set to the baud

rate, address, and protocol of the camera. (2) Check to

ensure that the RS485 connections at the camera and the

PTZ controller have the same polarity. (3) Check the

integrity and continuity of the unshielded twisted pair

(UTP) control cable.

For further assistance and troubleshooting, please contact

SecurityTronix tech support at:

(800) 688-9282, press 3for Tech Support, then press 2for CCTV.
