Samsung DV56H9100EG/AC User manual

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

DV56H9100E*

DV56H9100G*

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 1 2016/8/16 18:12:55

English - 2

contents

INSTALLING YOUR DRYER

77Unpacking your dryer

7Basic requirments

8Ducting requirements

9Important to installer

9Location considerations

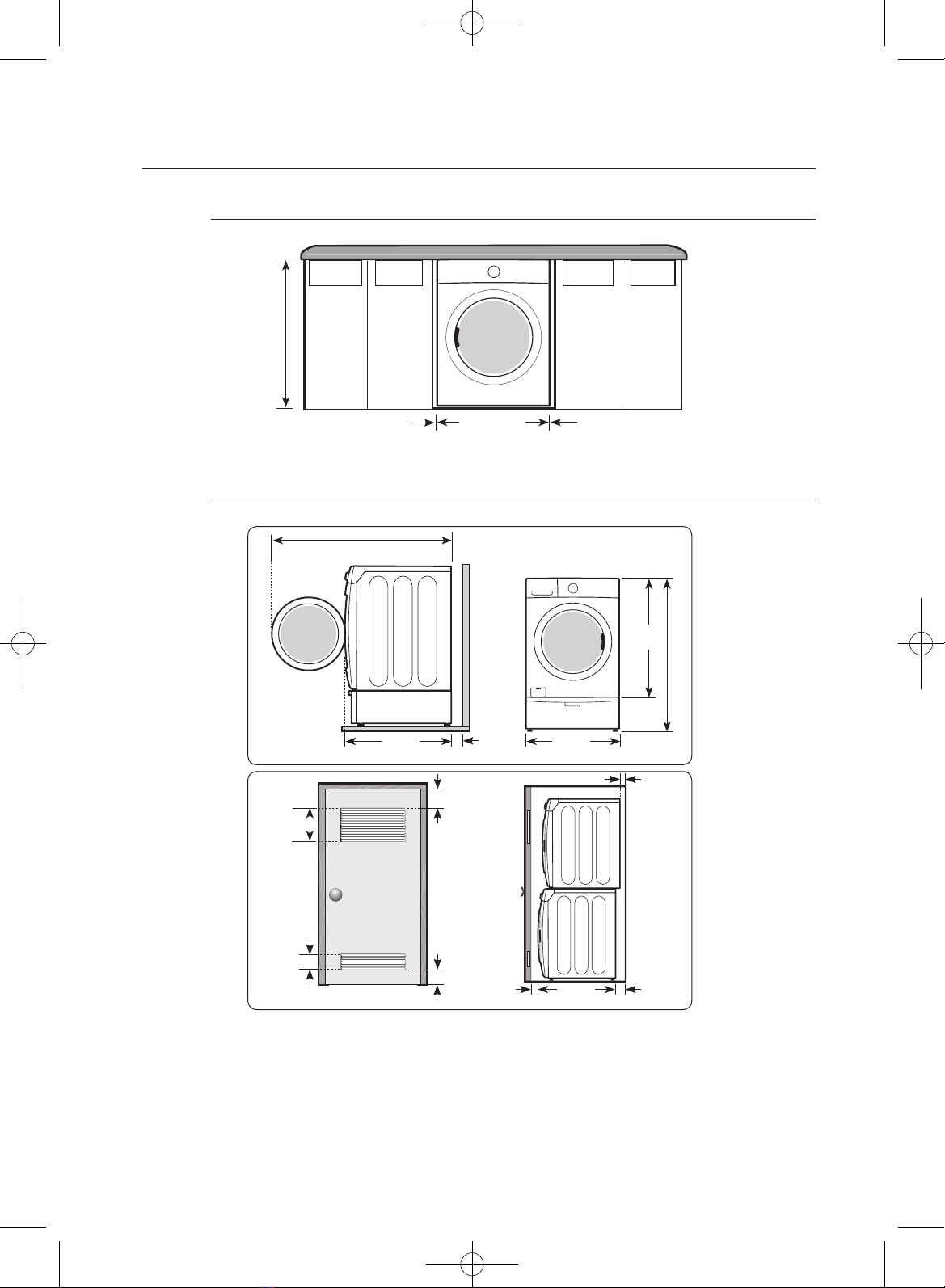

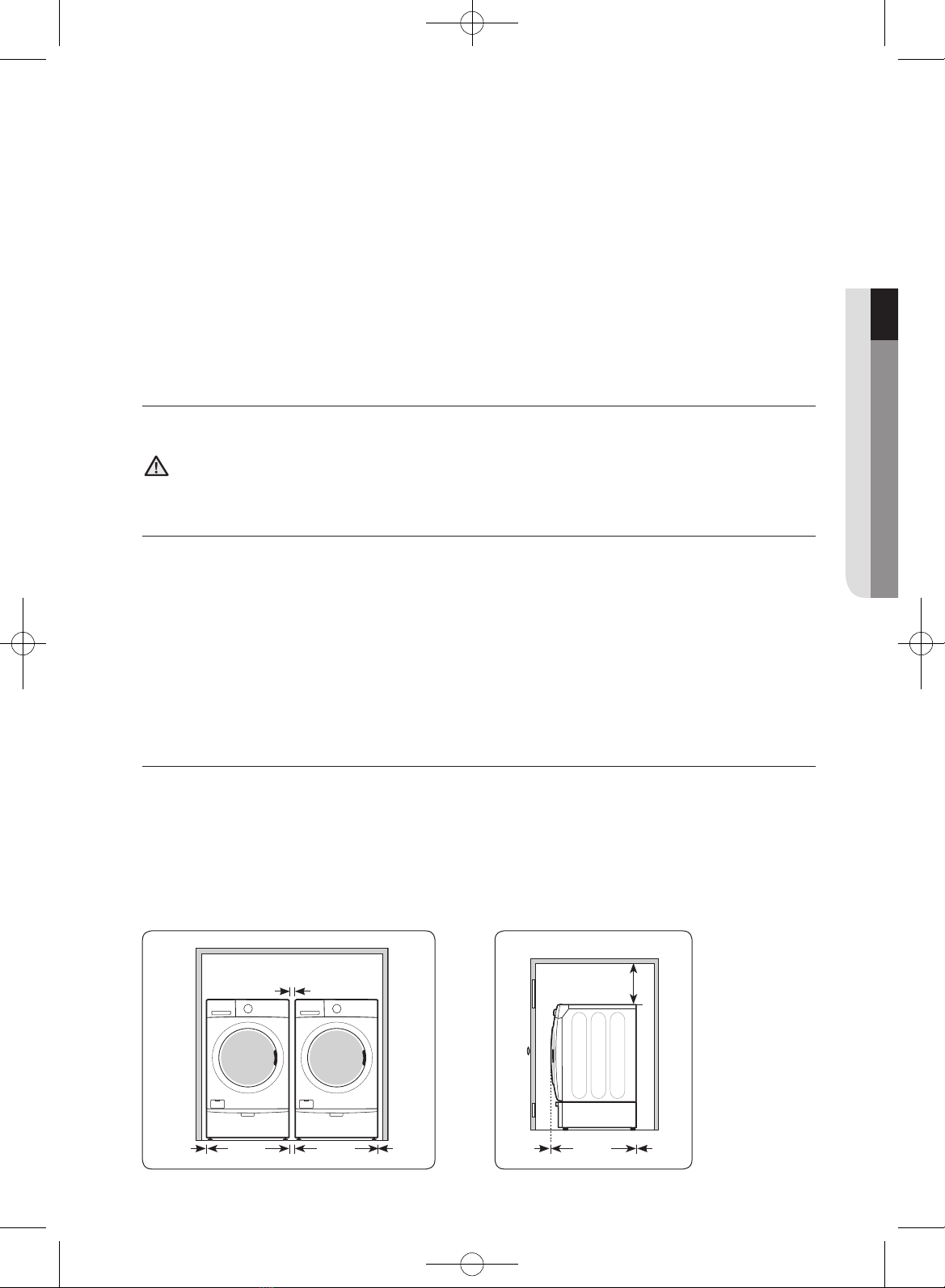

9Alcove or closet installation

11 Exhausting

12 Gas requirements

12 Commonwealth of Massachusetts

installation instructions

13 Electrical requirements

13 Grounding

14 Electrical connections

15 Installation - General procedure

18 Connecting the Inlet Hose

18 Final installation check list

19 Dryer Exhaust Tips

20 Door Reversal

OPERATING INSTRUCTIONS, TIPS

22 22 Overview of the control panel

OPERATING INSTRUCTIONS, TIPS

25 25 Rack Dry

26 My Cycle

26 Drum Light

26 Sound

26 Child lock

27 Smart Care

OPERATING INSTRUCTIONS, TIPS

27 27 Clean the lint ﬁlter

27 Load the dryer properly

27 Getting started

27 Vent sensor

CARE AND CLEANING

30 30 Control Panel

30 Tumbler

30 Powder Coated Tumbler

30 Dryer Exterior

30 Dryer Exhaust System

SPECIAL LAUNDRY TIPS

31 31 Special laundry tips

TROUBLESHOOTING

32 32 Check these points if your dryer…

33 Information codes

APPENDIX

34 34 Fabric care chart

35 Protecting the environment

35 Declaration of conformity

35 Speciﬁcations

36 Cycle chart

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 2 2016/8/16 18:12:55

English - 3

safety instructions

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many beneﬁts and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury

or death.

Follow the information in this manual to minimize the risk of ﬁre or

explosion or to prevent property damage, personal injury, or death.

Do not store or use gasoline or other ﬂammable vapors and liquids near

this or any other appliance.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning icons are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

Read all instructions before using the appliance.

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 3 2016/8/16 18:12:55

English - 4

WARNING: To reduce the risk of ﬁre, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other ﬂammable or explosive

substances, as they give o vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any ﬂammable substance,

such as vegetable oil, cooking oil, machine oil, ﬂammable chemicals, paint thinner, etc.,

or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable

substances may cause the fabric to catch ﬁre by itself.

4. Do not store or use gasoline or other ﬂammable vapors and liquids near this or any

other appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

speciﬁcally recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualiﬁed service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch ﬁre.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in

installing your dryer section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

- This may result in injury.

20. Take care that children’s ﬁngers are not caught in the door when closing it.

- This may result in injury.

21. Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

- Do not contact this part while appliance is energized.

safety instructions

WARNING

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 4 2016/8/16 18:12:55

English - 5

• State of California Proposition 65 Warnings (US only)

This product contains chemicals known to the State of California to cause

cancer and birth defects or other reproductive harm.

• Gasappliancescancauselow-levelexposuretoProposition65listed

substances, including but not limited to, benzene, carbon monoxide,

formaldehyde and soot, substances resulting from the incomplete

combustion of natural gas or LP fuels.

WARNING -

Gas Appliances:

To reduce the risk of ﬁre or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ﬂammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or ﬂammable liquids or solids should not be placed in the dryer until all

traces of these ﬂammable liquids or solids and their fumes have been removed.

There are many highly ﬂammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers.

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce ﬁre by spontaneous combustion.

What to do if you smell gas:

• Donottrytolightanyappliance.

• Donotturnontheappliance.

• Donottouchanyelectricalswitch.

• Donotuseanyphoneinyourbuilding.

• Cleartheroom,buildingorareaofalloccupants.

• Immediatelycallyourgassupplierfromaneighbor’sphone.Followthegassupplier’s

instructions.

• Ifyoucannotreachyourgassupplier,calltheredepartment.

• Installationandservicemustbeperformedbyaqualiedinstaller,serviceagency,orthe

gas supplier.

• Clothesdryerinstallationmustbeperformedbyaqualiedinstaller.

• Installtheclothesdryeraccordingtothemanufacturer’sinstructionsandlocalcodes.

• Donotinstallaclothesdryerwithexibleplasticventingmaterials.Ifexiblemetal

(foil type) duct is installed, it must be of a speciﬁc type identiﬁed by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airﬂow and increase the risk of ﬁre.

• Toreducetheriskofsevereinjuryordeath,followallinstallationinstructions.

WARNING - Risk of Fire

WARNING

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 5 2016/8/16 18:12:55

English - 6

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless speciﬁcally

instructed to in the user-repair instructions and you have the understanding and skills to

carry out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualiﬁed service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer’s instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain signiﬁcant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch ﬁre. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a ﬁre hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

safety instructions

WARNING

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 6 2016/8/16 18:12:55

English - 7

installing your dryer

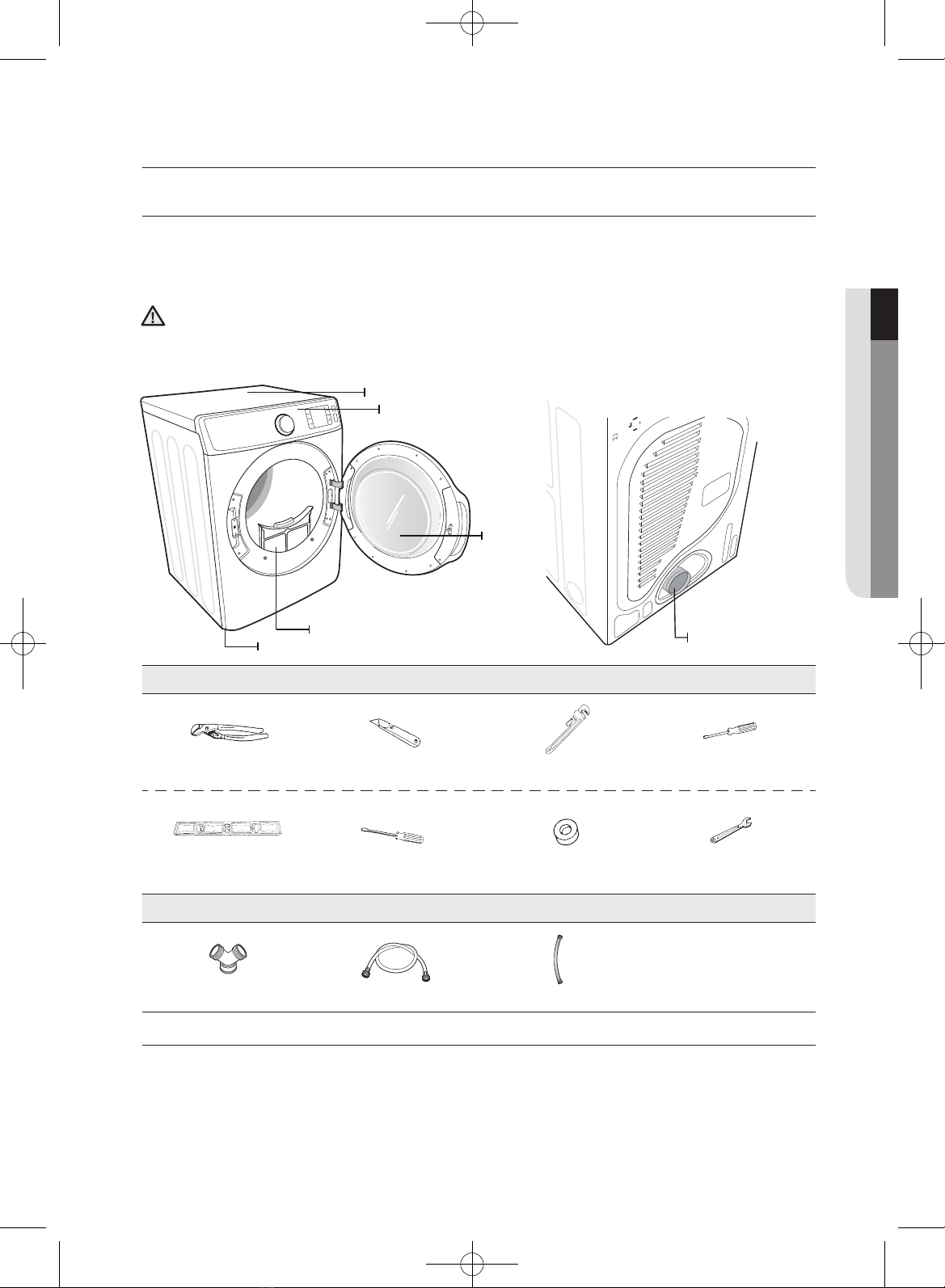

UNPACKING YOUR DRYER

Unpack your dryer and Inspect it for shipping damage. Make sure you have received all of the items

shown below. If your dryer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer.

Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

etc.) well out of children’s reach.

Tools needed

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

Level Phillips Screwdriver Duct tape Wrench

Parts supplied

“Y”- Connector Hose water Short inlet hose

BASIC REQUIRMENTS

Make sure you have everything necessary for proper installation

• A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

• A POWER CORD for electric dryers (except in Canada).

• GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.

• EXHAUST SYSTEM - must be rigid metal or ﬂexible sti-walled metal exhaust ducting.

WARNING

[ BACK ]

Control panel

Door

Top Cover

Frame Front

Filter Duct Exhaust

01 installing your dryer

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 7 2016/8/16 18:13:05

English - 8

DUCTING REQUIREMENTS

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

• If a ﬂexible metal duct must be used, use the type with a sti sheet metal wall. Do not use a ﬂexible duct

with a thin foil wall. Serious blockage can result if the ﬂexible metal duct is bent too sharply.

• Never install any type of ﬂexible duct in walls, ceilings, or other concealed spaces.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

• Plastic ﬂexible duct can kink, sag, be punctured, reduce airﬂow, extend drying times, and aect dryer

operation.

• Exhaust systems longer than recommended can extend drying times, aect machine operation, and

may collect lint.

• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

the entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

• Check frequently to be sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

• Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or

any other common duct or chimney. This could create a ﬁre hazard from lint expelled by the dryer.

ELECTRIC AND GAS DRYER

Weather Hood Type

Recommended Use only for short-run installation

4” (10.2 cm) 2.5” (6.4 cm)

No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

0 80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)

1 68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)

2 57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)

3 47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)

* Do not use non-metallic ﬂexible duct.

installing your dryer

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 8 2016/8/16 18:13:07

English - 9

If the new dryer is being installed into an existing exhaust system, you must

make sure:

• The exhaust system meets all local, state, and national codes.

• That a ﬂexible plastic duct is not used.

• To Inspect and clean all lint buildup from inside the existing duct.

• The duct is not kinked or crushed.

• The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust

duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be

empty and the lint ﬁlter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

Remove the door from all discarded appliances to avoid the danger of a child suocating.

LOCATION CONSIDERATIONS

Locate the dryer where there is enough space at the front for loading the dryer, and enough space behind

for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the right

or the left (electric model only), use the accessory exhaust kit (sold separately). Instructions are included

with the kit. It’s important to make sure the room has enough fresh air. The dryer must be located where

there is no air-ﬂow obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper dryer operation.

Do not install or store the dryer in an area where it will be exposed to water and/or weather. Keep the dryer

area clear of combustible materials, gasoline, and other ﬂammable vapors and liquids. A dryer produces

combustible lint. The area around the dryer should be kept lint free.

ALCOVE OR CLOSET INSTALLATION

MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:

Sides – 1 in / 25 mm

Rear – 5 in / 127 mm

Top – 17 in / 432 mm

Closet Front – 2 in / 51 mm

If the washer and dryer are installed together, the closet front must have at least a 72 in² (465 cm²)

unobstructed air opening. Your washer alone does not require a speciﬁc air opening.

A. Recessed area

B. Side view - closet or conﬁned area

2 in.

(5 cm) 32 in.

(81.3 cm) 5 in.

(12.7 cm)

17 in.

(43.2 cm)

1 in.

(2.5 cm) 30 in.

(76.2 cm)

1 in.

(2.5 cm)

1 in.

(2.5 cm)

30 in.

(76.2 cm)

01 installing your dryer

WARNING

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 9 2016/8/16 18:13:11

English - 10

installing your washer

Undercounter installation

With optional pedestal base or stacking kit

Required Dimensions for Installation With Pedestal (Model No.: WE302*)

32 in.

(81.3 cm) 5 in.

(12.7 cm)

57.8 in. (146.7 cm) to clear open door

30 in.

(76.2 cm)

42.6 in.

(108.3cm)

53.7 in.

(136.5 cm)

32.5 in.

(82.6 cm)

3 in.

(7.6 cm)

Closet or Door

48 in.² *

(310 cm²)

3 in.

(7.6 cm)

24 in.² *

(155 cm²)

1 in.

(2.5 cm) 7.5 in.**

(19 cm)

5 in.

(12.7 cm)

1 in.

(2.5 cm) 30 in.

(76.2 cm) 1 in.

(2.5 cm)

43 in.

(109.2 cm)

DV9100HA DRY_DV56H_USER MANUAL_DC68-03170K-09_EN.indd 10 2016/8/16 18:13:17
