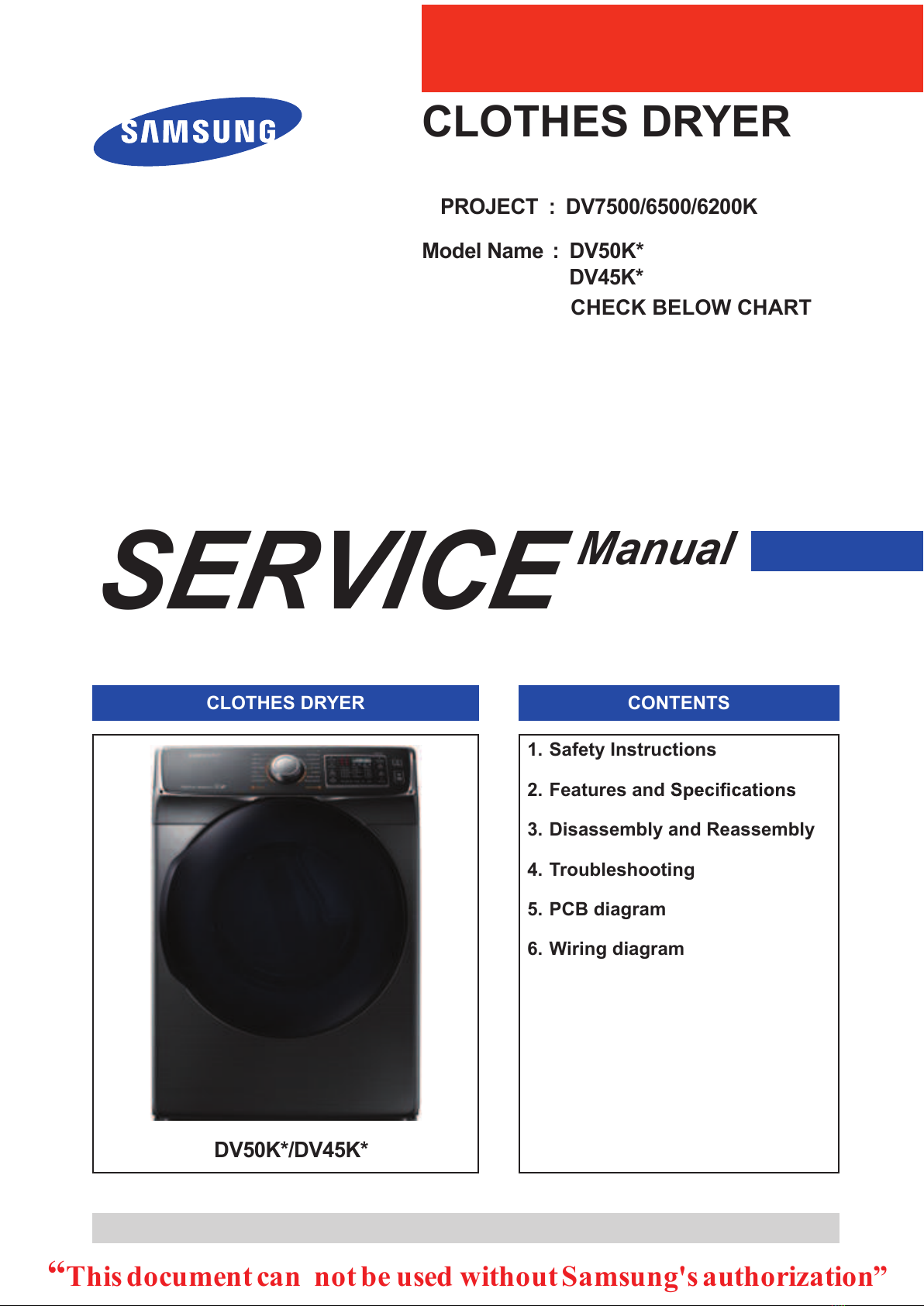

Samsung DV50K Series User manual

CLOTHES DRYER CONTENTS

SERVICE Manual

Refer to the service manual in the GSPN (see the rear cover) for the more information.

DV50K*/DV45K*

“This document can not be used without Samsung's authorization”

CLOTHES DRYER

Wiring diagram

Model Name : DV50K*

DV45K*

CHECK BELOW CHART

PROJECT : DV7500/6500/6200K

Safety Instructions

2. Features and

3. Disassembly and Reassembly

4. Troubleshooting

5. PCB diagram

https://appliancetechmanuals.com

FeaturesandSpecications_5

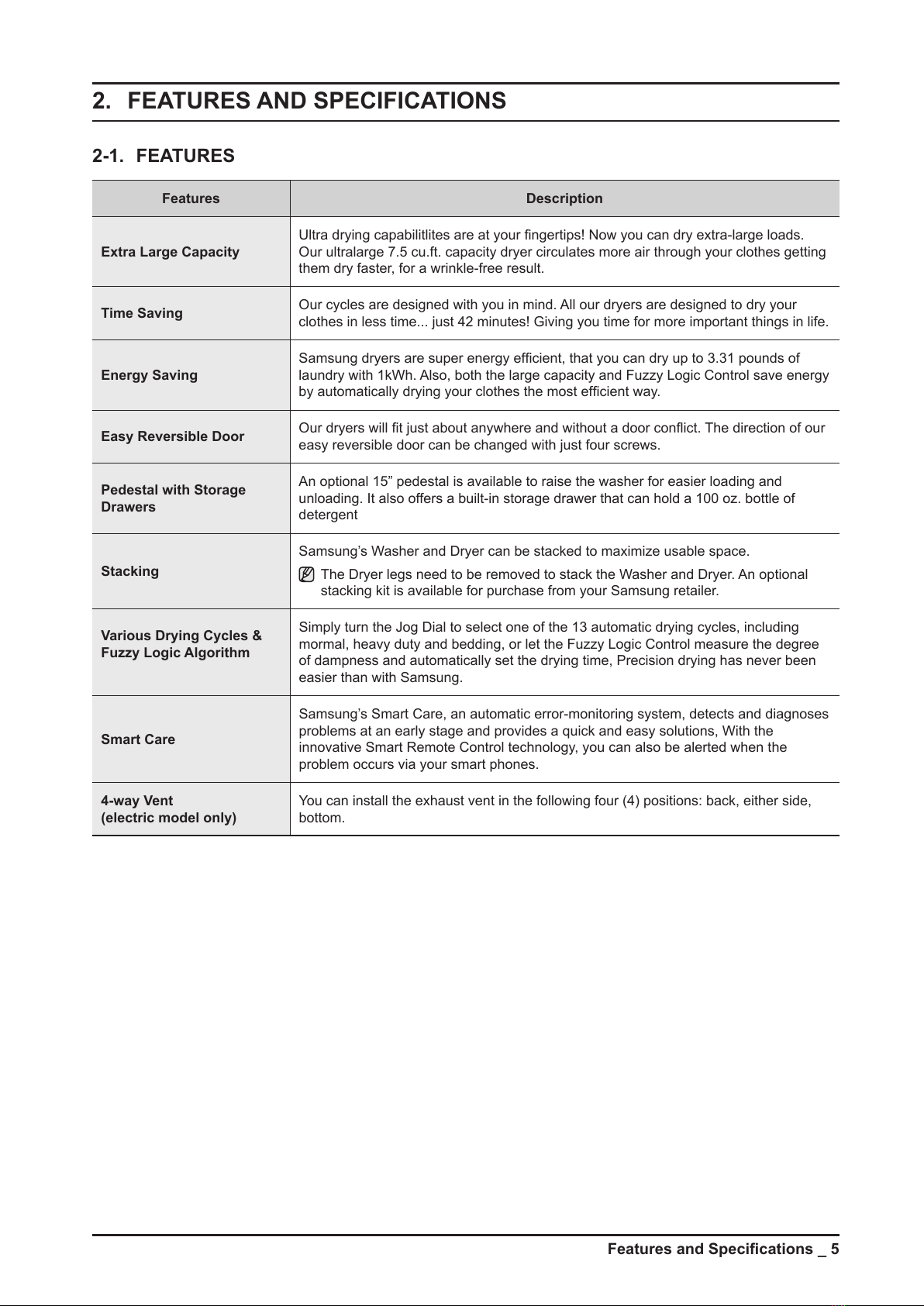

2. FEATURES AND SPECIFICATIONS

2-1. FEATURES

Features Description

Extra Large Capacity

Ultradryingcapabilitlitesareatyourngertips!Nowyoucandryextra-largeloads.

Ourultralarge7.5cu.ft.capacitydryercirculatesmoreairthroughyourclothesgetting

themdryfaster,forawrinkle-freeresult.

Time Saving Ourcyclesaredesignedwithyouinmind.Allourdryersaredesignedtodryyour

clothesinlesstime...just42minutes!Givingyoutimeformoreimportantthingsinlife.

Energy Saving

Samsungdryersaresuperenergyefcient,thatyoucandryupto3.31poundsof

laundrywith1kWh.Also,boththelargecapacityandFuzzyLogicControlsaveenergy

byautomaticallydryingyourclothesthemostefcientway.

Easy Reversible Door Ourdryerswilltjustaboutanywhereandwithoutadoorconict.Thedirectionofour

easyreversibledoorcanbechangedwithjustfourscrews.

Pedestal with Storage

Drawers

Anoptional15”pedestalisavailabletoraisethewasherforeasierloadingand

unloading.Italsooffersabuilt-instoragedrawerthatcanholda100oz.bottleof

detergent

Stacking

Samsung’sWasherandDryercanbestackedtomaximizeusablespace.

 TheDryerlegsneedtoberemovedtostacktheWasherandDryer.Anoptional

stackingkitisavailableforpurchasefromyourSamsungretailer.

Various Drying Cycles &

Fuzzy Logic Algorithm

SimplyturntheJogDialtoselectoneofthe13automaticdryingcycles,including

mormal,heavydutyandbedding,orlettheFuzzyLogicControlmeasurethedegree

ofdampnessandautomaticallysetthedryingtime,Precisiondryinghasneverbeen

easierthanwithSamsung.

Smart Care

Samsung’sSmartCare,anautomaticerror-monitoringsystem,detectsanddiagnoses

problemsatanearlystageandprovidesaquickandeasysolutions,Withthe

innovativeSmartRemoteControltechnology,youcanalsobealertedwhenthe

problemoccursviayoursmartphones.

4-way Vent

(electric model only)

Youcaninstalltheexhaustventinthefollowingfour(4)positions:back,eitherside,

bottom.

https://appliancetechmanuals.com

6 _ Features and

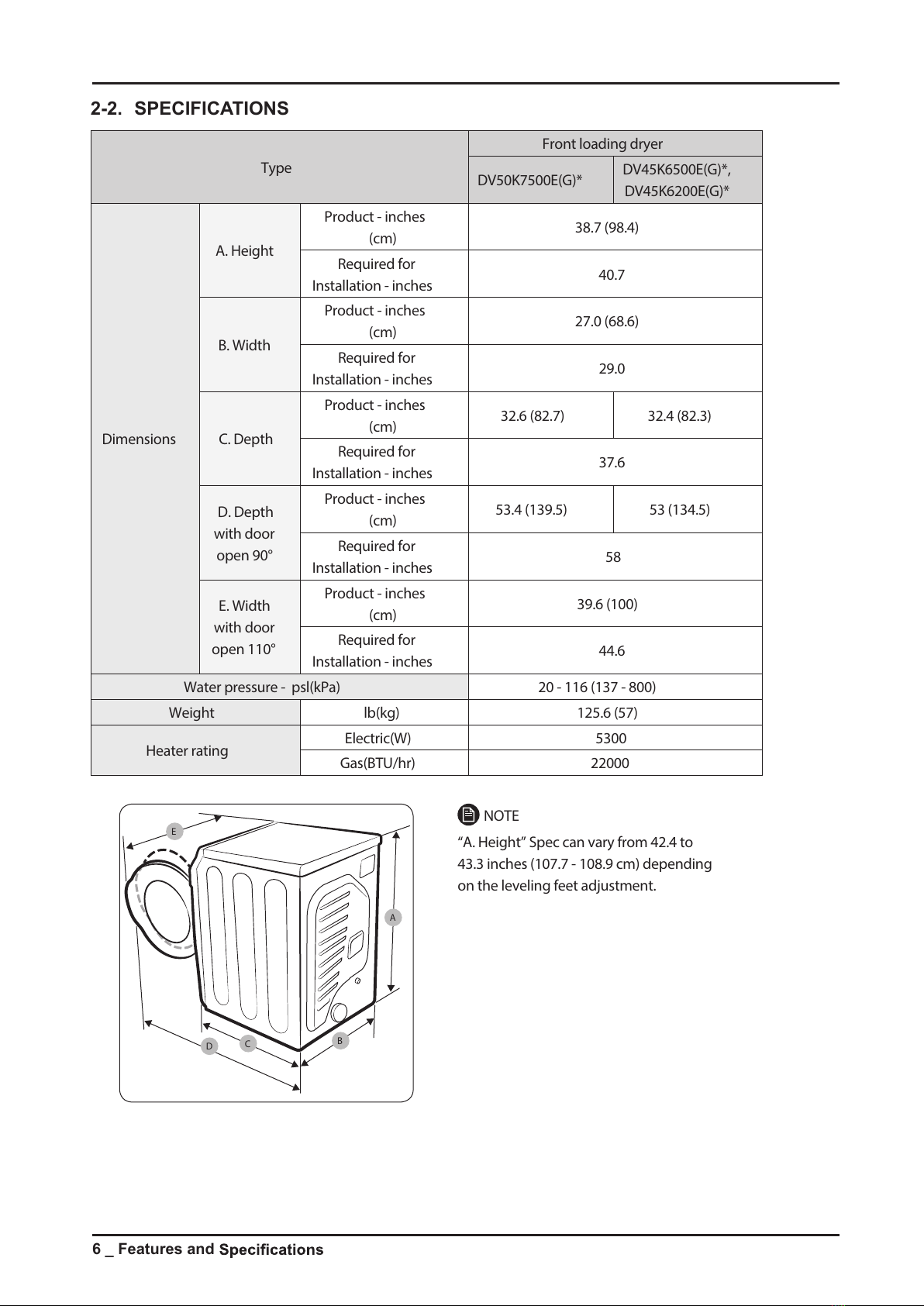

2-2. SPECIFICATIONS

Type

Front loading dryer

DV50K7500E(G)*DV45K6500E(G)*,

DV45K6200E(G)*

Dimensions

A. Height

Product - inches

(cm)38.7 (98.4)

Required for

Installation - inches 40.7

B. Width

Product - inches

(cm)27.0 (68.6)

Required for

Installation - inches 29.0

C. Depth

Product - inches

(cm)32.6 (82.7)32.4 (82.3)

Required for

Installation - inches 37.6

D. Depth

with door

open 90°

Product - inches

(cm)53.4 (139.5)53 (134.5)

Required for

Installation - inches 58

E. Width

with door

open 110°

Product - inches

(cm)39.6 (100)

Required for

Installation - inches44.6

Water pressure -psl(kPa) 20 - 116 (137 - 800)

Weightlb(kg)125.6 (57)

Heater ratingElectric(W)5300

Gas(BTU/hr) 22000

NOTE

“A. Height” Spec can vary from 42.4 to

43.3 inches (107.7 - 108.9 cm) depending

on the levelingfeet adjustment.

https://appliancetechmanuals.com

Features and _ 7

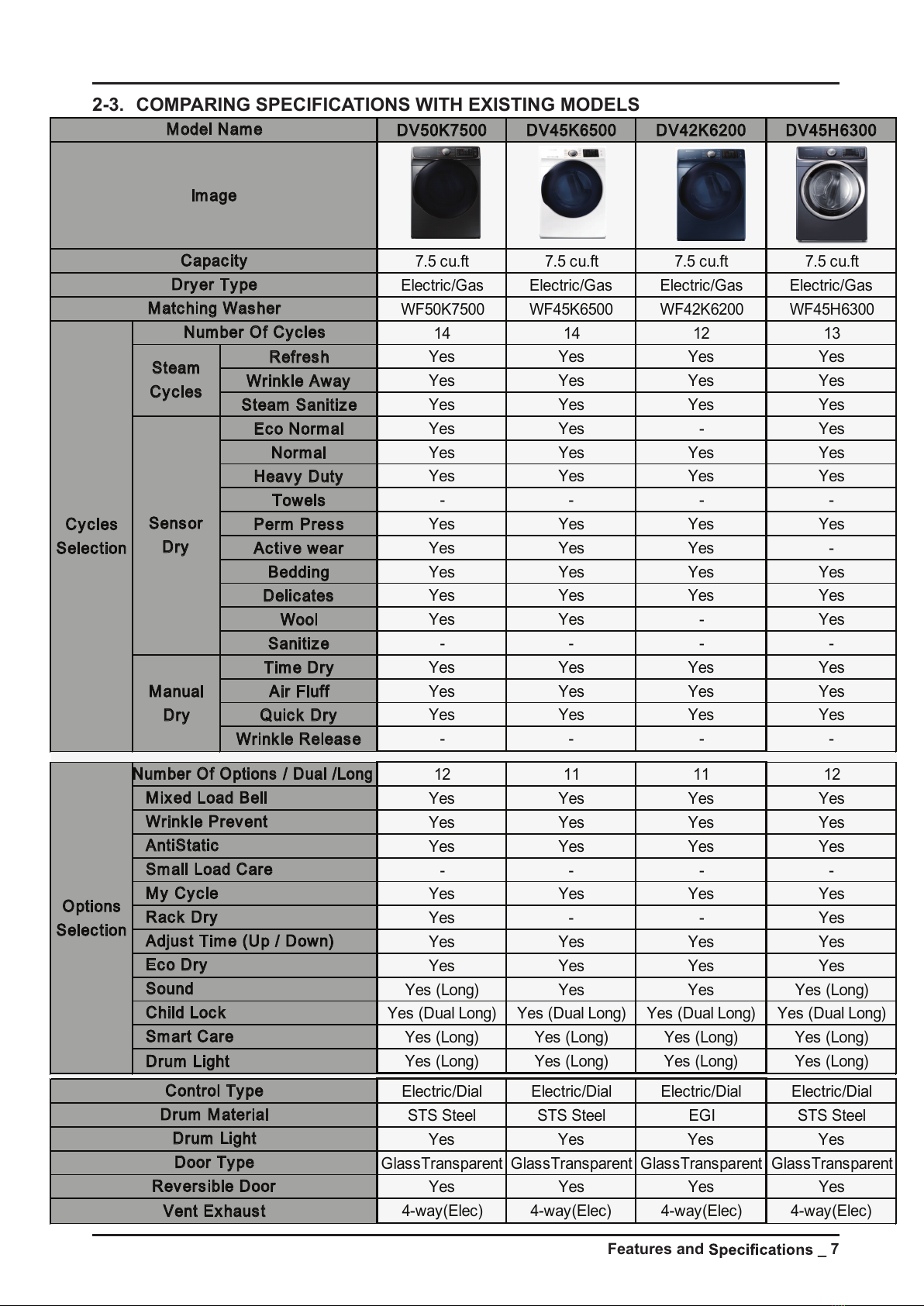

2-3. COMPARING SPECIFICATIONS WITH EXISTING MODELS

DV50K7500 DV45K6500 DV42K6200 DV45H6300

7.5 cu.ft 7.5 cu.ft 7.5 cu.ft 7.5 cu.ft

Electric/Gas Electric/Gas Electric/Gas Electric/Gas

WF50K7500 WF45K6500 WF42K6200 WF45H6300

14 14 12 13

Refresh Yes Yes Yes Yes

Wrinkle Away Yes Yes Yes Yes

Steam Sanitize Yes Yes Yes Yes

Eco Normal Yes Yes - Yes

Normal Yes Yes Yes Yes

Heavy Duty Yes Yes Yes Yes

Towels - - - -

Perm Pres s Yes Yes Yes Yes

Activ e wear Yes Yes Yes -

Bedding Yes Yes Yes Yes

Delicates Yes Yes Yes Yes

Wool Yes Yes - Yes

Sanitize - - - -

Time Dry Yes Yes Yes Yes

Air Fluff Yes Yes Yes Yes

Quick Dry Yes Yes Yes Yes

Wrinkle Release - - - -

12 11 11 12

Yes Yes Yes Yes

- - - -

Yes Yes Yes Yes

Yes - - Yes

Yes Yes Yes Yes

Yes (Long) Yes Yes Yes (Long)

Yes (Dual Long) Yes (Dual Long) Yes (Dual Long) Yes (Dual Long)

Yes (Long) Yes (Long) Yes (Long) Yes (Long)

Electric/Dial Electric/Dial Electric/Dial Electric/Dial

STS Steel STS Steel EGI STS Steel

Yes Yes Yes Yes

GlassTransparent GlassTransparent GlassTransparent GlassTransparent

Yes Yes Yes Yes

4-way(Elec) 4-way(Elec) 4-way(Elec) 4-way(Elec)

Model Nam e

Cycles

Selection

Number Of Cycles

Steam

Cycles

Sensor

Dry

Manual

Dry

Matc hing Was her

Dryer Type

Capacity


My Cycle

Rack Dry

Adjust Time (Up / Down)

Ec o Dry

Drum Light

Door Type

Reversible Door

Vent Exhaust

Sound

Child Lock

Sm art Care

Drum Light

Control Type

Drum Material

Options

Selection

Number Of Options / Dual /Long

Mixed Load Bell

Wrinkle Prev ent

AntiStatic

Sm all Load Care

https://appliancetechmanuals.com

8 _ Features and

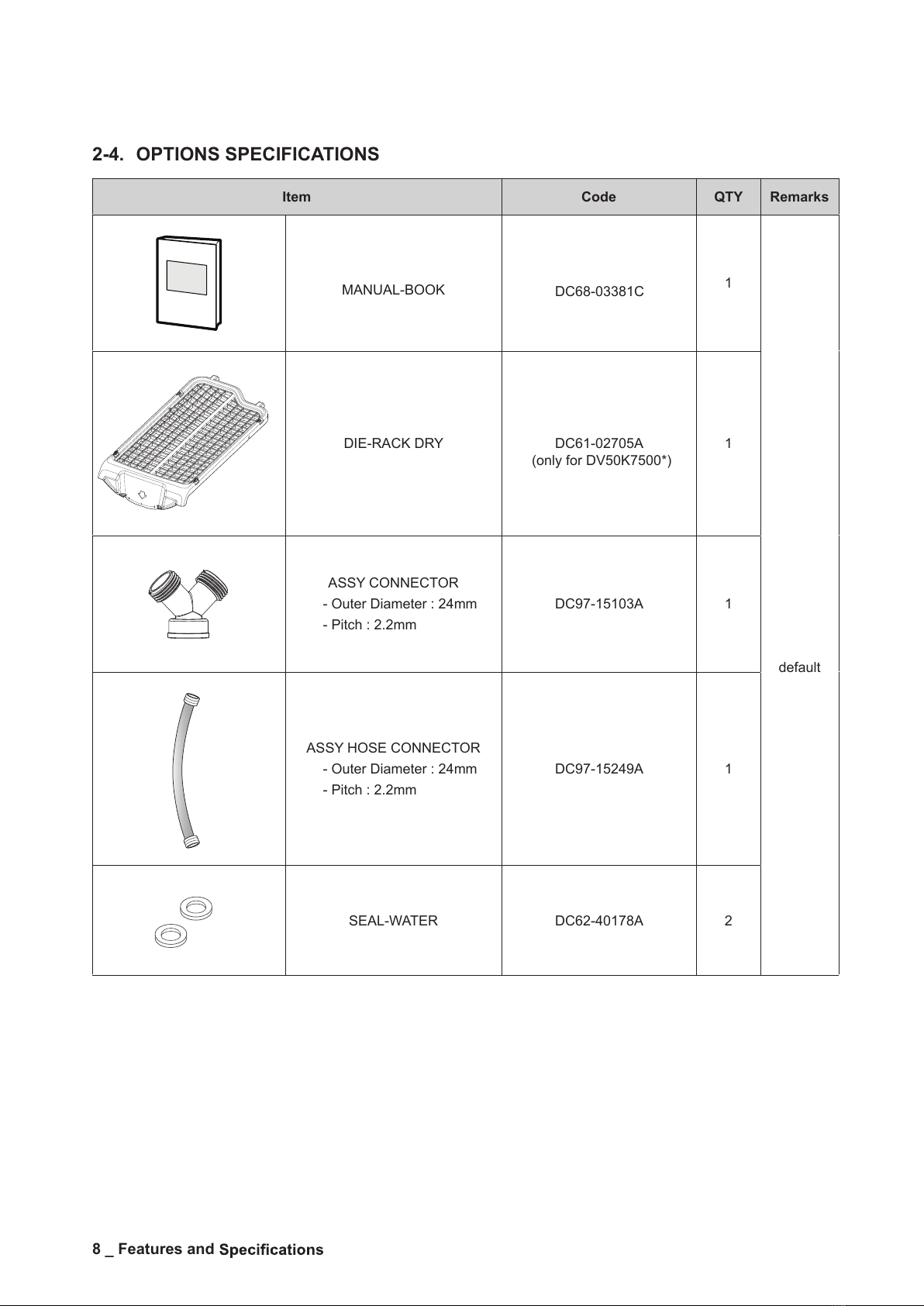

2-4. OPTIONS SPECIFICATIONS

Item Code QTY Remarks

MANUAL-BOOK

DC68-03381C 1

default

DIE-RACK DRY DC61-02705A

(only for DV50K7500*)

ASSY CONNECTOR

- Outer Diameter : 24mm

- Pitch : 2.2mm

DC97-15103A 1

ASSY HOSE CONNECTOR

- Outer Diameter : 24mm

- Pitch : 2.2mm

DC97-15249A 1

SEAL-WATER DC62-40178A 2

https://appliancetechmanuals.com

Removal and Reassembly _ 9

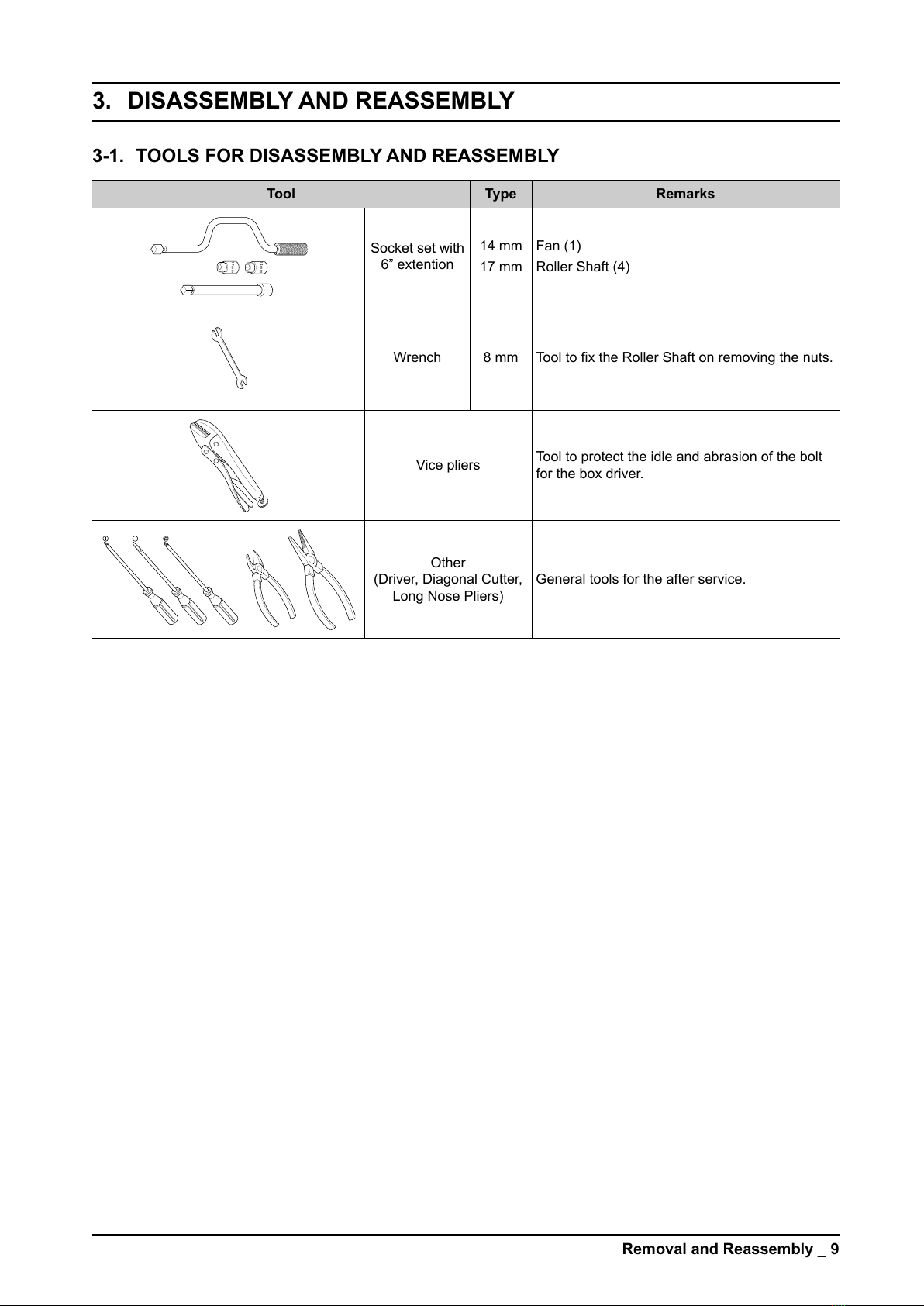

3. DISASSEMBLY AND REASSEMBLY

3-1. TOOLS FOR DISASSEMBLY AND REASSEMBLY

Tool Type Remarks

14 mm

17 mm

Socketsetwith

6”extention

14 mm

17 mm

Fan(1)

RollerShaft(4)

Wrench 8 mm TooltoxtheRollerShaftonremovingthenuts.

Vicepliers Tooltoprotecttheidleandabrasionofthebolt

fortheboxdriver.

Other

(Driver,DiagonalCutter,

LongNosePliers)

Generaltoolsfortheafterservice.

https://appliancetechmanuals.com

10 _ Removal and Reassembly

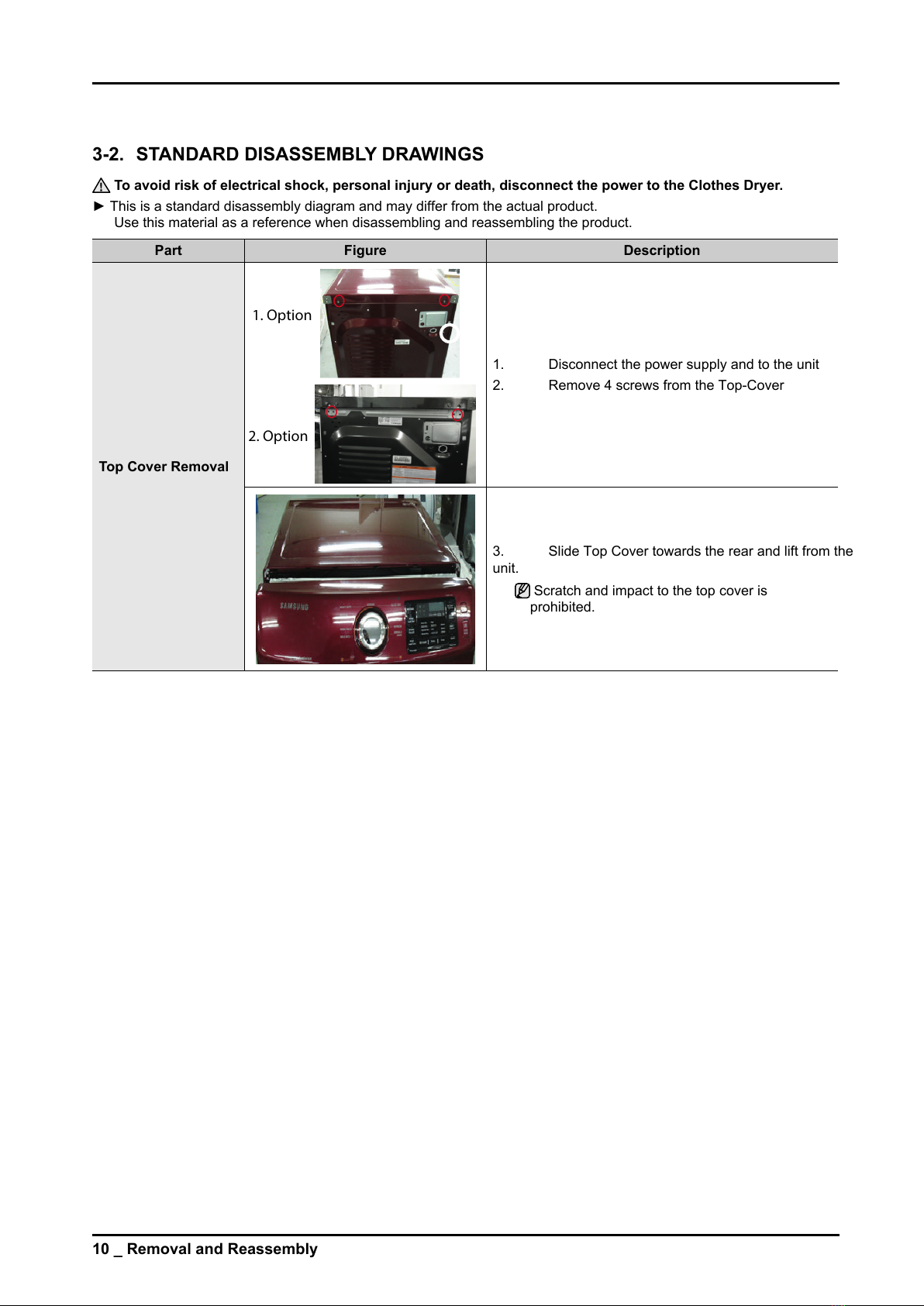

3-2. STANDARD DISASSEMBLY DRAWINGS

To avoid risk of electrical shock, personal injury or death, disconnect the power to the Clothes Dryer.

► This is a standard disassembly diagram and may differ from the actual product.

Use this material as areference when disassembling and reassembling the product.

Part Figure Description

Top Cover Removal

1. Disconnect the power supply and to the unit

2. Remove 4 screws from the Top-Cover

3. Slide Top Cover towards the rear and lift from the

unit.

Scratch and impact to the top cover is

prohibited.

1. Option

2. Option

https://appliancetechmanuals.com

Removal and Reassembly _ 11

Part Figure Description

Console Removal

1. Disconnectthepowersupplytotheunit.

2. RemovetheTop-Cover.

3. Remove2screwsfromtheGuide-Panel.

4. Separate6HookfromGuidePanel.

5. RemoveConsole.

6. RemoveEachHousing.

8. RemovescrewsfromtheAssyPCBSub.

 Becarefulofexternalscratchontheconsole.

https://appliancetechmanuals.com

12 _ Removal and Reassembly

Part Figure Description

Main PCB Removal

1. Disconnectthepowersupplyandtotheunit

2. RemovetheTopCover

3. Remove3screwsfromtheframe+plate

4. RemovetheWireholder

5. RemovetheHousings

 Shakingtheheaterterminalsidewaystopullit

outisprohibited.

https://appliancetechmanuals.com

Removal and Reassembly _ 13

Part Figure Description

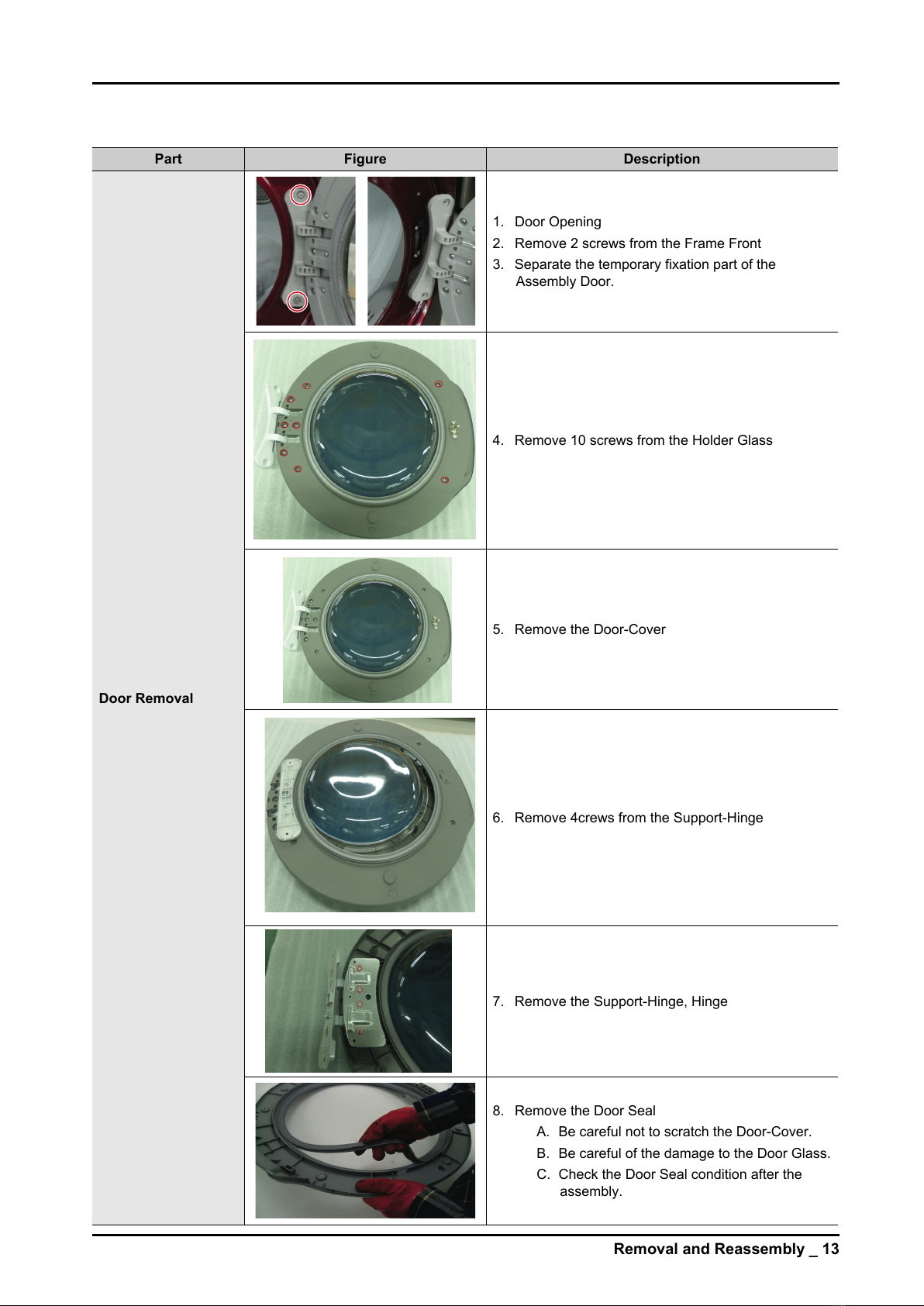

Door Removal

1. Door Opening

2. Remove 2 screws from the Frame Front

3. Separate the temporary fixation part of the

Assembly Door.

4. Remove 10 screws from the Holder Glass

5. Remove the Door-Cover

6. Remove 4crews from the Support-Hinge

7. Remove the Support-Hinge, Hinge

8. Remove the Door Seal

A. Be careful not to scratch the Door-Cover.

B. Be careful of the damage to the Door Glass.

C. Check the Door Seal condition after the

assembly.

https://appliancetechmanuals.com
