Samsung AW0501B User manual

DB98-08394A(1)

AW0501B

AW0601B

Window-type Room Air Conditioner

(Cool)

OWNER’S

INSTRUCTIONS

E-2

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may be hurt. Keep children away from the unit.

5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-3

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Remote Control - Buttons .............................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Airing Your Room ........................................................................................... 9

■Removing Excess Humidity ............................................................................ 10

■Adjusting the Air Flow Direction Horizontally .................................................. 11

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 12

■Setting the Off Timer ...................................................................................... 13

■Setting the Sleep Timer .................................................................................. 14

■Selecting Energy Saving mode ...................................................................... 15

◆RECOMMENDATIONS FOR USE

■Temperature and Humidity Ranges ................................................................ 16

■Cleaning Your Air Conditioner ........................................................................ 17

■Solving Common Problems ............................................................................ 18

■Technical Specifications ................................................................................. 19

E-4

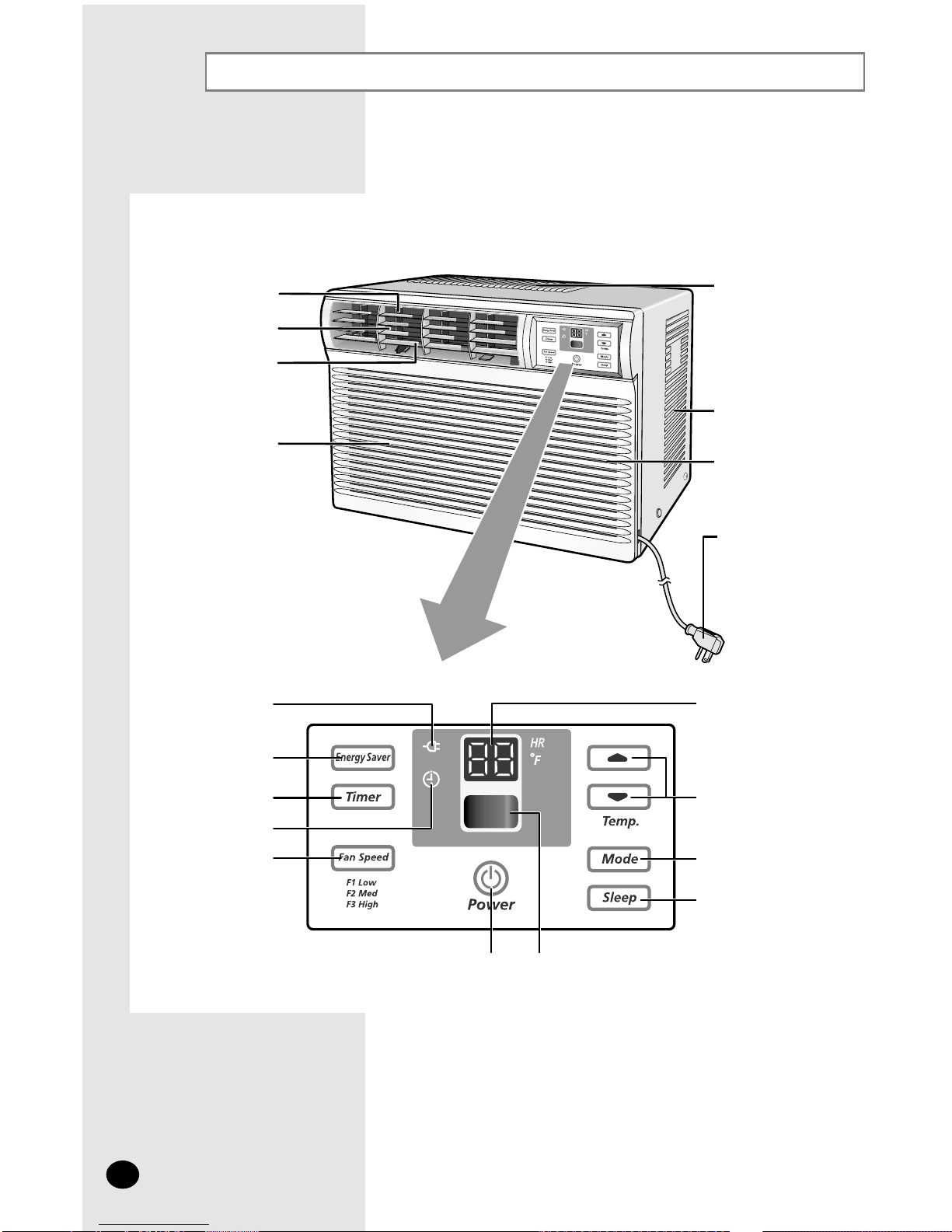

Description of Each Component

Inner air flow blades

(right/left orientation)

Air outlet

Outer air flow blades

Air inlet (Inside)

Air inlet (Outside)

Air outlet

Air filter (Inside)

Power plug

(The type of power plug

may differ, depending on

the local power supply.)

Temperature/Timer settings

Temperature adjustment

buttons

Fan speed

adjustment button

Energy Saver indicator

Sleep timer setting button

Timer indicator

Energy Saver button

On/Off button

Mode selection button

(Cool,Fan, Dry)

Timer setting button

❄The design and shape are subject to

change, depending on the model.

Remote control sensor

E-5

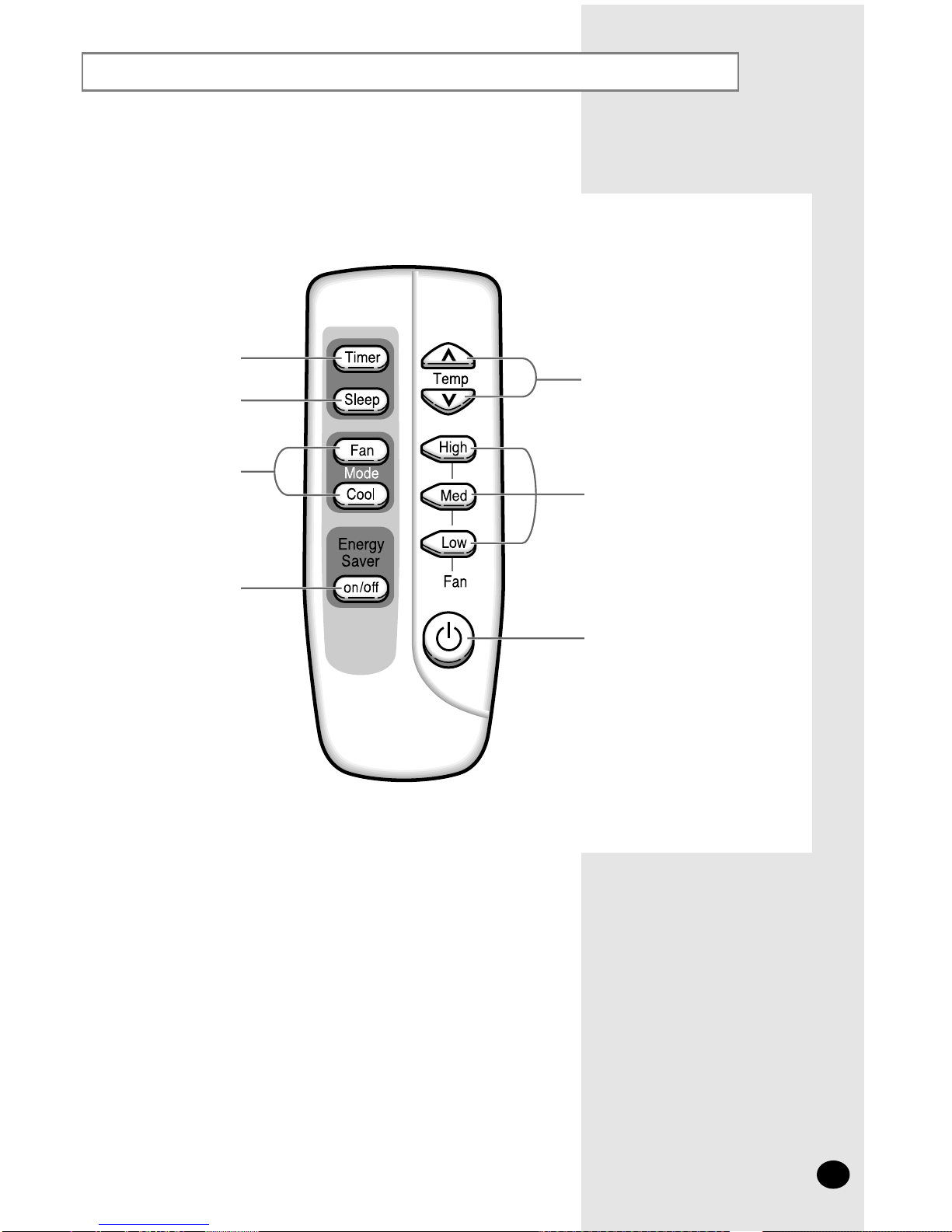

Remote Control - Buttons

Temperature adjustment

buttons

Fan speed

adjustment buttons

On/Off button

Timer setting button

Sleep timer setting button

Mode selection

buttons

Energy Saver button

E-6

Getting Started

IMPORTANT NOTE

You have just purchased a Samsung window-type room air conditioner which should be installed

following your installation manual.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Description of Each Component

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each function

available.

The illustrations in the step-by-step procedures use four different symbols:

☛

➢

PRESS PUSH

E-7

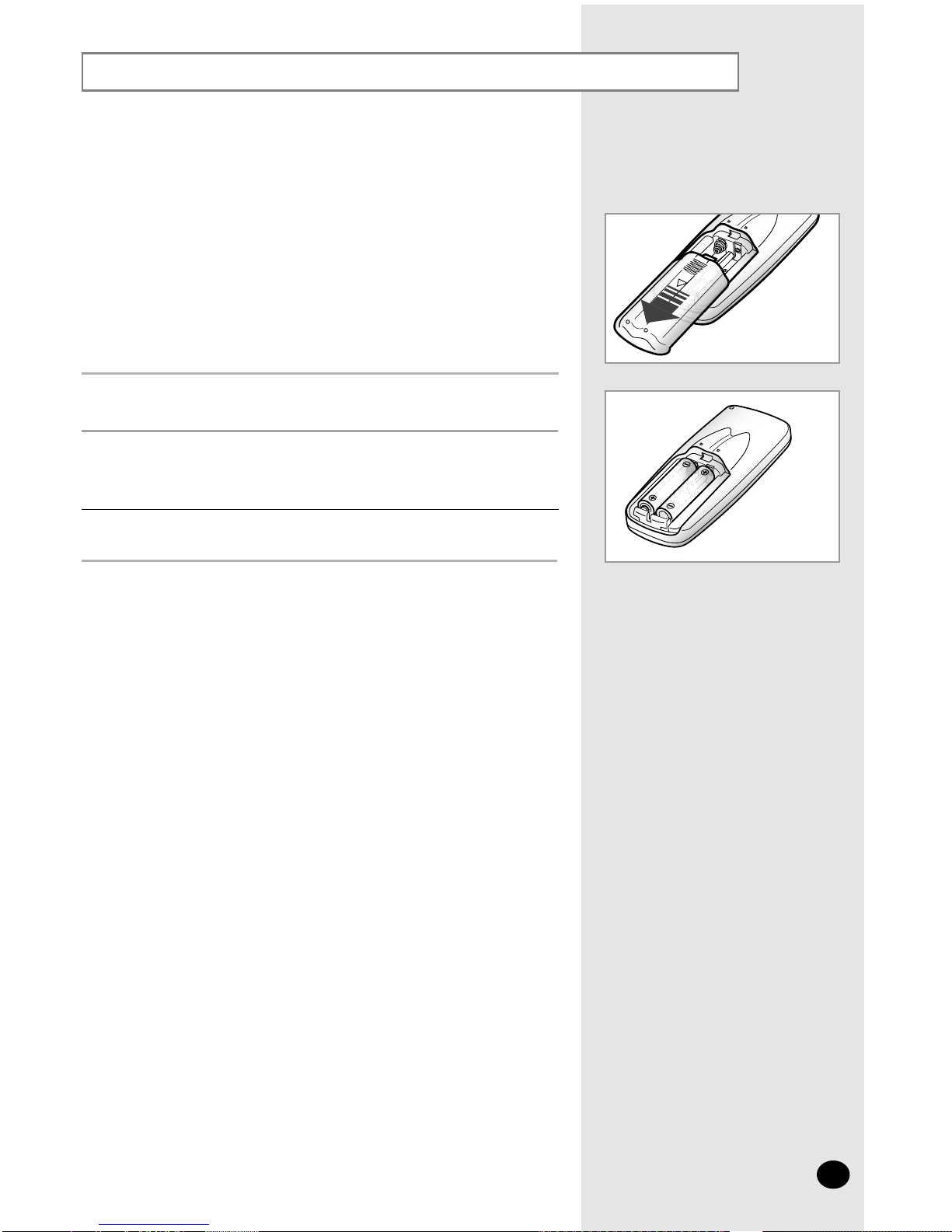

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

➢

E-8

Remote Control Control Panel

Cooling Your Room

To adjust the temperature, press the or buttons on the remote

control or unit one or more times until the desired temperature is displayed.

The temperature can be set between 64°F and 86°F.

Result:

◆

Each time you press the or buttons:

– The temperature is adjusted by 1°F and displayed on

the control panel

– The unit beeps

◆

The air conditioner starts cooling, if the room temperature is

higher than the selected temperature.

◆

If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Press the (On/Off) button.

Result: ◆ The air conditioner starts up in the mode selected when the

unit was last used.

◆ The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆ Plugged in

◆ Stopped

It will start up normally after three minutes.

If the temperature is not displayed on the control panel:

◆

Press the button on the remote control

◆

Press the button on the unit one or more times until the

temperature is displayed.

Result:

◆

The unit beeps each time you press the / button.

◆

The air conditioner starts up in the Cool mode.

➢

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the Fan speed.

To set the fan speed:

◆

Press the , or button on the remote control as desired.

◆

Press the button on the unit one or more times until the

desired Fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 11.

E-9

Airing Your Room

If you want to provide air circulation without cooling, you can use

the Fan mode.

If necessary, press the (On/Off) button.

Result: ◆

The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps twice.

To set the fan speed:

◆

Press the , or button on the remote control as desired.

◆

Press the button on the unit one or more times until the

desired fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 11.

If the fan speed(F1, F2 or F3) is not displayed on the control panel:

◆ Press the button on the remote control

◆ Press the button on the unit one or more times until the fan speed

(F1, F2 or F3) is displayed.

Result: ◆ The unit beeps each time you press the / button.

◆The air conditioner starts up in Fan mode.

➢

You can change modes at any time.

When the air conditioner is in the Fan mode, the temperature

cannot be set or displayed.

Remote Control Control Panel

E-10

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove

excess humidity without lowering the room temperature too much.

You can operate the Dry mode only by using the control panel.

1If necessary, press the (On/Off) button.

Result: ◆The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

It will start up normally after three minutes.

2If the

“ ”

indicator is not displayed at the top of the control panel,

press the button on the control panel one or more times until it

appears.

Result:◆

The unit beeps each time you press the button.

◆

The air conditioner runs in Dry mode.

➢

You can change modes at any time.

The “ ” passes through the control panel.

3To adjust the temperature, press the

buttons one or

more times until the required temperature is displayed.

Possible temperatures are between

64°F and 86°F

inclusive.

Result:◆Each time you press the

buttons:

- The temperature is adjusted by 1°F

- The unit beeps

◆The air conditioner starts removing the excess humidity;

the quantity of air is adjusted automatically.

4To control the direction of the air flow, refer to page 11.

Remote Control Control Panel

☛
