Samsung AQ12FAN User manual

ENGLISH

Split-type Room Air Conditioner

(Cooling and Heating)

ESPAÑOLFRANÇAISITALIANO

PORTUGUÊS

DEUTSCH

EΛΛHNIKA

GDPIFSE DB98-26492A(1)

AQ09F Series

AQ12F Series

AQ18F Series

AQ24F Series

AQ09J Series

AQ12J Series

AQ18J Series

AQ24J Series

AQ09

 Series

AQ12

 Series

AQ18

 Series

AQ24

 Series

USER’S MANUAL

DB98-26492A(1)-E-1.indd 23 2006-9-22 10:16:43

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

WARNING

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

DURING OPERATION 

Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.



Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.



Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.



Do not place any obstacles in front of the unit.



Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.



Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.



If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)



When using a wireless remote control, the distance should not be

more than 7 meters from the air conditioner. (If applicable)

DISPOSING OF THE UNIT



Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.



When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.



Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

OTHERS 

Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.



The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.



Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

DB98-26492A(1)-E-1.indd 2 2006-9-22 9:56:49

E-3

ENGLISH

PREPARING YOUR AIR CONDITIONER

Safety Precautions ................................................................. 2

View of the Unit ..................................................................... 4

Remote Control - Buttons and Display .................................. 6

Inserting the Remote Control Batteries ................................. 6

OPERATING YOUR AIR CONDITIONER

Selecting the Automatic Operating Mode .............................. 8

Cooling Your Room ............................................................... 9

Heating Your Room ............................................................. 10

Removing Excess Humidity ................................................. 11

Airing Your Room ................................................................ 12

Changing the Room Temperature Quickly .......................... 13

Adjusting the Air Flow Direction Vertically ........................... 14

Adjusting the Air Flow Direction Horizontally ....................... 14

PROGRAMMING YOUR AIR CONDITIONER

Setting the On Timer ........................................................... 15

Setting the Off Timer ........................................................... 16

Selecting Good Morning Mode ............................................ 17

RECOMMENDATIONS FOR USE

Operating Recommendations .............................................. 18

Temperature and Humidity Ranges ..................................... 19



Operating Your Air Conditioner Without the Remote Control

........... 19

Solving Common Problems ................................................. 20

Cleaning Your Air Conditioner ............................................. 21

Cleaning Deodorizing and Bio filter (Option) ....................... 21

Contents

DB98-26492A(1)-E-1.indd 3 2006-9-22 9:56:49

E-4

View of the Unit

Indoor Unit

The design and shape are subject to change according to the model.

Air ﬁlter

(under the grille) Air ﬂow blades

(outlet)

Air Inlet

Temperature sensor

Power(On/Off) button

Operation indicator

(GREEN)

Timer indicator

(GREEN)

Turbo indicator

(RED)

Power(On/Off) button

AQFSeries AQJSeries AQWSeries

DB98-26492A(1)-E-1.indd 4 2006-9-22 9:56:51

E-5

ENGLISH

View of the Unit

Outdoor Unit

Air Outlet

Air Inlet (Rear)

Air Outlet

Air Inlet (Rear)

Connection Valve

Air Outlet

Air Inlet (Rear)

Connection Valve

Air Outlet

Air Inlet (Rear)

Connection Valve

AQ09Series

AQ18Series

AQ24Series

Connection Valve

Outdoor Unit

AQ12Series

DB98-26492A(1)-E-1.indd 5 2006-10-23 14:03:25

E-6

Remote Control - Buttons and Display

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY,

FAN, HEAT)

Turbo button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Good Morning mode

Turbo mode

Fan speed

Air ﬂow direction

On Timer setting

Off Timer setting

Battery discharge indicator

Good Morning button

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when :

 You purchase the air conditioner

 The remote control does not work correctly

Note

Use two AAA, LR03 1.5V batteries.

Do not use old batteries or different kinds of batteries together.

Batteries may be completely discharged after 12 months, even

if they have not actually been used.

1Push the battery cover on the rear of the remote control with your

thumb in the direction of the arrow and remove it.

2Insert the two batteries, taking care to respect the polarities :



+ on the battery with + on the remote control.



- on the battery with - on the remote control.

3Close the cover by sliding it back until it clicks into place.

DB98-26492A(1)-E-1.indd 6 2006-9-22 9:57:01

E-7

ENGLISH

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

 The following ﬁgures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you ﬁnd the buttons and understand the symbols displayed.

 In the manual, you will ﬁnd a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

DB98-26492A(1)-E-1.indd 7 2006-9-22 9:57:02

E-8

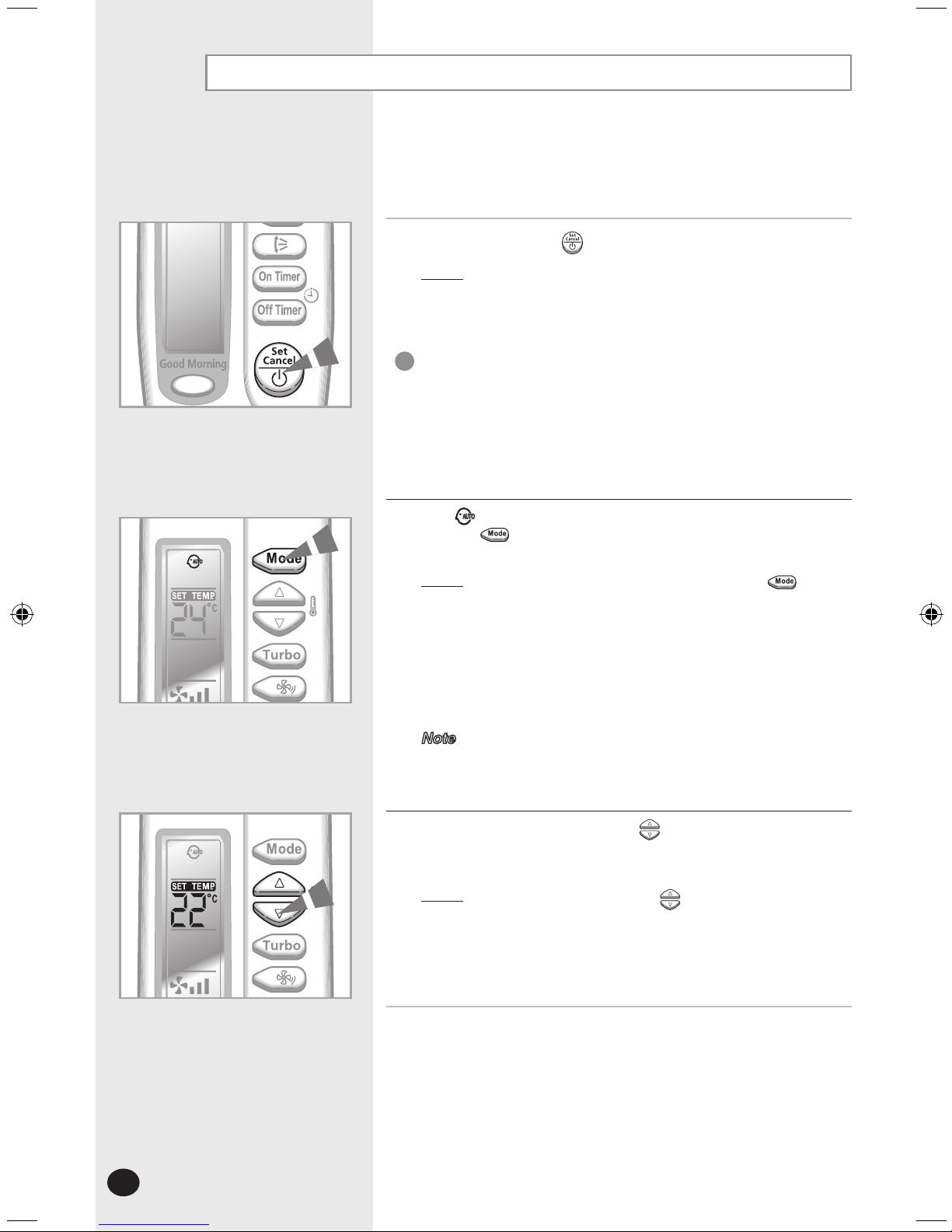

Selecting the Automatic Operating Mode

You can start the air conditioner in Auto mode from your remote

control. In the Auto mode, the cooling and heating operation is

selected automatically. You can also raise or lower the temperature

and the fan speed in the Auto mode.

1If necessary, press the button.

Result: The operation indicator on the indoor unit lights up.

The air conditioner starts up in the mode selected

when the unit was last used.

The indoor unit beeps.

IMPORTANT

The air conditioner is ﬁtted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

Plugged in

Stopped

lt will start up normally after three minutes.

2If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result: 

The indoor unit beeps each time you press the button.

The air conditioner runs in the Auto mode.

The Auto mode cools and heats the room in optimum

condition by adjusting the indoor temperature

depending on the set temperature.

The mode may change from cooling into heating,

from heating into cooling depending on the current

temperature during operation.

Note

You can change modes at any time.

3To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result: Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

DB98-26492A(1)-E-1.indd 8 2006-9-22 9:57:04

E-9

ENGLISH

You must select the Cool mode if you wish to adjust the:

Cooling temperature

Fan speed when cooling

1If necessary, press the button.

Result: The operation indicator on the indoor unit lights up.

The air conditioner starts up in the mode selected

when the unit was last used.

The indoor unit beeps.

IMPORTANT

The air conditioner is ﬁtted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

Plugged in

Stopped

lt will start up normally after three minutes.

2If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result: 

The indoor unit beeps each time you press the button.

The air conditioner runs in the Cool mode.

Note

You can change modes at any time.

3To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result: Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

 If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

4Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated :   )

Low

Medium

High

Maximum

Result: Each time you press the button, the indoor unit beeps.

5To control the direction of the air ﬂow, refer to pages 14.

Cooling Your Room

DB98-26492A(1)-E-1.indd 9 2006-9-22 9:57:08

E-10

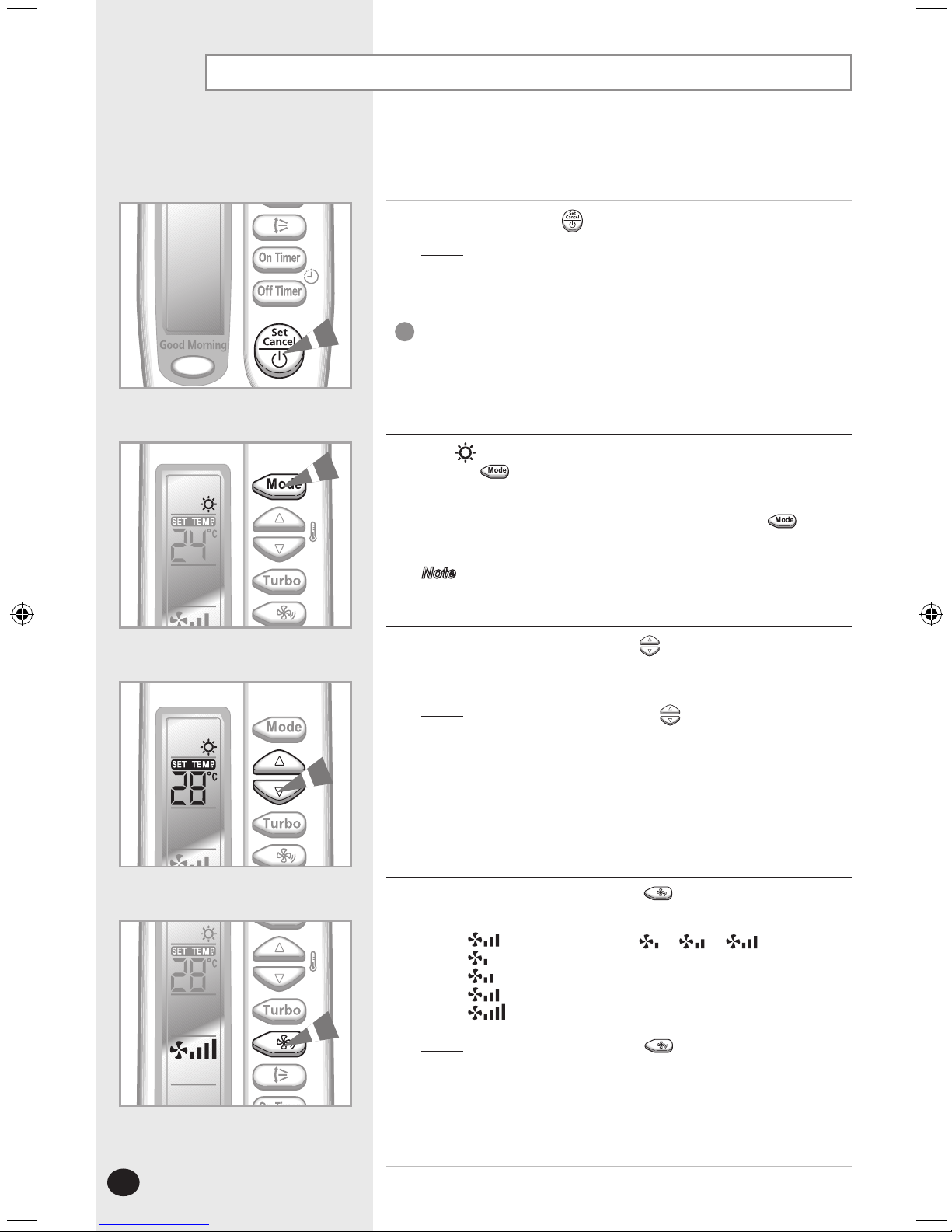

You must select the Heat mode if you wish to adjust the:

Heating temperature

Fan speed when Heating

1If necessary, press the button.

Result: The operation indicator on the indoor unit lights up.

The air conditioner starts up in the mode selected

when the unit was last used.

The indoor unit beeps.

IMPORTANT

The air conditioner is ﬁtted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

Plugged in

Stopped

lt will start up normally after three minutes.

2If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result: 

The indoor unit beeps each time you press the button.

The air conditioner runs in the Heat mode.

Note

You can change modes at any time.

3To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result: Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

If the room temperature reaches the set temperature

(selected temperature+5°C), the air conditioner stops heating,

but the fan is still operating.

The air conditioner starts heating, provided that the room

temperature is lower than the desired temperature

(selected temperature+3°C).

4Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated :   )

Low

Medium

High

Maximum

Result: Each time you press the button, the indoor unit beeps.

For the ﬁrst three to ﬁve minutes, the fan operates very

slowly until the air has been sufﬁciently warmed. Once the

correct temperature has been reached, the fan is automatically

set to the required speed.

5To control the direction of the air ﬂow, refer to pages 14.

Heating Your Room

DB98-26492A(1)-E-1.indd 10 2006-9-22 9:57:12

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AW07LH Series User manual

Samsung

Samsung AQV12VBAX User manual

Samsung

Samsung AC NN4DKC Series User manual

Samsung

Samsung AW0750 Setup guide

Samsung

Samsung AR MSSP Series Guide

Samsung

Samsung PC4NUDMAN User manual

Samsung

Samsung max mini-split units Quick start guide

Samsung

Samsung AM009FN4DCH User manual

Samsung

Samsung AS18WJWD User manual

Samsung

Samsung AR09HSFSHWKNCV User manual

Samsung

Samsung AW050CM User manual

Samsung

Samsung AS24CM2X Instruction Manual

Samsung

Samsung ACN016NDEHA User manual

Samsung

Samsung AM140RNPDKH Series User manual

Samsung

Samsung MH026FEEA User manual

Samsung

Samsung AZ09A7KB User manual

Samsung

Samsung AC200KNHPKH User manual

Samsung

Samsung SH09BWHA Series User manual

Samsung

Samsung AC BNPDBC Series Guide

Samsung

Samsung AR AYKA Series User manual

Samsung

Samsung AR CSFC Series User manual

Samsung

Samsung AC100RN4PKG/EU User manual

Samsung

Samsung SH07AP4E User manual

Samsung

Samsung AVMCC052EA(B)0 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
