Samsung AQ09A5(6)MAF User manual

ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

Split-type Room Air Conditioner (Cool and Heat)

Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)

Climatiseur de type Séparé (Refroidissement et Chauffage)

E S F

DB98-15773A(4)

ESPAÑOL

FRANÇAIS

AQ09A5(6)MAF

AQ12AA(B)MCF

AQ18A9(0)RCF

AQ18A9(0)RCFD

AQ24A1(2)RC

AQ24A1(2)RCD

Indoor Unit UQ09A5(6)MAF

UQ12AA(B)MCF

UQ18A9(0)RCF

UQ18A9(0)RCFD

UQ24A1(2)RC

UQ24A1(2)RCD

Outdoor Unit

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 23ft(7m) from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8

■ Installing the Remote Control Holder . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . 13

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 17

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

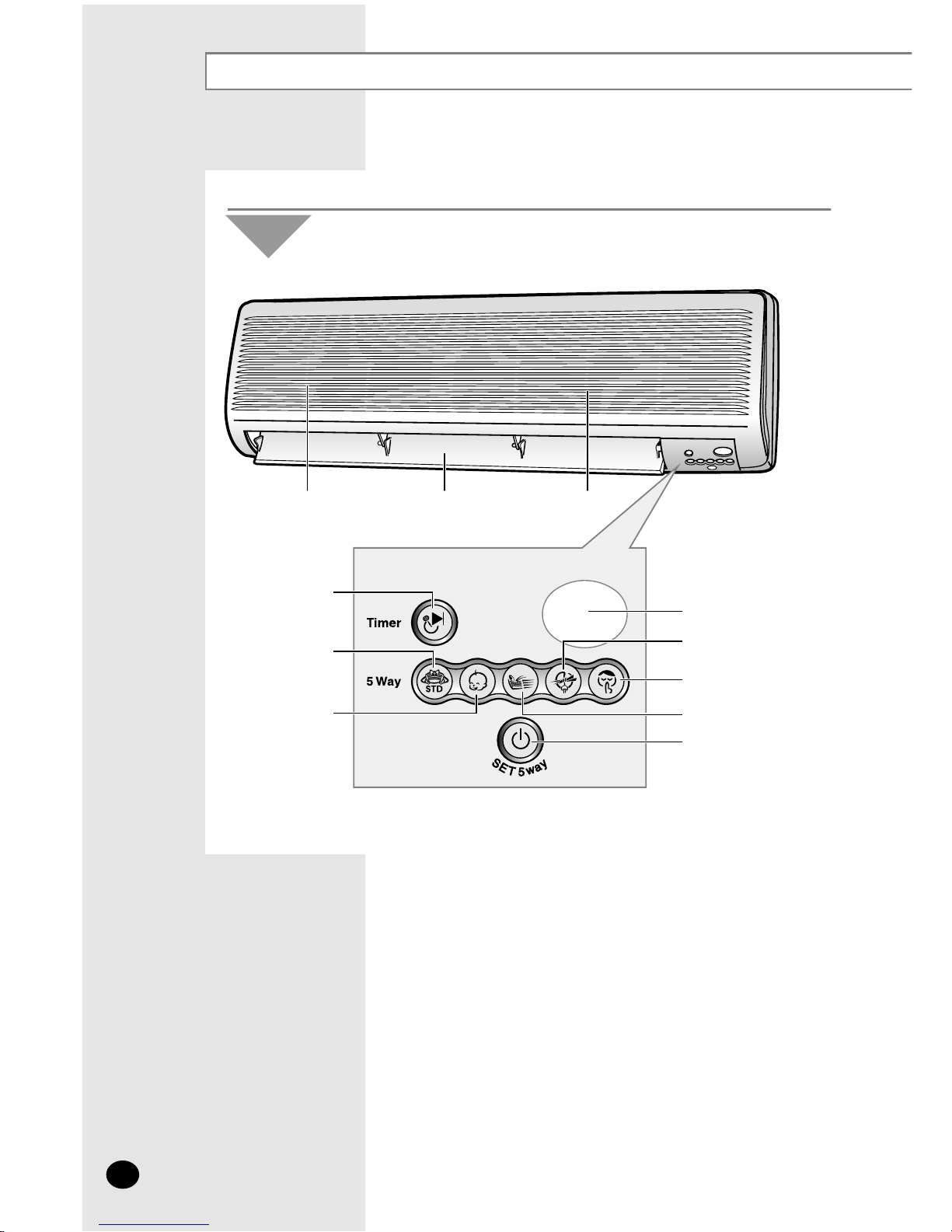

View of the Unit

The design and shape are subject to change according to the model.

Indoor Unit

E-4

Air filter

(under the grille) Air flow blades (outlet) Air Inlet

Timer indicator

STANDARD indicator

NATURE indicator POWER indicator

SILENCE indicator

Remote Control Sensor

SAVING indicator

ON/OFF & 5 Way

selection button

◆For details on the 5 Way, refer to page 9.

NNoo

oott

ttee

E-5

ENGLISH

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection Valve

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

UQ09A5(6)MAF

UQ12AA(B)MCF

UQ18A9(0)RCF UQ18A9(0)RCFD UQ24A1(2)RC

UQ24A1(2)RCD

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

ON/OFF &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

Installing the Remote Control Holder

Place the remote control holder on the wall.

Fix the remote control holder by tightening the screws.

Put the remote control into the holder as shown in the figure.

◆If you want to install the holder easily, you had better install the holder

on the wooden frame.

5 Way Function

E-9

ENGLISH

Press the (On/Off) button one time and then select the desired

mode.

To stop the operating, press the (

On/Off

) button until all indicators

turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, press the

button one or more times until the desired mode is selected.

◆Each time you press the button:

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the

(

On/Off

)

button on the unit, operations can still be controlled

using the remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

temperature gradually

(POWER) mode

High fan speed

(SAVING) mode

Compressor run time reduced

(SILENCE) mode

Fan speed reduces as the temperature

decreases

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it appears.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-4°F -2°F Standard temperature +2°F +4°F

< When you feel hot > < When you feel chilly >

E-10

Other manuals for AQ09A5(6)MAF

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AVXWVH022EE User manual

Samsung

Samsung AQ18F Series User manual

Samsung

Samsung AS12 XAX Series User manual

Samsung

Samsung AQ09V Series User manual

Samsung

Samsung AS07A5(A6)MA User manual

Samsung

Samsung DH052EZM1 User manual

Samsung

Samsung MCU-S6NEK3N User manual

Samsung

Samsung AR NXFH Series User manual

Samsung

Samsung AIM-D01AN User manual

Samsung

Samsung AW07LH Series User manual

Samsung

Samsung AQV36W User manual

Samsung

Samsung AM017FNLDEH/EU User manual

Samsung

Samsung AM048HNPDCH Series User manual

Samsung

Samsung AQ09UGFN Guide

Samsung

Samsung AQ NS Series User manual

Samsung

Samsung MH18AP2-09 User manual

Samsung

Samsung AS24UUQ Guide

Samsung

Samsung CH EAMC Series User manual

Samsung

Samsung SC07APGD User manual

Samsung

Samsung NJ026LHXEA User manual

Samsung

Samsung AW06FBNAA User manual

Samsung

Samsung SH24TAB5 User manual

Samsung

Samsung AQV09UWLNXSA User manual

Samsung

Samsung AC TNXDKG Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
