Samsung AC NN4DKC Series User manual

Air conditioner

User manual

AC***NN4DKC

• Thank you for purchasing this Samsung air conditioner.

• Before operating this unit, please read this user manual carefully and retain it for future reference.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 1 2018-05-04 오후 3:48:35

2English

Safety Information 3

At a Glance 10

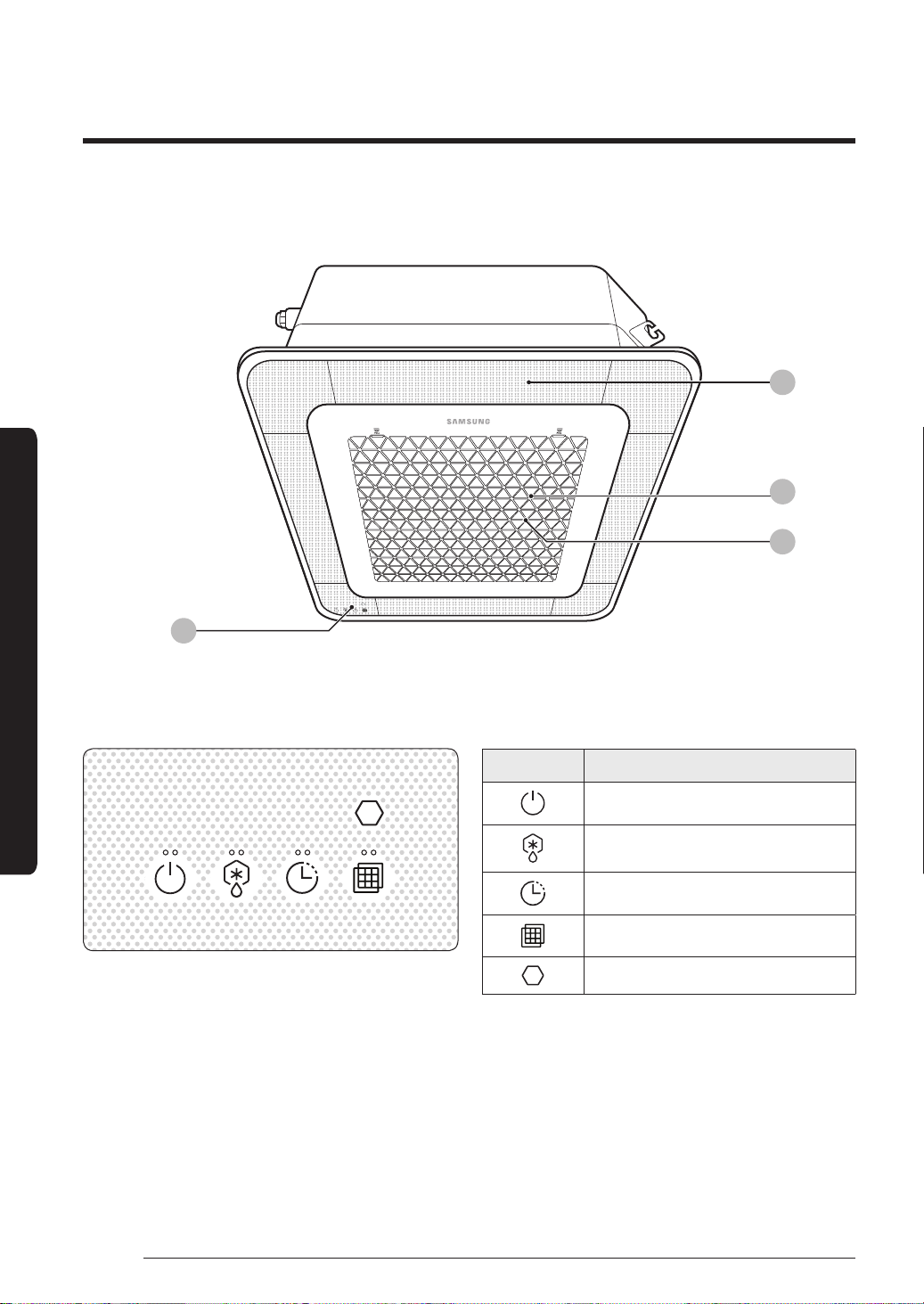

Indoor Unit Overview 10

Operation Features 11

Operating temperature and humidity

Cleaning and Maintenance 12

Cleaning and Maintaining 12

Cleaning the indoor unit exterior • Cleaning the outdoor unit heat exchanger • Cleaning the air filter •

Periodical maintenance • Troubleshooting

Contents

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.

charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To

prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these

items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for

details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product

and its electronic accessories should not be mixed with other commercial wastes for disposal.

For more information on safe disposal and recycling, visit our website

www.samsung.com/in/support or contact our Helpline numbers - 1800 40 SAMSUNG (1800 40 7267864).

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 2 2018-05-04 오후 3:48:35

Safety Information

English

Before using your new air conditioner, please read this manual thoroughly

to ensure that you know how to safely and efficiently operate the extensive

features and functions of your new appliance.

Because the following operating instructions cover various models, the

characteristics of your air conditioner may differ slightly from those described in

this manual. If you have any questions, call your nearest contact centre or find

help and information online at www.samsung.com.

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property

damage.

Follow directions.

Do NOT attempt.

Make sure the machine is grounded to prevent electric shock.

Cut-off the power supply.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Use the power line with the power specifications of the product or higher

and use the power line for this appliance only. In addition, do not use an

extension line.

• Extending the power line may result in electric shock or fire.

• Do not use an electric transformer. This may result in electric shock or

fire.

• If the voltage/frequency/rated current condition is different, it may cause

fire.

Safety Information

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 3 2018-05-04 오후 3:48:36

Safety Information

4English

The installation of this appliance must be performed by a qualified

technician or service company.

• Failing to do so may result in electric shock, fire, explosion, problems with

the product, or injury.

Install a switch and circuit breaker dedicated to the air conditioner.

• Failing to do so may result in electric shock or fire.

Fix the outdoor unit firmly so that the electric part of the outdoor unit is

not exposed.

• Failing to do so may result in electric shock or fire.

Do not install this appliance near a heater, inflammable material. Do

not install this appliance in a humid, oily or dusty location, in a location

exposed to direct sunlight and water (rain drops). Do not install this

appliance in a location where gas may leak.

• This may result in electric shock or fire.

Never install the outdoor unit in a location such as on a high external wall

where it could fall.

• If the outdoor unit falls, it may result in injury, death or property damage.

This appliance must be properly grounded. Do not ground the appliance to

a gas pipe, plastic water pipe, or telephone line.

• Failure to do so may result in electric shock, fire, an explosion, or other

problems with the product.

• Never plug the power cord into a socket that is not grounded correctly

and make sure that it is in accordance with local and national codes.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 4 2018-05-04 오후 3:48:36

Safety Information

English

CAUTION

Install your appliance on a level and hard floor that can support its weight.

• Failing to do so may result in abnormal vibrations, noise, or problems with

the product.

Install the drain hose properly so that water is drained correctly.

• Failing to do so may result in water overflowing and property damage.

Avoid adding drain to waste pipes as odours may arise in the future.

When installing the outdoor unit, make sure to connect the drain hose so

that draining is performed correctly.

• The water generated during the heating operation in the outdoor unit

may overflow and result in property damage.

In particular, in winter, if a block of ice falls, it may result in injury, death

or property damage.

Do not install the product in a place where thermo-hygrostat is needed

(such as server room, machinery room, computer room, etc.)

• Those places do not provide guaranteed operation condition of the

product therefore performance can be poor in these places.

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest service centre.

Do not pull or excessively bend the power line. Do not twist or tie the

power line. Do not hook the power line over a metal object, place a heavy

object on the power line, insert the power line between objects, or push

the power line into the space behind the appliance.

• This may result in electric shock or fire.

CAUTION

When not using the air conditioner for a long period of time or during a

thunder/lightning storm, cut the power at the circuit breaker.

• Failing to do so may result in electric shock or fire.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 5 2018-05-04 오후 3:48:36

Safety Information

6English

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke,

unplug the power plug immediately and contact your nearest service

centre.

• Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate

immediately without touching the power line. Do not touch the appliance

or power line.

• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

To reinstall the air conditioner, please contact your nearest service centre.

• Failing to do so may result in problems with the product, water leakage,

electric shock, or fire.

• A delivery service for the product is not provided. If you reinstall the

product in another location, additional construction expenses and an

installation fee will be charged.

• Especially, when you wish to install the product in an unusual location

such as in an industrial area or near the seaside where it is exposed to salt

in the air, please contact your nearest service centre.

Do not touch the circuit breaker with wet hands.

• This may result in electric shock.

Do not turn the air conditioner off with the circuit breakerwhile it is

operating.

• Turning the air conditioner off and then on again with the circuit breaker

may cause a spark and result in electric shock or fire.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 6 2018-05-04 오후 3:48:36

Safety Information

English

After unpacking the air conditioner, keep all packaging materials well

out of the reach of children, as packaging materials can be dangerous to

children.

• If a child places a bag over its head, it may result in suffocation.

Do not touch the front panel with your hands or fingers during the heating

operation.

• This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the outlet when the

air conditioner is operating or the front panel is closing.

• Take special care that children do not injure themselves by inserting their

fingers into the product.

Do not insert your fingers or foreign substances into the air inlet/outlet of

the air conditioner.

• Take special care that children do not injure themselves by inserting their

fingers into the product.

Do not strike or pull the air conditionerwith excessive force.

• This may result in fire, injury, or problems with the product.

Do not place an object nearthe outdoor unit that allows children to climb

onto the machine.

• This may result in children seriously injuring themselves.

Do not use this air conditioner for long periods of time in badly ventilated

locations or near infirm people.

• Since this may be dangerous due to a lack of oxygen, open a window at

least once an hour.

If any foreign substance such as water has entered the appliance, cut the

power by unplugging the power plug and turning the circuit breaker off

and then contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as copper, steel wire, etc.)other than the

standard fuse.

• Failing to do so may result in electric shock, fire, problems with the

product, or injury.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 7 2018-05-04 오후 3:48:36

Safety Information

8English

CAUTION

Do not place objects or devices under the indoor unit.

• Water dripping from the indoor unit may result in fire or property damage.

Check that the installation frame of the outdoor unit is not broken at least

once a year.

• Failing to do so may result in injury, death or property damage.

Max current is measured according to IEC standard for safety and current

is measured according to ISO standard for energy efficiency.

Do not install the product in a ship or a vehicle (such as a campervan).

• Salt, vibration or other environmental factor may cause the product

malfunction, electric shock or fire.

Do not stand on top of the appliance or place objects (such as laundry,

lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)

on the appliance.

• This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the

appliance.

• As well as being harmful to humans, it may also result in electric shock,

fire or problems with the product.

Do not drink the water from the air conditioner.

• The water may be harmful to humans.

Do not apply a strong impact to the remote controller and do not

disassemble the remote controller.

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not use this air conditioner to preserve precision equipment, food,

animals, plants or cosmetics, or for any other unusual purposes.

• This may result in property damage.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 8 2018-05-04 오후 3:48:36

Safety Information

English

Avoid directly exposing humans, animals or plants to the air flow from the

air conditioner for long periods of time.

• This may result in harm to humans, animals or plants.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety. Children should

be supervised to ensure that they do not play with the appliance.

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use

benzene, thinner, alcohol or acetone to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or

fire.

Before cleaning or performing maintenance, unplug the air conditioner

from the wall socket and wait until the fan stops.

• Failing to do so may result in electric shock or fire.

CAUTION

Take care when cleaning the surface of the heat exchanger of the outdoor

unit since it has sharp edges.

• To avoid cutting your fingers, wear thick cotton gloves when cleaning it.

• This should be done by a qualified technician please contact your installer

or service centre.

Do not clean the inside of the air conditioner byyourself.

• For cleaning inside the appliance, contact your nearest service centre.

• When cleaning the internal filter, refer to the descriptions in the ‘Cleaning

and Maintaining’ section.

• Failure to do may result in damage, electric shock or fire.

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 9 2018-05-04 오후 3:48:36

At a Glance

10 English

The indoor unit and its display may look slightly different from the illustration shown below,

depending on the model and the panel type.

Indoor Unit Overview

At a Glance

01 Display

02 Air flow blade/Air outlet (inside) /

Wind-Free panel

(You can use the Wind-Free Cooling function

when the Cool, Dry, or Fan mode is running.)

(Refer to the remote control manual for

product operation)

03 Air intake

04 Air filter (under the grille)

Indication Function

On/Off operation indicator

Removing frost indicator

Timer indicator

Filter cleaning indicator

Remote control sensor

CAC_TL_Wind-Free 4way_IB_EN_DB68-07955A-00.indd 10 2018-05-04 오후 3:48:37

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AQV09UGAN User manual

Samsung

Samsung AQ18A1(A2)QE/B User manual

Samsung

Samsung MR-EC00 User manual

Samsung

Samsung JH035EAV Series User manual

Samsung

Samsung AM FNHDEH Series User manual

Samsung

Samsung AS09HPBN User manual

Samsung

Samsung AR BVHC Series User manual

Samsung

Samsung AM AN4PKH Series User manual

Samsung

Samsung AF55JV1MAEE User manual

Samsung

Samsung AVXWPH022EA User manual

Samsung

Samsung RS265TDBP User manual

Samsung

Samsung AQV09NSD User manual

Samsung

Samsung APV36M0 Guide

Samsung

Samsung AM RN4 CH Series User manual

Samsung

Samsung AC TXAP G Series User manual

Samsung

Samsung AM007FN1DCH/AA User manual

Samsung

Samsung AJ NBLDCH Series User manual

Samsung

Samsung IAS18PJGE/AFR User manual

Samsung

Samsung SH18BW6 Series User manual

Samsung

Samsung AR09TXFYAWKNEU User manual

Samsung

Samsung AR TX AWKNEU Series User manual

Samsung

Samsung AS18F Series User manual

Samsung

Samsung DH140CAV User manual

Samsung

Samsung AC026KNADEH User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
