• Thank you for purchasing this Samsung air conditioner.

• Before operating this unit, please read this manual carefully and retain it for future reference.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGGX YWYYTW[TXYGGG㝘䟸G[a[^aW\

2English

Contents

Safety Information 4

Operation Features 9

Checking auxiliary power switch • Operating temperature and humidity 9

At a Glance 10

Indoor Unit Overview 10

Control Panel Overview 12

Indoor unit display 12

Controlling with the control panel 13

Turning on or off the air conditioner • Controlling temperature • Controlling the fan speed 13

Selecting the operation mode/Locking the control panel 14

Remote Control Overview 15

Replacing batteries • Storing the remote control 16

Remote Control Operation 17

Turning on or off the air conditioner • Operation modes 17

Controlling fan speed • Controlling temperature • Controlling air flow direction 18

Power Smart Features 19

Auto mode • Cool mode 19

Dry mode • Fan mode 20

Variety Smart Features 21

Turbo function • Long reach function 21

Clean function 22

Energy-Saving Operation 23

Timed on/Timed off function 23

Cleaning and Maintenance 24

Cleaning at a Glance 24

Cleaning the indoor unit exterior and outdoor unit heat exterior 24

Cleaning the filter 25

Periodical maintenance 26

Troubleshooting 27

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGGY YWYYTW[TXYGGG㝘䟸G[a[^aW\

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countrieswith separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic

accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the

end of theirworking life. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate these items from othertypes of waste and recycle them responsibly to

promote the sustainable reuse of material resources.

Household users should contact eitherthe retailerwhere they purchased this product, or their local

government office, fordetails of where and how they can take these items forenvironmentally safe recycling.

Business users should contact theirsupplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes fordisposal.

Safety Information 29

Safety Information (Installing the Air Conditioner) 29

General information 29

Installing the unit 30

Power supply line, fuse or circuit breaker 30

Installation Procedure 32

Step 1 Choosing the installation location 32

Step 2 Unpacking 36

Step 3 Checking and preparing accessories 36

Step 4 Drilling a hole through a wall 37

Step 5 Taping the pipes, cables, and drain hose 37

Step 6 Purging inert gas from the indoor unit 38

Step 7 Optional: Cutting and flaring the pipes 38

Step 8 Connecting the refrigerant pipes 39

Step 9 Connecting the power and communication cables 41

Step 10 Optional: Extending the power cable 44

Step 11 Checking the earthing 46

Step 12 Performing gas leakage test 46

Step 13 Evacuating the air 47

Step 14 Charging the refrigerant 47

Step 15 Fixing and insulating the connection part for refrigerant pipes 48

Step 16 Installing and connecting the drain hose 49

Step 17 Performing drainage test 50

Step 18 Checking the earthing 50

Step 19 Performing the final check and trial operation 51

Appendix 56

Troubleshooting 56

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGGZ YWYYTW[TXYGGG㝘䟸G[a[^aW\

4English

Safety Information

Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to safely

and efficiently operate the extensive features and functions of your new appliance.

Because the following operating instructions cover various models, the characteristics of your air conditioner may

differ slightly from those described in this manual. If you have any questions, call your nearest contact center or

find help and information online at www.samsung.com.

These warning signs are here to prevent injury to you and others. Please follow them carefully.

Important safety symbols and precautions:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Follow directions.

Do NOT attempt.

Make sure the machine is grounded to prevent electric shock.

Cut-off the power supply.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Use the powerline with the power specifications of the product orhigher and use the power line forthis

appliance only. In addition, do not use an extension line.

• Ex tending the power line may result in electric shock or fire.

• Do not use an electric transformer. It may result in electric shock or fire.

• If the voltage/frequency/rated current condition is different, it may cause fire.

The installation of this appliance must be performed by a qualified technician or service company.

• Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.

Install a switch and circuit breaker dedicated to the air conditioner.

• Failing to do so may result in electric shock or fire.

Fix the outdoorunit firmly so that the electric part of the outdoorunit is not exposed.

• Failing to do so may result in electric shock or fire.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG[ YWYYTW[TXYGGG㝘䟸G[a[^aW]

English

Safety Information

Do not install this appliance near a heater, inflammable material. Do not install this appliance in a

humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not

install this appliance in a location where gas may leak.

• This may result in electric shock or fire.

Neverinstall the outdoor unit in a location such as on a high external wall where it could fall.

• If the outdoor unit falls, it may result in injury, death or property damage.

This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic waterpipe,

or telephone line.

• Failure to do so may result in electric shock, fire, an explosion, or other problems with the product.

CAUTION

Install your appliance on a level and hard floor that can support its weight.

• Failing to do so may result in abnormal vibrations, noise, or problems with the product.

Install the draining hose properly so that wateris drained correctly.

• Failing to do so may result in water overflowing and property damage.

When installing the outdoor unit, make sure to connect the draining hose so that draining is performed

correctly.

• The water generated during the heating operation by the outdoor unit may overflow and result

in property damage. In particular, in winter, if a block of ice falls, it may result in injury, death or

property damage.

Do not install the product in a place where thermo-hygrostat is needed (such as serverroom, machinery

room, computer room, etc.)

• Those places do not provide guaranteed operation condition of the product therefore

performance can be poor in these places.

Do not install the product in a place where hair spray is frequently used (such as hair salon) since it

decreases the hydrophilicity of the product's heat exchanger and cause dew formation on the surface of

the product.

FOR POWER SUPPLY

WARNING

When the circuit breakeris damaged, contact your nearest service centre.

Do not pull or excessively bend the powerline. Do not twist ortie the powerline. Do not hook the power

line over a metal object, place a heavy object on the power line, insert the power line between objects, or

push the powerline into the space behind the appliance.

• This may result in electric shock or fire.

CAUTION

When not using the air conditionerfor a long period of time or during a thunder/lightning storm, cut the

powerat the circuit breaker.

• Failing to do so may result in electric shock or fire.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG\ YWYYTW[TXYGGG㝘䟸G[a[^aW]

6English

Safety Information

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke, cut-off the power supply

immediately and contact the nearest service center.

• Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the

power line. Do not touch the appliance or power line.

• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

To reinstall the airconditioner, please contact your nearest service centre.

• Failing to do so may result in problems with the product, water leakage, electric shock, or fire.

• A delivery service for the product is not provided. If you reinstall the product in another location,

additional construction expenses and an installation fee will be charged.

• Especially, when you wish to install the product in an unusual location such as in an industrial

area or near the seaside where it is exposed to the salt in the air, please contact your nearest

service centre.

Do not touch the circuit breakerwith wet hands.

• This may result in electric shock.

Do not strike orpull the air conditionerwith excessive force.

• This may result in fire, injury, or problems with the product.

Do not place an object nearthe outdoor unit that allows children to climb onto the machine.

• This may result in children seriously injuring themselves.

Do not turn the airconditioner off with the circuit breakerwhile it is operating.

• Turning the air conditioner off and then on again with the circuit breaker may cause a spark and

result in electric shock or fire.

Afterunpacking the airconditioner, keep all packaging materials well out of the reach of children, as

packaging materials can be dangerous to children.

• If a child places a bag over its head, it may result in suffocation.

Do not insert yourfingers or foreign substances into the outlet when the air conditioner is operating or

the air flow blade is closing.

• Take special care that children do not injure themselves by inserting their fingers into the product.

Do not insert yourfingers or foreign substances into the air inlet/outlet of the air conditioner.

• Take special care that children do not injure themselves by inserting their fingers into the product.

Do not use this airconditioner for long periods of time in badlyventilated locations ornear infirm people.

• Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG] YWYYTW[TXYGGG㝘䟸G[a[^aW]

English

Safety Information

If any foreign substance such as waterhas entered the appliance, cut-off the power supply and contact

the nearest service center.

• Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, ormodify the appliance yourself.

• Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.

• Failing to do so may result in electric shock, fire, problems with the product, or injury.

CAUTION

Do not place objects ordevices under the indoor unit.

• Water dripping from the indoor unit may result in fire or property damage.

Check that the installation frame of the outdoorunit is not broken at least once a year.

• Failing to do so may result in injury, death or property damage.

Max current is measured according to IEC standard for safety and current is measured according to ISO

standard for energy efficiency.

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted

cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

• As well as being harmful to humans, it may also result in electric shock, fire or problems with the

product.

Do not drink the water from the air conditioner.

• The water may be harmful to humans.

Do not apply a strong impact to the remote control and do not disassemble the remote control.

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not use this airconditioner to preserve precision equipment, food, animals, plants orcosmetics, or for

any other unusual purposes.

• This may result in property damage.

Avoid directly exposing humans, animals orplants from the airflow from the air conditioner forlong

periods of time.

• This may result in harm to humans, animals or plants.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG^ YWYYTW[TXYGGG㝘䟸G[a[^aW]

8English

Safety Information

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner, alcohol or

acetone to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, cut-off the power supply and wait until the fan stops.

• Failing to do so may result in electric shock or fire.

CAUTION

Take care when cleaning the surface of the heat exchangerof the outdoorunit since it has sharp edges.

• To avoid cutting your fingers, wear thick cotton gloves when cleaning it.

Do not clean the inside of the air conditioner by yourself.

• For cleaning inside the appliance, contact your nearest service centre.

• When cleaning the internal filter, refer to the descriptions in the ‘Cleaning and maintaining the air

conditioner’ section.

• Failure to do may result in damage, electric shock or fire.

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG_ YWYYTW[TXYGGG㝘䟸G[a[^aW]

English

Safety Information

Checking auxiliary power switch

1 phase circuit breaker 3 phase 4 wire

circuit breaker

Turn on the auxiliary power switch which is

installed separately.

NOTE

Auxiliary power switch(ELCB, ELB)

• Auxiliary power switch is not included in the package. Purchase and install it separately.

• Auxiliary power switch is a device for preventing over-current or short circuit. Turn off the auxiliary

power switch when you are cleaning the product or not going to use the product for long period of time.

• If ELB has already been installed in the switch box of the building, it is not mandatory for you to install

the auxiliary power switch.

Operating temperature and humidity

Mode Outdoor temperature Indoor temperature Indoor humidity

Cool mode -15°C to 54°C 18°C to 32°C 80% or less

Dry mode -15°C to 54°C 18°C to 32°C 80% or less

CAUTION

• If you use the air conditioner at a relative humidity above 80%, it may cause a formation of condensation

and a leakage of water on the floor.

• If the indoor unit is out of the operating temperature and humidity range, the safery device may operate

and the air conditioner may stops.

Operation Features

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGG` YWYYTW[TXYGGG㝘䟸G[a[^aW]

10 English

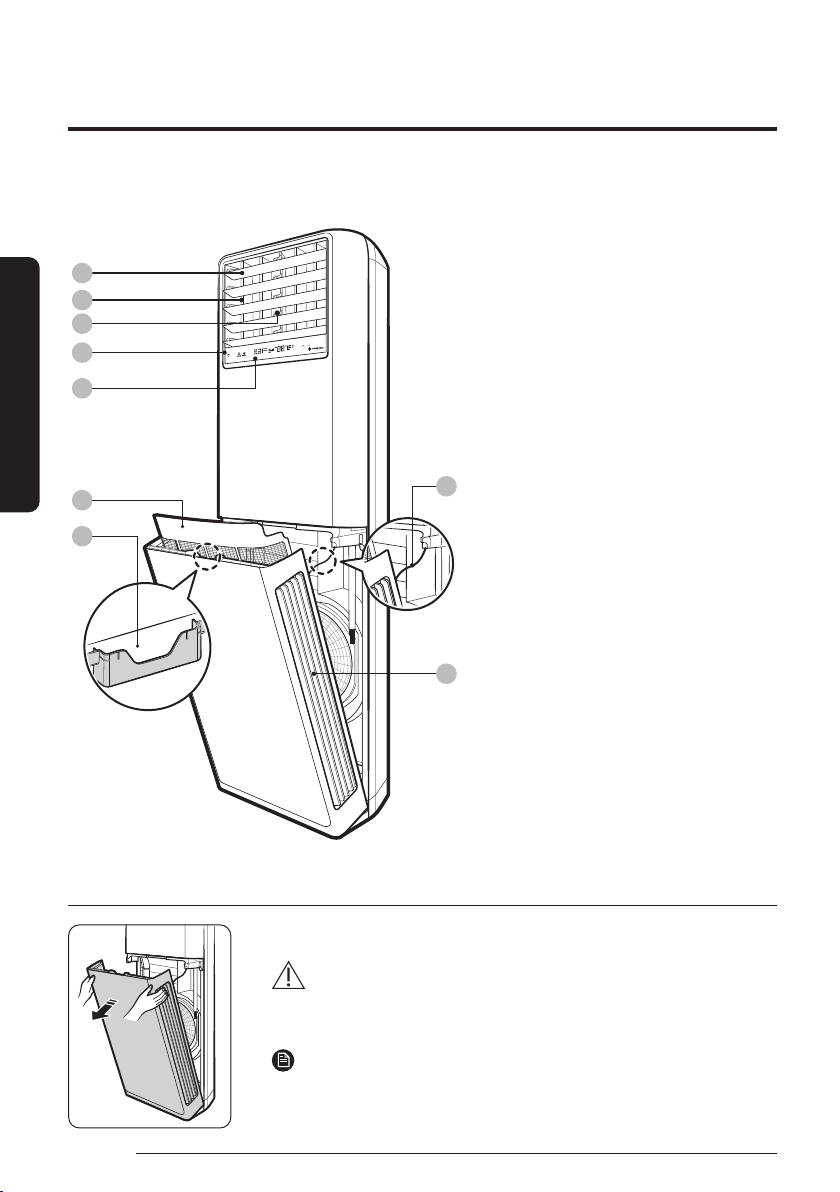

At a Glance

The actual product may differ slightly from the image depicted below.

AC030BNPDKC

ߢߣ

ߢߤ

ߢߦ

ߢߥ

ߢߨ

ߢߩ

ߢߪ

ߢ߫

ߢߧ

01 Air flow blade (up and down)

02 Air flow blade (left and right)

03 Air outlet

04 Control panel

05 Indoor unit display

06 Air filter

07 Remote control holder

08 Air intake

09 Safety hook

Opening the panel

Hold the upper part of the panel, then pull it slightly forward.

CAUTION

• Do not open the panel when the air conditioner is operating. It may cause

a malfunction or an electric shock.

NOTE

• Be sure to fasten the safety hook on the panel while in operation.

Indoor Unit Overview

ki]_TXX^ZXhTWWpiptwhjGtGjGv{jluUGGGXW YWYYTW[TXYGGG㝘䟸G[a[^aW^

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AM NN1DKH Series User manual

Samsung

Samsung AF MV1MAEENTC Series Guide

Samsung

Samsung APH450PG User manual

Samsung

Samsung AW07PHHEA User manual

Samsung

Samsung AC018JN4DCH/AA Service manual

Samsung

Samsung AR-EC03E User manual

Samsung

Samsung AM AN4PKH Series User manual

Samsung

Samsung MH026FKEA User manual

Samsung

Samsung AM***FXVAF Series User manual

Samsung

Samsung AM TXMDCH Series User manual

Samsung

Samsung AQV09F** Series User manual

Samsung

Samsung AS18A9RE User manual

Samsung

Samsung NS035LDXEA User manual

Samsung

Samsung AQ12A2VC User manual

Samsung

Samsung AM14A1E07 User manual

Samsung

Samsung EH035CAV User manual

Samsung

Samsung AC***KNPDEH User manual

Samsung

Samsung AQ07XLN User manual

Samsung

Samsung AHU Series User manual

Samsung

Samsung EH035EAV User manual

Samsung

Samsung AR TXCA Series User manual

Samsung

Samsung AW0500 Setup guide

Samsung

Samsung AR TVFY Series User manual

Samsung

Samsung NS140HHXEA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
