Salus PH60 User manual

Instruction Manual

Model No’s PH60/PH60-1/PH60-C

PI Control

Programmable Thermostatic

Radiator Valve Control Head

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 1

PH60 INSTRUCTION MANUAL

PRODUCT COMPLIANCE

This product complies with the essential requirements of the

following EC Directives:

•Electro-Magnetic Compatibility directive 2004/108/EC

•Low Voltage Directive 2006/95/EEC

•EC Marking directive 93/68/EEC

SAFETY INFORMATION

These instructions are applicable to the SALUS Controls model

stated on the front cover of this manual only, and must not be

used with any other make or model.

These instructions should be followed along with any other

statutory obligations - if you are in any doubt, please contact

the SALUS Controls technical helpline.

Please leave these instructions with the end user where they

should be kept in a safe place for future reference.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 2

INTRODUCTION

A Thermostatic Radiator Valve (TRV) is a self-regulating valve fitted

to hot water heating system radiators. The TRV controls the

temperature of a room by regulating the flow of hot water to the

radiator.

The PH60 from SALUS Controls is a stylish and accurate TRV

programmable control head designed for independent control of

central heating radiators. It is fitted to a new or existing TRV, and

works by controlling the radiator temperature according to a series

of programmed settings.

The PH60 is fitted with an easy to read Liquid Crystal Display (LCD)

and a five key operating panel, which is coupled with a unique,

smart design that makes the PH60 easy to programme and operate.

PI Control

The SALUS PH60 is a PI (Time Proportional & Integral) control product

as defined in the Building Regulations, which makes the heating

system operate up to 15% more efficient and provides close,

accurate control. Please note there is no span on the PH60 PI.

Features

•PI Control for accuaracy

and efficiency

•LCD with Backlight

•Stylish Casing

•Simple to Install

•6 Control Modes

•Temporary Override Function

•Built in Start-up Programmes

•Limescale Protection feature

•7 day Independent Programming

PH60 INSTRUCTION MANUAL 3

PH60-1

PH60

PH60C

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 3

INSTALLATION

Please read the important safety information at the start

of this manual before you begin to install the device.The

PH60 is easily installed – whether fitted as part of a new

installation, or in place of an existing TRV control head.

Battery Installation and Replacement

After Installation

After completing installation and powering up the PH60 for the first

time the controller will go through an adaptation procedure to check

that the valve has been installed correctly. The PH60 will behave in the

following way:

PH60 INSTRUCTION MANUAL

Push button to

gain access to

battery

compartment.

Please insert

batteries

correctly as

indicated.

Installation of the batteries is a straightforward

operation. Remove end cap from the PH60 body as

shown in this picture, and insert the batteries,

please make sure that the batteries are correctly

inserted.

About Valve Compatibility

An adapter for valves from the following manufactuers:

Heimeier, Junkers, Landy + Gyr, Honeywell-braukmann,

Oventrop M30X1.5 is not required.

For Danfoss valves RA-Series, you may require the

following adapter (supplied). Slide the adapter onto

the valve completely and tighten the screw.

The PH60 is attached to the valve body by screwing the

locking collar at the base of the controller onto the

threaded section of the TRV body, as shown in this

picture. The locking collar only needs to be tightened

by hand – do not use a spanner or pipe grips as you

may damage the PH60, TRV or both.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 4

PH60 INSTRUCTION MANUAL 5

Display Comments

All the indicators on the display and the backlight

will be turned on for two seconds.

The internal firmware version will then be displayed for

one second (the numbers displayed may be different to

the one shown here, depending on the firmware

revision of the individual PH60 controller)

The PH60 will then enter ADAPTATION mode. If there

are no problems with the battery or gear assembly, the

display will be as shown in this example. The flashing

indicator shows the motor is operating and retracting

the control pin.

Once the control pin is fully retracted, the display stops

flashing and the display will indicate the valve is open.

Install the TRV to the valve. To move to the next stage,

press any key.

The flashing indicator shows the motor is operating and

extending the control pin to close the valve.

Once closed, the display will change as shown in this

example. The flashing indicator shows the motor is

operating and retracting the control pin again. If this

final stage is completed successfully, the PH60 will enter

NORMAL mode

When entering NORMAL mode for the first time or after

a RESET), the time and day are set to 00:00 and 1. They

are flashing to prompt you to set them to the correct

values – to do this, please follow the ‘Time Setting

Mode’ procedure on page 18.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 5

At the start of the adaptation procedure, the controller will

check the battery and gear assembly; if there are any problems,

the following screens will be displayed:

Display Error

This example shows the battery voltage is low.

This example shows the gear assembly is not installed.

If there is a problem during the adaptation procedure, the

controller will stop and restart the process. If the problem still

exists, an error code will be displayed;

Error Code Description

Er1 Stroke too short. During the ‘P2’ adaptation stage the pin

stopped extending before reaching its minimum controllable point.

Er2 Stroke too long. During the ‘P2’ adaptation stage the pin did not stop

extending after reaching its maximum controllable point.

Er3 Unequal stroke. The measured strokes during stages

‘P2’ and ‘P3’ are not equal (this is normally caused

by weak batteries).

Er4 Operation over time. The motor has been operating

for over 100 seconds before reaching the end point.

PH60 INSTRUCTION MANUAL

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 6

PH60 INSTRUCTION MANUAL 7

An example of an error message is shown below:

Display Error Description

Error 2 (Er2 – stroke too long) occurred

during the adaptation process.

Pressing any key will restart

the adaptation process.

It is also possible to enter ADAPTATION mode manually if the PH60 is

in NORMAL mode. This is done by pressing the SET key until ‘AdAP’ is

shown on the display. Releasing the SET key will start the adaptation

process. If an error is displayed during the manually selected

adaptation, pressing any key or waiting 8 seconds without a key press

will return the PH60 to NORMAL mode.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 7

USER INTERFACE AND CONTROLS

The status and operation of the

PH60 can be clearly seen on the

backlit Liquid Crystal Display

(LCD) - this display allows the

user to see at a glance the current

status of the valve controller.

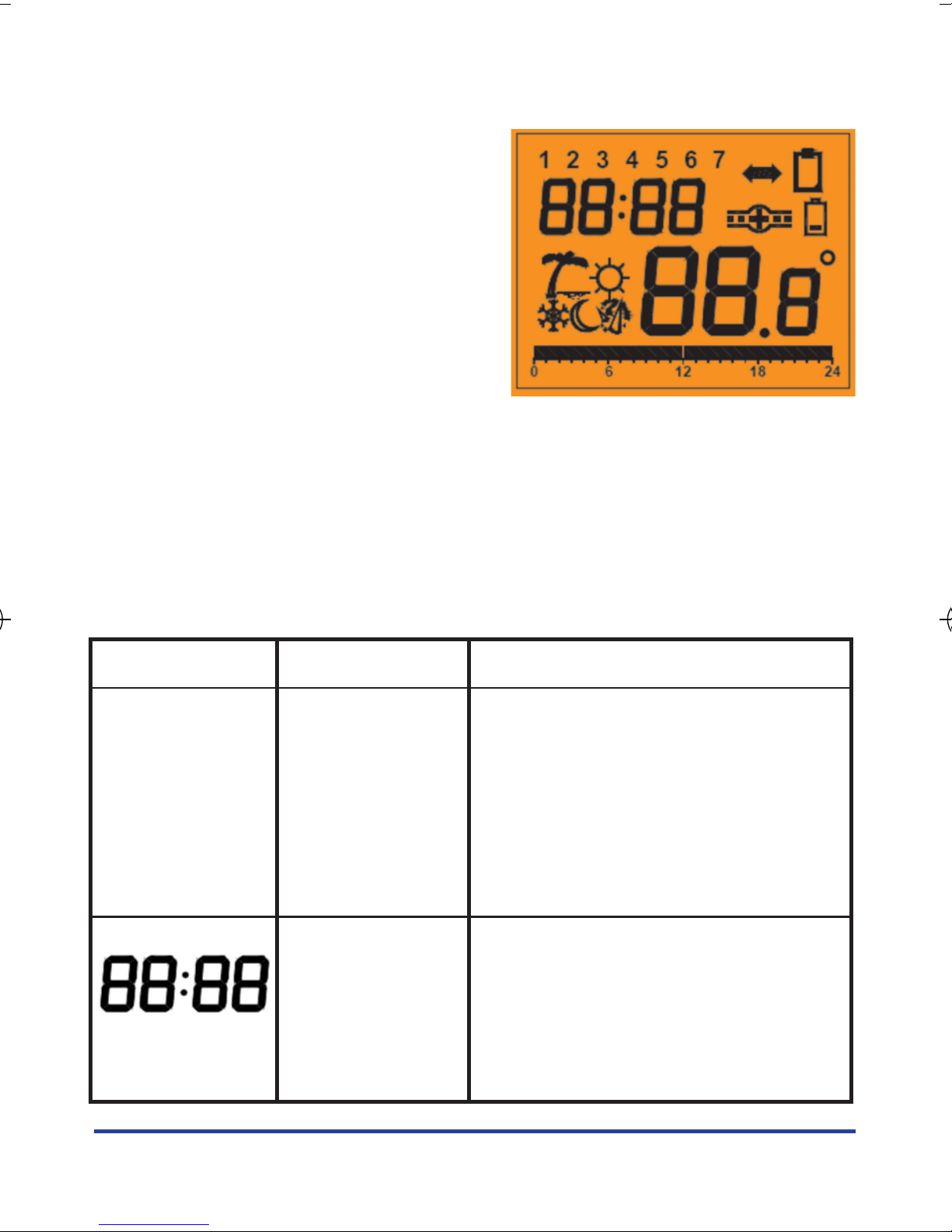

The display consists of a combination of symbols and

alphanumeric displays. The status indicator symbols and their

meanings are shown in the following table:

User Control Function Summary

Indicator Description Function

1 2 3 4 5 6 7 Day of Week In NORMAL mode indicates

Indicator the current day of the week.

In PROGRAMME mode indicates

the day being programmed.

In PROGRAMME COPY mode

indicates the source and

destination day.

Time Indicator In NORMAL mode indicates the

current time. In PROGRAMME

mode indicates the

programme time.

PH60 INSTRUCTION MANUAL

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 8

PH60 INSTRUCTION MANUAL 9

Indicator Description Function

Temperature In NORMAL mode indicates the

Indicator room temperature. In

PROGRAMME mode indicates

the set temperature. In

TEMPERATURE mode indicates

the set temperature.

Valve Status A ‘water flow’ animation is

Indicator shown when the valve is opened.

A ‘closed valve’ animation is

shown when the valve is closed.

Indicator flashes when the

valve is opening.

Low Battery Indicator flashes when the

Indicator battery voltage is low.

Programme In PROGRAMME COPY mode

Copy Indicator shows the source and

destination day.

Comfort In AUTO mode indicates the set

Temperature temperature is ‘Comfort’.

Mode Indicator In MANUAL mode indicates the

set temperature is ‘Comfort’.

In PROGRAMME SETTING

mode indicates the set

temperature selected for the

hour is ‘Comfort’.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 9

PH60 INSTRUCTION MANUAL

Indicator Description Function

Econ In AUTO mode indicates the set

Temperature temperature is ‘Econ’.

Mode Indicator In MANUAL mode indicates the

set temperature is ‘Econ’.

In PROGRAMME SETTING mode

indicates the set temperature

selected for the hour is ‘Econ’.

Party In NORMAL mode indicates

Temperature the set temperature is ‘Party’.

Mode In MANUAL mode indicates the

Indicator set temperature is ‘Party’.

Holiday In NORMAL mode indicates

Temperature the set temperature is ‘Holiday’.

Mode In MANUAL mode indicates the

Indicator set temperature is ‘Holiday’.

Frost Protection In NORMAL mode indicates the

Temperature set temperature is ‘Frost

Mode Indicator Protection’. In MANUAL mode

indicates the set temperature

is ‘Frost Protection’.

Salus PH60PI Manual 014_89 17/05/2013 11:58 Page 10

Other manuals for PH60

This manual suits for next models

Table of contents
