Salus iT500 User manual
iT500 User Reference Manual
2
PRODUCT COMPLIANCE
This product complies with the essential requirements of the following EC Directives:
• Electro-Magnetic Compatibility Directive 2004/108/EC
• Low Voltage Directive 2006/95/EEC
• EC Marking directive 93/68/EEC
SAFETY INFORMATION
These instructions are applicable to the Salus Controls model stated on the front cover of this manual only,
and must not be used with any other make or model.
These instructions are intended to apply in the United Kingdom only, and should be followed along with any
other statutory obligations - if you are in any doubt, please contact the Salus Controls technical helpline.
This accessory must be tted by a Competent person, and installation must comply with the guidance
provided in the current editions of BS7671 (IEE Wiring Regulations) and Part ‘P’ of the Building Regulations.
Failure to comply with the requirements of these publications could lead to prosecution. Always isolate the
AC Mains supply before opening or removing the unit from the wall or wall box.
Please leave these instructions with the end user where they should be kept in a safe place for future
reference.
PLEASE READ THIS INSTRUCTION MANUAL BEFORE USING THE EQUIPMENT.
THIS INSTRUCTION MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
iT500 User Reference Manual
3
4 INTRODUCTION
4 Features
5 GETTING STARTED
5 In the Box
5 Optional Equipment
6 INSTALLATION
6 Introduction
10 Installing the iT500RX Receiver
18 Installing the iT500 Thermostat
20 Pairing the iT500 System Units
for the First Time
21 Installing the iTG500 Gateway
22 Installing an iT300
Temperature Sensor
Transmitter (optional)
23 CONTROLS AND DISPLAY
23 iT500 Thermostat Keypad and
Display
25 iT500RX Receiver Controls
26 INSTALLATION
PROGRAMMING
26 Installation Setup Mode
26 Entering Installation Setup
Mode
27 Selecting the System
Conguration
28 Select Heating or Cooling
Mode
29 Select Temperature Units
29 Set the Time Zone
31 Turning Daylight Saving Time
On or O
33 PAIRING THE iT500 AND
iT300 WITH THE iT500RX
33 Pairing the iT500 Thermostat
with the iT500RX Receiver
35 Pairing an iT300 with the
iT500RX Receiver (optional)
37 Registering your iT500 Online
40 Download the Smartphone
App
43 USER PROGRAMMING
43 Program Times and Setpoint
Temperatures
45 Default Program Schedules
46 Control using the PC or
Smartphone App
51 Local Control using the
iT500TR Thermostat
59 Override Central Heating Zone
Settings
61 Override Hot Water Settings
64 Other Overrides
65 Frost Protection
65 Lock and Unlock the Keypad
66 OTHER INFORMATION
66 Low Battery Indication
66 Battery Installation or
Replacement
67 Resetting the iT500
Thermostat
68 Firmware Updates
69 TECHNICAL SPECIFICATIONS
69 Operating Environment
69 iT500 Central Thermostat
70 iT500RX Thermostat Receiver
70 iTG500 Gateway
71 iT300 Temperature Sensor
Transmitter
CONTENTS
iT500 User Reference Manual
4
INTRODUCTION
Thank you for choosing the Salus iT500 Series of Internet enabled programmable heating/cooling controls.
We hope that your purchase will give you many years of active and trouble-free service.
This equipment can replace an existing domestic central heating and hot water programmable controller and
thermostat or can control a completely new installation.
It is estimated that using a programmable thermostat can save up to 20% of the energy used by a traditional
installation.
The equipment can be used without the Gateway unit. In this case the battery powered central Thermostat
unit will communicate only with the Thermostat Receiver and cannot be accessed remotely.
Features
• Access and control your heating and hot water system via the internet using a smartphone or computer
• Programmable using your smartphone or computer
• Secure and energy ecient
• Three system and display congurations
iT500 User Reference Manual
5
GETTING STARTED
In the Box
The iT500 Thermostat - replaces your xed hardwired thermostat and
also the timer or programmable part of your heating controller. This unit
communicates with the iT500RX Receiver. It can be located anywhere in your
home as it is portable and battery powered.
Includes: 2 x AA Alkaline Batteries.
The iT500RX Receiver - replaces the switching part of your timer or heating
controller that is hardwired to your boiler, pump and 3-way valve. It allows for
manual override in the event of failure of your iT500 Thermostat unit.
The iTG500 Gateway - connects to your router and enables you to control
your central heating and hot water controls from outside of your home, via a
smartphone or computer.
Includes: 12V Power Supply and Ethernet Cable
Optional Equipment
The iT300TX Temperature Sensor Transmitter - replaces the second
hardwired thermostat in a two zone heating system. It can be located in
any part of the zone as it is portable and battery powered, can also be wall
mounted.
Purchased separately.
iT500 User Reference Manual
6
INSTALLATION
Introduction
The iT500 Thermostat and the iT500RX Receiver are designed to replace the programmer and wired
thermostat in a traditional domestic heating arrangement.
The equipment can be congured to control the following arrangements:
• Heating only, 1 zone
• Heating only, 2 zones
• Heating plus hot water
The system can be remotely controlled, via the internet, by connecting the system to your wireless router.
iT500 User Reference Manual
7
Two Heating Zone Arrangement
In this arrangement, the two outputs on the iT500 Thermostat Receiver are used to control two zone heating
valves.
The temperature in Zone 2 is controlled by the addition of an iT300 Temperature Sensor Transmitter, placed
in the zone.
Boiler
iT500TR iT500RX
iT300TX
Zone 2
Zone 1
UPSTAIRS
RADIATORS
DOWNSTAIRS
RADIATORS
iT5
00
T
R
DO
R
A
T
30
0
TX
U
RA
iT500RX
e
1
iT500 User Reference Manual
8
Heating plus Hot Water Arrangement
This is the arrangement for installing an iT500 based control system with a single heating zone and hot water.
The iT500RX Receiver is hardwired to the heating and water system components.
The iT500 Thermostat is connected wirelessly to the iT500RX Receiver.
Hot
Water
Tank
Boiler
iT500 iT500RX
ALL RADIATORS
iT5
00
A
L
L
R
L
iT500RX
iT500 User Reference Manual
9
Connection to the Internet
To control the system via your smartphone or a remote computer, the system can optionally be connected to
the Internet. The iT500 Thermostat is connected to your existing broadband router, using the iTG500
Gateway.
iT500
Internet
iTG500
Router
i
TG500
Rou
iT500
iT500 User Reference Manual
10

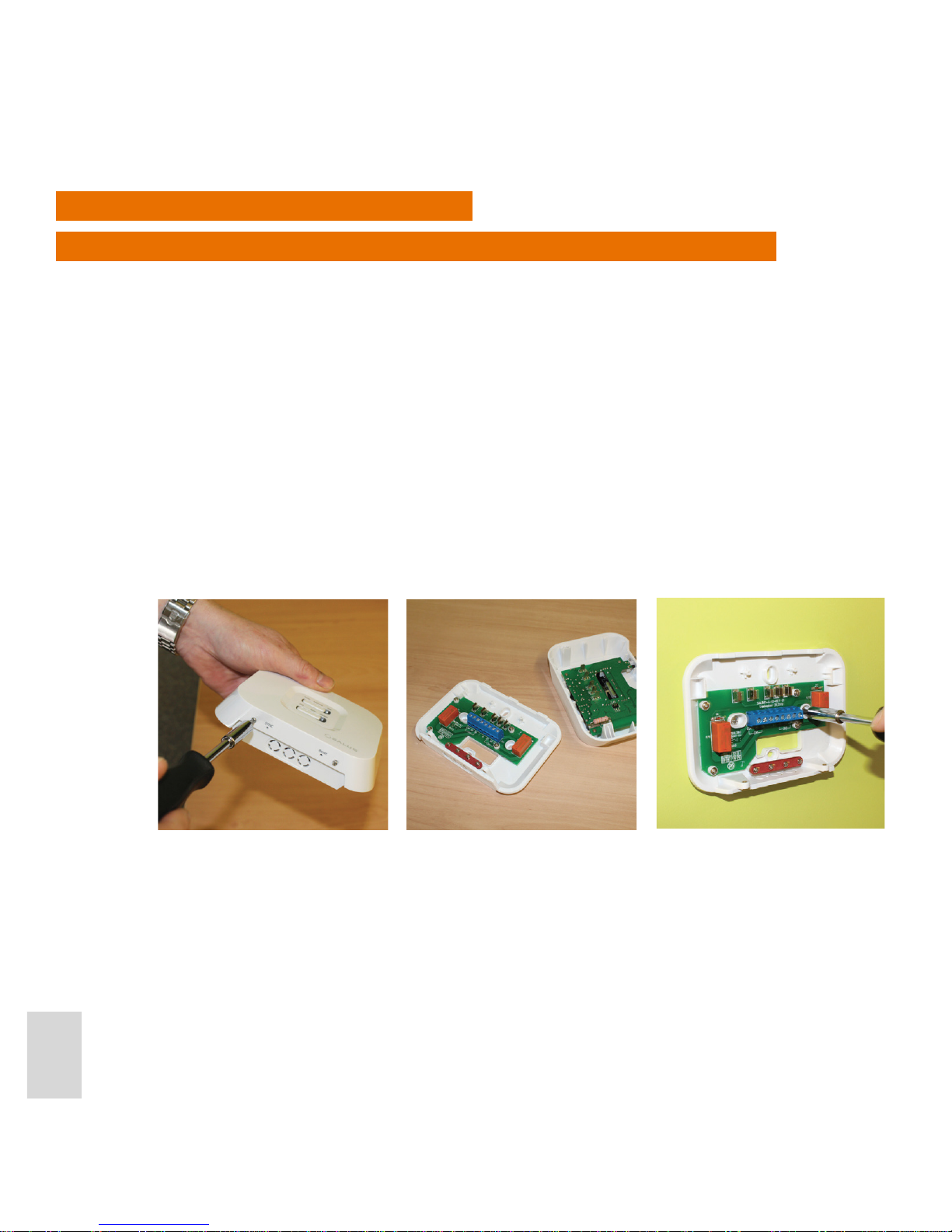

Installing the iT500RX Receiver
Replacing an Existing Programmable Controller with the iT500RX Receiver
1. Turn o the electrical power to your appliance.
Caution: Ensure that the electrical supply to the appliance has been isolated. Failure to completely
isolate the appliance could cause personal injury by electric shock and possible damage
to equipment.
Remove the cover from the existing programmable controller.
2. Note down the wiring sequence and the cable colours connected to the terminals within the electrical
box.
3. Disconnect the wires from the existing programmable controller terminals and remove.
Note: Providing the existing programmable controller was mounted using a standard electrical box, the
iT500RX Receiver will nally mount back onto this.
4. Loosen the screws at the bottom of the receiver unit, unclip the front of the unit and t the back of the
receiver unit to the wall using the ttings supplied.
