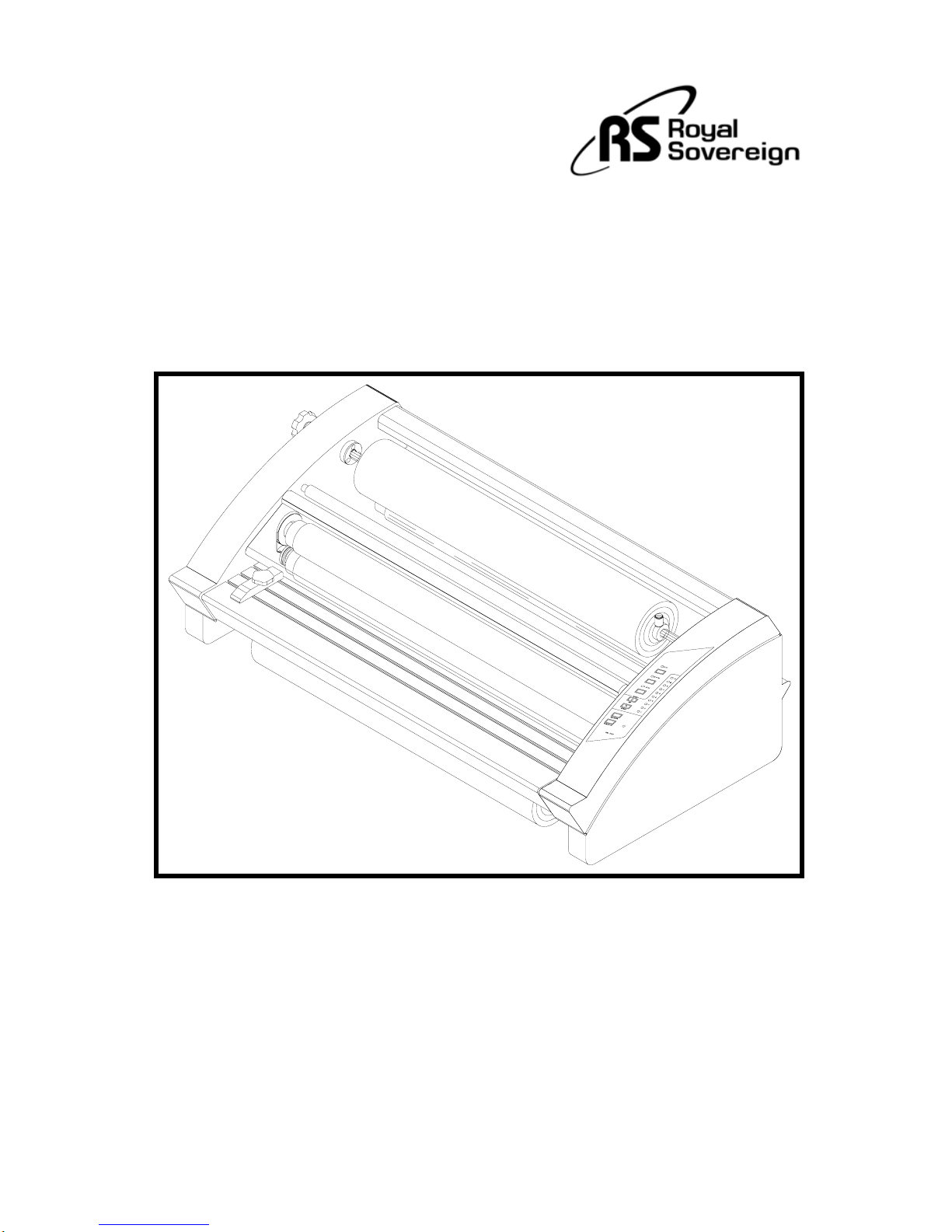

Royal Sovereign RSL2701S User manual

TABLE TOP LAMINATOR

RSL-2701S OWNER’S MANUAL

Please read instructions carefully before use.

TABLE OF CONTENTS

▣Introduction ----------------------------------------------------------------------------------- 3

▣Package Contents --------------------------------------------------------------------------- 3

▣Safety Precautions --------------------------------------------------------------------------- 4

▣Parts -------------------------------------------------------------------------------------------- 5

▣Features Guide ------------------------------------------------------------------------------- 6

▣Operating Instructions -------------------------------------------------------------------- 9

▣Film Loading and Threading ------------------------------------------------------------ 10

▣Maintenance --------------------------------------------------------------------------------- 12

▣Trouble shooting guide ------------------------------------------------------------------- 13

▣Specifications ------------------------------------------------------------------------------- 14

▣Warranty ----------------------------------------------------------------------------------- 15

INTRODUCTION

Thank you for purchasing RSL-2701S Table Top Laminator. It has been

designed and manufactured to provide years of continuous service. For

high quality lamination, please read this instruction manual thoroughly.

This manual will provide you with complete operating and maintenance

information.

PACKAGE CONTENTS

Preloaded Roll Films

(635mm x 75mic x 30m)

(

25in x 3mil x 98.4ft

)

SPARE FUSE

(250V / 15A)

RSL-2701S

Owner's

Manual

SAFETY PRECAUTIONS

WARNING

Failure to comply with any of the following safety procedures could result in serious

injury.

1. Insure the unit is plugged into a properly grounded outlet with the correct voltage.

2. Only licenses electricians should service or repair the electrical wiring.

3. Keep flammable and wet objects away from the machine.

4. Place machine on a level sturdy surface.

5. Avoid excessive sunlight, humidity and temperatures.

6. Unplug the machine when moving it or when it's not in use.

7. Keep out of reach of children.

8. Only authorized maintenance and service technician are permitted to make repairs.

9. Do not cover the surface of the machine until the machine is completely cooled.

10. When cleaning the machine, don't use flammable sprays or materials.

11. Do not touch the rollers or allow foreign objects inside the machine.

12. You can laminate by single film when the switch in the left cover is “O”.

( Insure the machine drastically cold, press the button in the left cover be “ O ”,then

you can laminate by single side. It is a damage for the paper to laminate by single side

while the rollers up and low are heating all together.)

PARTS

③

①

④

②

⑤

⑥

⑦

⑧

○

⑨

1- Upper Film

2- Lower Film

3- Idle Bar

4- Hot Rollers

5- Feed Table

6- Paper Guide

7- Control Panel

8- Tension Knob

9- Power Switch

10- Single/Double Laminating Switch “O” (on) “I” (off).

FEATURES GUIDE-1

Figure 1

Run and stop the machine

Reverse the rollers to undo jams

and correct misfed documents

Reduce roller speed

(

1~10 s

eed settin

)

Increase roller speed

(

1~10 s

eed settin

)

Film Application Thickness

125mic

Film Application Thickness

50mic

100mic

Film Application Thickness

25mic

38mic

25mic~38mic

50mic~100mic

125mic

RUN/STOP

REVERSE

DOWN

125 mic

SPEED

25~38 mic

50~100 mic

RSL- 2701

RSL-2701S

FEATURES GUIDE-2

Run and stop the machine

Reverse the rollers to undo jams

and correct misfed documents

Reduce roller speed

(

1~10 s

eed settin

)

Increase roller speed

(

1~10 s

eed settin

)

Film Application Tem

210° F~230° F

perature

Film Application Tem

230° F~270° F

210° F~230° F

perature

Film Application Tem

270° F~310° F

230° F~270° F

perature

270° F~310° F

Figure 1

Power Switch (1) - Located on the rear of

the machine. “I” (on) “0” (off). (Fig. 2)

Cross Cutter (2) - Used to cut off the

laminated web. (Fig. 2)

Figure 2

①②

Feed Guide (3) –The feed guide permits

alignment of the item(s) to be laminated. To

position the adjustable guide, loosen the knob,

slide it to the desired position and tighten the

knob to secure the feed guide in place. (Fig.3)

Safety Shield (4) – It prevents entanglement

NOTE: If the safety shield is opened, the power

to the motor will turn off.

Figure 3

③

④

Film Shaft and Locking

Core Adapter (5) –

The film shaft holds the film supply on the

machine. The locking core holds and locks the

film on the shaft to prevent shifting. (Fig.4)

Figure 4

Film Tension Adjustment (6) – Allows the

operator to increase or decrease film web

tension. To increase the tension turn the knob

clockwise and to decrease tension turn the

knob counterclockwise. (Fig. 5)

Figure 5

OPERATING INSTRUCTION

1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2)

2. Choose appropriate laminating thickness and speed. (Fig. 1)

3. Do not begin laminating until the blinking light is steady (approximately 8 minutes).

4. Position the item to be laminated on the feed table.

5. Press the RUN button. The rollers will begin to turn, wait for heat line to disappear,

feed the item into the machine.

6. Insure the machine drastically cold, press the button in the left cover be “ O ”,then

you can laminate by single side.(It is a damage for the paper to laminate by single

side while the rollers up and low are heating all together.)

7. Stop the laminator when all of the items have completely exited the rear of the

machine.

8. Please loose the film tension as loosed as possible.

9. If there the temperature is high while laminating by some films with thin paper on the

middle temperature level that you can use the low temperature level.

Repeat the above steps until all of your lamination is completed. When lamination is

completed the machine is not in use for an extended period of time turn the power off.

NOTE: Stand by mode and auto power off mode

- Stand by mode: If no activity is made within 30 minutes after each use the

machine will automatically switch into stand by mode. (In stand-by mode the

temperature will decrease to 80~90 and the three film thickness setting℃

indicators will blink).

- Auto power off mode: If the machine is in stand by mode and no activity is

made for 60 minutes the machine will automatically power off.

- If any activity is made while in stand by or auto power off mode the machine

will return to it’s previous stage.

Idler bar

FILM LOADING & THREADING

Upper

roll film

Lower

roll film

Roller

Idler bar

Laminating

direction

Figure 6

▲LOADING UPPER ROLL FILM

1. Slightly slide the shaft to the right and

pull it out from the machine.

Figure 7

2. Take both lock core adapters off

from the shaft.
