Royal Sovereign HSH-1201 User manual

LAMINATOR MODEL NO.HSH-1201

OWNER'S

MANUAL

Stand by

Hot/Cold

POWER

Read all instructions carefully before use.

Royal Sovereign International Inc.

INTRODUCTION 3

MAJOR PARTS 3

SAFETY PRECAUTIONS 4

CONTROL PANEL INSTRUCTIONS 5

HOT LAMINATING PROCEDURE 8

COLD LAMINATING PROCEDURE 9

COLOR FOIL LAMINATING PROCEDURE 9

MAINTENANCE 10

TROUBLESHOOTING 11

SPECIFICATIONS 11

WARRANTY

TABLE OF CONTENTS

HSH-1201

TOPIC PAGE

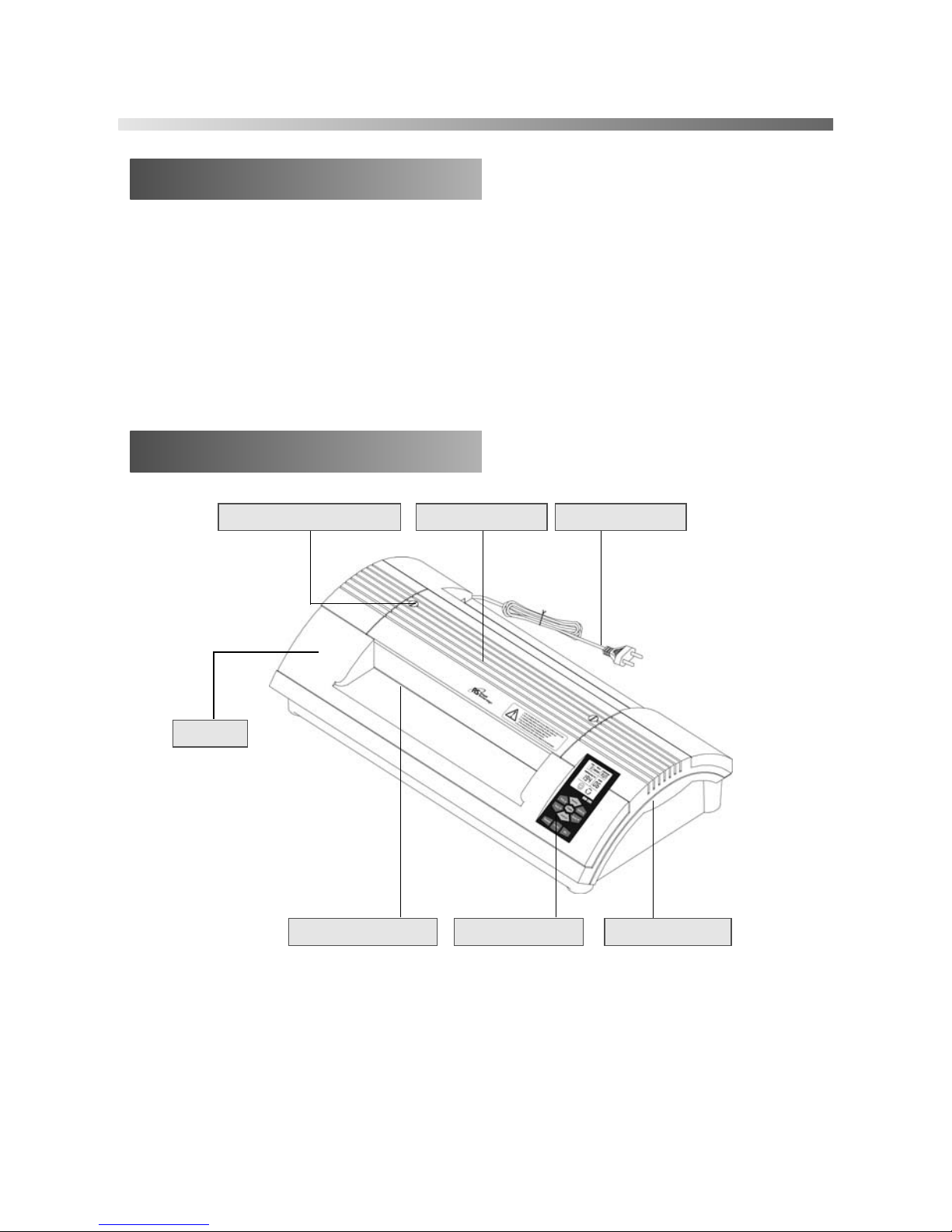

INTRODUCTION

MAJOR PARTS

HSH-1201

Thank you for purchasing a Royal Sovereign HSH-1201 Laminating Machine.

It has been designed and manufactured to provide years of continuous service.

To insure high quality lamination, please read this instruction manual thoroughly.

This manual will provide you with complete operating and maintenance information.

For additional product support, call Royal Sovereign Customer Service

at (800) 397-1025/201-050-1020

Cover Roller Screw Cover Roller Power Cord

Front Opening

Cover

Control Panel LCD Panel

HSH-1201

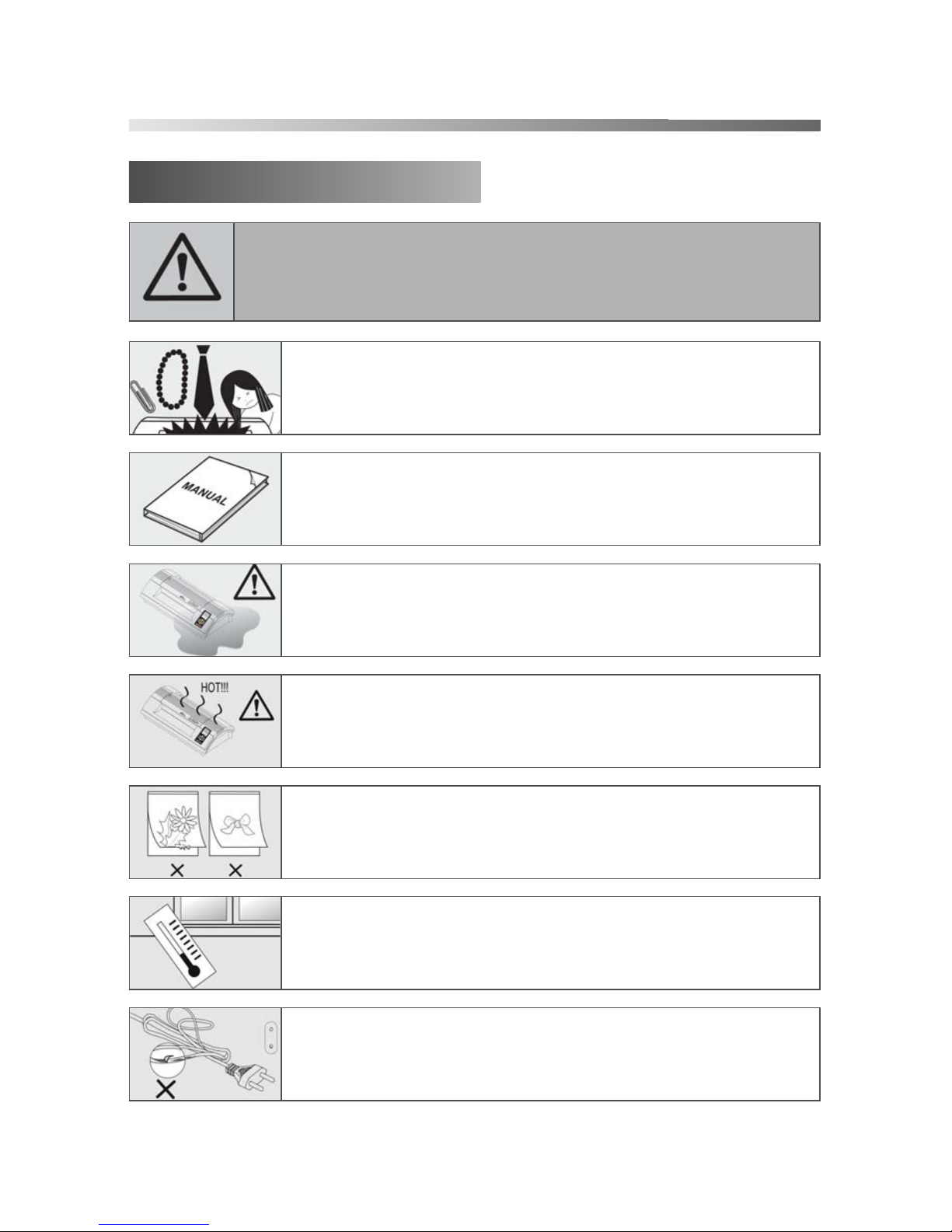

SAFETY PRECAUTIONS

The safety recommendations outlined in this section are to be read,

understood and followed before operating the machine. Failure to

comply with any of the following safety procedures could result in

serious injury. Keep this information for future reference.

1.To prevent the possibility of fire or injury, do not allow articles

of clothing (neckties, scarves, or paperclips etc.) inside the

machine.

2. Do not attempt to laminate items that exceed total

recommended material thickness.

3.To prevent the possibility of electric shock, do not immerse the

laminator in water or permit liquids inside the machine.

4.Because the laminator creats heat,keep out of reach of

children.

5. Do not operate machine for any other purpose other than its

intended use.

6. This machine is for indoor use only.

7. Do not operate the machine if the outlet or power cord is

damaged. Contact a qualified electrician.

HSH-1201

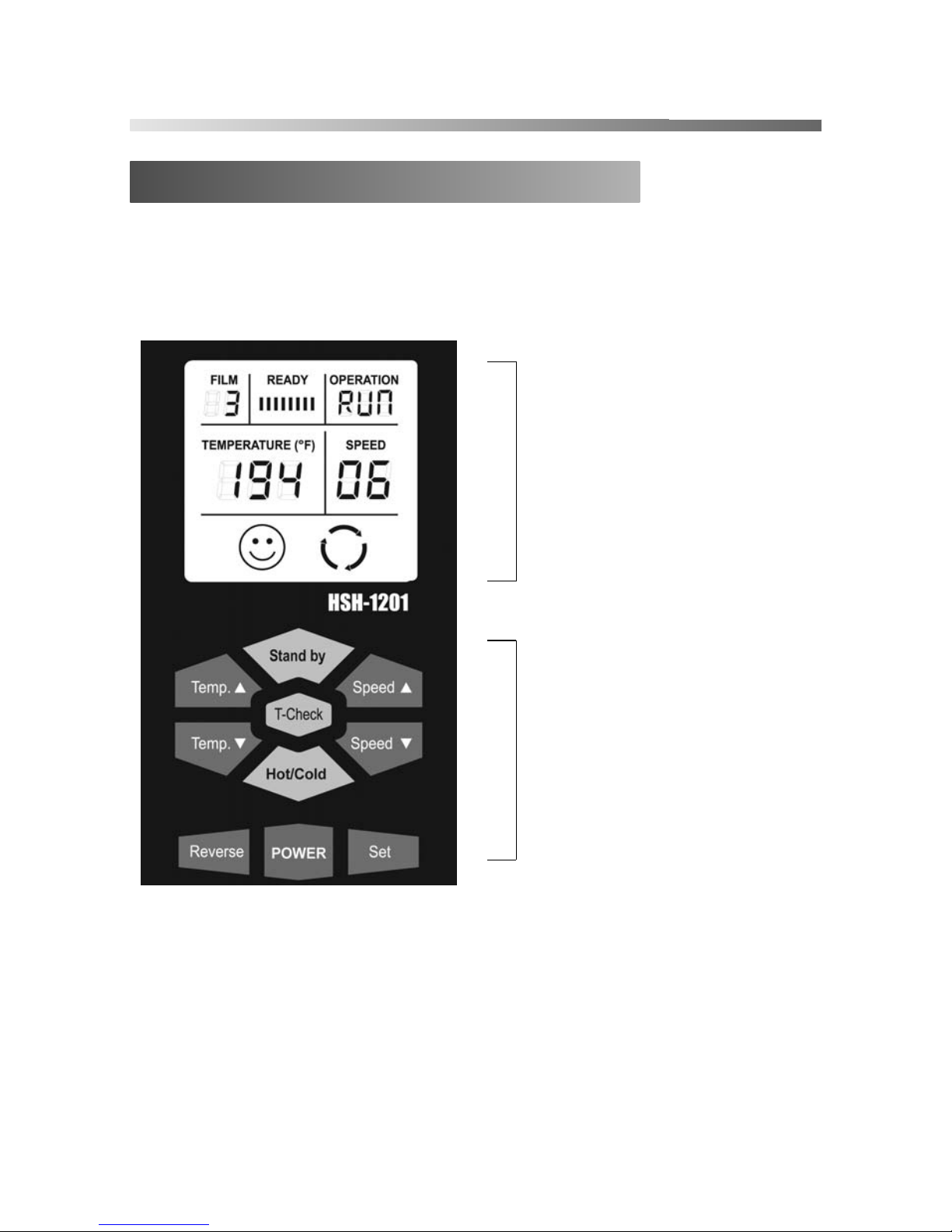

CONTROL PANEL INSTRUCTIONS

Appropriate speed and temperature may be set, using the LCD controller.

CONTROL PANEL SETTINGS

LCD DISPLAY

BUTTONS

HSH-1201

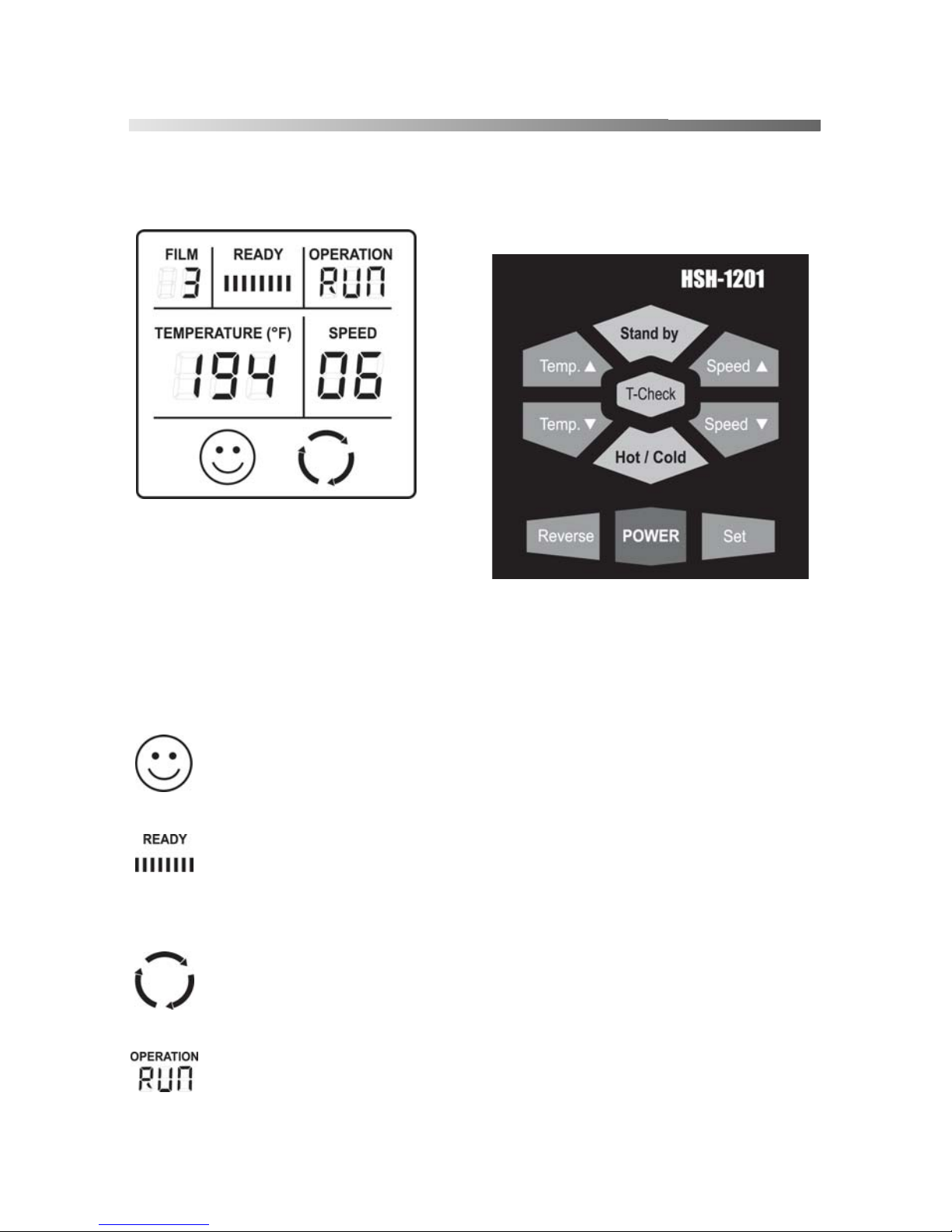

LCD DISPLAY CONTROL PANEL

FUNCTIONS

FILM

This displays the current film thickness.

10 film settings

3 mil=75 mic, 4 mil=100 mic, 5 mil=125 mic

6mil=150mic,7 mil=175 mic, 8mil=200mic,

10mil=250mic,

SPEED

12 speed options (1-12)

TEMPERATURE

This displays the current

temperature.

displayed when desired

temperature is met.

This Indicates that the current

temperature is either higher or

lower than the preset

temperature.Wait until the indicator stops

blinking.

Indicates what direction the

rollers are moving in

(FWD/REV).

Indicates if the machine is ON or

OFF.

T-Check

Press this to check the current temperature

Hot / Cold

Press this to choose the Hot/Cold function

Temp.

Press this to increase the temperature

Temp.

Press this to decrease the temperature

Speed 

Press this to increase the speed

Speed 

Press this to decrease the speed

Stand by

Set temperature 176°F(80°C) speed 2

Set

Press this to scroll through preset settings

Reverse

Reverse function

Power

Power ON/OFF

1. Place and use the laminator on a sturdy, flat work surface.

2. Plug in the laminator after verifying the correct outlet voltage.

3. Press the power button.

4. Make sure the machine is in the HOT lamination mode by pressing the

HOT/COLD button.

5. Select the correct pouch thickness by pressing the button.

6. Set the temperature and speed according to the pouch thickness. Please

refer to the SPECIFICATIONS section for recommended settings

7. The symbol will appear and you will hear 3 beeps when your

desired temperature is met. The machine is now ready for lamination.

8. Place the item to be laminated into the laminating pouch.

9. Insert the pouch (sealed side first) into the front opening of the machine.

10. The laminated item will exit out the rear of the machine when completed.

11. If you laminate several items continuously the may disappear,

please wait until it is displayed again before continuing lamination.

12. When the machine is on for an extended period of time, use a slightly

lower temperature setting as the internal temperature of the machine may

actually be higher than the preset temperature, which may cause the

document to bend

13. When you are finished laminating, press the OFF button. The rollers will

continue to roll until the temperature decreases to 140°F(60°C).

NOTE: Your laminated item will be hot and can easily bend. To keep your

laminated item flat, place on a flat surface and allow to cool.

HSH-1201

HOT LAMINATING PROCEDURE

HSH-1201

COLD LAMINATING PROCEDURE

COLOR FOIL LAMINATING PROCEDURE

1. Set the laminator in the COLD lamination mode by pressing the HOT/COLD

button.

2. The symbol will appear and you will hear 3 beeps when the machine is

in the cold temperature mode. The machine is now ready for lamination.

3. Place the document to be laminated on the adhesive side of the cold film with the

document face down.

4. Insert the document to be laminated into the front opening of the machine.

Remove the paper liner from the cold film slowly while the document is being

inserted into the machine.

NOTE: When switching the machine from the hot to cold mode, please wait until

the rollers cool down. It will take approximately 20-30 minutes. The symbol

will appear and you will hear 3 beeps.

IMPORTANT: Carrier is required for Foil Lamination

1. Set the temperature and speed according to the pouch thickness (FOIL).

Please refer to the SPECIFICATIONS section for recommended settings.

2. The READY ( ) symbol will stop blinking and a symbol will appear

when the correct temperature is met. The machine is now ready for lamination.

3. Position the color foil on the document with the color side facing up. When you

are applying the foil to small areas or using different colors, use the tape that’s

included to hold the foil in place.

4. Place the document into the paper carrier.

5. Insert the carrier into the front opening of the machine.

6. The carrier will exit out the rear of the machine when completed.

NOTE: Your laminated item will be hot and can easily bend. To keep your

laminated item flat, place on a flat surface and allow to cool.

HSH-1201

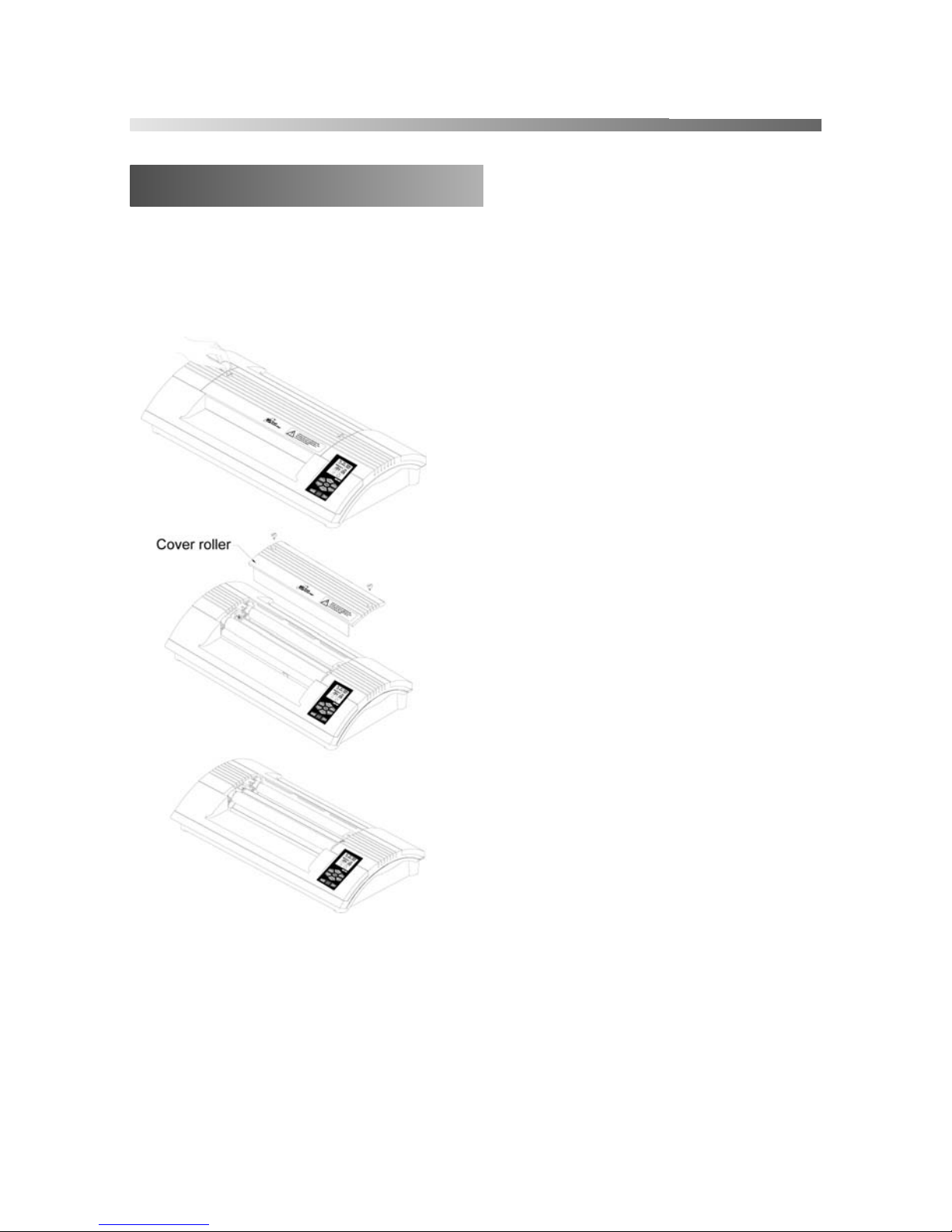

MAINTENANCE

When adhesives from film build up on the rollers, the quality of lamination will

decrease and jamming may occur. Please clean the rollers regularly.

1. Turn on the laminator and set the

temperature to 212°F(100°C) and set

the mil thickness to 4mil(100mic).

2. Insert a sheet of clean thick paper (about

0.5mm to 1/50" thick) into the front

opening of the machine 2-3 times to

remove excess adhesives from the rollers.

3. To thoroughly clean the rollers make sure

the machine is in the COLD mode and the

rollers are completely cool.

4. Unscrew the 2 screws on the cover using

a screwdriver. Once the screws are off,

remove the top cover.

5. Use a cleaning solvent such as Laminex

Poly-off or something equivalent on a lint

free cloth to clean residue on the rollers.

(Do not use alcohol or petroleum based

cleaning solvents or abrasives).

6. Place the cover and screws back into place and tighten.

7. Use and store this unit in a dry area, damp area may damage the machine.

HSH-1201

TROUBLESHOOTING

Problem Possible Cause Possible Solution

SPECIFICATIONS

Model HSH-1201

Dimensions 22.8"x11.4"x4.9" (in) 580x290x124 (mm)

Max.Laminating Width 13 (in) 330 (mm)

Max.Lam. Thickness 1/10" (in) 3mm

Film Thickness 1.5-10 (mil) 37.5 ~ 250mic

Heat method Hot Roller

Warm up time 5‘30” min

Cooling system DC FAN

Motor Type DC GEARED MOTOR

Laminating speed 8.86 (ft/min) 2700 (mm/min)

Number of rollers 6

Unit weight 32 (lbs) 14.5Kg

Voltage supply 100V/120V/220~240V(50~60Hz)

Power Consumption 1200W/1200W/1200~1300 W

Motor doesn’t work

- Power cord may not be

plugged in.

- Power switch is off

- Check and plug in the

power cord.

- Check and turn on the

power.

Pouches are not

laminating correctly

- If laminating heat sealed

pouches, the machine

may be set in the COLD

mode.

- The temperature may be

set too low

- The speed is set too high

- Make sure the machine

is in the HOT mode

- Check the temperature

is set according to

pouch thickness.

- Adjust to a lower speed.
