Rosewill RX81-CW-DS BLK/SLV User manual

3.5” USB 2.0+eSATA EXT. ENCLOSURE

RX81-CW Series

RX81-CW-DS BLK/SLV

RX81-CW-US BLK/SLV

User Manual

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

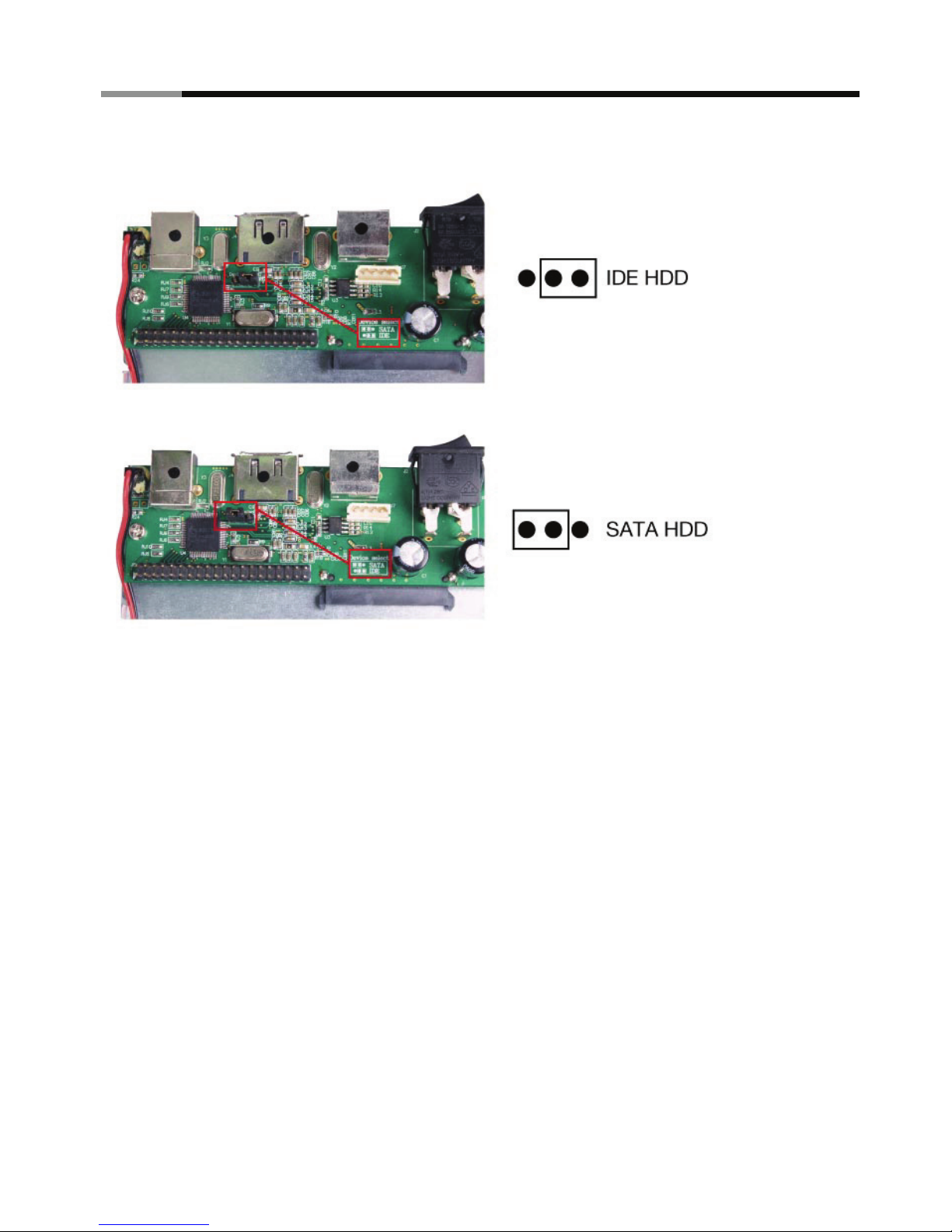

IMPORTANT NOTICE (DS Model Only)

PLEASE READ for IDE or SATA HDD Selection setting

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

RX81-CW-DS Series

Features

zApplication for 3.5” S-ATA or IDE HDD

zPlug and Play

zExcellent EMI shielding

zUSB speed : 480Mbps ( USB2.0)

zeSATA speed : 1.5Gbps (SATAI), 3Gbps(SATAII)

zChipset : Initio and JMicron

zFully support USB Hot-plug

zFully support eSATA hot-plug ( if motherboard or controller support hot-plug function)

zEasily assembled with clip button on the sides

zOutstanding compatibility and high reliability

Specification

zInterface：USB 2.0 / eSATA

zModel Color：Silver, Black

zMaterial：Aluminum and Plastic

zStackable：Ye s

zPower Source：34W AC Adaptor

zAC input：100~240V (47Hz-63Hz)

zDC output：5V/2A,12V/2A

zSafety：CE/FCC approved

zOS Supported：PC Windows ME/2000/XP/Vista & Mac OS 9.X or higher

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

RX81-CW-US Series

Features

zApplication for 3.5” S-ATA HDD

zPlug and Play

zExcellent EMI shielding

zUSB speed : 480Mbps ( USB2.0)

zeSATA speed : 1.5Gbps (SATAI), 3Gbps(SATAII)

zChipset : Sunplus

zFully support USB Hot-plug

zFully support eSATA hot-plug ( if motherboard or controller support hot-plug function)

zEasily assembled with clip button on the sides

zOutstanding compatibility and high reliability

Specification

zInterface：USB 2.0 / eSATA

zModel Color：Silver, Black

zMaterial：Aluminum and Plastic

zStackable：Ye s

zPower Source：34W AC Adaptor

zAC input：100~240V (47Hz-63Hz)

zDC output：5V/2A,12V/2A

zSafety：CE/FCC approved

zOS Supported：PC Windows ME/2000/XP/Vista & Mac OS 9.X or higher

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

Driver Installation on PC

Windows 98/ 98SE

Insert driver CD into the CD-ROM drive

Plug USB cable into USB port and system will detect it

System will ask for driver, Please follow the instruction step by step

accordingly

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

Driver Installation on PC

(Driver path: Select from the sub-menu under the”Windows98Driver”

from the attached CD)

Windows ME/ 2000/ XP/Vista

The system already provides the support for the software

(Please do not install again unless necessary)

Software Installation on MAC

MAC OS 9.X/ 10.X

The system already provides the support for the software

Remove the device

Windows 98/ SE

Before you remove your device please wait for ”Access

LED” on reader stops blinking to avoid data loss

Windows ME/ 2000/ XP/Vista

on the system tray

(1)Please double-click the icon

(2)A dialog box will appear, Double-click the Storage

Device to remove the device to avoid loss

3.5” USB 2.0+eSATA EXT. ENCLOSURE RX81-CW Series UserManual

Mac OS

Users can remove the cable of Device after putting the icon

Of device on the desktop into the trash bin

Assembly Chart

3.5”External Enclosure

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
