Wireless N Adapter RNX-N2LX

Quick Installation Guide

Wireless N Adapter RNX-N2LX Quick Installation Guide

1

About This Guide

This Quick Installation Guide only provides you some basic configuration instructions.

For more detailed information, please refer to the Wireless Network Adapter User Manual.

Before you begin, you must check the following minimum system requirements

zA notebook /desktop pc with an available USB port

zAt least a 300MHz processor and 32MB of memory

zAn 802.11n、802.11g or 802.11b Access Point (for infrastructure Mode) or another

802.11n、802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking

mode.)

Wireless N Adapter RNX-N2LX Quick Installation Guide

2

Install Driver and Utility

Software Installation

zInsert the Driver and Utility CD-ROM into the CD-ROM driver.

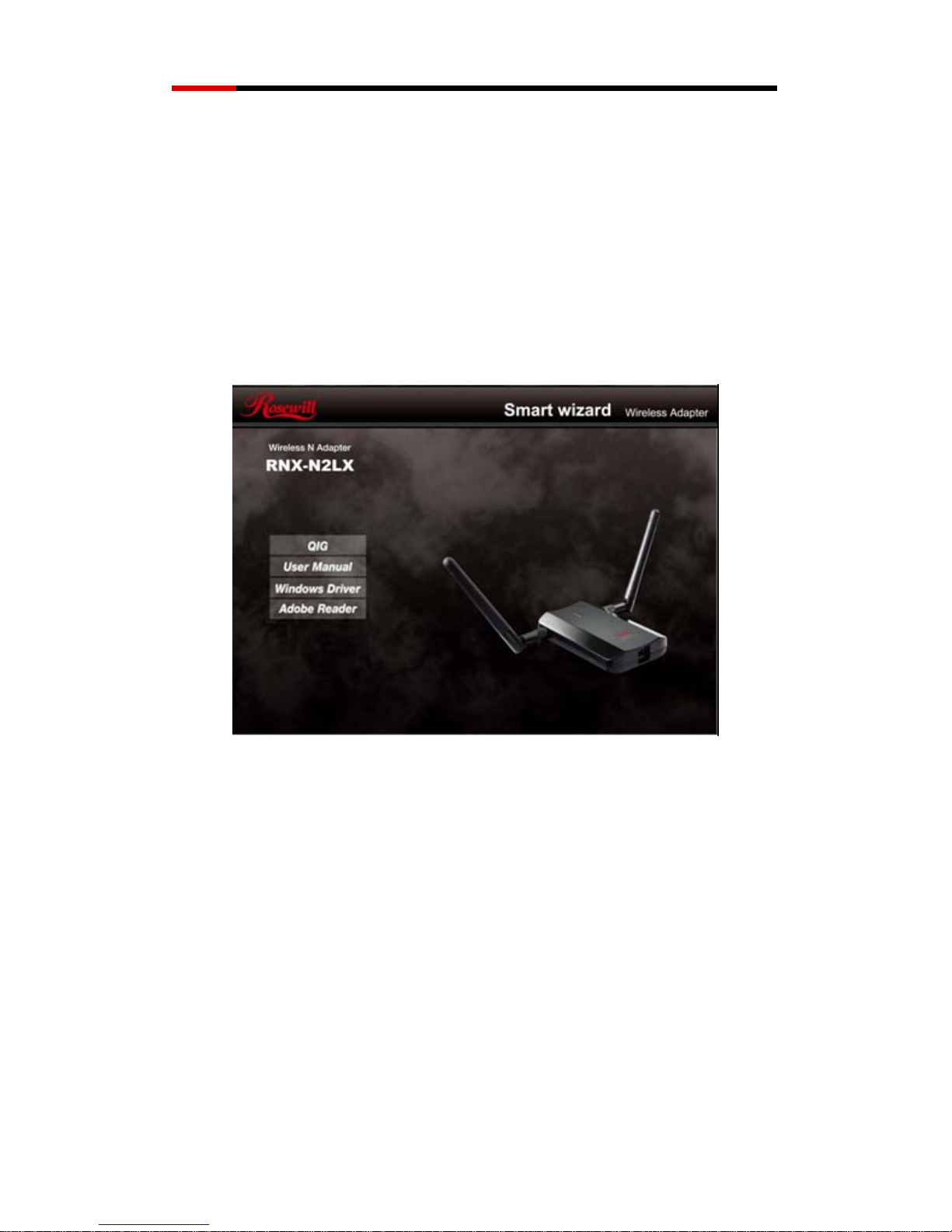

zThe Wizard should run automatically, and Figure 1-1 should appear. If not,

click the Start button and choose Run. In the field that appears, enter

D:\autorun.exe (if ‘’D’’ is the letter of your CD-ROM drive).

Figure 1-1

Next we use the USB wireless adapter installation steps as example. According to the

wireless adapter installation steps, you can complete wireless adapter installing easily.

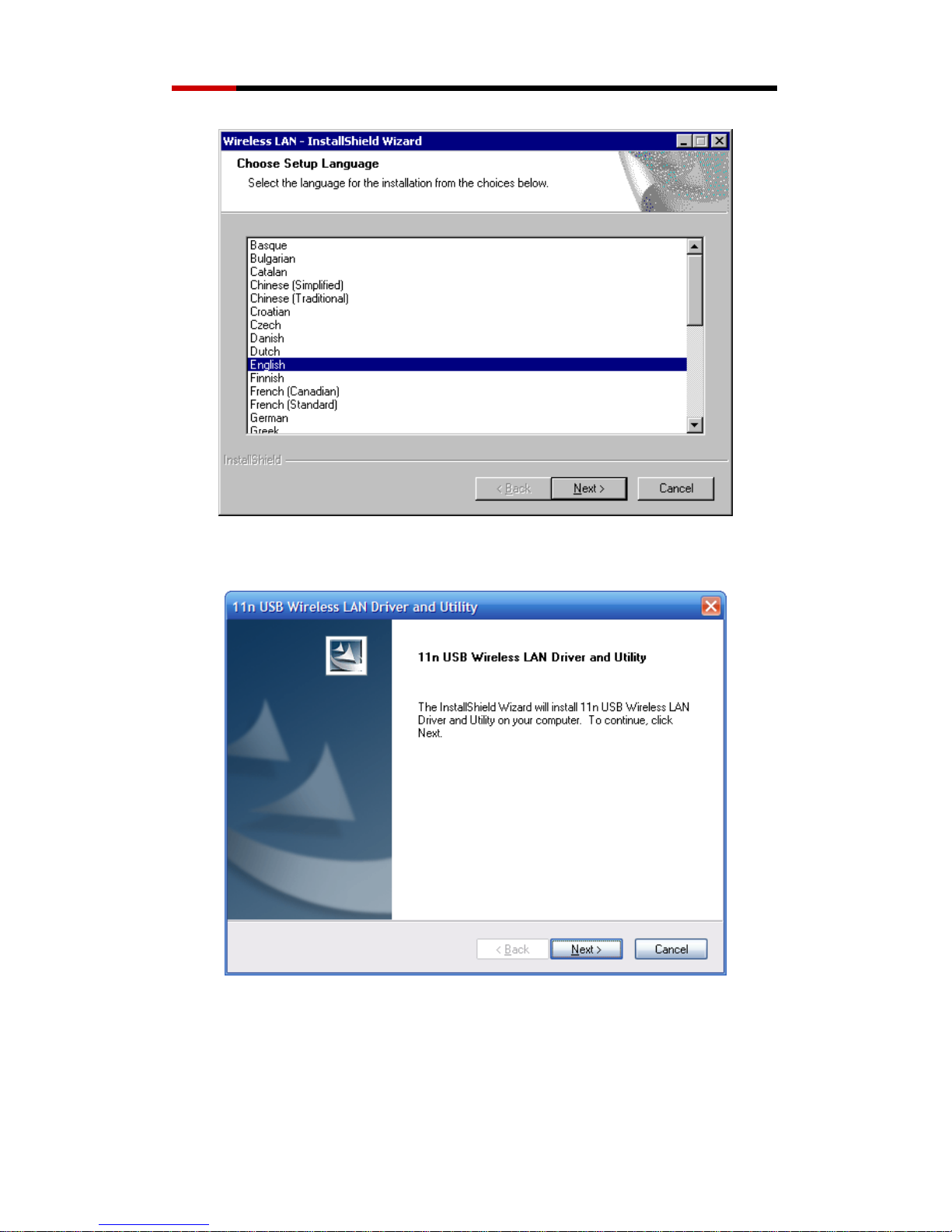

zClick “Windows Driver”on the Wireless Client Configuration Utility

dialogue box, and then select the installing language from the next screen

and click Next button.

Wireless N Adapter RNX-N2LX Quick Installation Guide

3

Figure 1-2

zClick Next

Figure 1-3

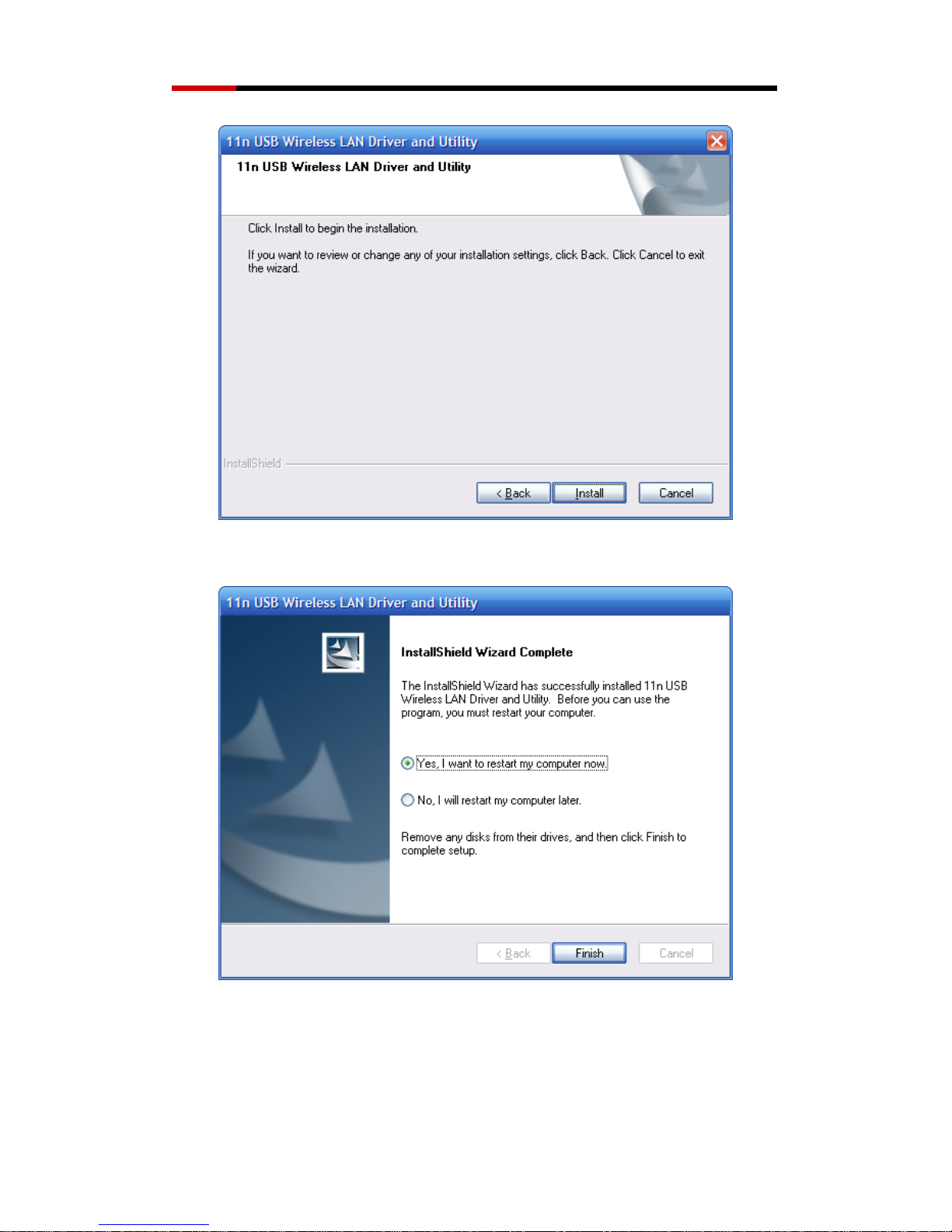

zClick Install to start installing

Wireless N Adapter RNX-N2LX Quick Installation Guide

4

Figure 1-4

zFollow the InstallShield Wizard steps, and click Finish when done.

Figure 1-5

zNow your PC or notebook will restart automatically.

Wireless N Adapter RNX-N2LX Quick Installation Guide

5

Install Wireless Adapter

The wireless USB Adapter supports up to 300 Mbps wireless connection. This

USB adapter is fully compliant with the specifications defined in IEEE802.11n

standard. It is designed to complement USB2.0 computers and supports

Windows98SE/Me/2000/XP/Vista/Win7.

USB adapter Installation

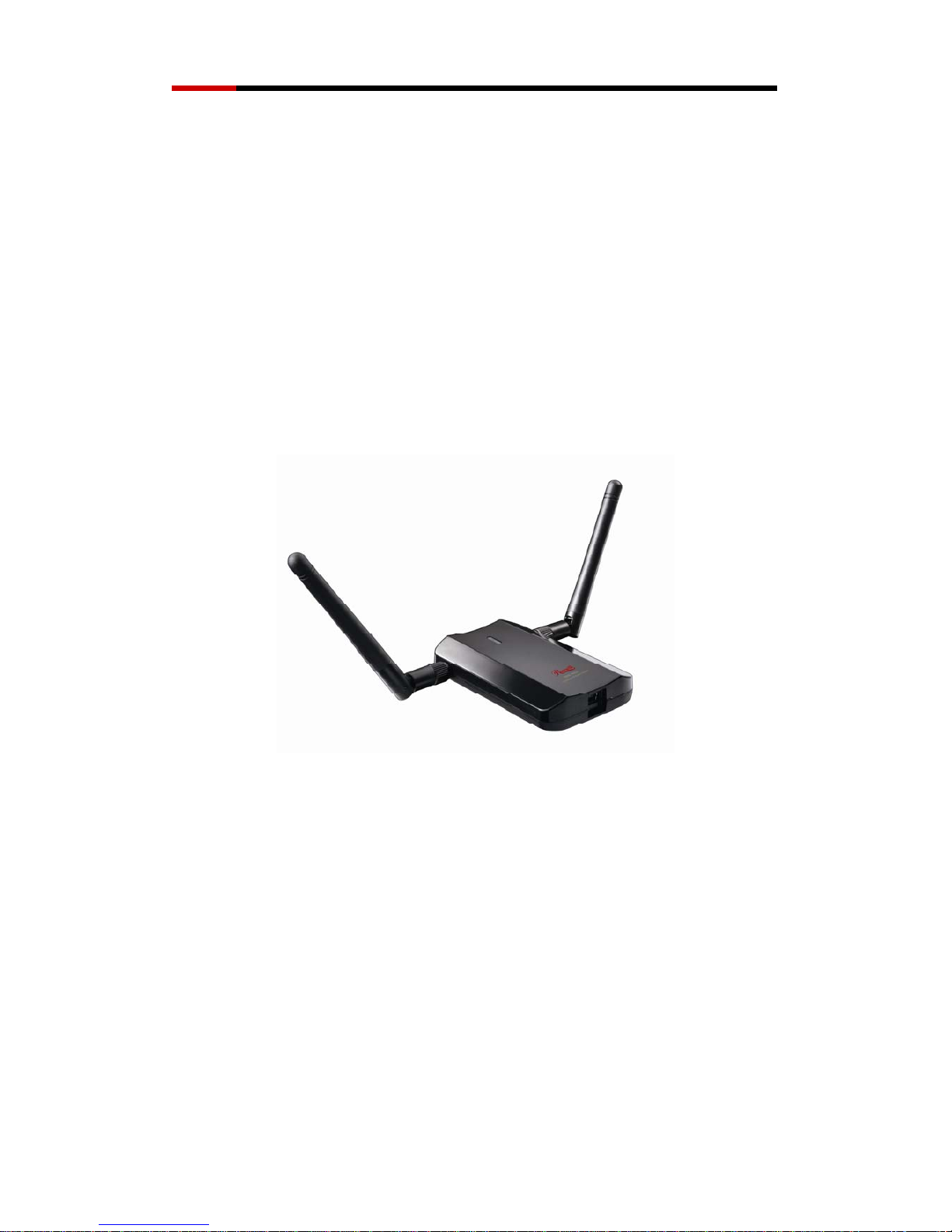

The status LED indicators of the USB wireless adapter are described in the following.

zLnk/Act ON (Blue): Indicates a valid connection

zLnk/Act Flashing: Indicates the adapter is transmitting or receiving data.

Figure 1-6

Install USB adapter

zPower on your PC, let the operating system boot up completely, and log in as

needed.

zHold the adapter and insert it into a USB slot.

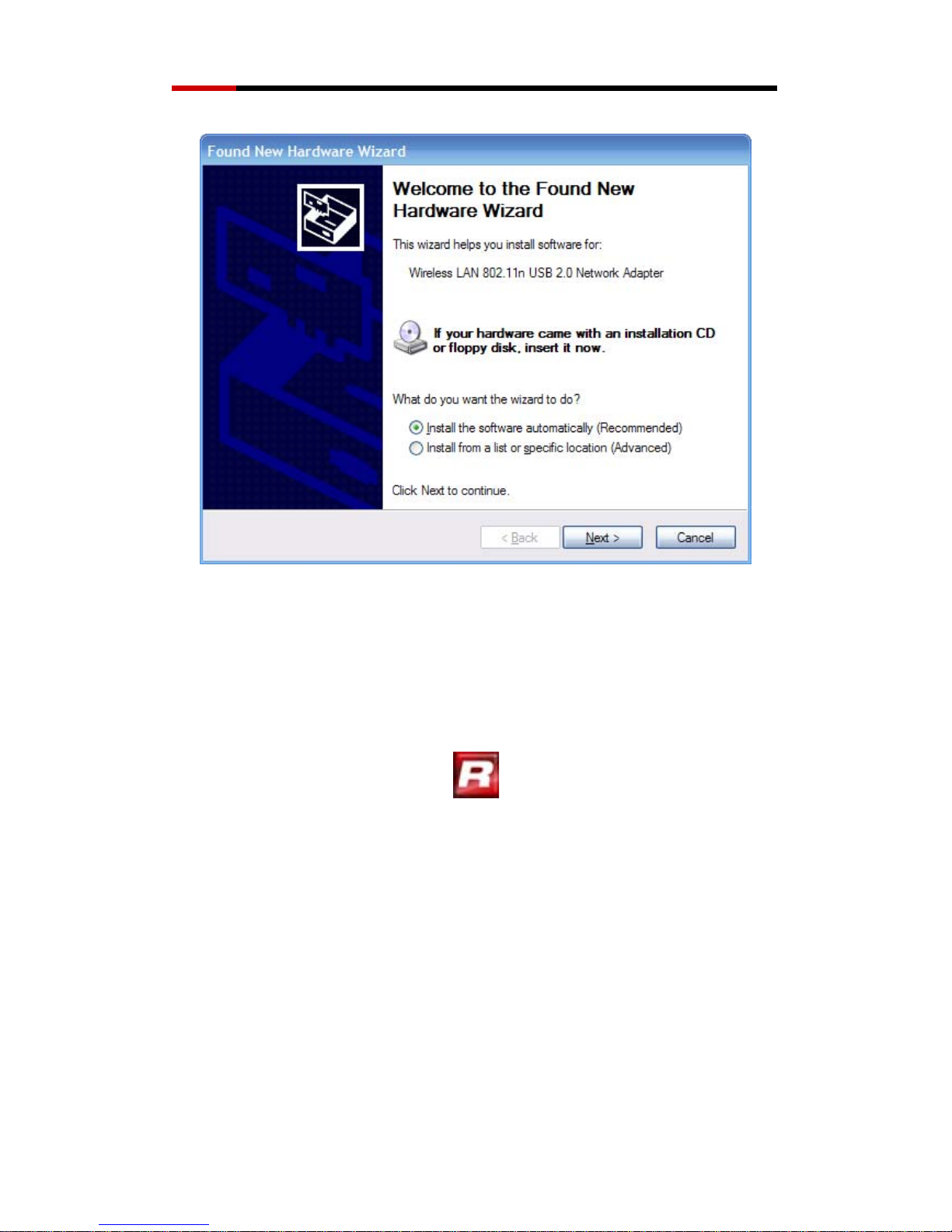

zIf the Welcome to Found New Hardware Wizard displays, choose install the

software automatically (Recommended), and click Next button. The driver will

be installed automatically.

Wireless N Adapter RNX-N2LX Quick Installation Guide

6

Figure 1-7

zNow you have completed the driver and hardware installation for the adapter.

Configure your wireless adapter

zDouble-click the icon on your desktop to run

Figure 1-8

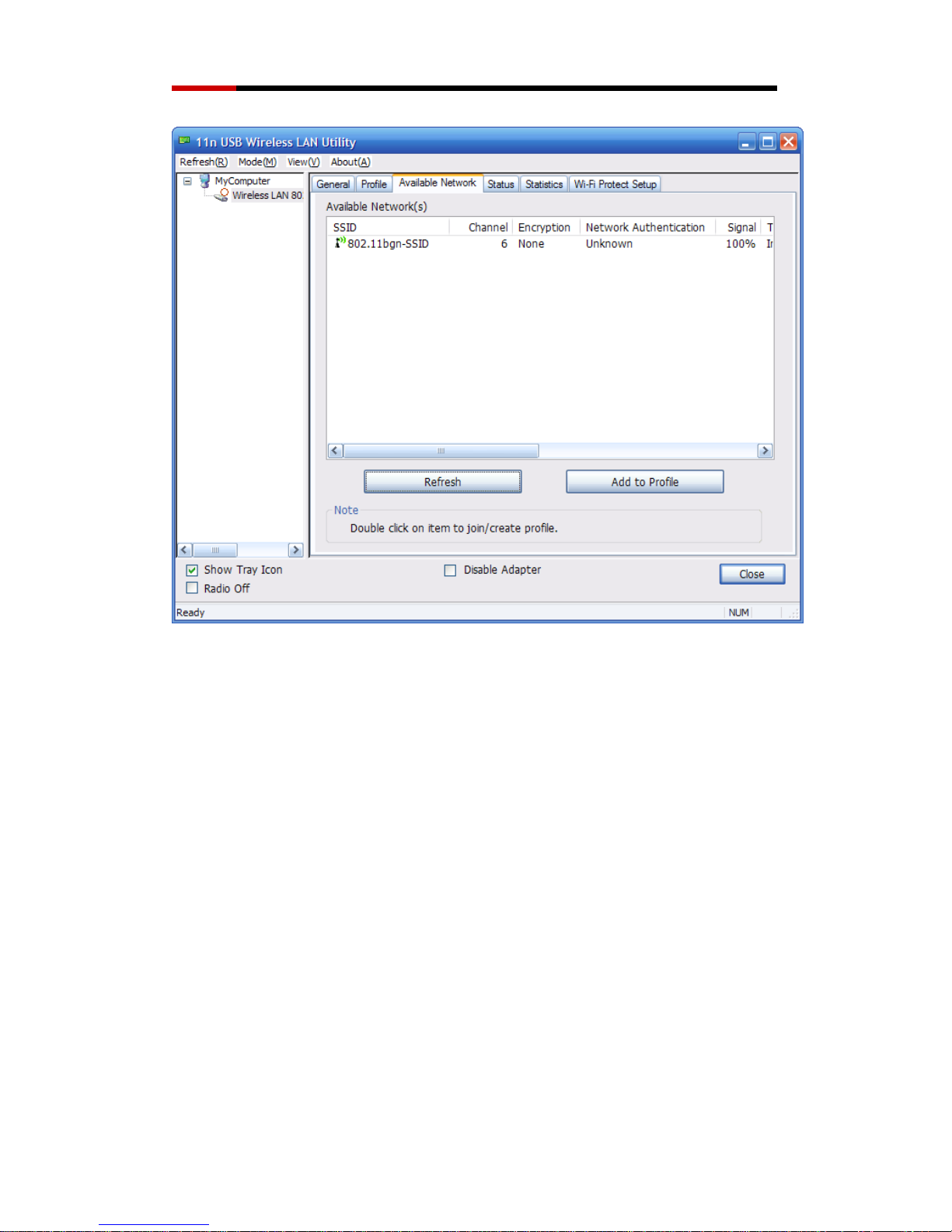

zSelect Available Network tab and click Refresh button to refresh current

available wireless network

Wireless N Adapter RNX-N2LX Quick Installation Guide

7

Figure 1-9

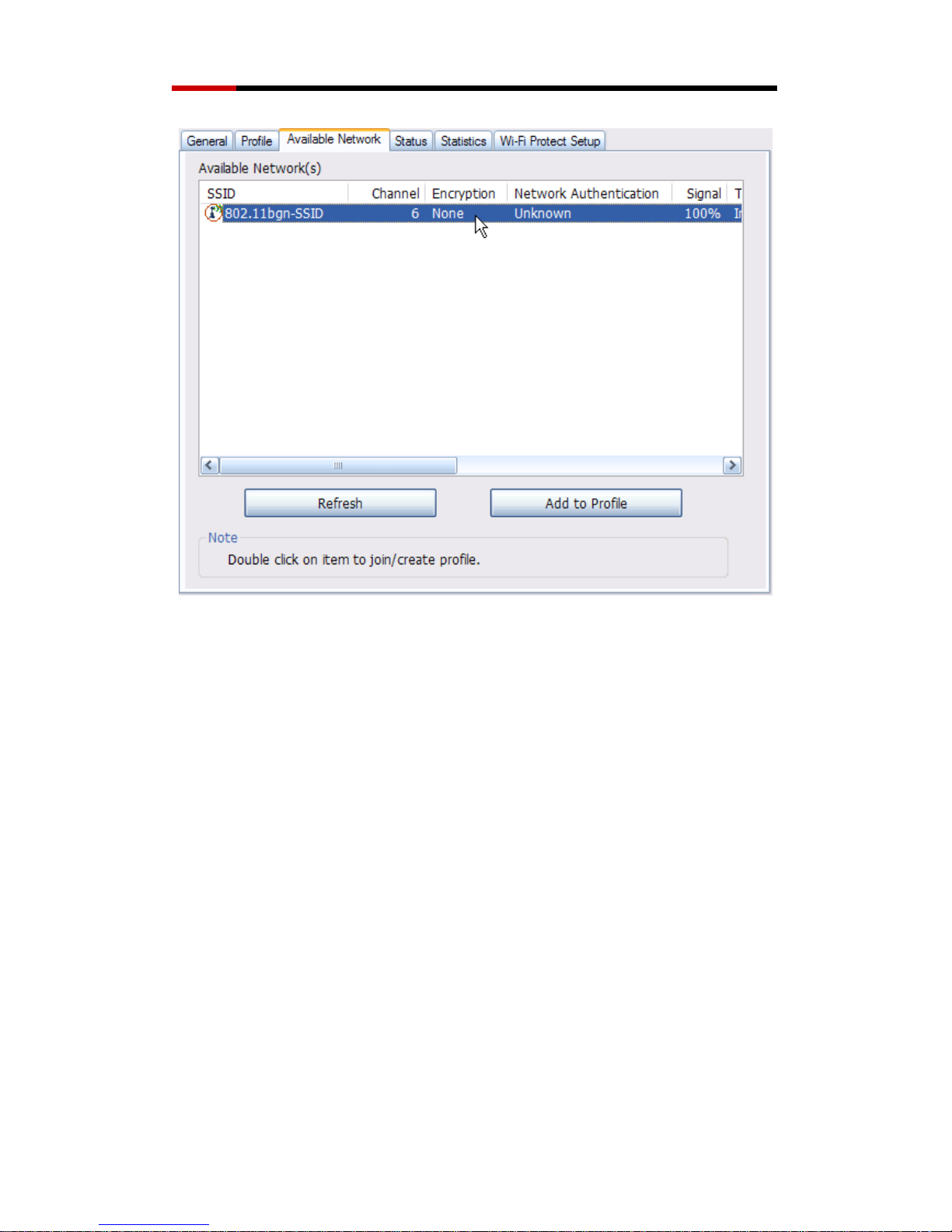

zDouble-click a wireless network which you want to connect

Wireless N Adapter RNX-N2LX Quick Installation Guide

8

Figure 1-10

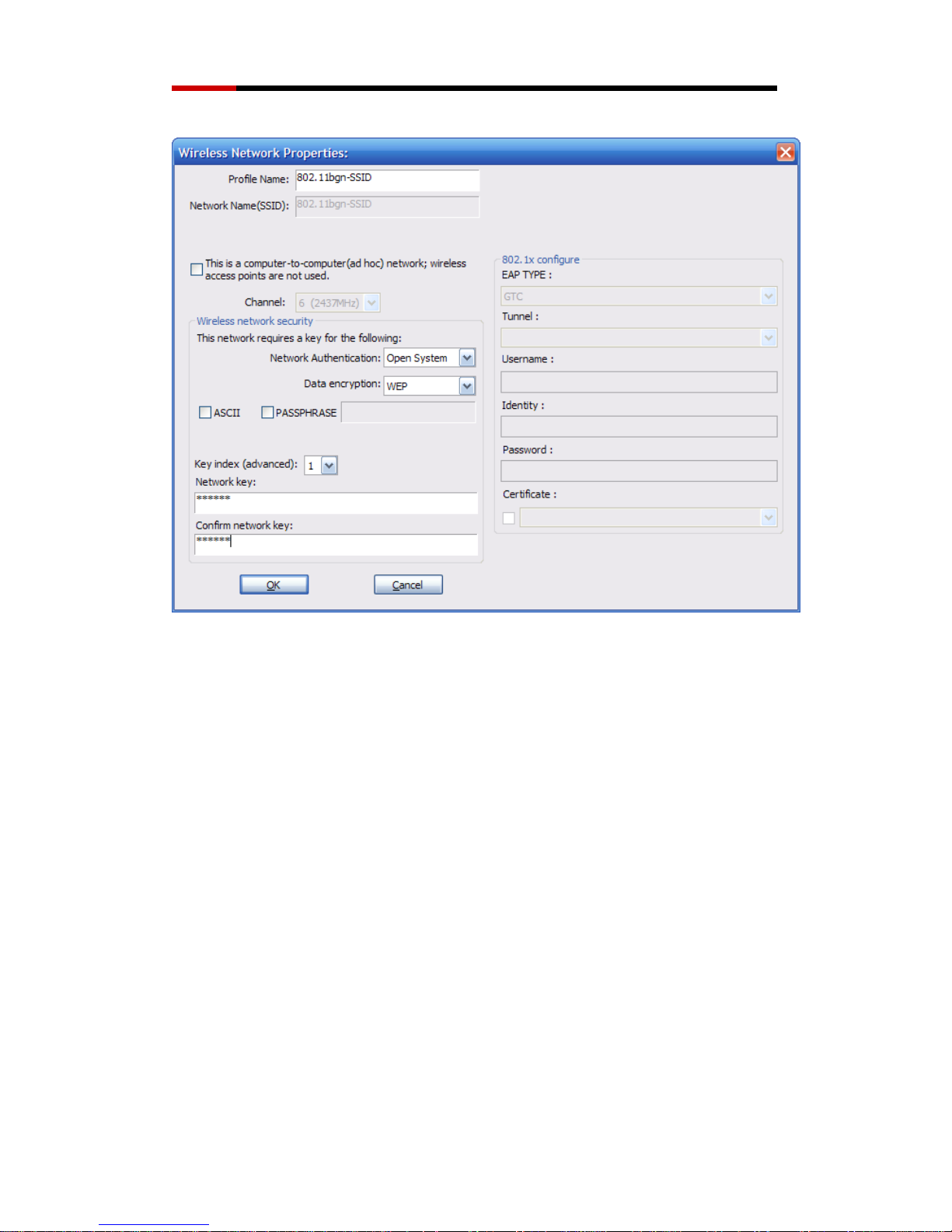

zChoose the Network Authentication Mode and Data encryption from the

drop-down menu and import the network key in popup window. Then click

OK button.

Wireless N Adapter RNX-N2LX Quick Installation Guide

9

Figure 1-11

Congratulations! You’ve successfully configured your wireless adapter and

connected to a wireless network!
