Rockwell Automation MPMA User manual

Read This First

MPMA Safe Handling Procedure

Catalog Number MPMA

Remove Stacked Stage

from Crate

1. Remove the crate baces.

2. Attach lifting straps to shipping platform eyebolts. The angle between

straps and vertical is not to exceed 45°.

3. Lift platform from crate using a hoist.

4. Support cantilevered or secondary stage while removing crate shipping

platform.

ATTENTION Improper handling of a stacked stage can cause personal injury and

damage to the equipment. Follow these unpacking instruction to

safely unpack and avoid damaging your stacked stage.

45°

max

Publication MPMA-PC001A-EN-P - September 2008 2

Copyright © 2008 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.

Rockwell Automation is a trademarks of Rockwell Automation, Inc.

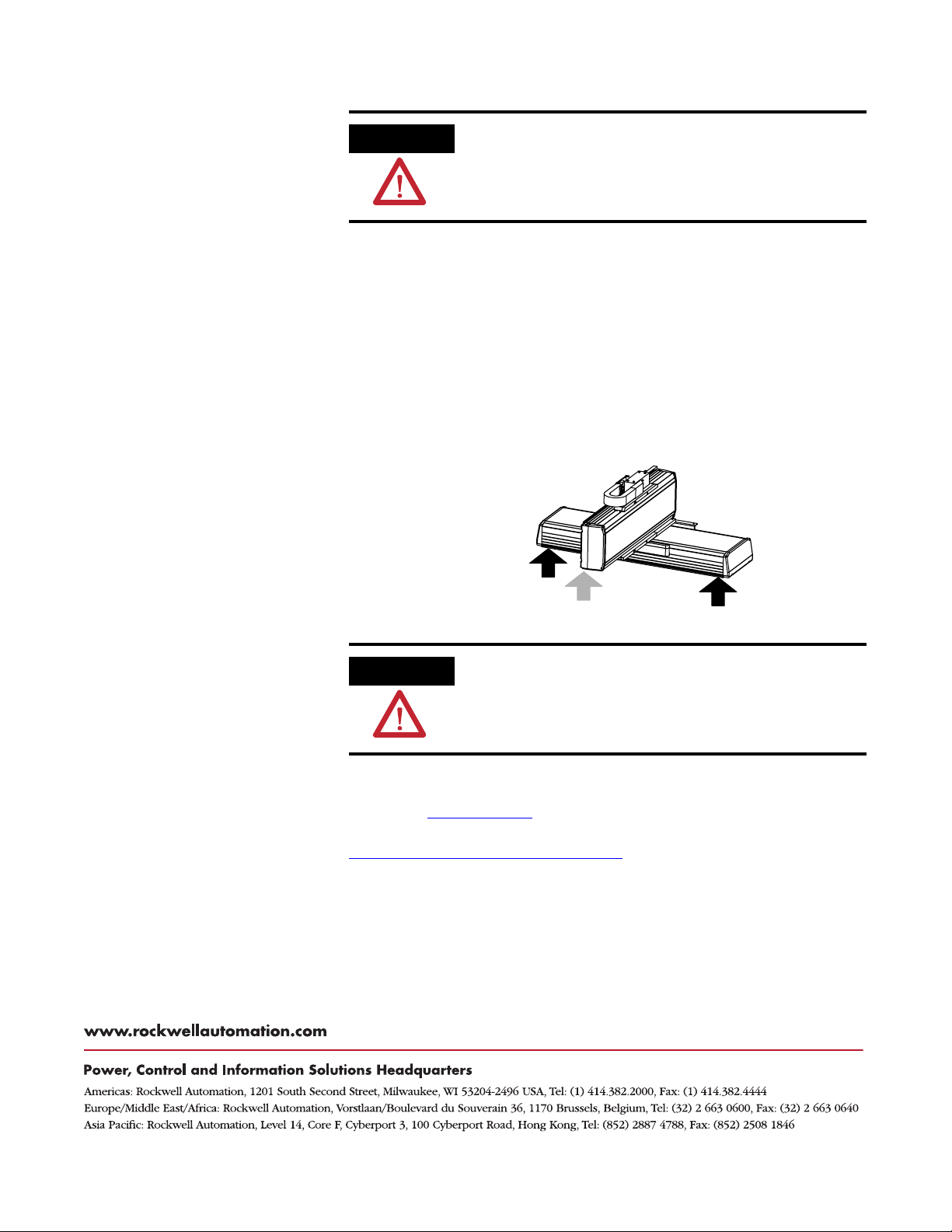

5. Use a three-person lift to move the stacked stage.

Postion one person at each end of base stage grasping the bottom of the

stage near the ends. The third person will grasp the cantilevered end or

top stage by the stage base only and apply only enough lift to balance

the equipment.

The bottom stage should bare most of the weight and the top used for

balance only. Do not lift by the cover, side covers, or put pressure on the

strip seals.

Additional Resource

Refer to the MP-Series Integrated Multi-Axis Linear Stages Users Manual,

publication MPMA-UM001, for additional information on handling stacked

stages. You can view or download publications at

http://literature.rockwellautomation.com. To order paper copies of technical

documentation, contact your local Rockwell Automation distributor or sales

representative.

ATTENTION Never use lifting straps to move the stacked stage. Using lifting

straps will deform covers and strip seals. Always use a three-person

lift to move the stacked stage.

ATTENTION Do not remove stage shipping brackets until stacked stage is fully

installed. Removing stage shipping brackets will allow the carriages

to move unexpectedly which could cause personal injury and damage

to the equipment.
